VPSA Oxygen Plant - 22 TPD
Other Views - click image for larger view
VPSA Oxygen Plant - 22 TPD VPSA Oxygen Plant - 22 TPD VPSA Oxygen Plant - 22 TPD VPSA Oxygen Plant - 22 TPD VPSA Oxygen Plant - 22 TPD VPSA Oxygen Plant - 22 TPD VPSA Oxygen Plant - 22 TPD VPSA Oxygen Plant - 22 TPD

VPSA Oxygen Plant - 22 TPD

Stock # 566
Capacity 22 TPD (700 Nm3/hr)
Products Oxygen

Overview

Used VPSA (Vacuum Pressure Swing Adsorption) oxygen plant built in 2018 and operated for only 8 months. Product purity greater than 93%, output pressure 14.5 psig, oxygen dew point -70 C. Power consumption 0.36 KWH per Nm3 of oxygen; power requirements: 380 V, 50 Hz, 3 phases. New zeolite catalyst included.

Major Equipment

• Air Filter
• Air Cooler

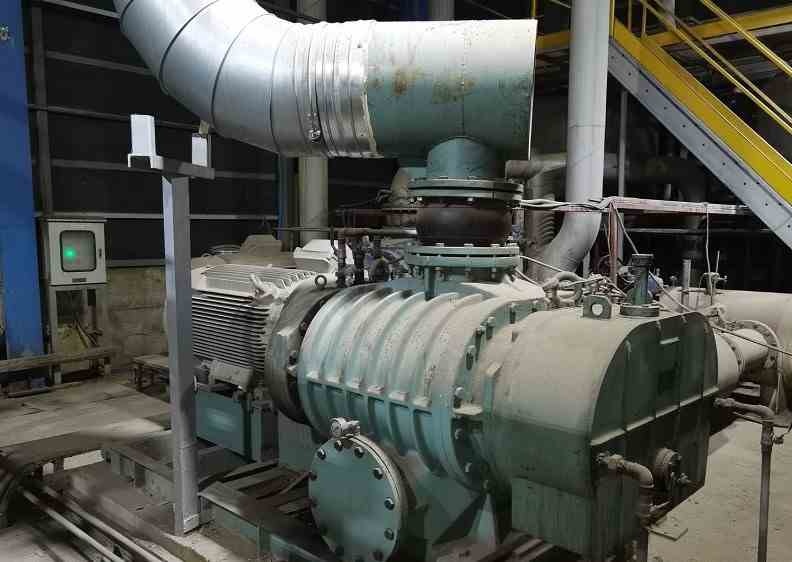

• Roots Blower
• Adsorber
• Adsorber

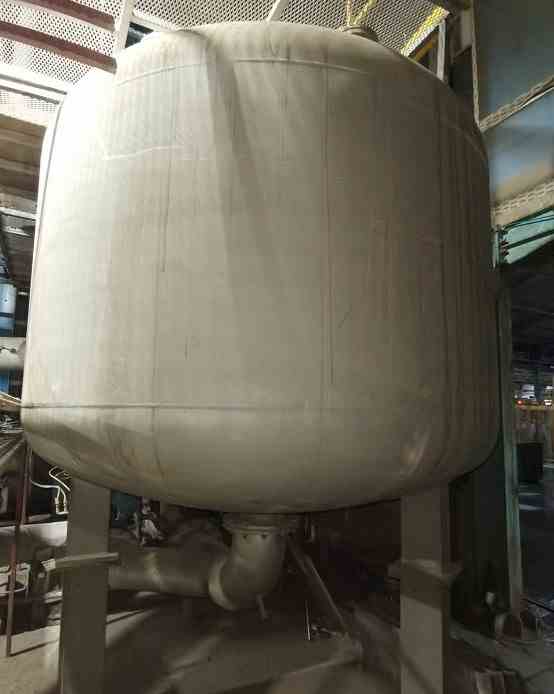

• Oxygen Buffer Tank

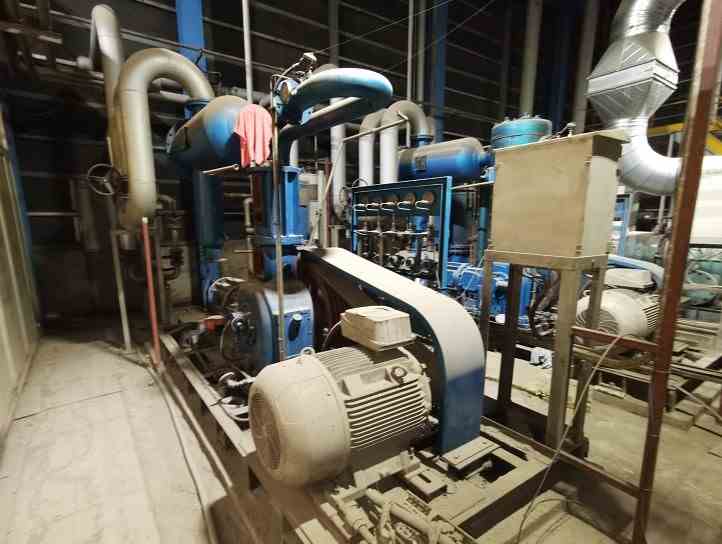

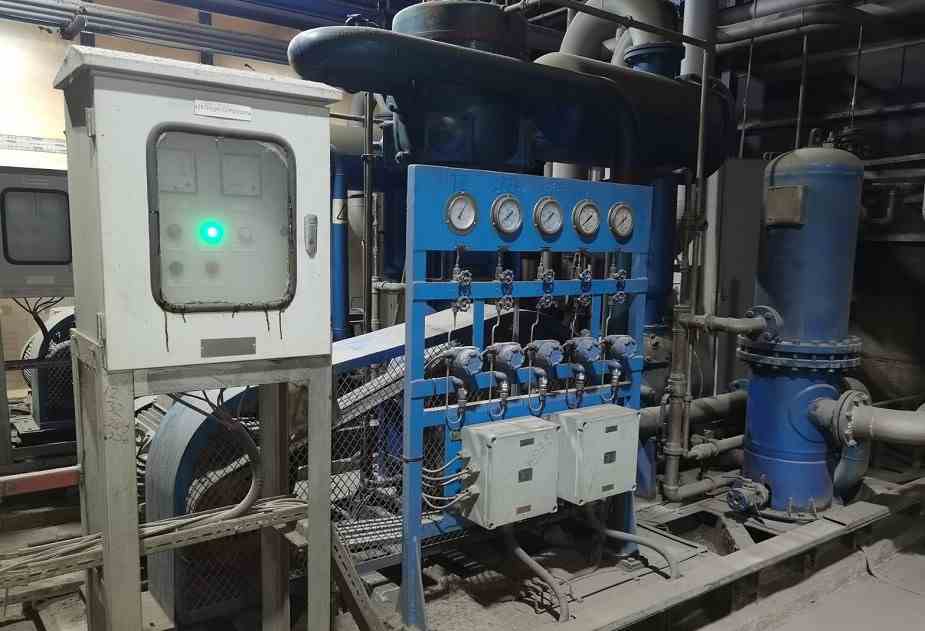

• Oxygen Compressor
• Oxygen Compressor

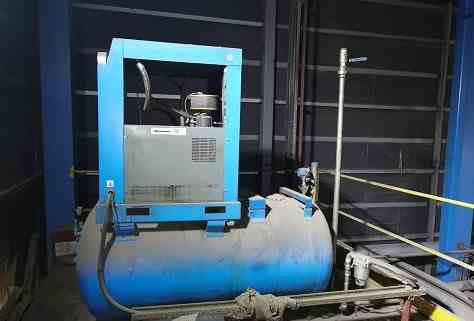

• Screw Air Compressor
• Wet Roots Vacuum Pump
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2018
Year Shut
2019
Capacity
22 TPD (700 Nm3/hr)

For additional information, visit the Resource Center
