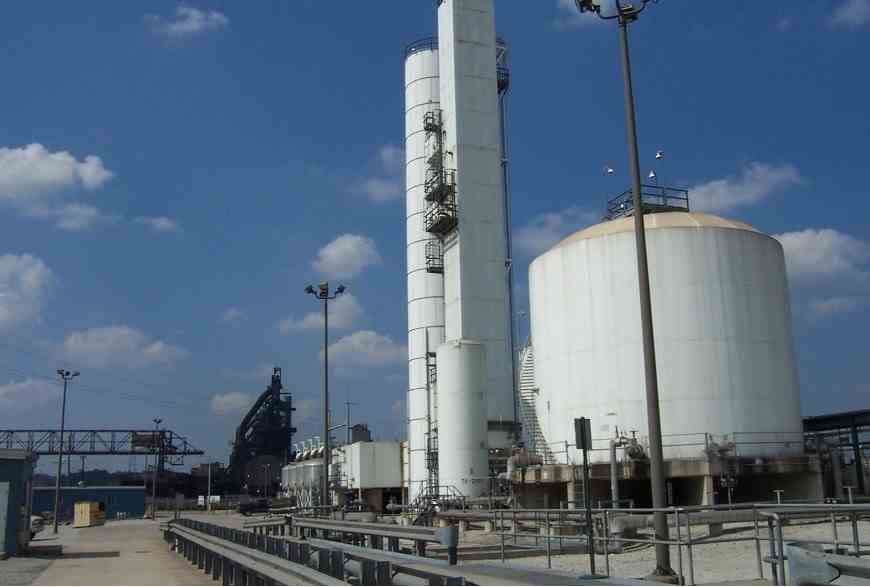

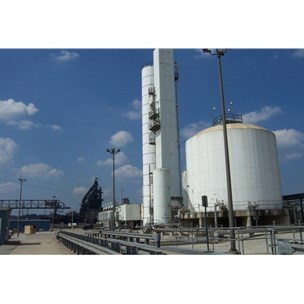

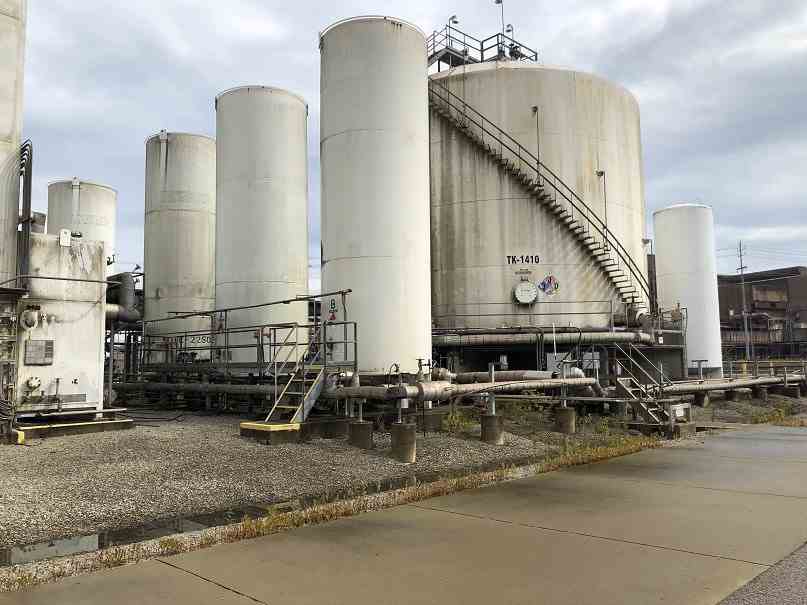

Air Separation Unit - 750 STPD
Other Views - click image for larger view
Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD Air Separation Unit - 750 STPD
Stock # 514
Capacity 750 STPD
Products LOx, LIN, LAR
Sold

Overview

Used 750 STPD ASU with MG Industries Cold Box and Atlas Copco compressors built in 1996 and shut down in 2019 . The plant is designed to produce 750 STPD of LOX at 99.5% purity (max 50 ppm N2) at 5.5 bara, 2063 STPD of LIN (max 1 ppm O2) at 1.18 bara, and 36 STPD of LAR (max 1 ppm O2, 2 ppm N2) at 1.4 bara. Electricity consumption: 1.26 Kwh/100 SCF.

Major Equipment

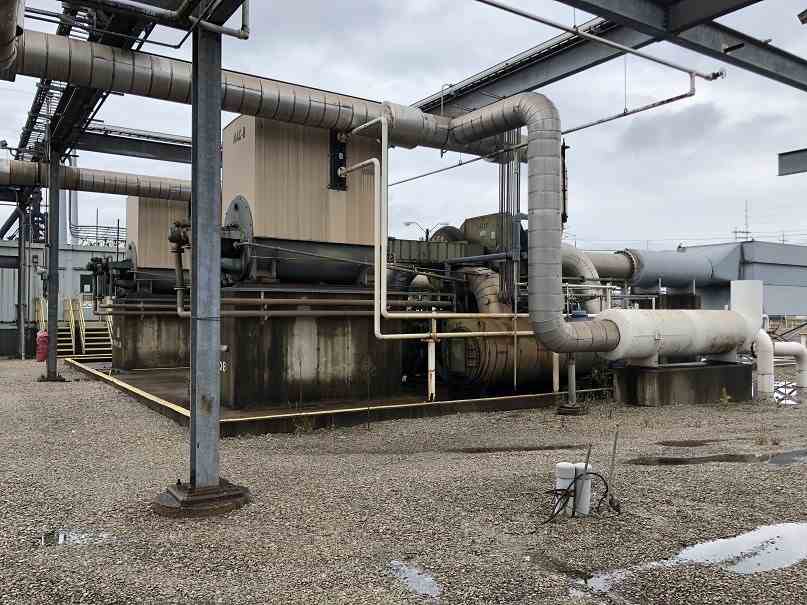

Main Air Compressors
O2 Compressors
Argon Compressor
N2 Compressor

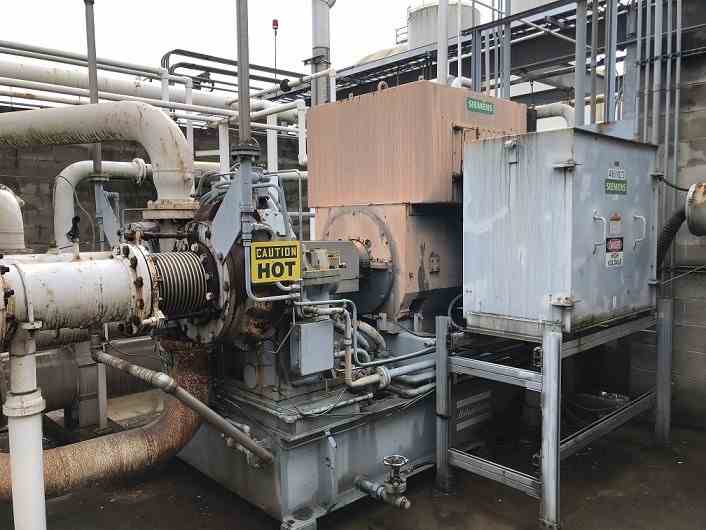

Compressor Motors
Compressor Intercoolers

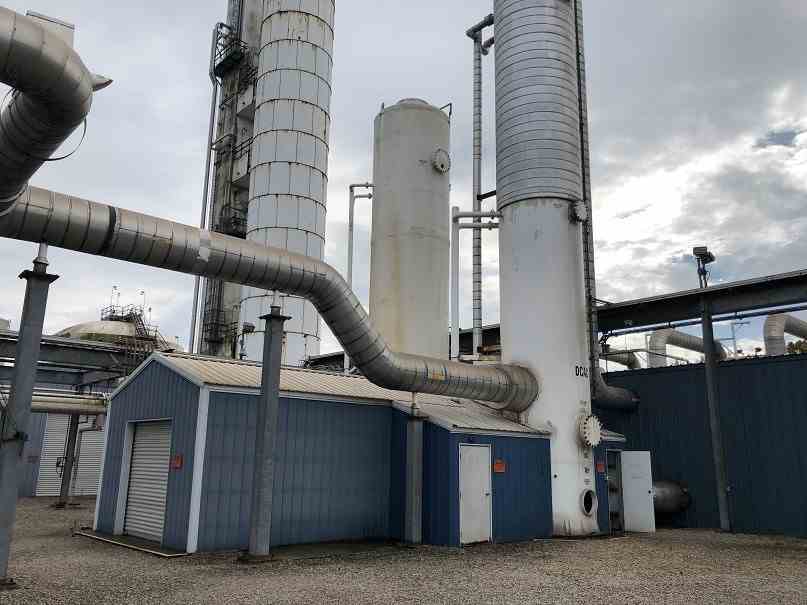

Cold Box

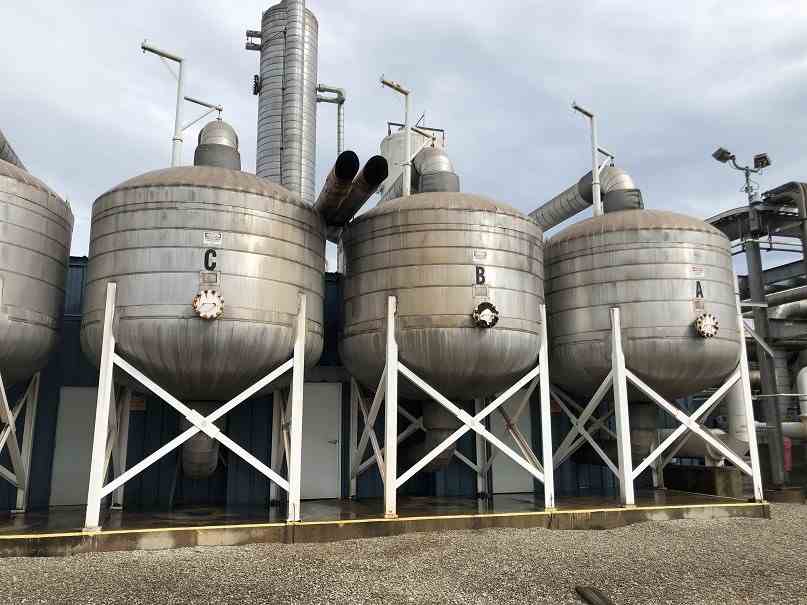

Mole Sieve Skid
Deoxo Skid
Air Expander
LOX HP Pump
LAR HP Pump
Side Stream Filter
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1996
Year Shut
2019
Capacity
750 STPD
