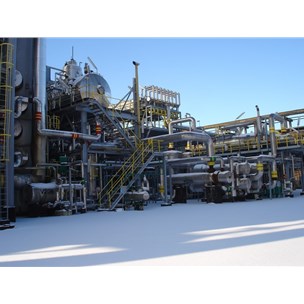

Methanol Plant - 380 TPD
Other Views - click image for larger view
Methanol Plant - 380 TPD Methanol Plant - 380 TPD Methanol Plant - 380 TPD Methanol Plant - 380 TPD Methanol Plant - 380 TPD Methanol Plant - 380 TPD

Methanol Plant - 380 TPD

Stock # 494
Capacity 380 TPD
Products Methanol

Overview

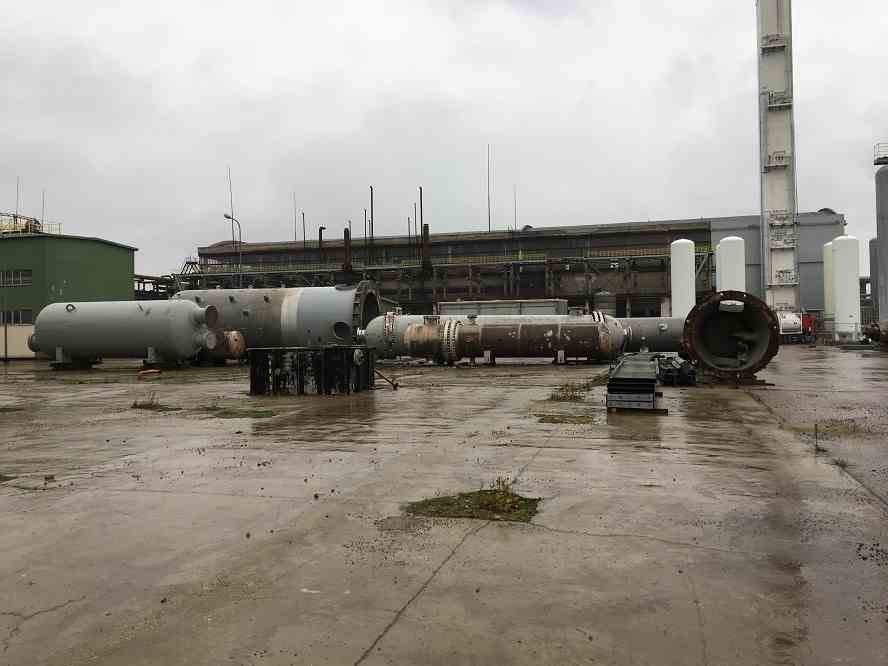

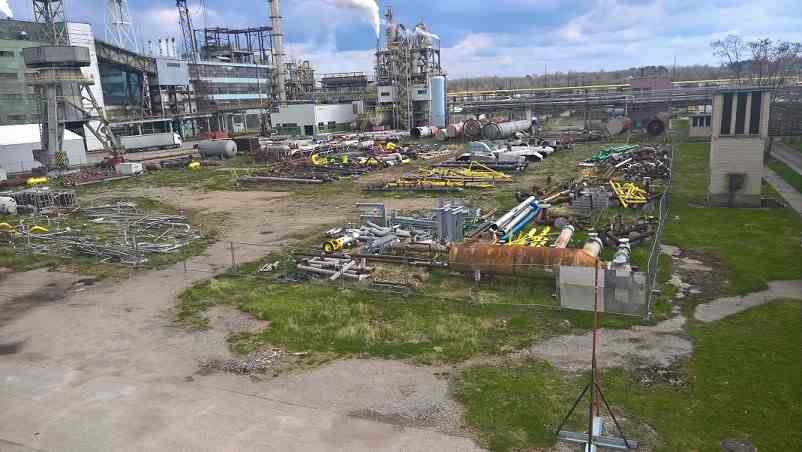

Used 380 TPD Methanol Plant for sale immediately available. The plant was operated for only a few months before it shut down due to natural gas shortage and surging price. The plant has been dismantled. All the equipment is saved in good condition and ready for quick shipment. The plant uses natural gas and carbon dioxide as feedstock. Steam required for reforming is produced by using the heat of flue and reformed gas. The process comprises the follow stages: (1) desulfurization (2) steam reforming (3) steam-oxygen reforming (4) methanol synthesis (5) distillation. Consumption data per ton of refined methanol product (99.95% purity): total natural gas 957 Nm3 (process 691 m3 + fuel 266 m3); carbon dioxide 94 m3; oxygen (95%) 189 m3; total electrical power 143 KW (123 KW for crude methanol production + 20 KW for distillation).

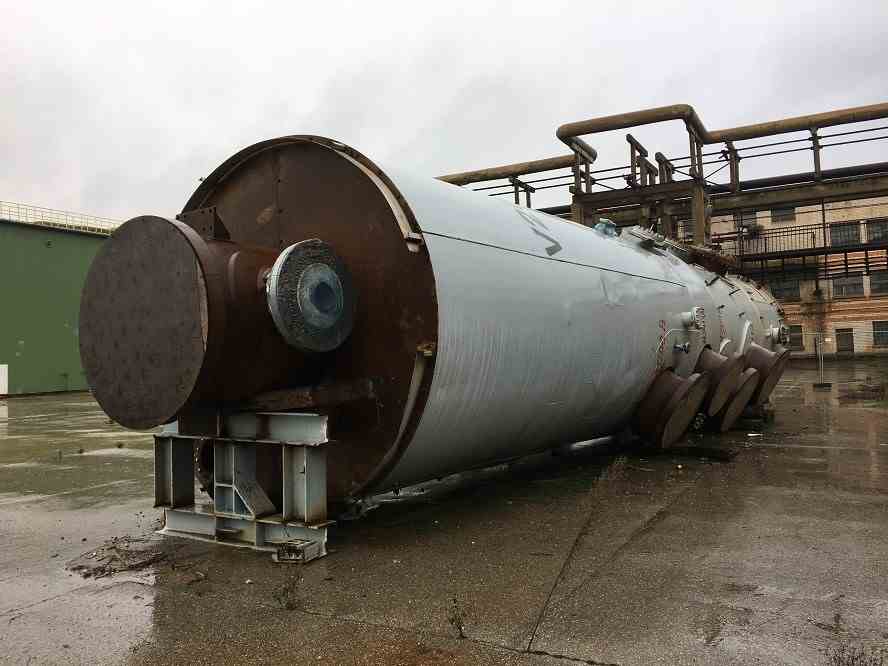

Major Equipment

Natural Gas Preheater

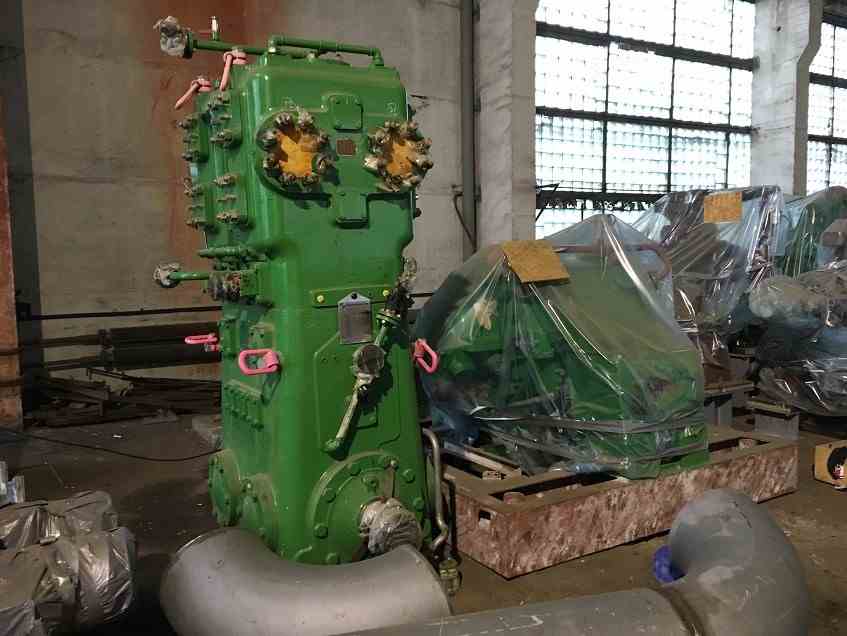

Natural Gas Compressor
Desulfurization Comox Vessel
Desulfurization Zinc Oxide Vessel

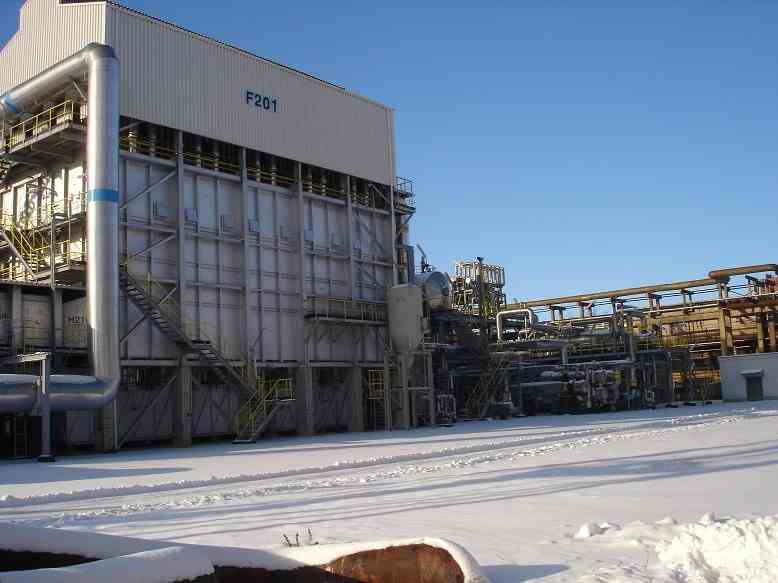

Primary Steam Methane Reformer
Secondary Reformer
Steam Superheater
Oxygen Compressor
Synthesis Gas Compressor
Methanol Converter

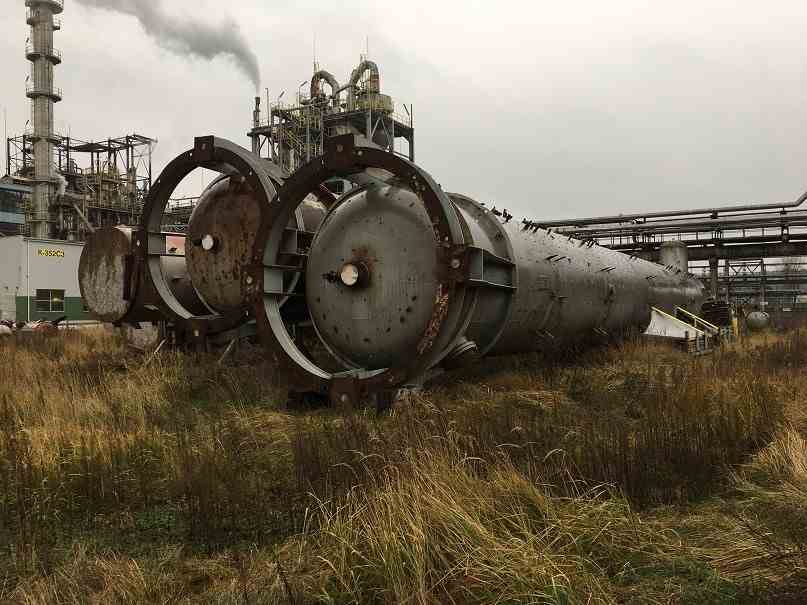

Topping Column
Refining Column
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2008
Year Shut
2008
Capacity
380 TPD
