LNG Plant - 85 TPD (5 MMSCFD)

Stock # 491
Capacity 85 TPD (5 MMSCFD)
Products Liquefied Natrual Gas (LNG)

Overview

Unused 85 TPD (5 MMSCFD) LNG plant built in 2014. Plant equipment manufactured in 2014 but never installed or used due to project cancellation. Designed feed gas composition: methane 98.2%, ethane 0.6%, propane 0.3%, carbon dioxide 0.3%, nitrogen 0.4%; temperature 30 degree C, pressure 25 - 30 bar. LNG product composition: methane 98.7%, ethane 0.6%, propane 0.3%, carbon dioxide 30 ppm max, nitrogen 5 ppm max; temperature -145 degree C, pressure 2.5 bar. Total plant power requirement 2817 KW. Electrical 380 V, 50 Hz, 3 phases. Full technical services such as re-engineering, supervision of installation and commissioning, training, process warrantee are available.

Major Equipment

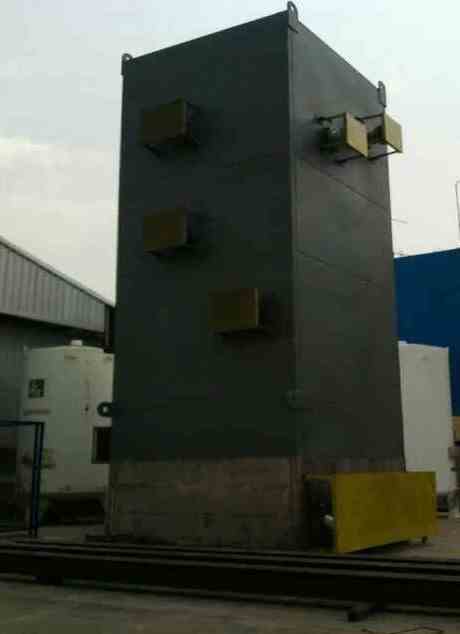

Cold box
Compressor

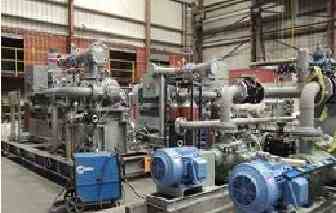

Compressor skid assembly
Gas heater

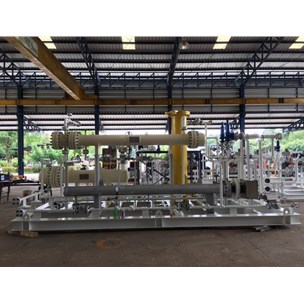

Molecular sieve skid pack
Molecular sieve vessels

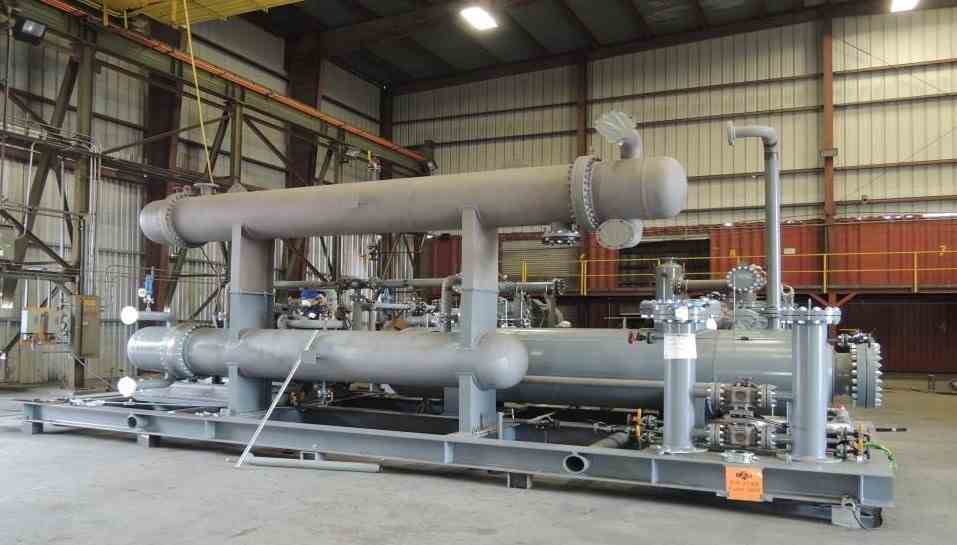

Heat exchanger
Gas filter
MS collection tank
Regen gas scrubber
Allen Bradley PLC
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2014
Year Shut
Capacity
85 TPD (5 MMSCFD)
