Vapor Recovery & Hydrocarbon Liquids Distillation Unit
Other Views - click image for larger view

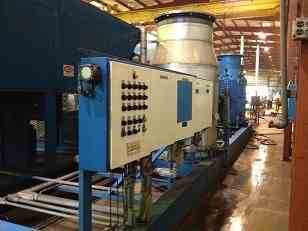

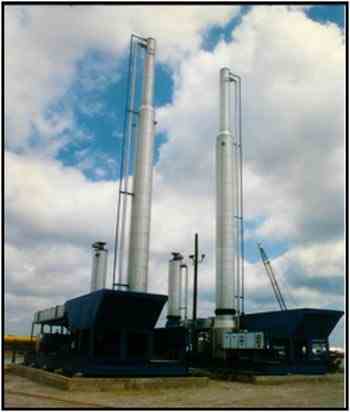

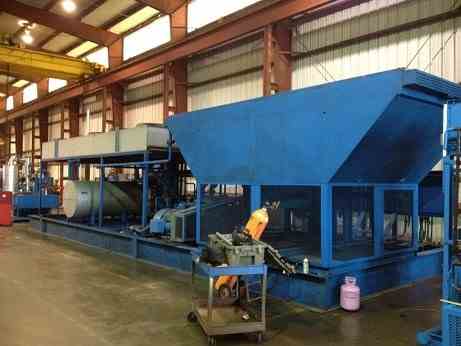

Vapor Recovery & Hydrocarbon Liquids Distillation Unit Vapor Recovery & Hydrocarbon Liquids Distillation Unit Vapor Recovery & Hydrocarbon Liquids Distillation Unit

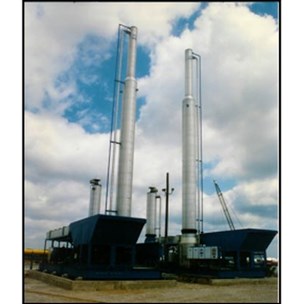

Vapor Recovery & Hydrocarbon Liquids Distillation Unit

Stock # 463
Capacity 1,500 BPD
Products gasolin, diesel, fuel oil
Sold

Overview

Used 1,500 BPD Vapor Recovery & Hydrocarbon Liquids Distillation Unit built in 1998. The unit was originally designed to use lean oil absorption technology to collect hydrocarbon vapor/air mixture from marine docks, tank truck, railcar and storage tanks, and then to use distillation process to make gasoline, diesel and oil products. The unit includes three main process sections: (1) Vapor recovery (lean oil absorption), (2) Regeneration of absorbent fluid, (3) Distillation. The vapor recovery consists of the hydrocarbon vapor/air mixture entering the bottom of a packed column, counter-flowing upward, impinging on absorbent wetted packing. A chilled absorbent fluid enters the top of the tower and begins a downward flow wetting the packing. The air exits the column top stripped of the hydrocarbon vapors. The hydrocarbon vapor, captured by the absorbent fluid, exit the column bottom. If the feedstock is not vapor, the production skips the absorption and regeneration sections, and directly starts from the distillation. It is a good processing unit for condensate, light crude oil, waste oils.

Major Equipment

- Distillation column
- Absorption column
- Electric oil heater
- Compressor
- Lean / rich oil interchanger
- Lean oil chiller
- Stripper overhead chiller
- Lean oil cooler
- Stripper reboiler
- PLC control
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1996
Year Shut
1998
Capacity
1,500 BPD

For additional information, visit the Resource Center
