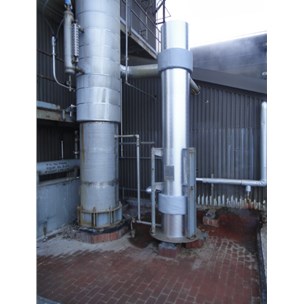

Nitric Acid Concentration Plant - 29 TPD
Other Views - click image for larger view
Nitric Acid Concentration Plant - 29 TPD
Stock # 443
Capacity 29 TPD
Products Nitric Acid (up to 67%)
Sold

Overview

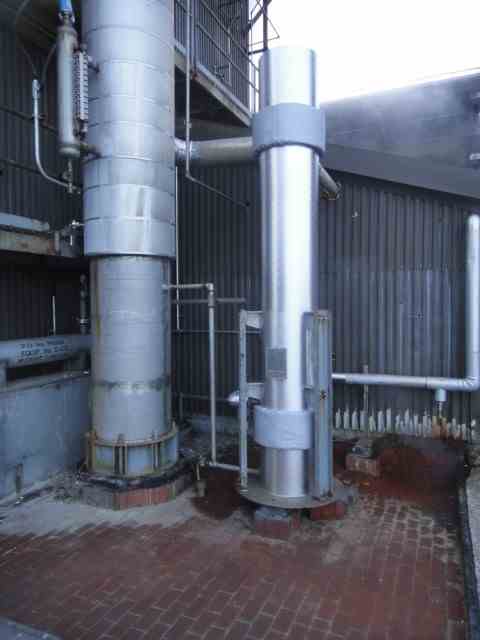

Used 29 TPD Nitric Acid Concentration Plant built in 1956. Increases 54% acid to approximately 63%. Distillation column 38’ 3-1/2” X 2’ 6” ID, consisting of 12 bubble-cap trays with a 2’ tray spacing; each tray has 29“bubble-caps” with each cap having 36 slots. All equipment stainless steel. Two nitric acid storage tanks available.

Major Equipment

Primary condenser
Secondary condenser
Steam ejector
Steam condenser
Distillation column
Reboiler
Concentrated acid cooler
Concentrated acid pump
Concentrated acid pump filter
Share
SPECIFICATIONS RESOURCES
Year Built
1956
Year Shut
Capacity
29 TPD
