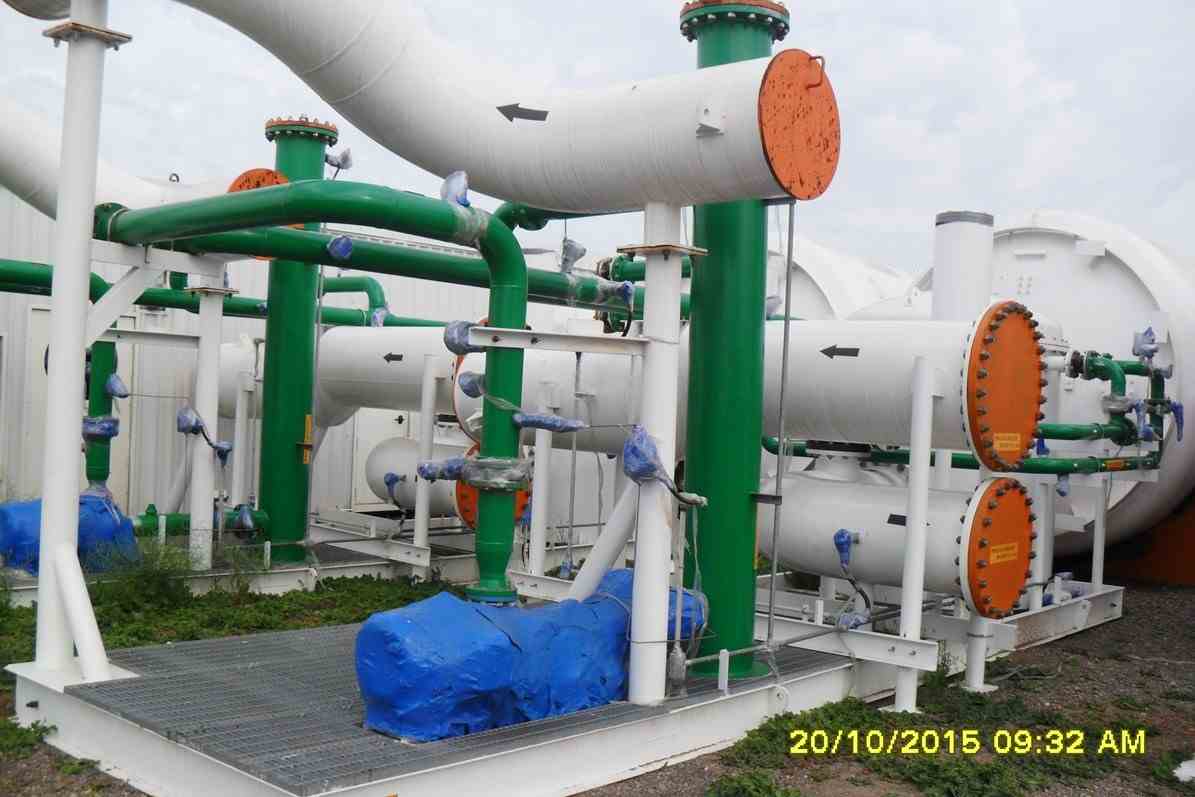

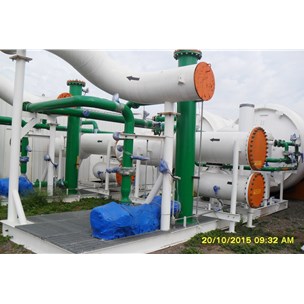

VPSA Oxygen Plant - 220 TPD
Other Views - click image for larger view
VPSA Oxygen Plant - 220 TPD VPSA Oxygen Plant - 220 TPD VPSA Oxygen Plant - 220 TPD
Stock # 414
Capacity 220 TPD
Products Oxygen
Sold

Overview

Unused (2) 110 TPD each VPSA Plant consists of two (2) identical process modules. The plant operation is a periodic batch process, in which adsorbent material is alternately fed with pressurized air to produce the required product, and regenerated by vacuum to remove the residual gases from the adsorbent. During the generation of oxygen, a cyclic swing between overpressure and vacuum occurs. To reduce energy consumption, the pressure is equalized between the production and regeneration steps. Each adsorber undergoes a cyclic process consisting of (1) Adsorption (O2 production); (2) Desorption (evacuation); (3)Re-pressurization (pressure build-up). VPSA plants provide great energy efficiency and flexibility to applications for furnace enrichment, oxygen fuel burners, glass manufacturing, gold bleaching, water treatment, steel mills, oxygen bleaching at pulp and paper mills, uranium recovery, and ozone generation. They are often the most cost-effective oxygen production choice up to 60 tons per day or more, providing high purity oxygen is not required.

Major Equipment

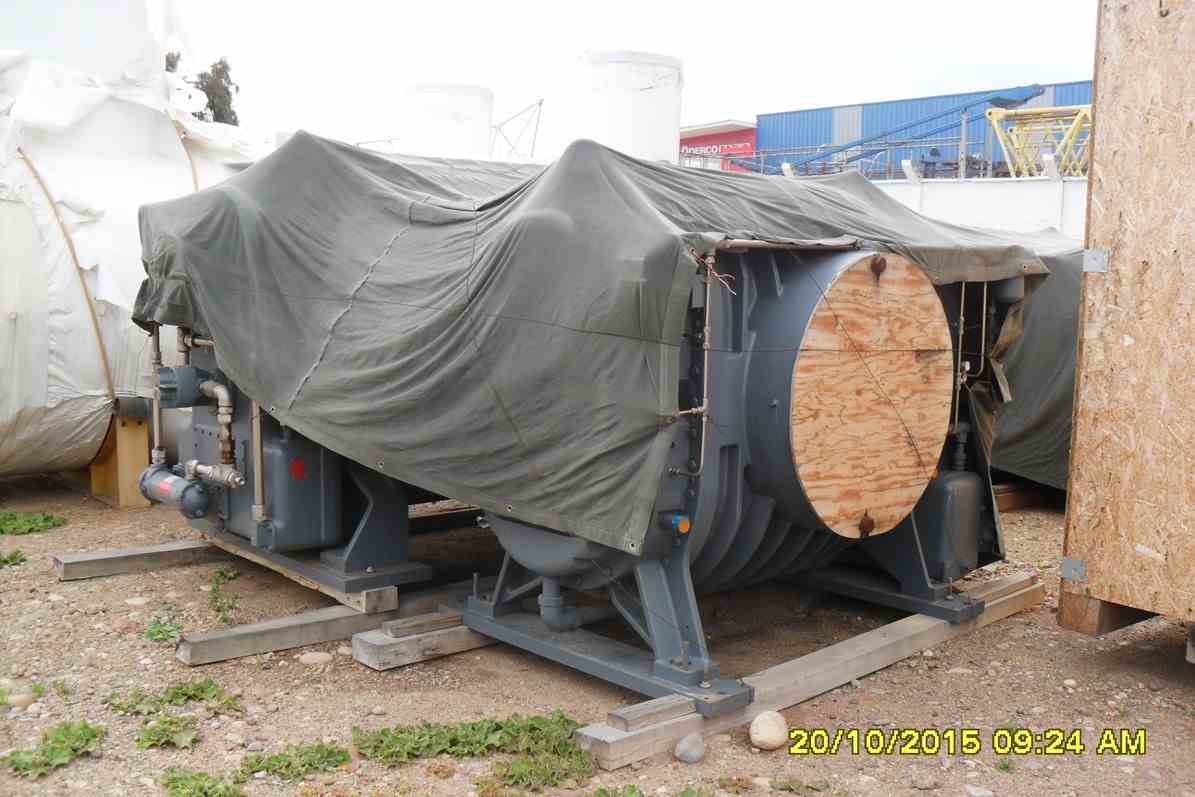

- Feed blower
- Vacuum blowers
- Oxygen compressor
- Instrument air compressor
- Fin fan cooling system
- Drying system
- Air filter
- Silencer
- Molecular sieve

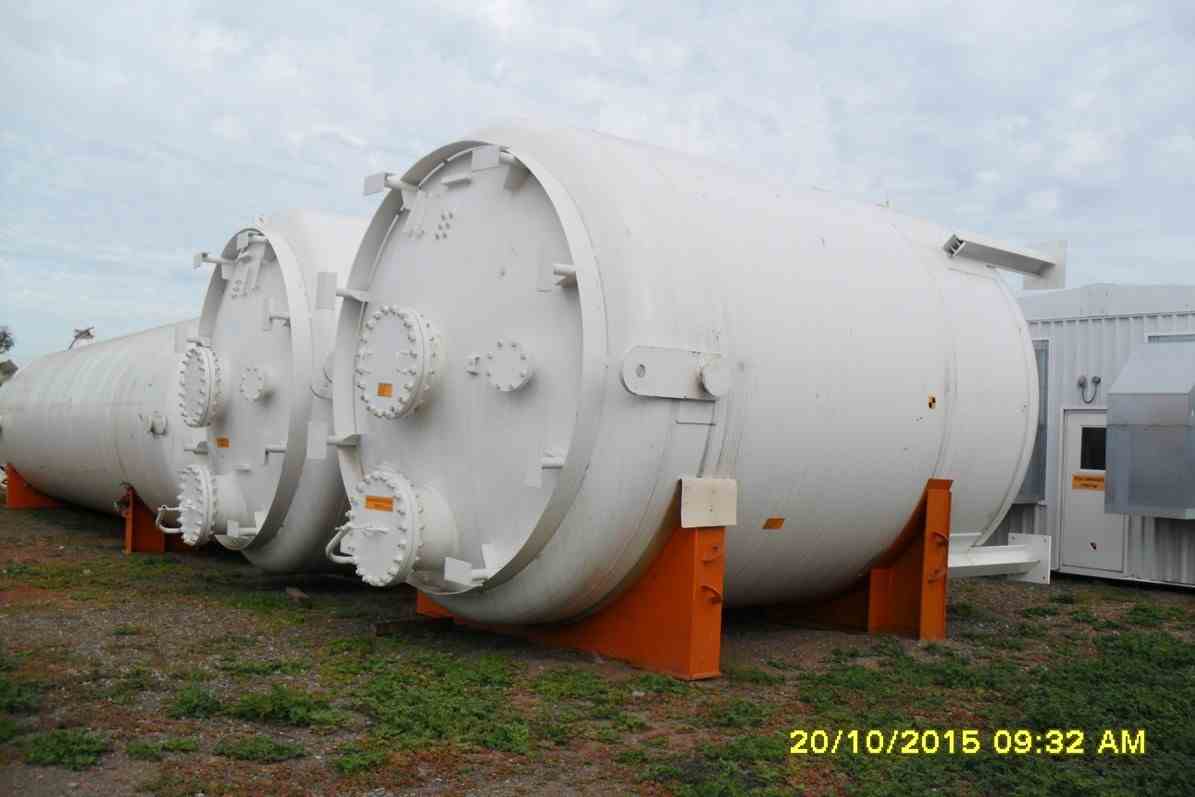

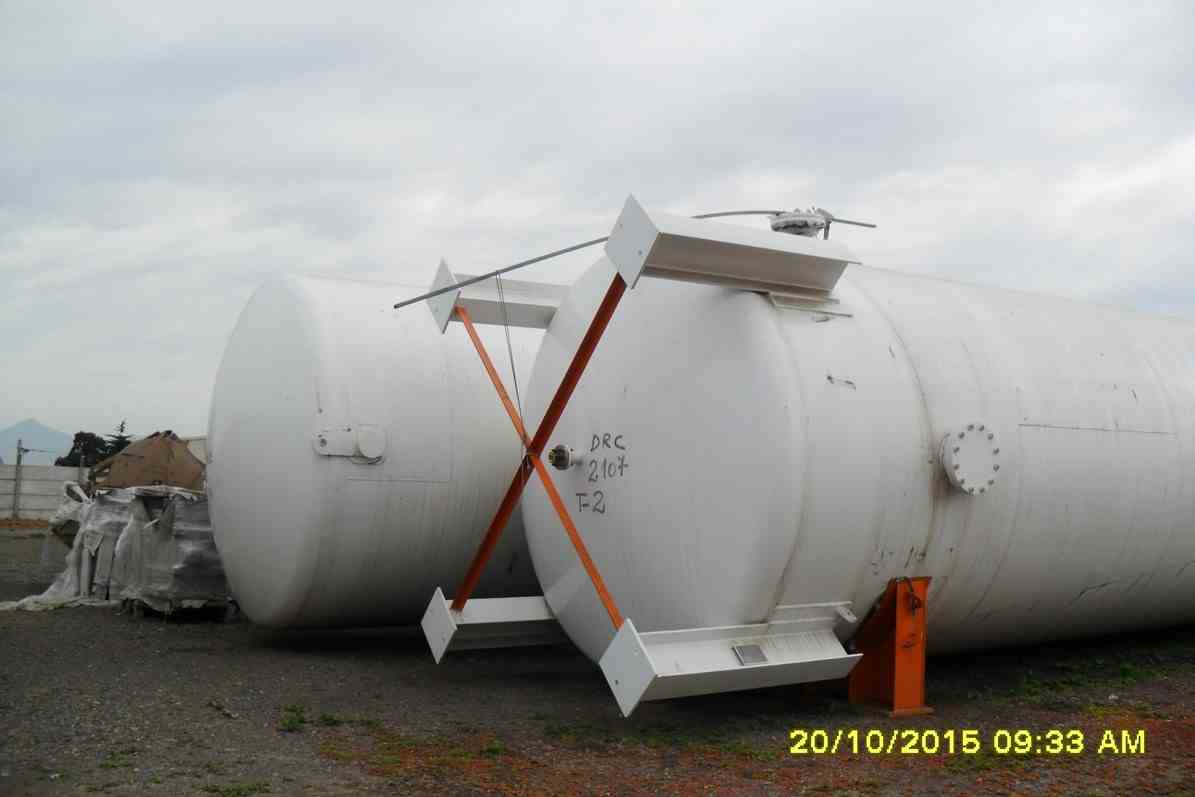

- Adsorption process vessels
- Oxygen surge tank
- Feed air aftercooler
- Glycol expansion tank
- Metering skid
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2013
Year Shut
Capacity
220 TPD
