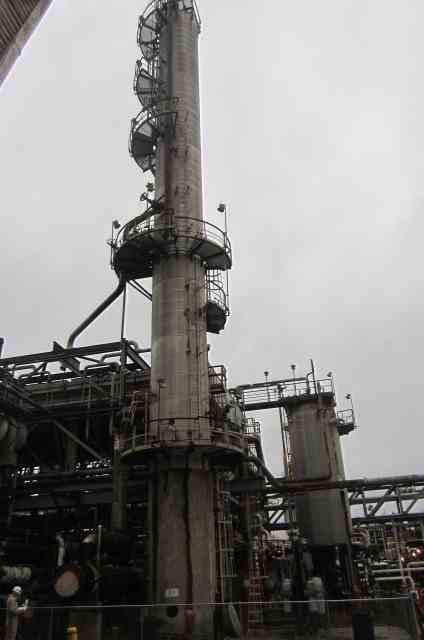

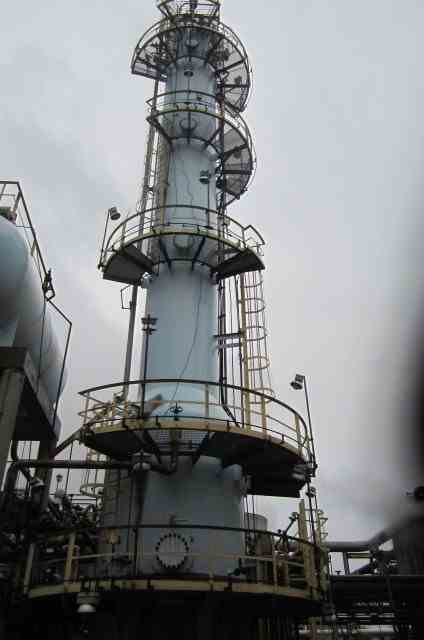

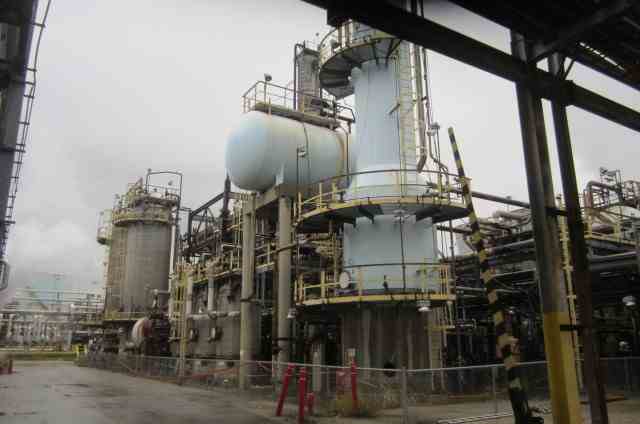

MTBE / TAME Plant - 2,810 TPD
Other Views - click image for larger view
MTBE / TAME Plant - 2,810 TPD MTBE / TAME Plant - 2,810 TPD MTBE / TAME Plant - 2,810 TPD MTBE / TAME Plant - 2,810 TPD
Stock # 391
Capacity 2810
Products Pure MTBE, Pure TAME, C5's, C4 Raffinate
Sold

Overview

Used 2,810 TPD MTBE/TAME (Methyl Tertiary Butyl Ether / Tert-amyl Methyl Ether) Plant. The process consists of the following basic steps: (A) Reaction: reacting isobutylene with methanol to produce MTBE/TAME; (B) Purification: Separation of MTBE/TAME from the butane/n-butylene and excess methanol stream; (C) Methanol Recovery: Recovering the unreacted methanol for recycle to the reaction step and producing a methanol-free butane/n-butylene stream for other chemical or refinery uses. (D) Oxygenate Removal: Removing DME from the butane/n-butylene stream to produce an HF alkylation feed stream.

Major Equipment

The MTBE/TAME Plant comes equipped with the following process equipment and more!

No 1. Liquid Phase, Fixed Bed Reactor
No 1. Liquid Phase, Fixed Bed Reactor
Debutanizer Column
Methanol Absorber
DME Absorber
MTBE Product Cooler
Debutanizer Condenser
Reactor Recycle Cooler
Methanol Mixer
Debutanizer Reboiler
Debutanizer Feed/Bottom Exchanger
Water Wash Tower
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1990
Year Shut
2002
Capacity
2810
