Nitric Acid Plant - 250 STPD
Other Views - click image for larger view

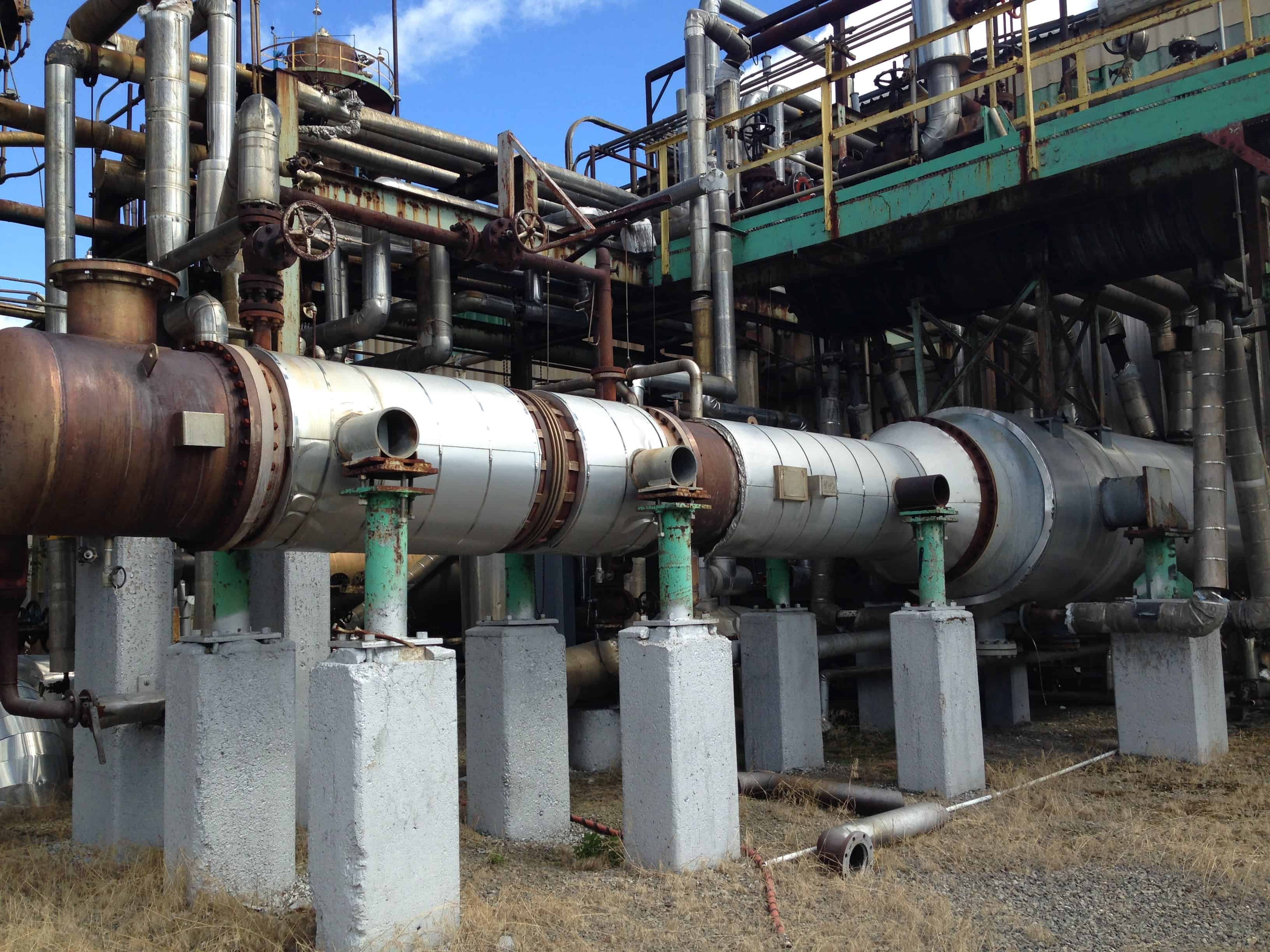

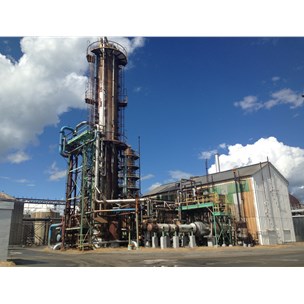

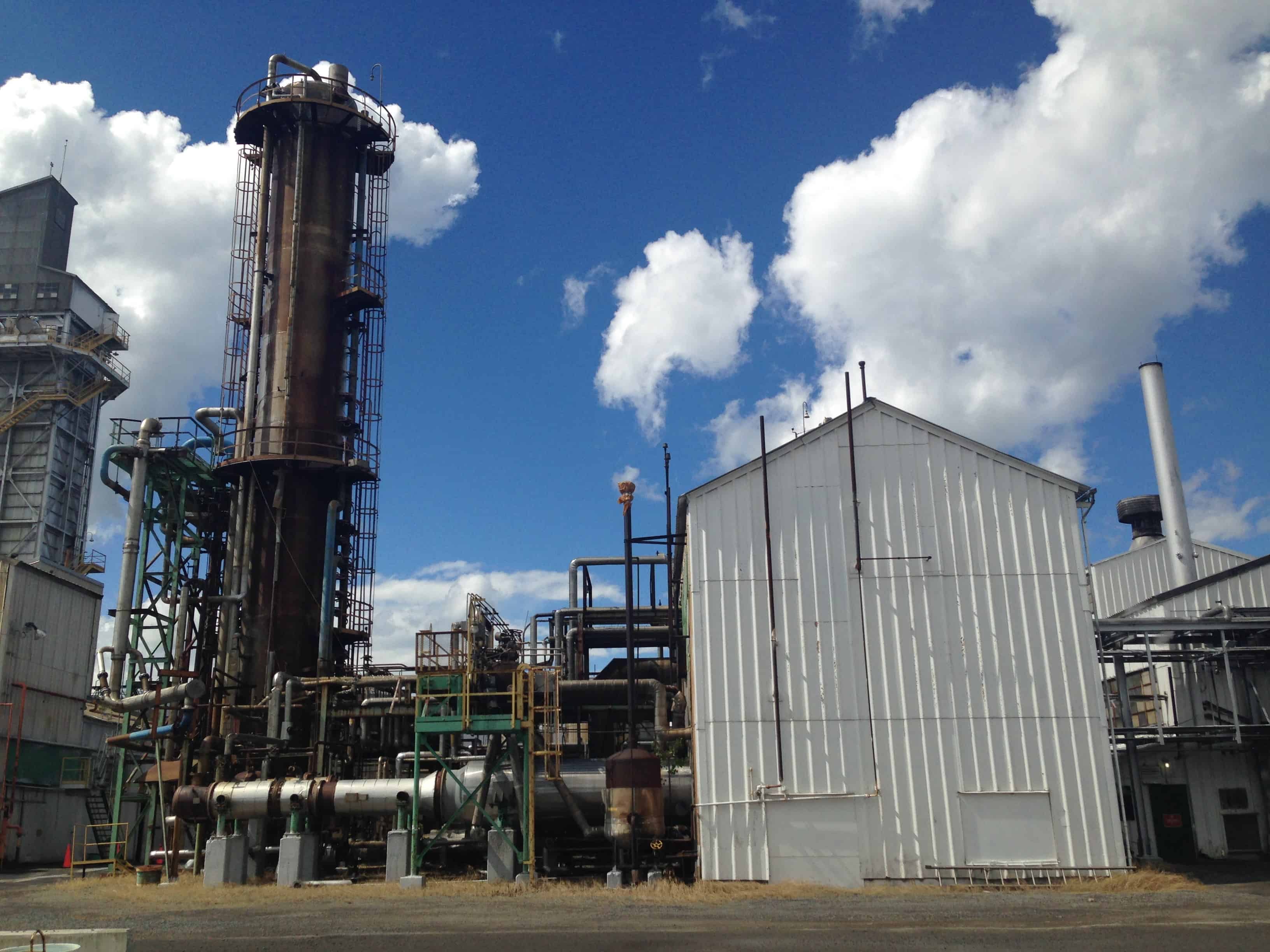

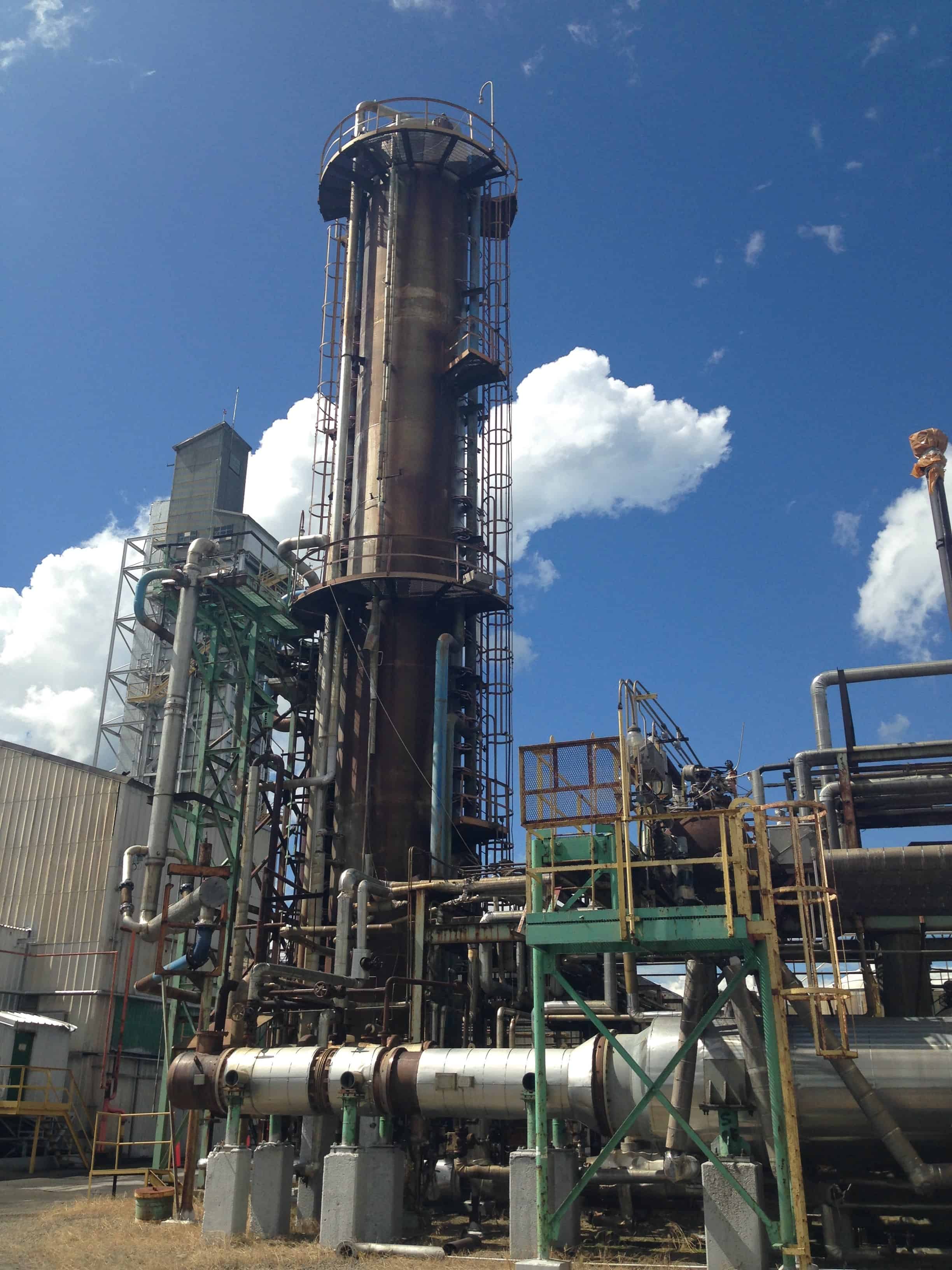

Nitric Acid Plant - 250 STPD Nitric Acid Plant - 250 STPD Nitric Acid Plant - 250 STPD
Stock # 351
Capacity 250 STPD
Products Nitric Acid
Sold

Overview

Used 250 STPD Nitric Acid Plant built in 1965. The plant produces minimum 60% nitric acid. When an auxiliary compressor (IR centac compressor – 1500 HP) was added to increase the bleach flow, the plant could make 290 STPD. Most equipment was built in 1980’s and 1990’s. It has DCS control system from 1999 and vibration monitoring for compressor. Compressor is low pressure unit with combined hot gas expander and second stage. Waste Heat Boiler is new in 2009. Absorber passed thickness tests in 2007. After the plant was shut down, the equipment has been protected with corrosion proof coating.

Major Equipment

Absorption Tower / Absorber: 9'6" dia x 86' with 30 trays



Compressor: Low pressure unit with combined hot gas expander and second stage, Elliot design. Rebuilt by Elliot in 1999.

------------------------------------------------------
Other Equipment:
• Ammonia Evaporator
• Ammonia Superheater
• Weak Acid Condenser
• Nitric Gas Cooler
• Ammonia Burner
• Dual Catalytic Combustor
• Air Compressor System
• Catalyst Recover Filter
• Turbine Gas Heater
• Turbine Gas Boiler
• Economizer
• Discharge spools
• Burner Gas Boiler and Chamber
• Tail Gas Preheater
• Blowdown Tank
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1965
Year Shut
2010
Capacity
250 STPD

For additional information, visit the Resource Center
