Carbon Dioxide Liquefaction Plant - 34 MTPD
Other Views - click image for larger view
Carbon Dioxide Liquefaction Plant - 34 MTPD Carbon Dioxide Liquefaction Plant - 34 MTPD
Stock # 506
Capacity 34 MTPD
Products Liquid Carbon Dioxide (beverage grade)
Sold

Overview

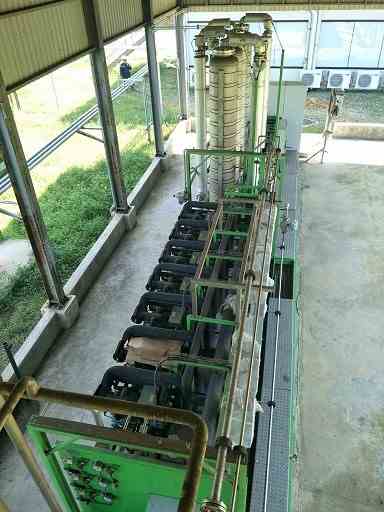

Unused 34 MTPD Carbon Dioxide Liquefaction Plant designed by Pentair Haffmans for sale immediately available. The plant produces beverage grade liquid CO2 (ISBT standards, 99.9% purity), discharge temperature -18 °C, pressure 21.4 barg. The equipment was manufactured in 2014, but never used due to project cancellation. All technical documents available: Design Basis and Unit Description, P&IDs, PFDs, Material Balance, Plant Layout Drawing.

Major Equipment

(1) Gas Analysis System
(1) Gas Pre-cooler
(1) Activated Carbon Filter & Dryer Unit
(1) Inline Dew Point Transmitter
(1) CO2 Mass Flow Meter
(1) CO2 Gas Liquefaction system

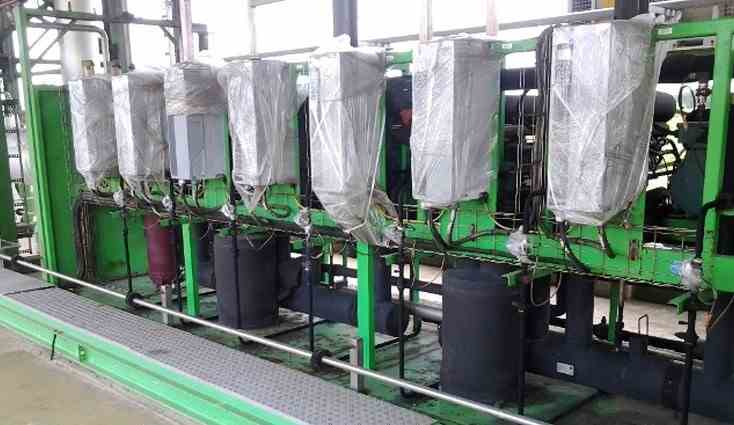

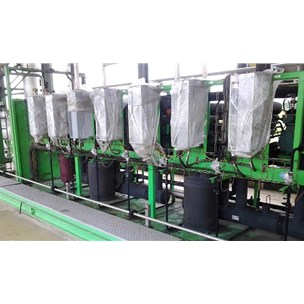

Refrigerant compressors
(1) Refrigerant Evaporative condenser
(2) CO2 Condensers

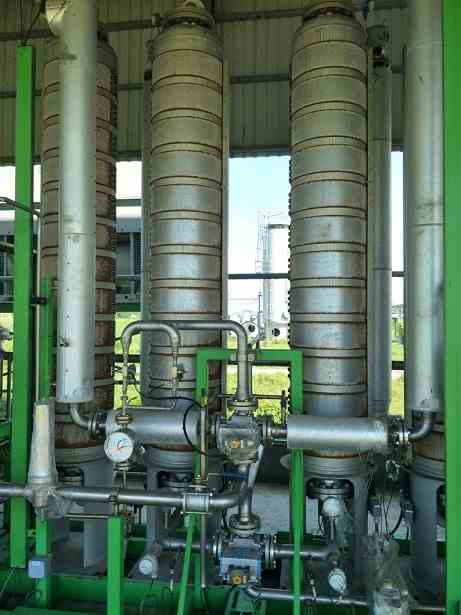

(1) CO2 Purification Unit
(1) Inline O2 Measurement – OGM Ultra Pure
(1) CO2 Mass Flow Meter
(1) Electrical Hardware & Control System (Siemens)
(1) Pre-fabricated unit with interconnecting & mounting materials
(1) Design package
(1) First set of preventive Maintenance Parts
Share
SPECIFICATIONS RESOURCES
Year Built
2015
Year Shut
Capacity
34 MTPD
