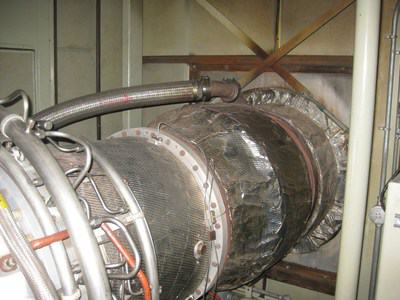

Used 4.25 MW Solar Centaur Type H Gas Turbine Generator Set model #GSI-CU-KA, assembly 2-46141, serial #HG92957, Built 1994 with total hours of operation and starts. Dual Fuel: Natural Gas or #2 Oil. Gas Turbine: Solar Centaur 50 version 5701, Engine ID EH5701-59-DW, Serial #OHE10-H1460, Power 4138/4060 (G/L), NGP 14951 60 HZ/14944 50 HZ, IGV Setting 8.0, T5 Base 1297 F/1288 F (G/L), Setpoint Full Load 1400 F/1400 F; Gear Box: Solar Turbines Gear Unit Assembly E136600-204-950, Serial #GBE10-63537, 1800 rpm; AC Generator: 4.25 MW Kato Engineering Brushless Synchronous AC Generator model #A255800000, Type 25580, Serial #99317-01, 3/60/2400/4160V, 737 Amp, Temp Rise 80 C, Design AMB 40 C, Solar P/N 190544-1, Catalogue 4PT-3800; Lube Oil Booster Pump Skid: (2) Viking pumps model HJ4195 attached with 5 HP motors, 1140 rpm, 230/460V. Skid mounted: 3'W x 6'H x 5'L. and (2) BRI Filters MAWP 250 psig @ 250 F, MDMT -20 F @ 250 psi, both built 1992; Lube Oil Coolers: (3) Hayden Industrial Products Lube Oil Coolers model TT-318, rated 260 psi with 5 HP motors 3/60/460 1150 rpm, built 2010; Donaldson Self-Cleaning Air Filter System, model TTD 00-4019, single stage (unit weighs approx. 5500#); Control Cabinet: Caterpillar Solar Control Console model #GS1-C0, serial #HG92957, Assembly #CON46141, 240 Volts AC, 1 PH, 180 Hz, 5 amps, Rating 24 Volts DC, 30 amps.

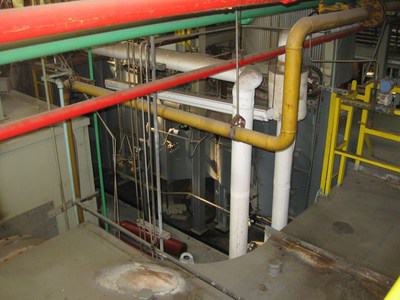

Used 40,000 lbs/hr Heat Recovery Steam Generator (HRSG) boiler with economizer mfg. by Energy Recovery Inc. Model #S3-1816 w/ economizer. HRSG design pressure 200 psig, operating pressure 100 psig, feedwater temp 228 F, Total Boiler Heating surface area 13,570 Sq Ft, 288 tubes x 2" OD. Unit comes with a Davis 16.6 million BTUH natural gas fired duct burner. Serial #w-2929, NB #2804, Built 1992.

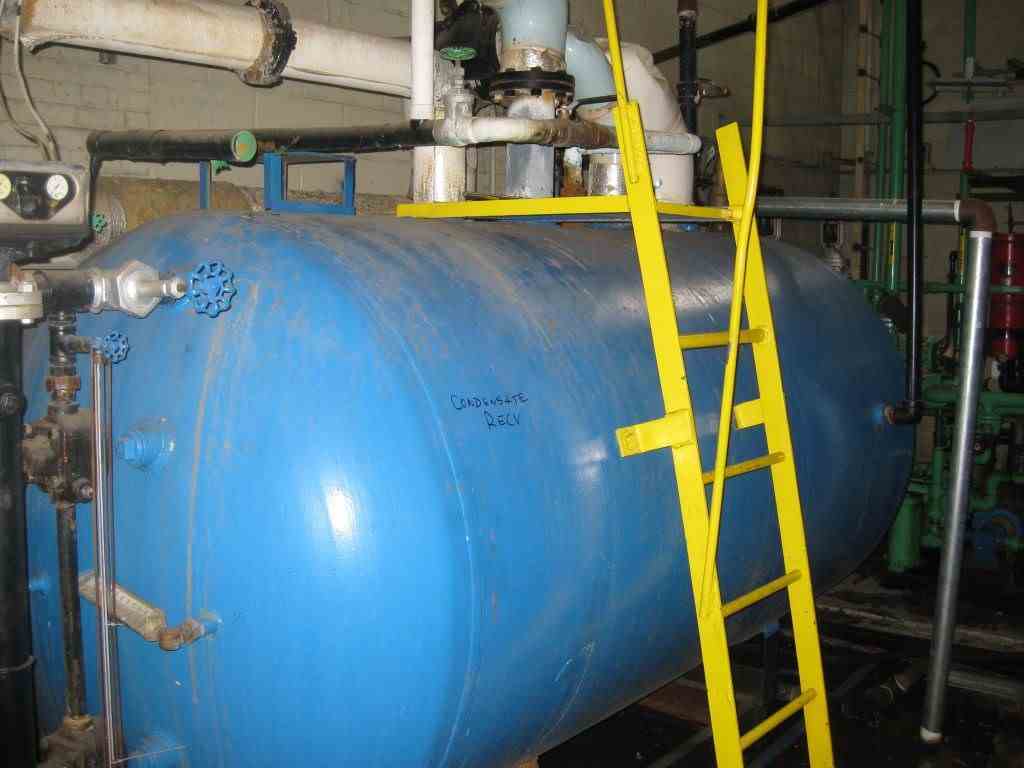

Used Approx. 1100 gallon Old Dominion Tank & Heat Company carbon steel horizontal pressure tank, rated 125 psig @ 500 F, 5' ft dia x 8' ft T/T with dished heads on skid, NB #229137, serial #670-L, Built 1974.

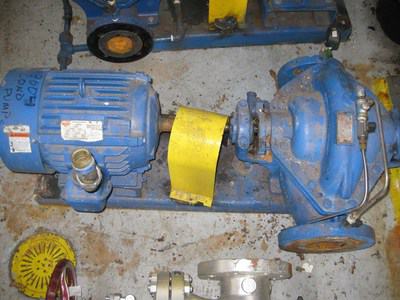

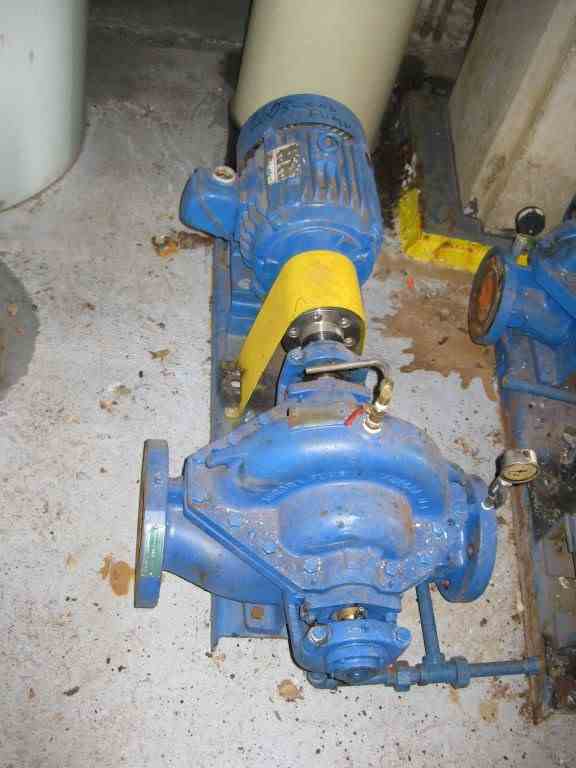

Used Aurora Horizontal Split Case Pump, 200 GPM @ 70' Head, 1750 rpm, type 411-BF, with 10 HP Dayton motor, 3/60/230/460V @ 1750 rpm. Pump made with carbon steel, serial #92-10169.

Used Aurora Horizontal Split Case Pump, 200 GPM @ 70' Head, 1750 rpm, type 411-BF, with 10 HP Dayton motor, 3/60/230/460V @ 1750 rpm. Pump made with carbon steel, serial #72-11288.

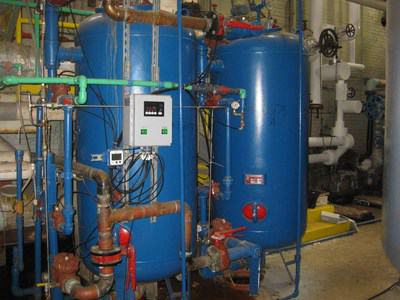

Used Condensate Polisher System consisting of two (2) vertical carbon steel tanks by Universal Tank and Fabrication, Inc. Tank A rated 100 psi @ 200 F, min 33 F @ 100 psi, serial #683001, Built 2011, Tank B rated 100 psi @ 200 F, min 33 F @ 100 psi, serial #656901, Built 2010. Both tanks 5' L x 3' OD, complete with regeneration control panel series 962.

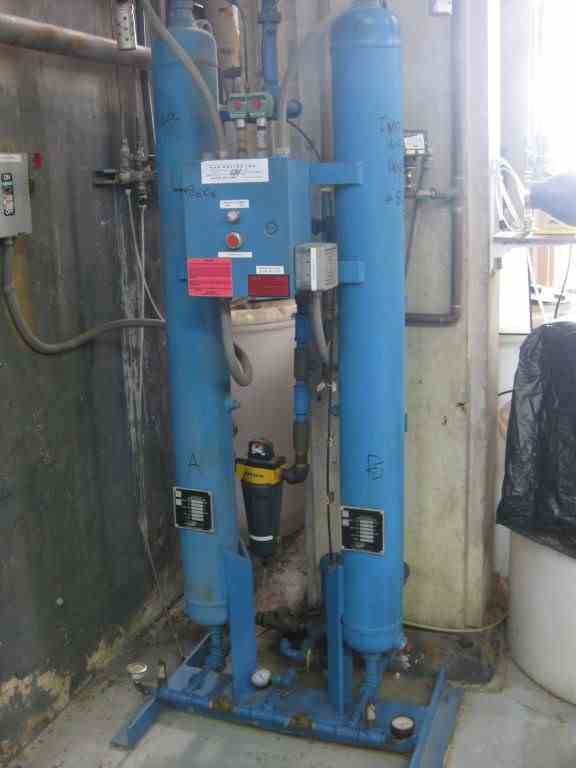

Used 100 SCFM Gas Drying Inc. (GDI) Heatless (Pressure Swing) Desicant Air Dryer, Model 6/EV, rated 100 SCFM @ 120 to 150 psig, comes with two tanks. Tank A rated 165 psig @ 200 F, min -25 F @ 165 psig, serial #6259-a, Built 2001; Tank B rated 165 psig @ 200 F, min -25 F @ 165 psig, serial #6259-b, Built 2001. 37" L x 22" W x 89" H OAD, est. weight 500#.

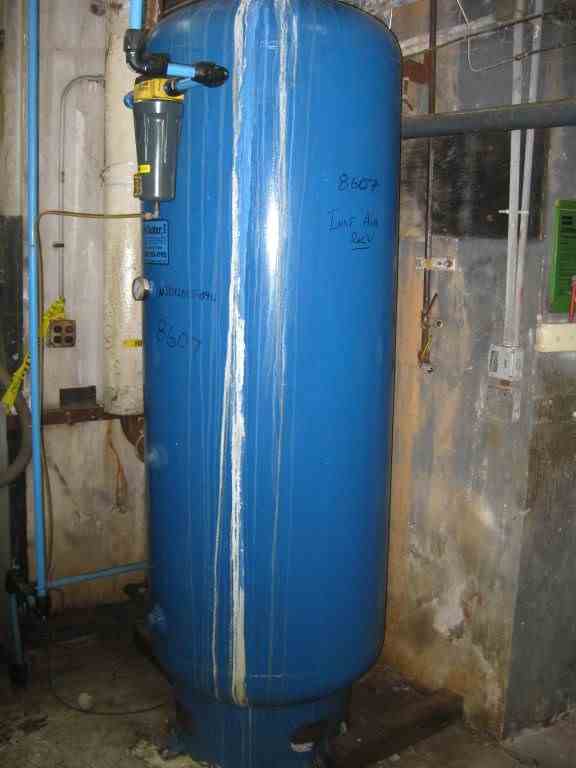

Used Steel Fab Vertical Pressure Tank rated 200 psi @ 400 F, serial #4781135, built 2007.

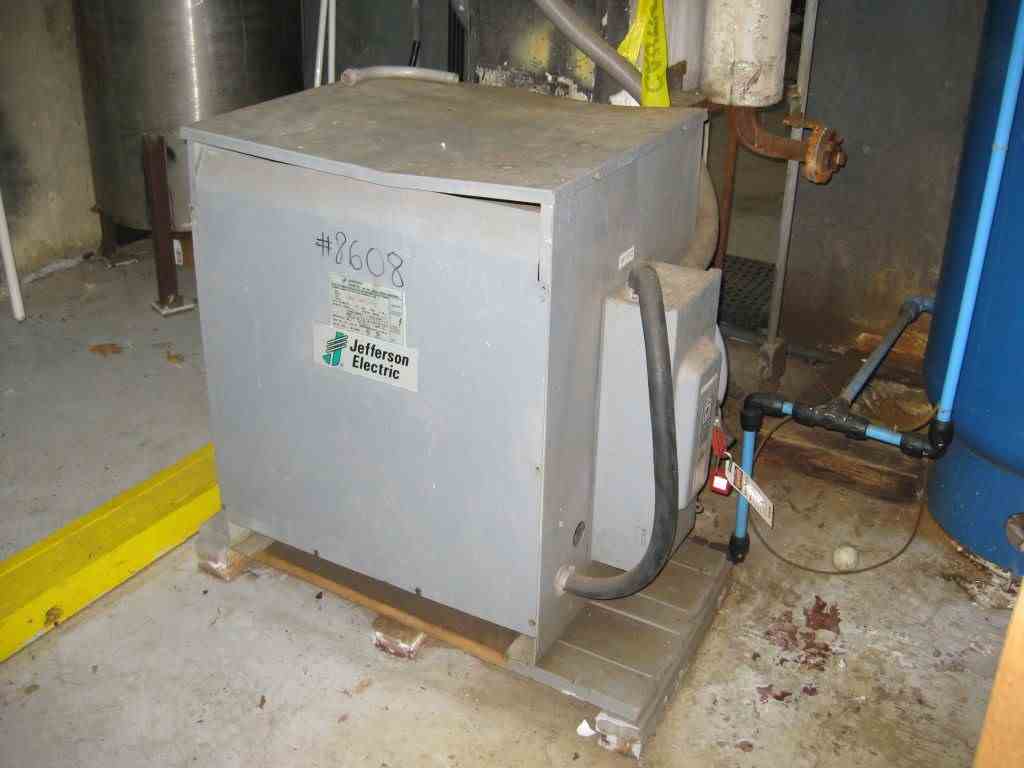

Used 112.5 KVA Transformer made by Jefferson Electric, 3/60/208Y/480, weight 695#.

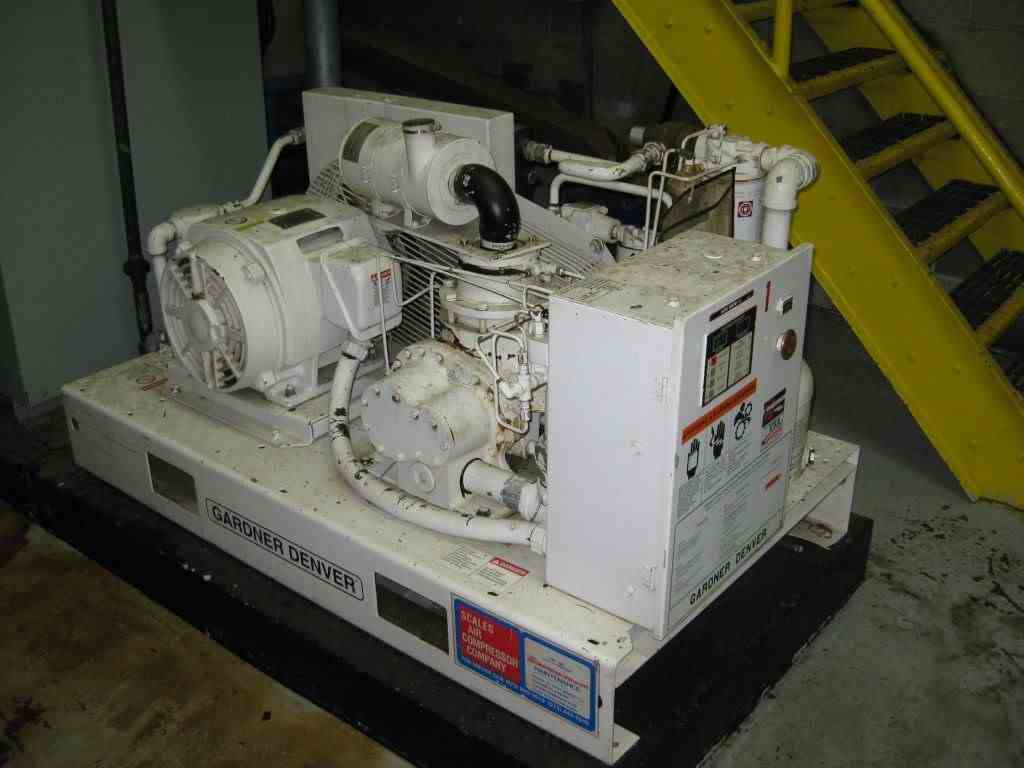

Used Gardner Denver Rotary Screw Air Compressor model EBE 99K, rated 125 psig, 3/60/200V, with Toshiba 25 HP Motor, 3/60/200V @ 1765 rpm. Unit is skid mounted, air cooled, with control panel, serial #S020598, built 1998.

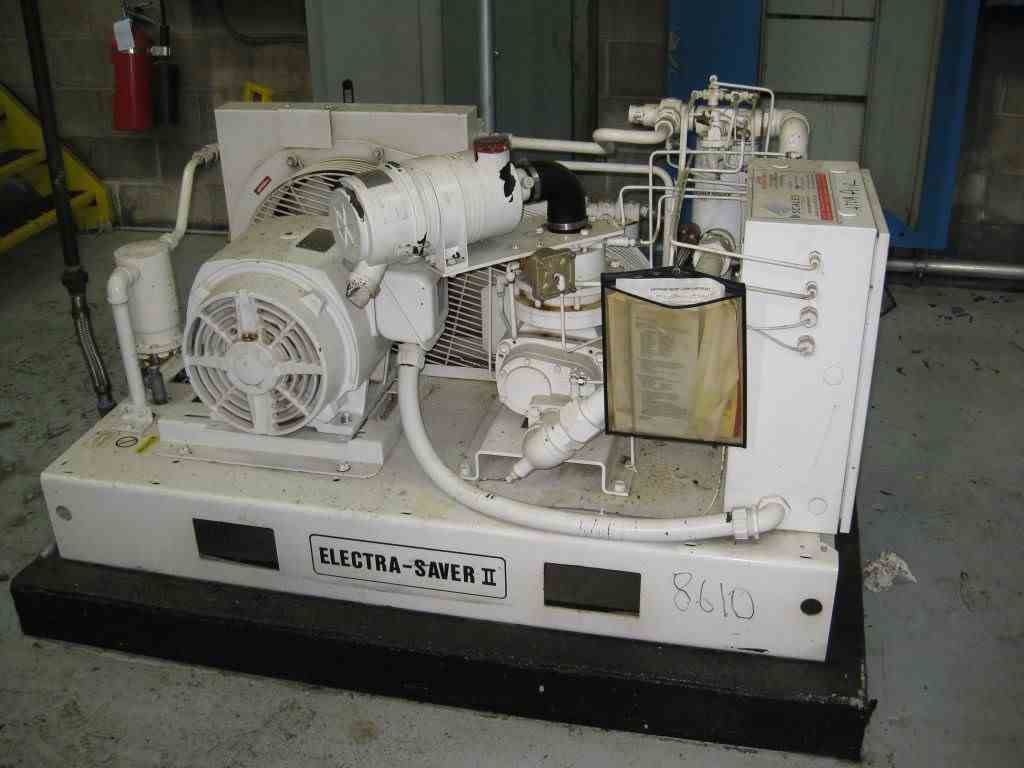

Used Gardner Denver Rotary Screw Air Compressor model EBE 99N, rated 125 psig, 3/60/200V, with Toshiba 25 HP Motor, 3/60/200V @ 1765 rpm. Unit is skid mounted, air cooled, with control panel, serial #S217506, built 2005.

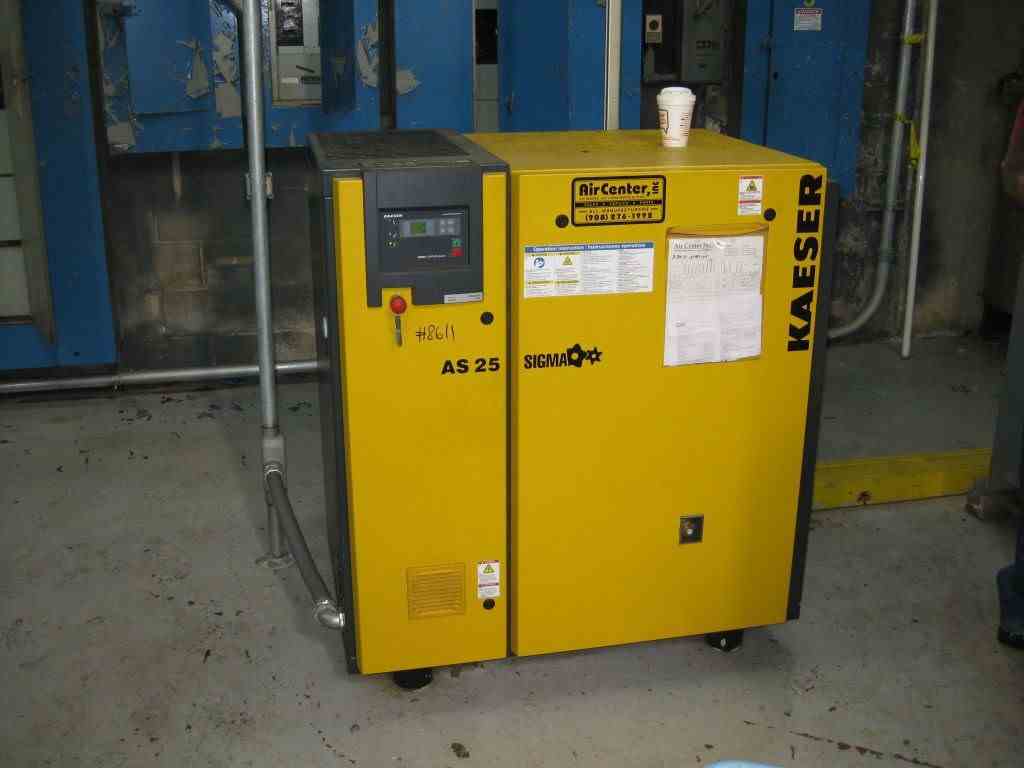

Used 111 CFM @ 125 psig rotary screw compressor, Mfg. by Kaeser Compressors, model AS 25, 3/60/120V, with 25 HP motor 3560 rpm, serial #1721, built 2011. 19,995 hours.

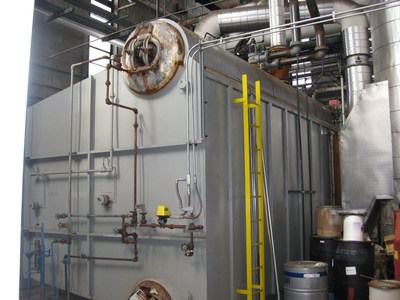

Used 50,000 lbs/hr Package Boiler by Tampella Power model DS-45, two drum water tube type boiler. 50,000 lbs/hr of steam, 100 psig operating press., 200 psig design press., saturated steam temp., 228 F feedwater temp., 3925 Sq Ft total heating surface, 555 Sq Ft radiant heating surface, 3370 Sq Ft convection heating surface, 955 Cu Ft furnace volume, natural gas/#2 oil fueled. Comes w/ Tampella Power Faber Type "WB" Burner Unit, model W01-23.5, 3163 lbs/hr of oil and 64,550 CFH gas. 13'6" H x 19'8" L x 11' W OAD, Serial #94102, NB #5657, Built 1994.

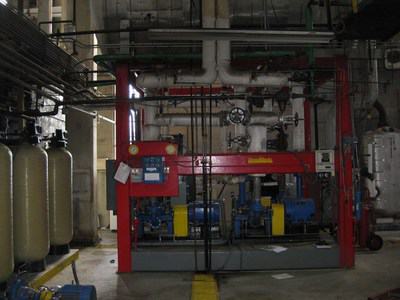

Used 240,000 lbs/hr Cleaver Brooks Spraymaster Deaerator Package model SM-240P, with 5600 gallon carbon steel storage tank, 9' OD x 16'7" OAL on saddle on top of skid. Unit complete with (3) boiler feed water pumps: (1) 230 GPM @ 440 ft head Goulds Pump, size 3x4-11G, 3550 rpm, model 3316M, serial 207C147, with 50 HP GE motor, 3550 rpm, 3/60/200V; (2) 230 GPM @ 440 ft head Goulds Pump (no nameplate), with 50 HP GE motor, 3550 rpm, 3/60/220V; (3) 230 GPM @ 440 ft head Gould Pump, size 3x4-11S, 3550 rpm, model 3316, serial 252645, with 50 HP GE motor, 3550 rpm, 3/60/200/400V. Deaerator package comes with control panels and starter, skid size 12'6"L x 10'W x 11'H, serial #DS1049, built in 1972.

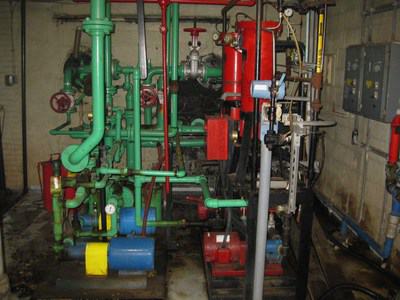

Used Auxilliary Boiler Fuel Oil Boost Pump Package with (2) Viking pumps model HJ4195 attached with 5 HP motors, 1140 rpm, 230/460V. Skid mounted: 3'W x 6'H x 5'L.

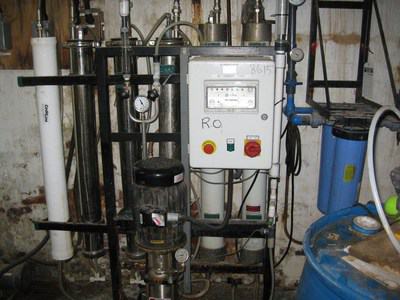

Used Reverse Osmosis system by IONPURE, model E-10066-000, with Hayes pumps.

Used 1600 Gal Horizontal Plastic Storage tank on plastic saddles with steel frame, made by IMG. 10'L x 5'Dia OAD.

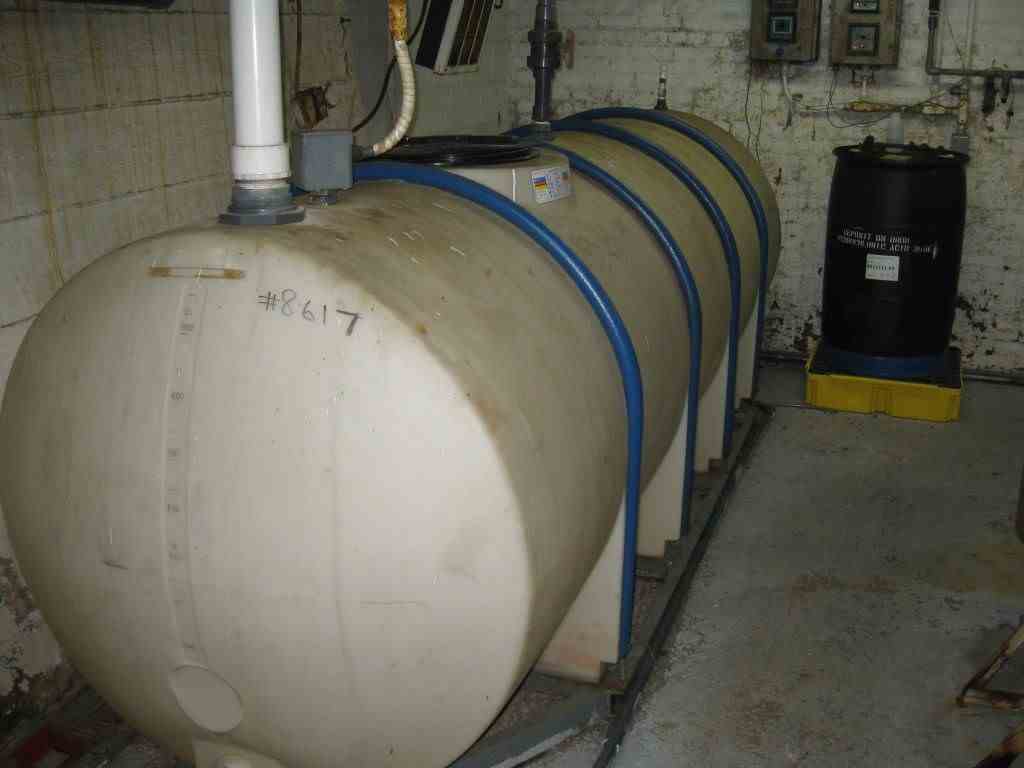

Used 1000 Gal Horizontal Plastic Storage Tank on plastic saddle and steel frame, 11.5'L x 45"Dia OAD with dished heads.

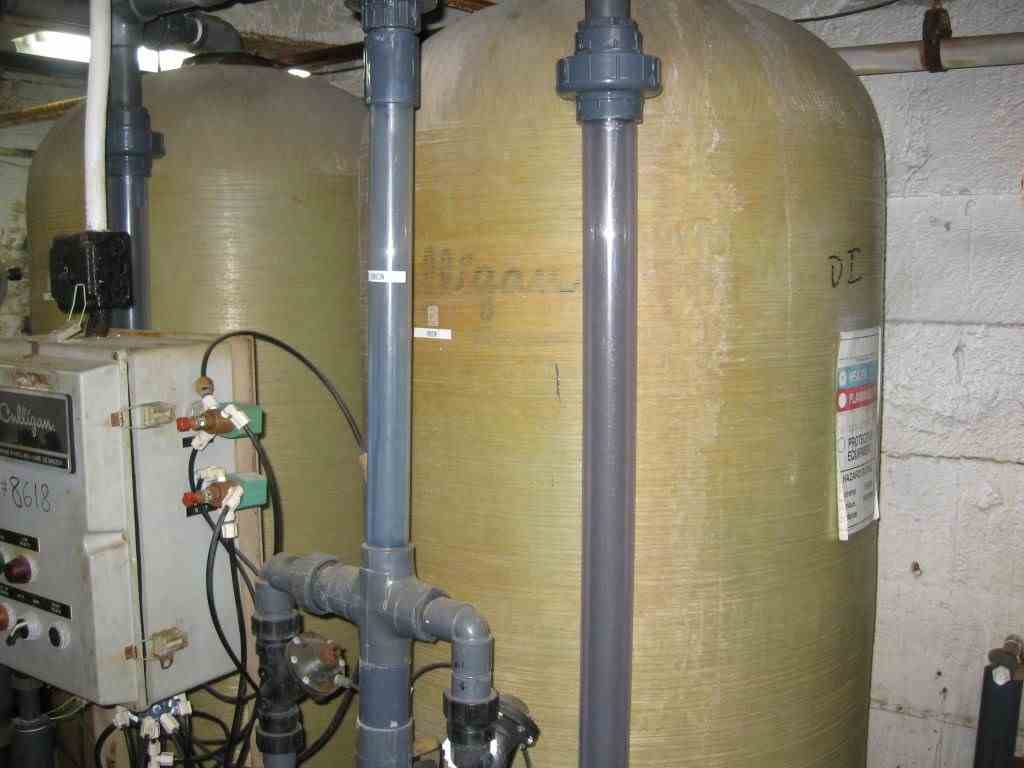

Used Culligan De-Ionization System with (2) fiberglass tanks: (1) anion and (1) cation FRP tank, each approx. 30" Dia x 4' L. Also comes with (2) chloride removal FRP tanks, each approx. 14" Dia x 3' L.

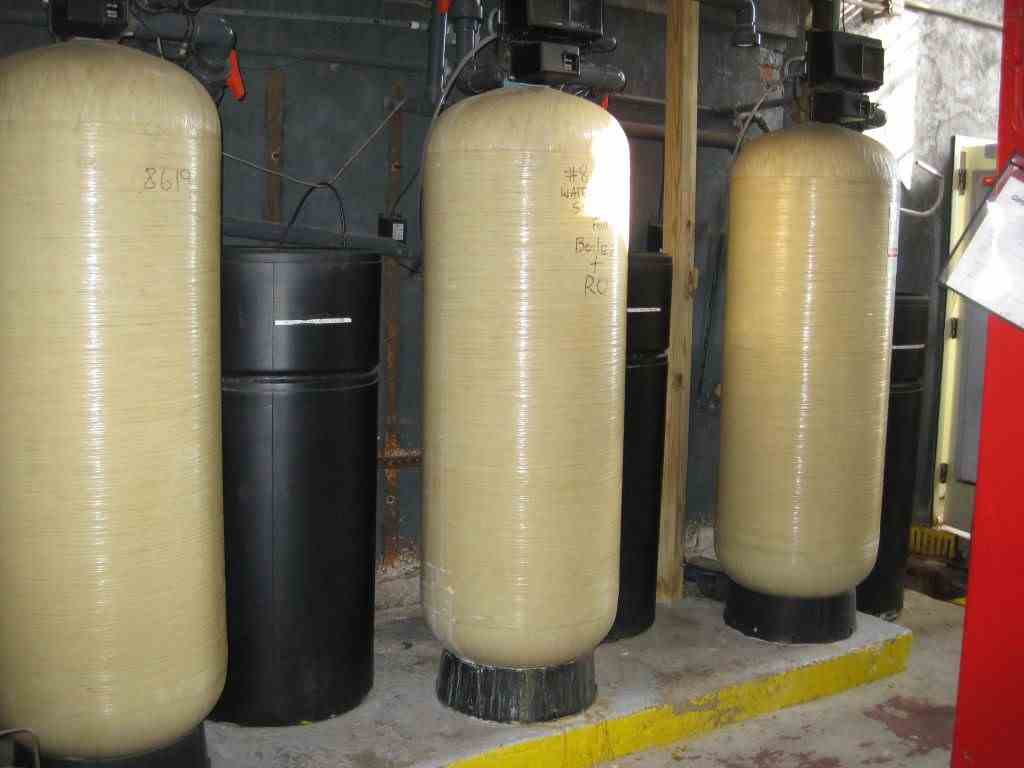

Used Water Softener for Boiler and Reverse Osmosis System, comes with (3) Pentair Water FRP polyethylene lined tanks, designed 150 psig (10 bar) max press, 120 F (49 C) max temp, 52"L x 2' Dia, each tank with 1 plastic salt recovery tank.

Used Approx. 400 gallon Blow Down Insulated Carbon Steel Vertical Pressure Tank, leg mounted, 64" L x 44" Dia.

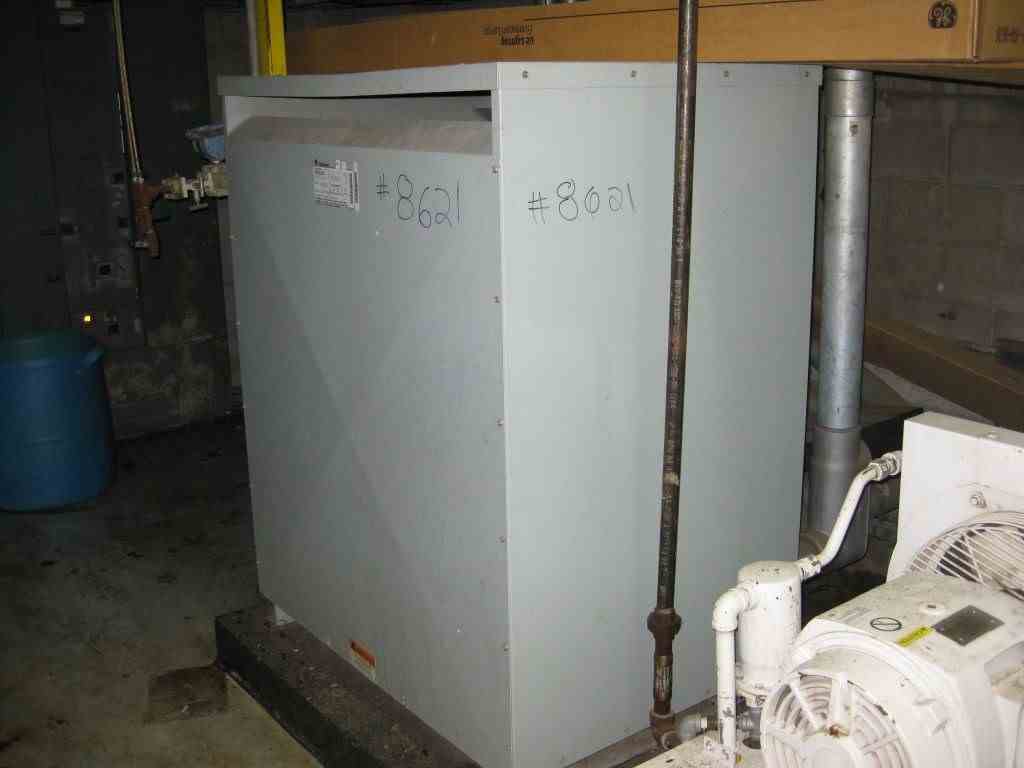

Used 300 kVa General Electric Transformer type QL, Catalogue #9T23L1578, 3/60/120/208/480V, Serial #K150013.
