Solar Centaur 50 Gas Turbine Generator
Other Views - click image for larger view
Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator Solar Centaur 50 Gas Turbine Generator

solar centaur 50 gas turbine generator

Stock # 8600
Sold
Capacity 4250 KW

Overview

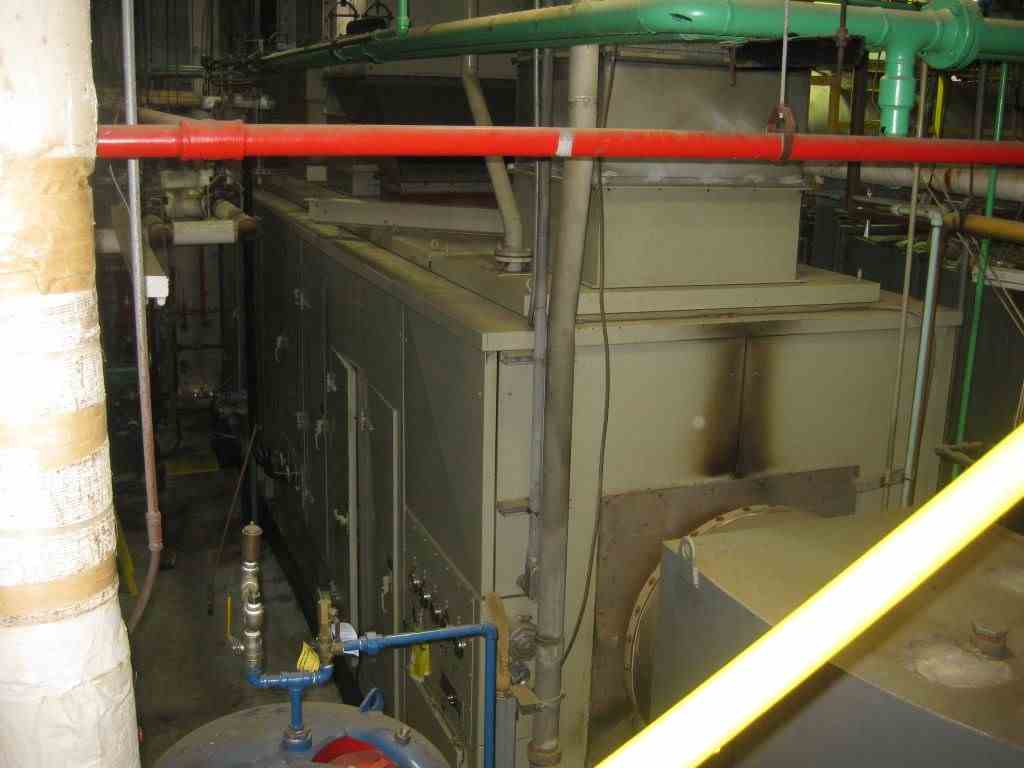

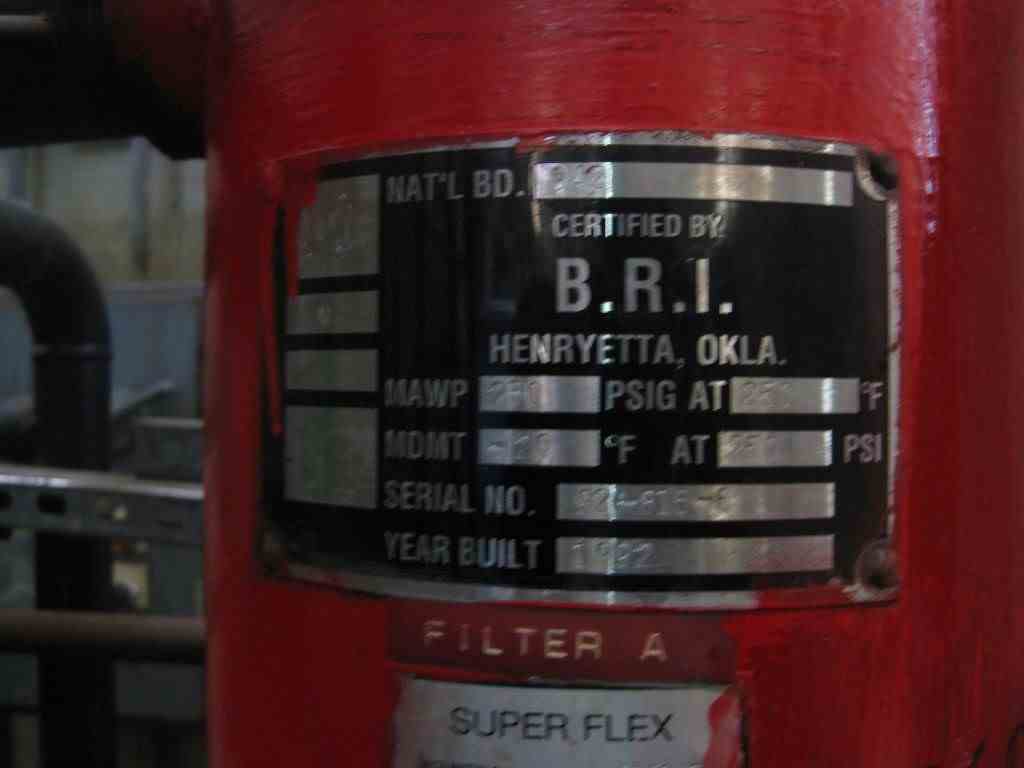

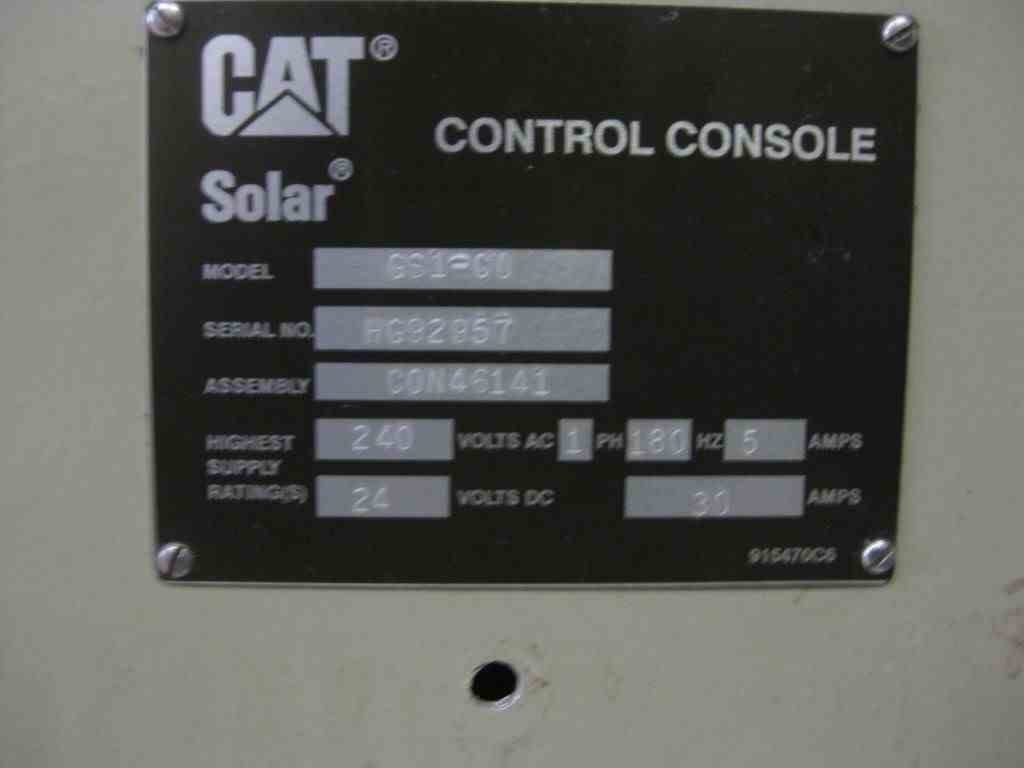

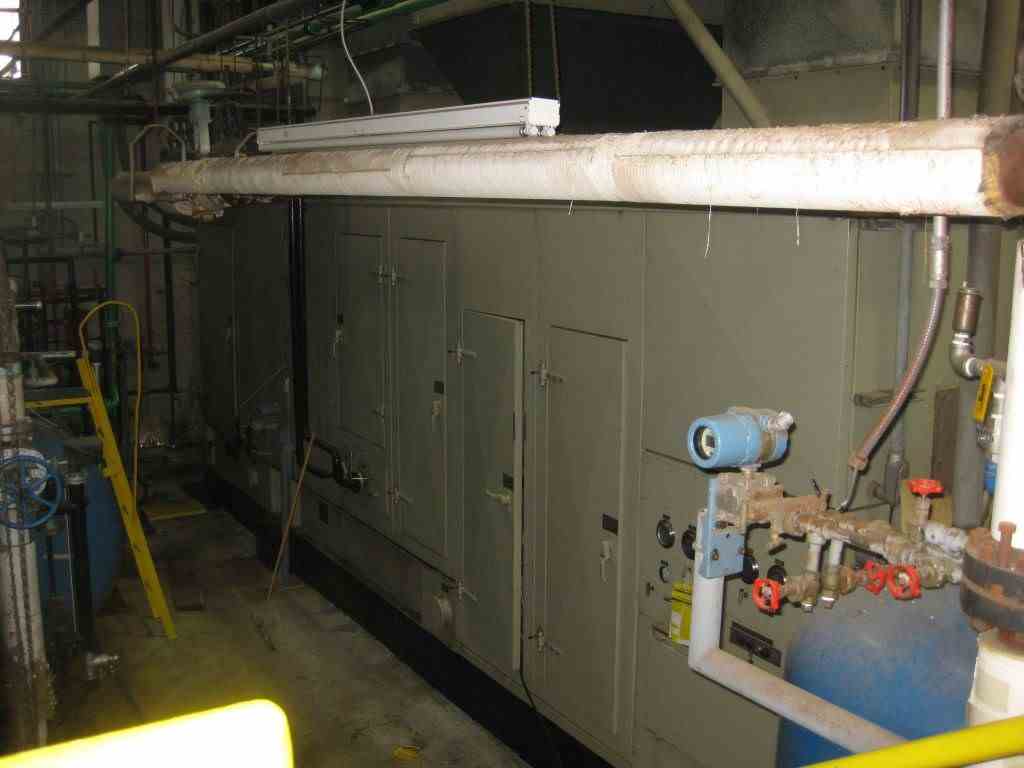

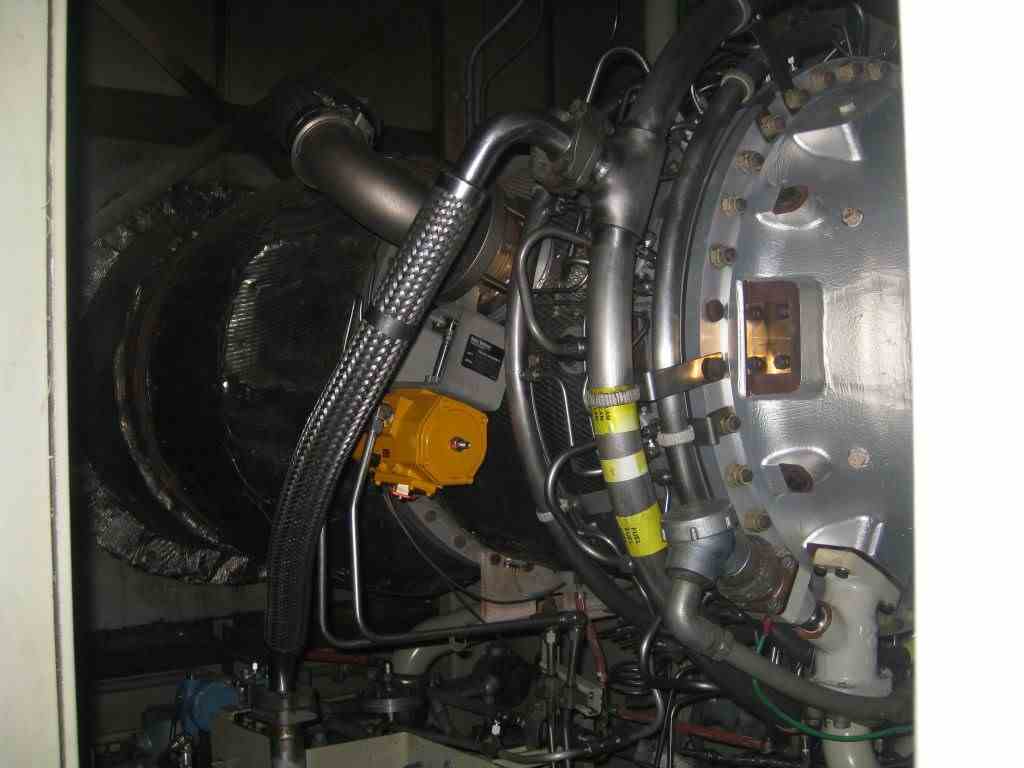

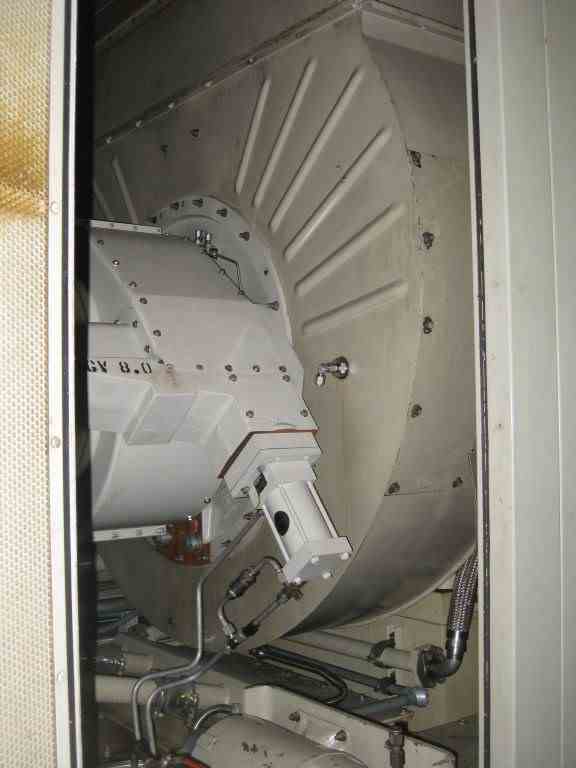

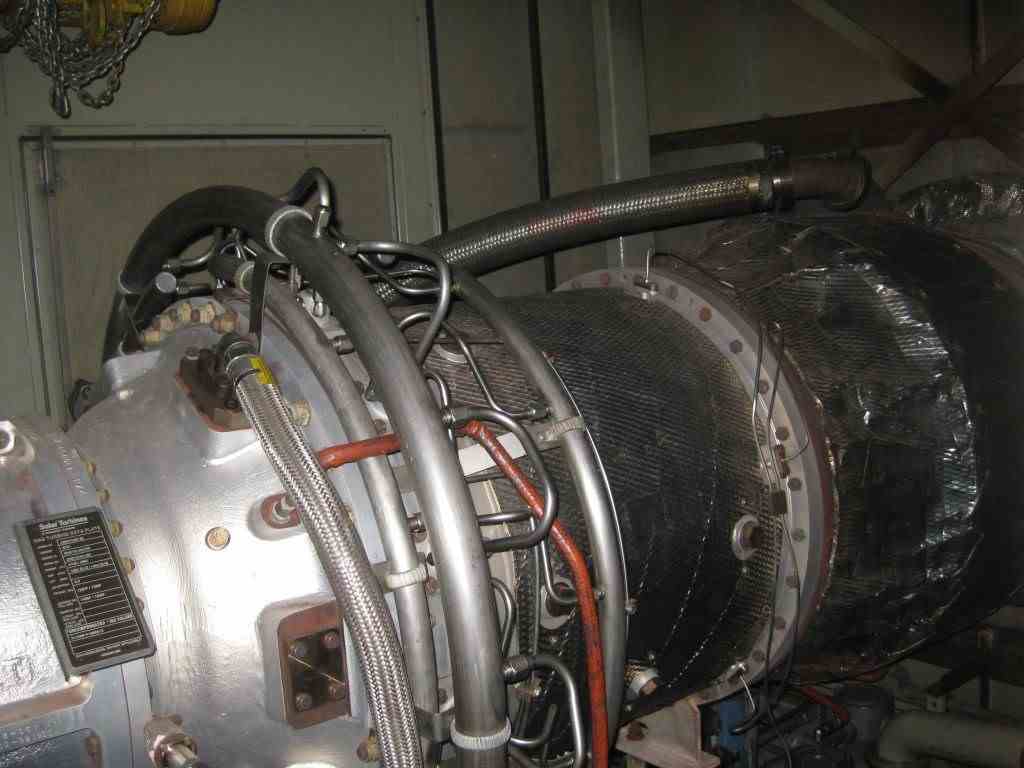

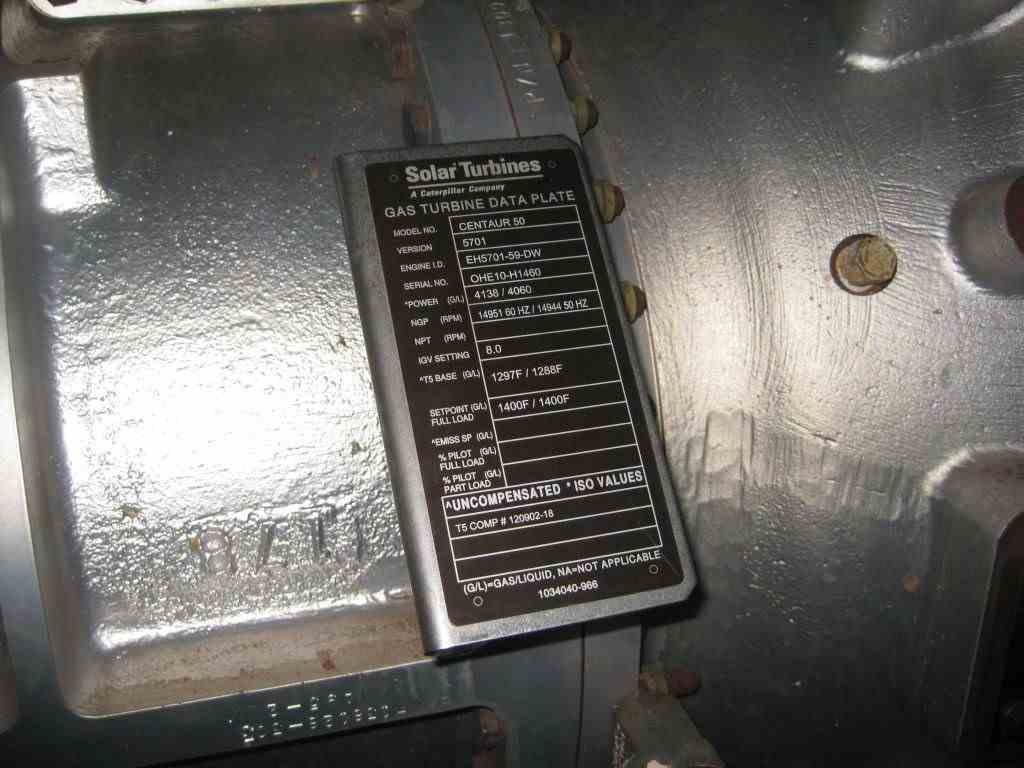

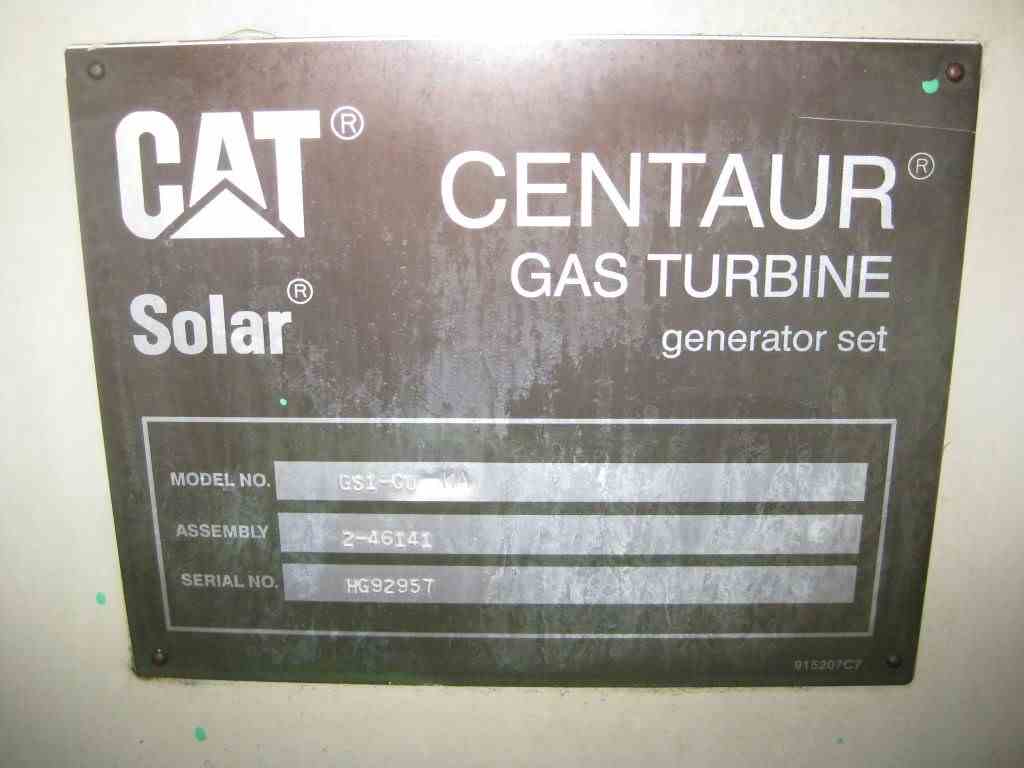

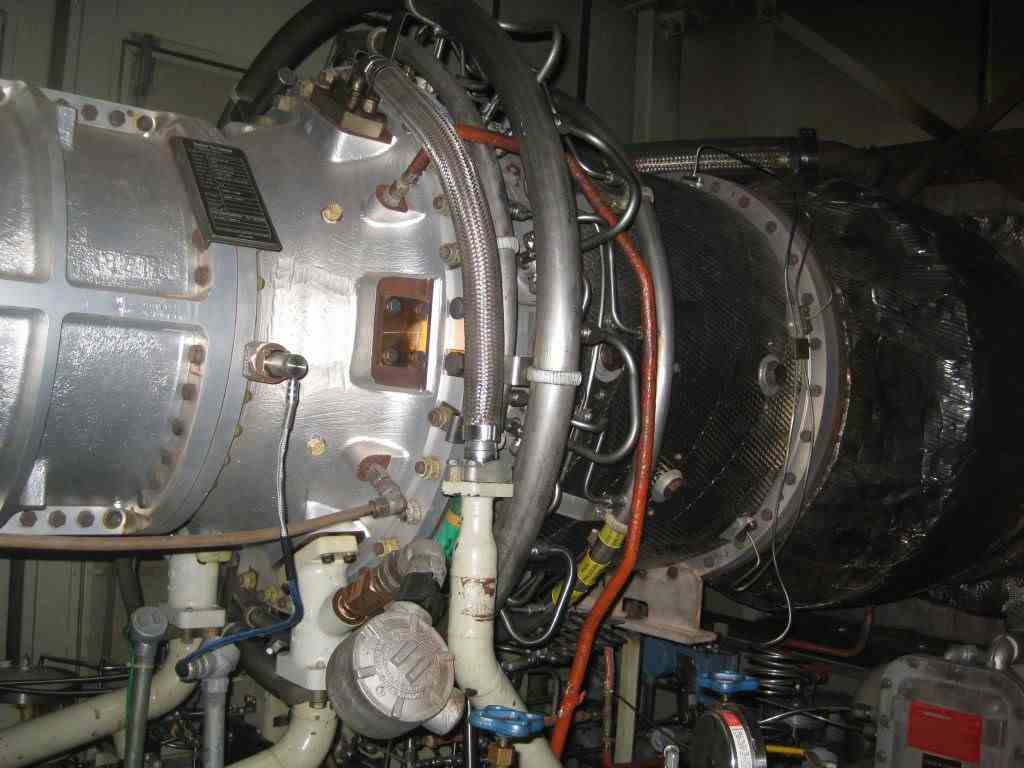

Used 4.25 MW Solar Centaur Type H Gas Turbine Generator Set model #GSI-CU-KA, assembly 2-46141, serial #HG92957, Built 1994 with total hours of operation and starts. Dual Fuel: Natural Gas or #2 Oil. Gas Turbine: Solar Centaur 50 version 5701, Engine ID EH5701-59-DW, Serial #OHE10-H1460, Power 4138/4060 (G/L), NGP 14951 60 HZ/14944 50 HZ, IGV Setting 8.0, T5 Base 1297 F/1288 F (G/L), Setpoint Full Load 1400 F/1400 F; Gear Box: Solar Turbines Gear Unit Assembly E136600-204-950, Serial #GBE10-63537, 1800 rpm; AC Generator: 4.25 MW Kato Engineering Brushless Synchronous AC Generator model #A255800000, Type 25580, Serial #99317-01, 3/60/2400/4160V, 737 Amp, Temp Rise 80 C, Design AMB 40 C, Solar P/N 190544-1, Catalogue 4PT-3800; Lube Oil Booster Pump Skid: (2) Viking pumps model HJ4195 attached with 5 HP motors, 1140 rpm, 230/460V. Skid mounted: 3'W x 6'H x 5'L. and (2) BRI Filters MAWP 250 psig @ 250 F, MDMT -20 F @ 250 psi, both built 1992; Lube Oil Coolers: (3) Hayden Industrial Products Lube Oil Coolers model TT-318, rated 260 psi with 5 HP motors 3/60/460 1150 rpm, built 2010; Donaldson Self-Cleaning Air Filter System, model TTD 00-4019, single stage (unit weighs approx. 5500#); Control Cabinet: Caterpillar Solar Control Console model #GS1-C0, serial #HG92957, Assembly #CON46141, 240 Volts AC, 1 PH, 180 Hz, 5 amps, Rating 24 Volts DC, 30 amps.
