Used 92 Sq Ft 316 Stainless Steel Horizontal Shell and tube heat exchanger. Manufactured by Doyle & Roth. 316SS Shell rated 90 psi/fv @300F. (44) 1" dia 316SS tubes rated 90psi/fv @300F. Serial #J4327-2. National Board #12380.

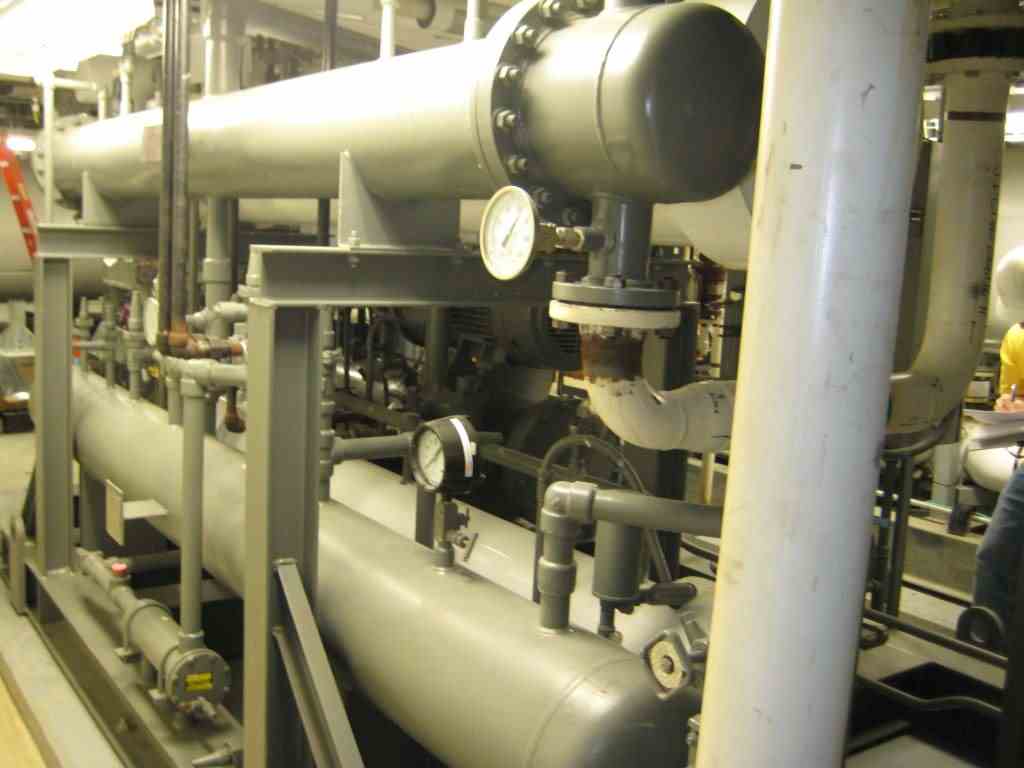

Used York 42 Ton Propylene Glycol Chiller rated 300PSI @ 250 deg F. Frick RXF-30E Compressor. S/N: 293-367R, Built 2001. R134A Refrigerant, Frick 13 Lubricant. 60 HP, 460V/3ph/60hz TEFC Motor (68 FLA). Control Voltage - 1/60/120 Volt. With Henry Tech. Model Heat Exchanger Rated 300 PSI @ 250 Deg F. CS Tubes, SB75, Alloy 122 Tubes. Exchanger S/N: P200887-B. Drawing on file. Complete O&M Manual.

Spare Knockout pot for vacuum pump.

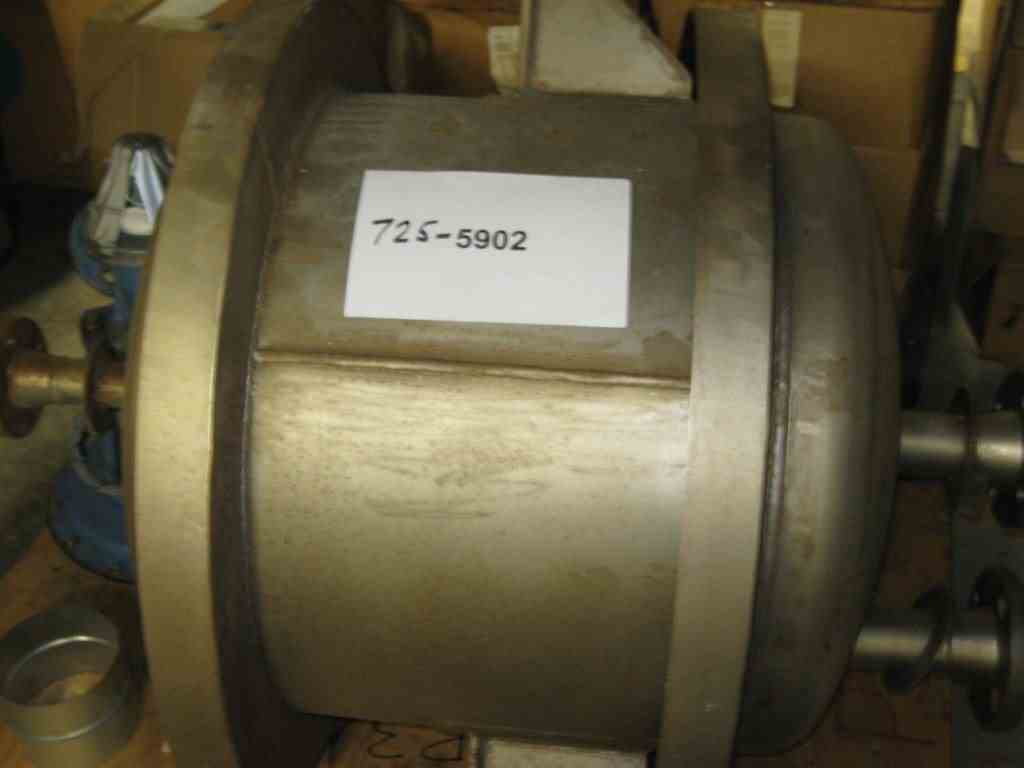

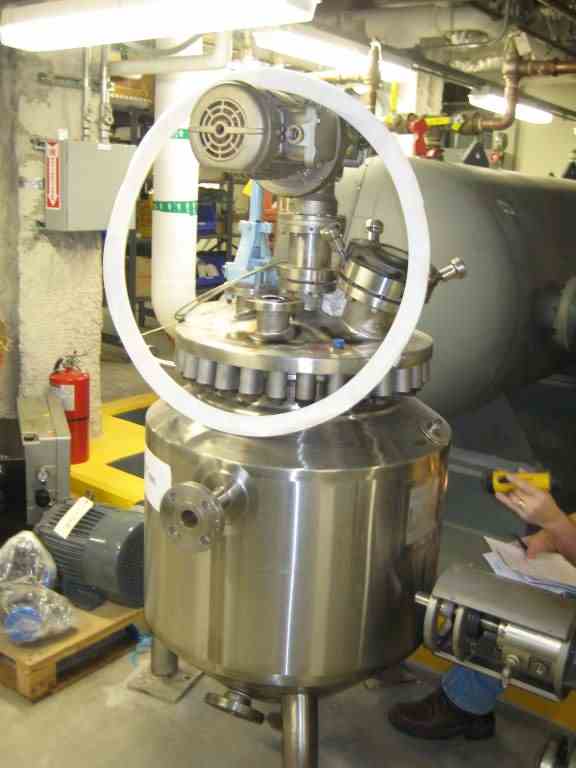

Used 30 gallon Pfaudler glass lined reactor. Rated 150 PSI/full vacuum internal @ 300 Deg. F. Jacket rated 115 PSI/full vaccum @ 300 Deg. F. Top head plate. Dual-flight agitator, 2HP, 3 phase, 60 cycle, 230/460 volt, 1720 RPM. 3” sight glass, center agitator nozzle, (2) 2” openings. Built 1993, S/N R193-0452, NB 47394; repair by Pfaudler, May 2001, Mfg. #J044679, NB #89.

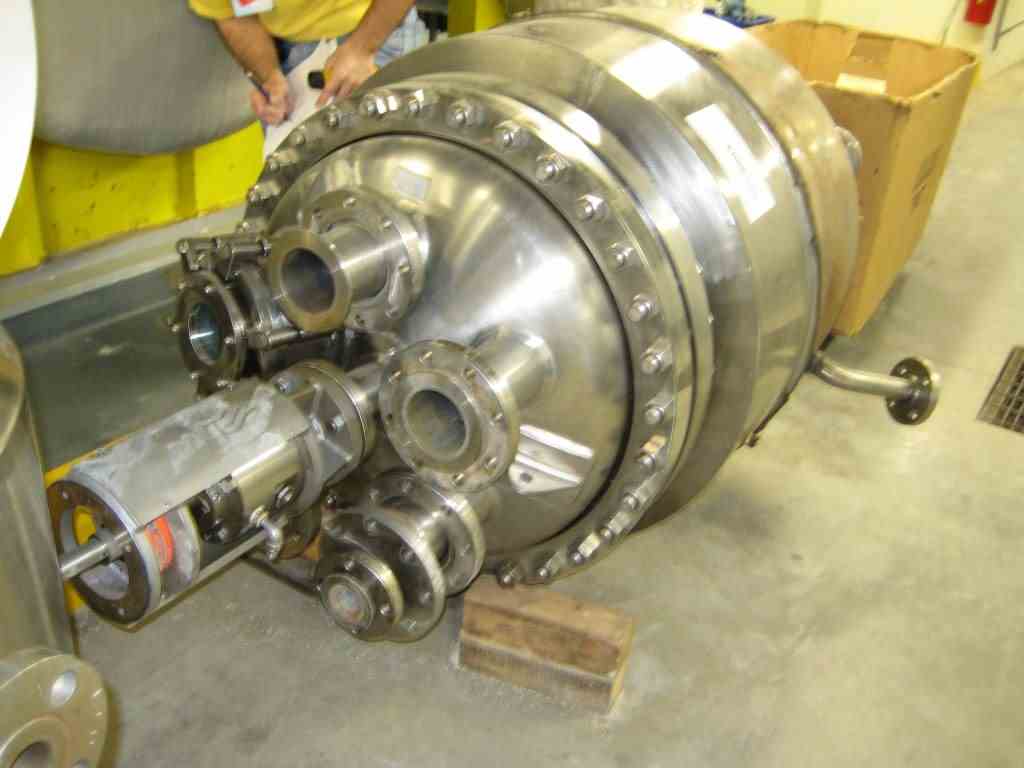

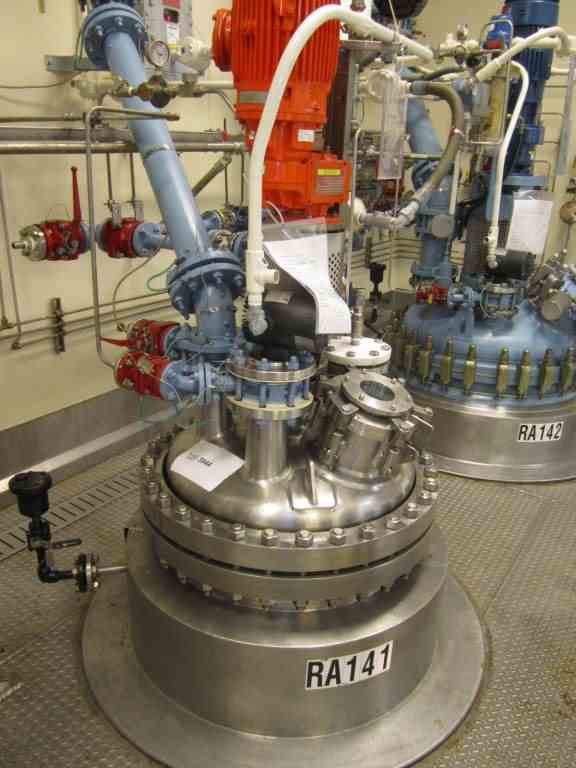

Used 120 gallon Robert Mitchel 316L Stainless Steel reactor. 32” Dia. x 30” straight side. Rated 100 PSI/full vacuum internal @ 450 Deg. F. Jacket rated 150 PSI/full vacuum @ 450 Deg. F. Full bolted top head. (4) 4” sight glass, and 2” center bottom outlet. Built 2001. S/N 6651, NB 383. Drive not complete, no Motor or gearbox.

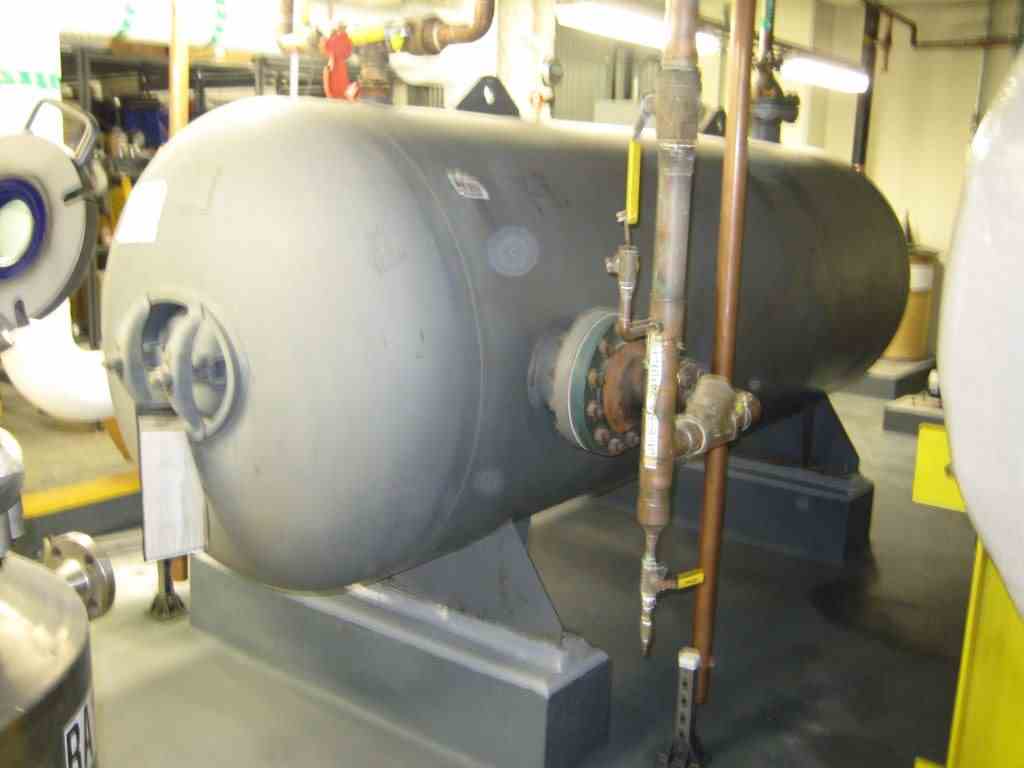

Used Brunner approximately 940 Gal. horizontal steel tank. 4’ Dia. x 10’ straight side. Rated 200 PSI internal @ 450 Deg. F. 281 shell thickness, 280 head Thickness. (1) 6” and (1) 3” top flanges and 12” x 14” manway. Built 2001. NB 49915M, PN 0292. Pressure Vessels Carbon Steel (horizontal)

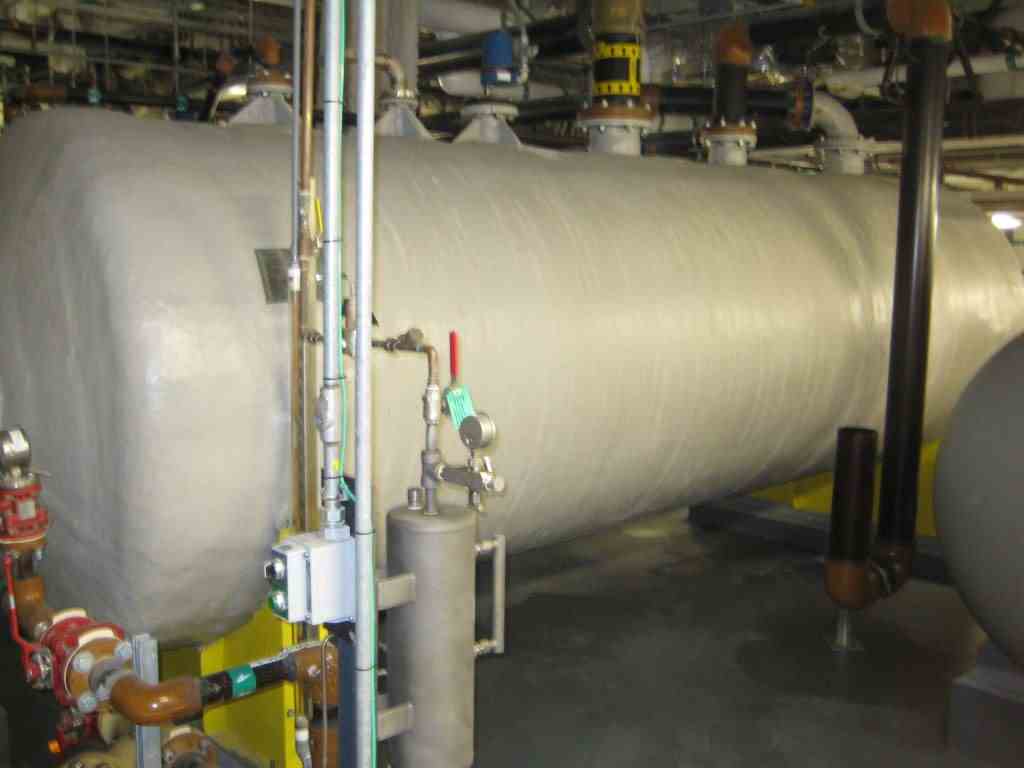

Used Augusta approximately 3,200 Gal Horizontal fiberglass tank. 5’6” Dia. 16’ straight side. With dished heads. (2) 8”, (2) 6”,and (2)3” Top connections,24” manway,3” end bottom outlet.1:5 specific gravity. On saddles. Built 2001.

Used Augusta approximately 3,200 gallon horizontal fiberglass tank. 5’6” diameter x 16’ straight side. With dished heads. (2) 8”, (2) 6”, and (2) 3” top connections, 24” manway, 3” end bottom outlet. 1:5 specific gravity. On saddles. Built 2001.

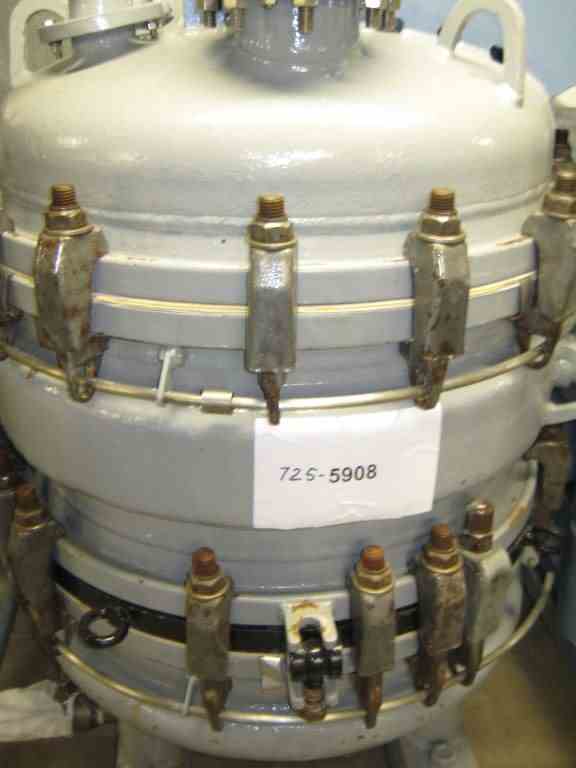

Used Estrella 96 Gal. glass lined Nutsche filter. Rated -15/50 PSI internal @ 400 Deg. F. jacket rated 87 PSI. Built 1990, S/N A32259-F89793, NB 19. (NOTE: Perforated plate is damaged near edge)

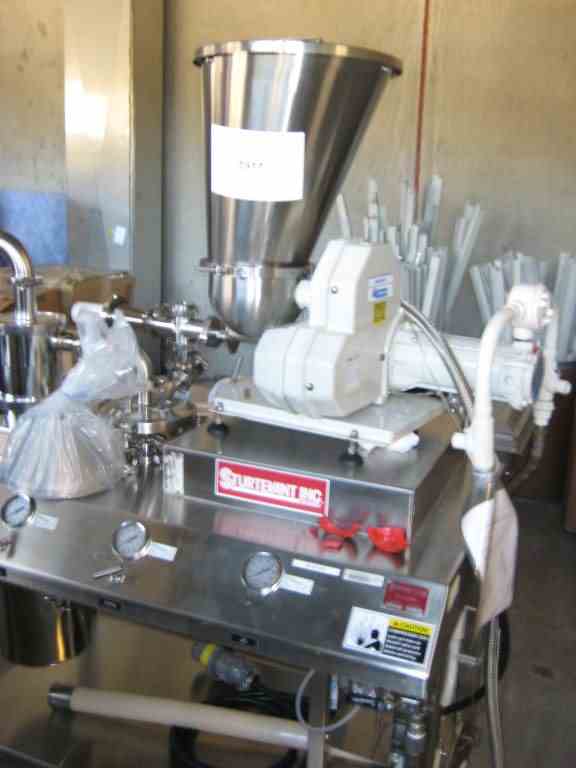

Used Sturtevant Model SSC4 micronizer. With K-tron Model K2MVT20 Feeder, 1/2 HP XP. S/N 0300702.

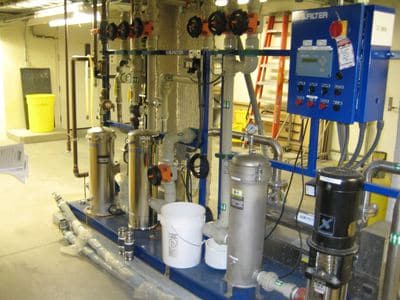

Used US Filter Reverse Osmosis Unit. With (3) US filter cartridge filters and (2) UV units. Skid mounted.

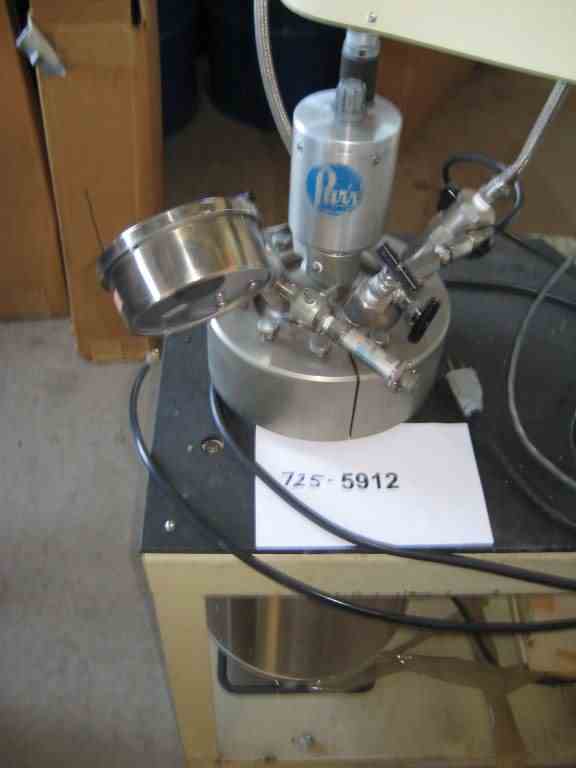

Used Parr Model 4552M 2 Gal. Stainless Steel Reactor. Rated 1900 PSIG @ 350 Deg C. maximum. 230 volts. S/N 906.

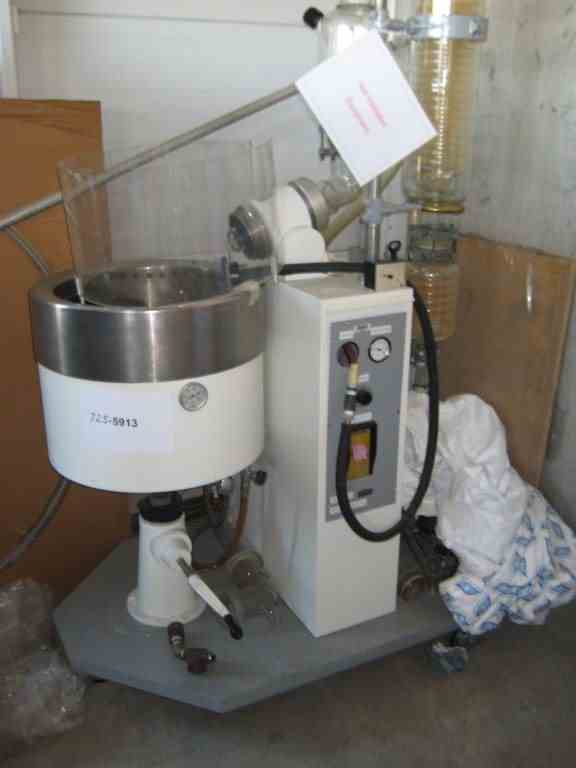

Used Buchi Rotavapor 175X evaporator. Heated water bath with glass parts, main flask, condenser unit. On base with controls–wheels.

Used Buchi R185EX Rotavapor evaporator. 66 HZ S/N 24517.

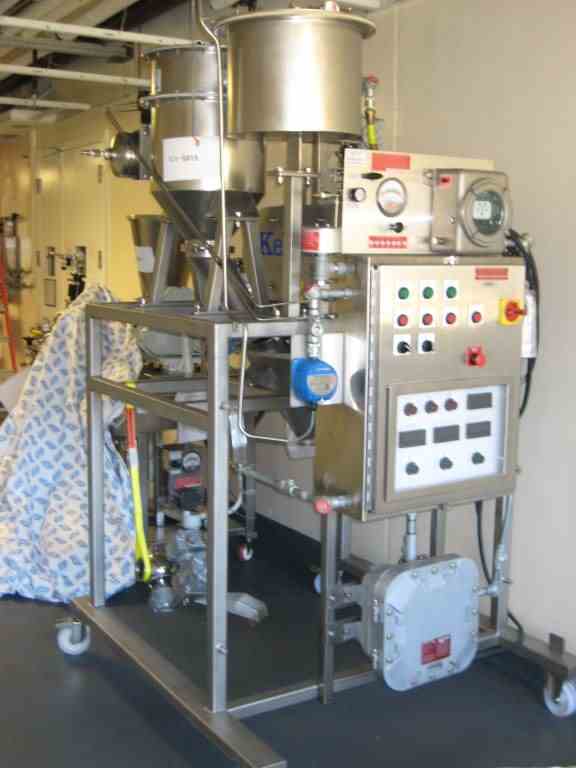

Used KEK Model 5H Pin Mill. On portable stand. 5 HP, 230/460 Volt. Kemtec model 5HM. Built 2/2005. S/N: A22636.

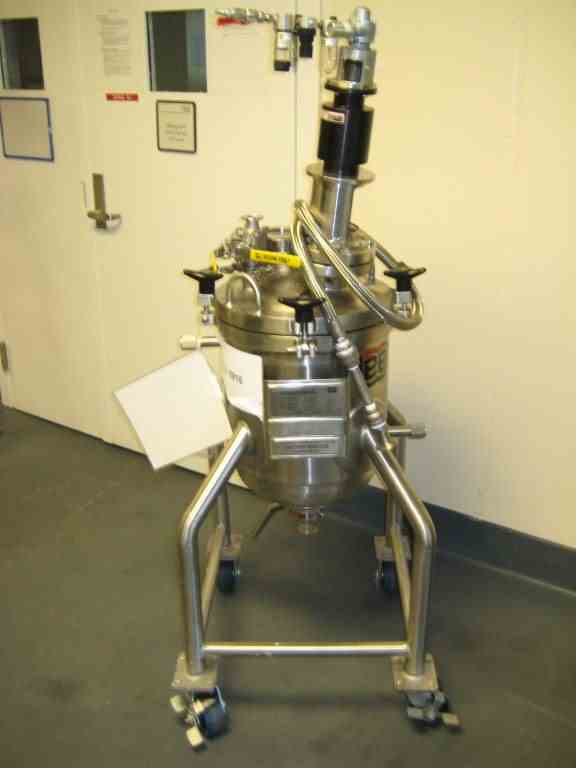

Used Lee Industries model 7 GALDBP approximately 7 Gal. reactor. Rated 30 PSI internal @ 200 Deg. F. jacket rated 100 PSI @ 338 Deg. F. U Stamped. Lightinin model P6S05A air-driven 3-blade propeller agitator. Built 1998, S/N C6107A, Lightnin S/N 98-G27716.

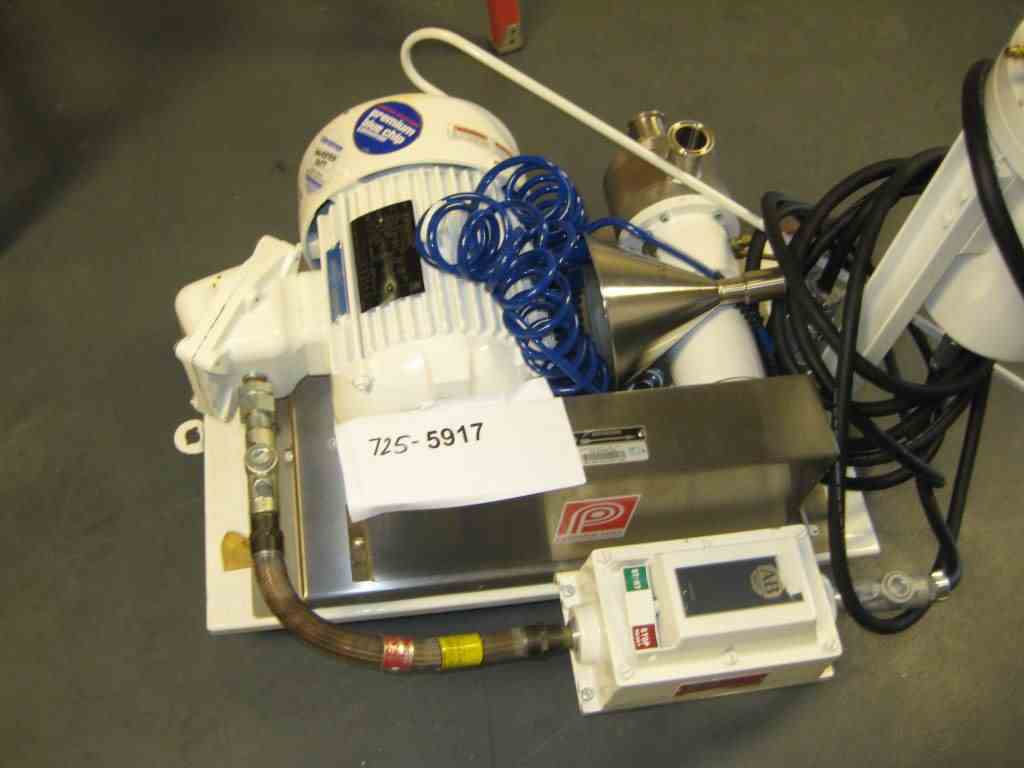

Used Premier Model MXS-3 Mill. 5 HP, 208-230/460 volt, 3475 RPM. With start/stop switch. Built 2/2008. S/N 448264-08.

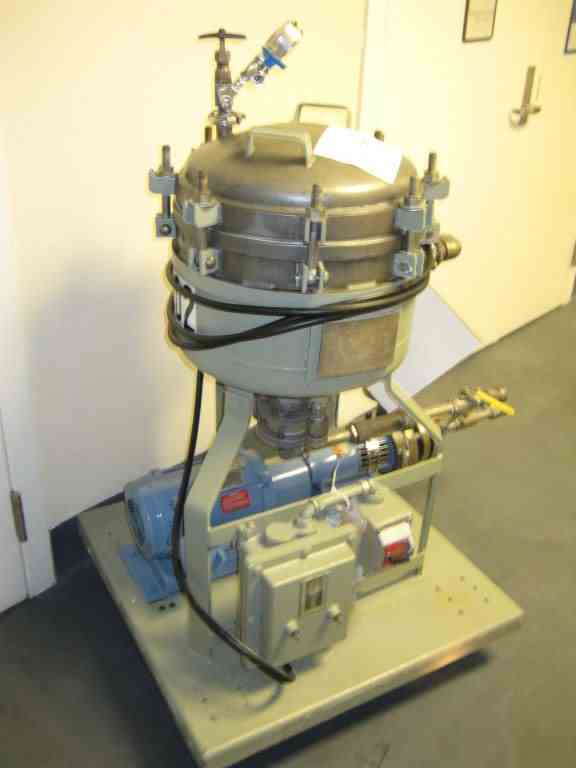

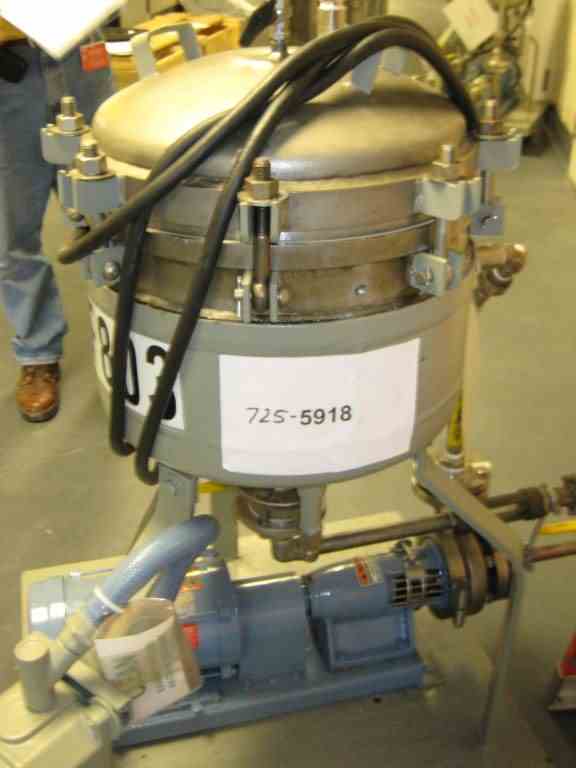

Used Sparkler model 14-S-7 filter. 316 stainless steel tank rated 66 PSI @ 350 Deg. F. steel jacket rated 50 PSI @ 350 Deg. F. U Stamp. On skid with 1.5 HP, 208-236/460 volt, 3500 RPM pump. Built 1971, S/N 19575.

Used Sparkler model 14-S-7 filter. 316 stainless steel tank rated 60 PSI @ 350 Deg. F. 304 stainless steel jacket rated 30 PSI @ 350 Deg. F. U Stamp. On skid with 1.5 HP pump. Built 1984, S/N 22133

Used Tycon approximately 590 Gal. vertical glass lined receiver. 4’ Dia. x 4’6” straight side with dished top and bottom heads. 808 glass. Rated 100 PSI/full vacuum internal @ 302 Deg. F. full clamp top. 24” top manway and 2” center bottom outlet. On legs. Built 2001. S/N 9027, NB 546.

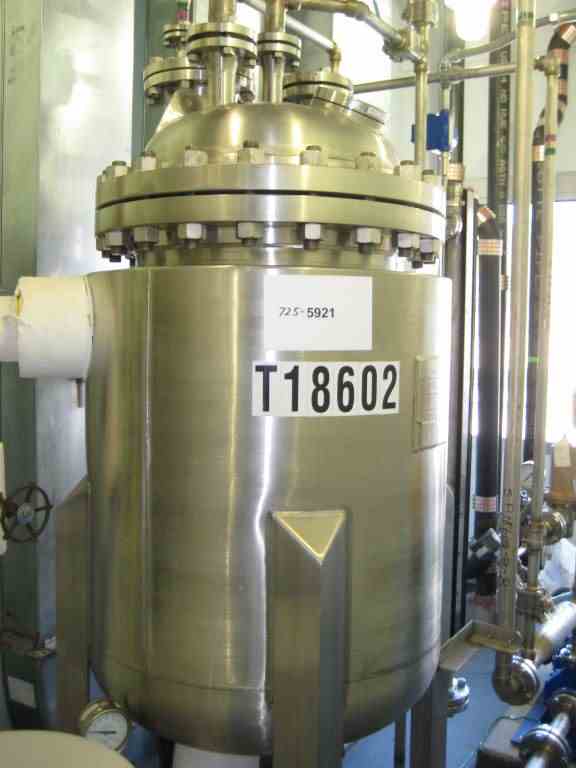

Used Steel Pro Inc. approximately 75 Gal. vertical jacketed receiver. 316L stainless steel vessel rated 50 PSI/full vacuum internal @ 232 Deg. C. 304 stainless steel jacket rated 100 PSI/full vacuum @ 232 Deg. C. Full bolted top. (4) fittings and sight glass. Built 2001. S/N 13873, NB 1057. Steel Pro Inc., Rockland, Maine.

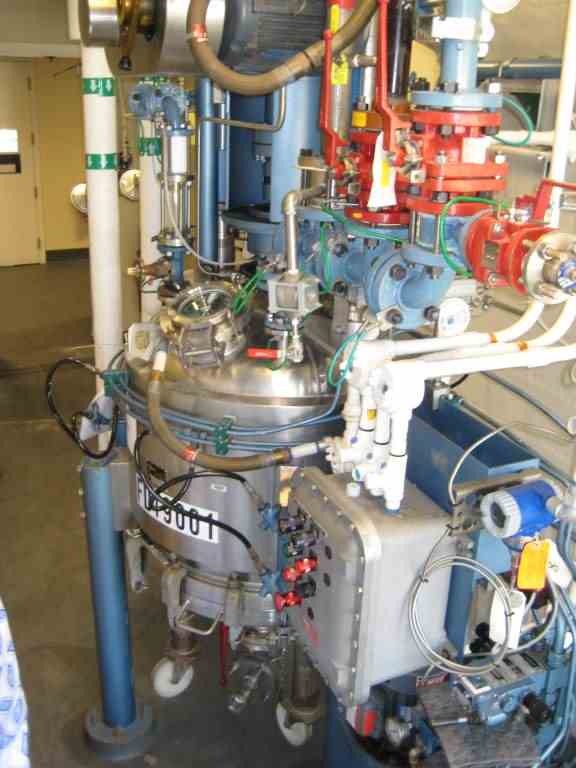

Used 0.5 Sq. M Guedu ML500 filter dryer. Rated 45 PSI @ 330 Deg. F. internal . Jacket rated 90 PSI @ 330 Deg. F. Removable bottom, side discharge. With 5 HP XP motor. Built 1990, S/N 7951, NB 13.

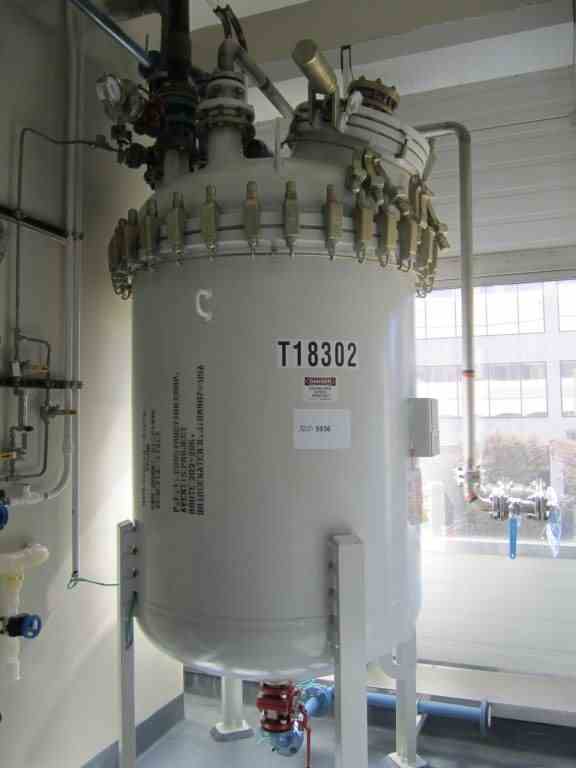

Used Tycon approximately 590 Gal. Vertical glass lined receiver. 808 glass. Rated 100 PSI/full vacuum internal @ 302 Deg. F. Full Bolted top. On Legs. Built 2001. S/N 9026, NB 545.

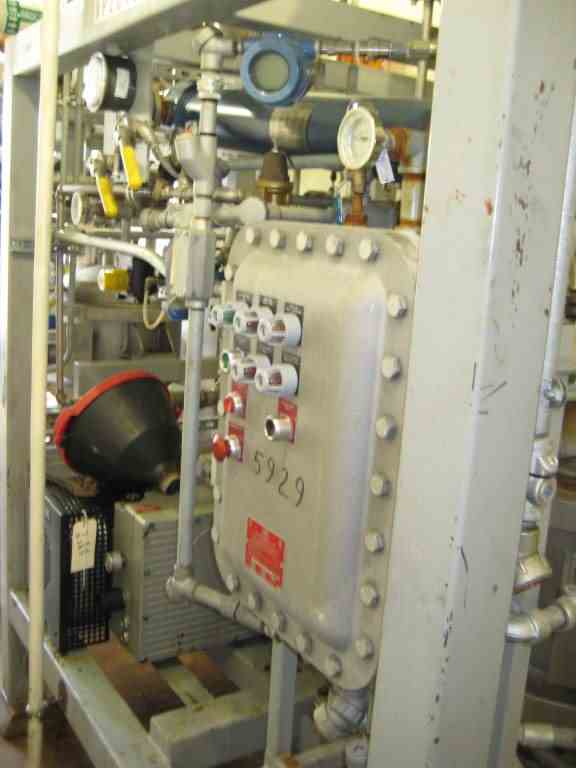

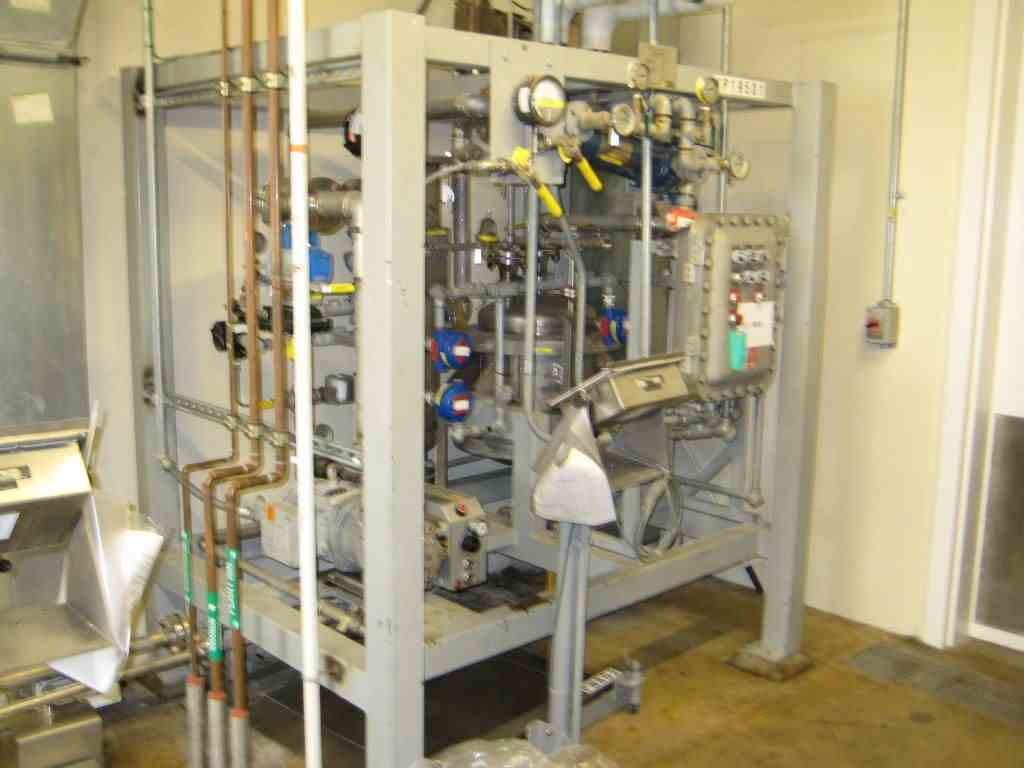

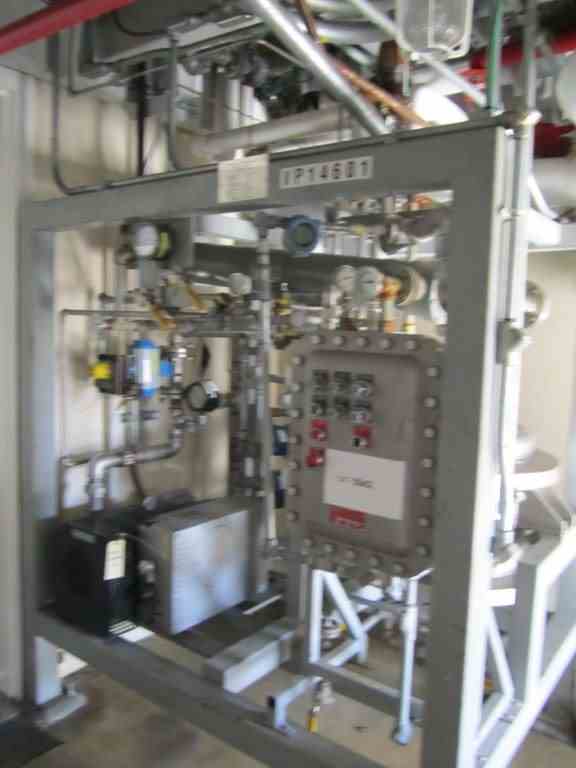

Used Wintek Corp. Model K08-VCA60-C15/R20 Vacuum skid. 30 ACFM @ 5 Torr. 3 HP. With Rietschle VCA60(02) vacuum pump, 5 BAR, 60/72, 60 m/hour. Built 2001. S/N 000909-3. Pump S/N 2121801. Estimated weight 2800#.

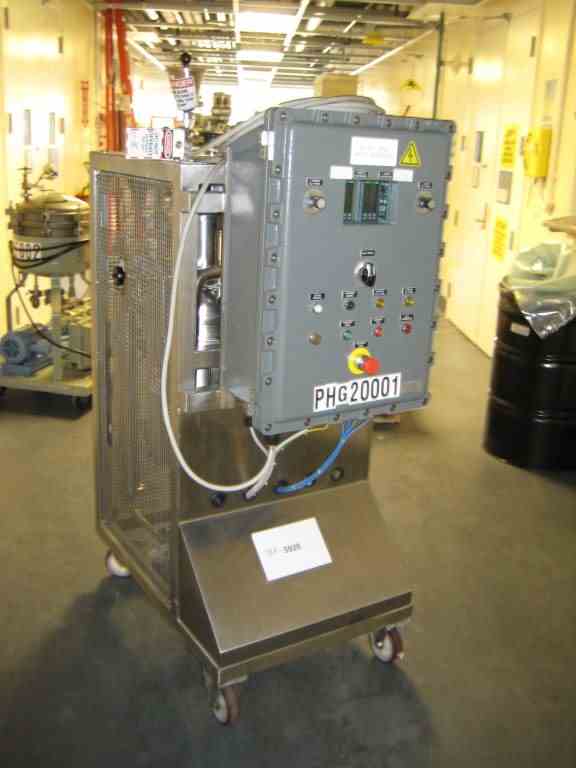

Used steam generator on portable base. 98 KPA @ 120 Deg. C. Jacket Rated 441 KPA @ 120 Deg. C. with panel. Built 2008, Mfg. by Olsa Spa (Italy). S/N 4772, NB 60.

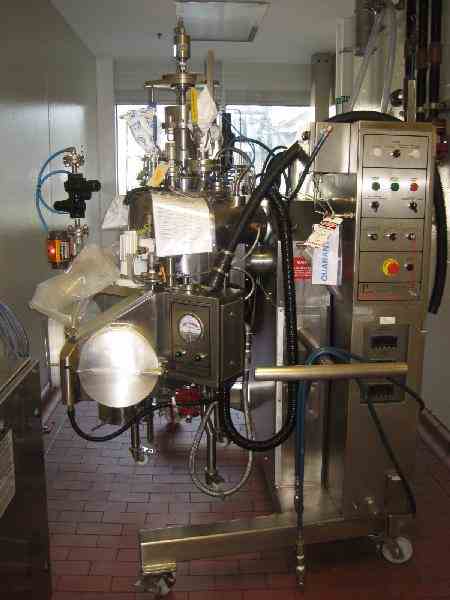

ONE (1) USED .125 SQ METER POWDER SYSTEMS AGITATED NUTSCHE FILTER DRYER, HASTELLOY C22 CONSTRUCTION, 1.35 SQUARE FOOT CAPACITY, RATED 147 PSI OR 87 PSI @ -8 TO +329 F INTERNAL, 316L JACKET RATED 147 PSI OR 87 PSI @ -8 TO +329 F, 50 LITER LIQUID VOLUME, 18 LITER CAKE VOLUME, 6" CAKE THICKNESS, CIP AND CAKE WASHING, .75 HP, 208 VOLT XP AGITATOR DRIVE WITH MECHANICAL SEAL, BELLOWS, 2 WING CORED SHAFT, MANUALLY OPERATED SIDE DISCHARGE INTO HASTELLOY C22 TWO GLOVE INTEGRALLY MOUNTED ISOLATOR, REMOVABLE BOTTOM PLATE, CANTELIEVERED MOUNTED ON BASE WITH SIDE TILT MECHANISM, NATIONAL BOARD# 003, BUILT 2000.

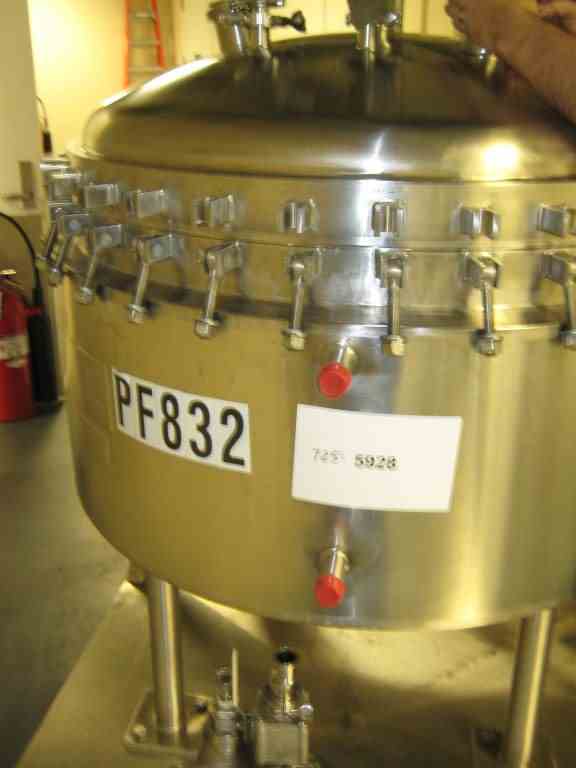

Used American Alloy Fab hastelloy Nutsche filter. Rated 60 PSI internal @ 302 Deg. F. Jacket rated 75 PSI @ 266 Deg. F. (4) legs on cart. Built 2009.S/N 5939, NB 278.

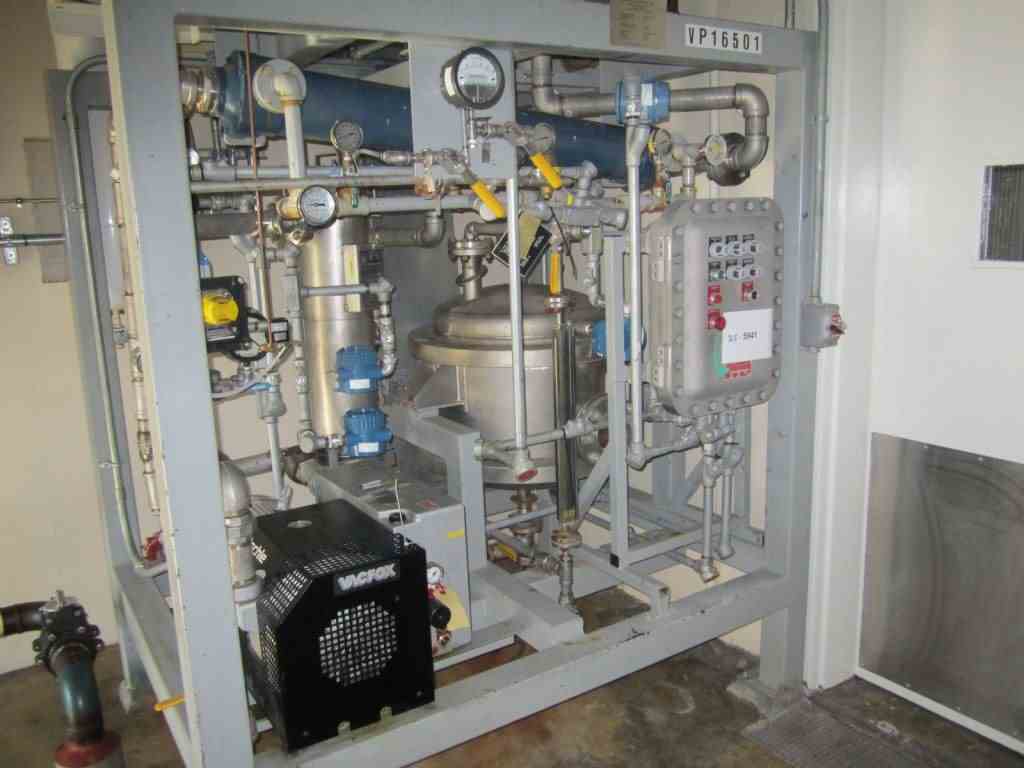

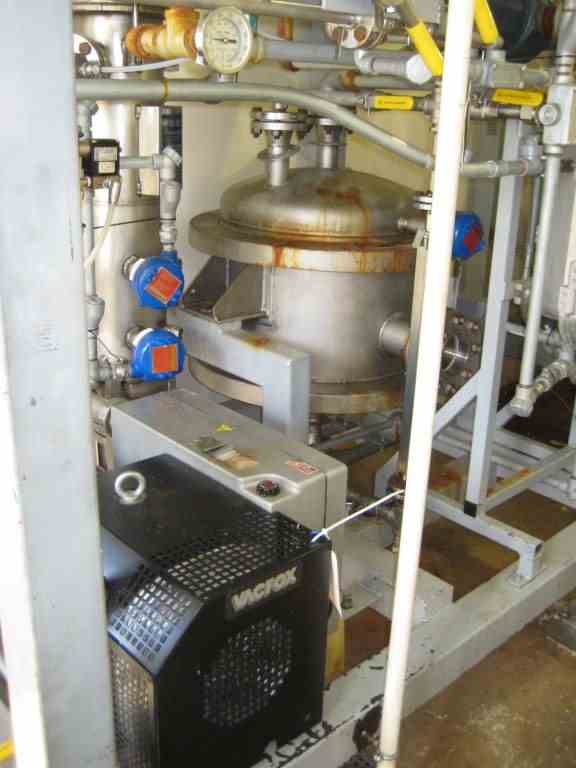

Used Wintek model K08-VC200-C/40/R30 vacuum skid. 60 ACFM @ 5 TORR. with 7.5 HP Rietschle type VC200 Vacuum pump. 0.5/10 Millibar, 200/240 Cubic meter/hour. New 2001. S/N 000910-6. Pump S/N 2557952. Estimated weight 3100#.

Used Wintek model K08-VC200-C/40/R30 vacuum skid, 60 ACFM @ 5 TORR. with 7.5 HP Rietschle Type VC200 vacuum pump. 200/240 cubic meter/hour. New 2001. S/N 000910-7.

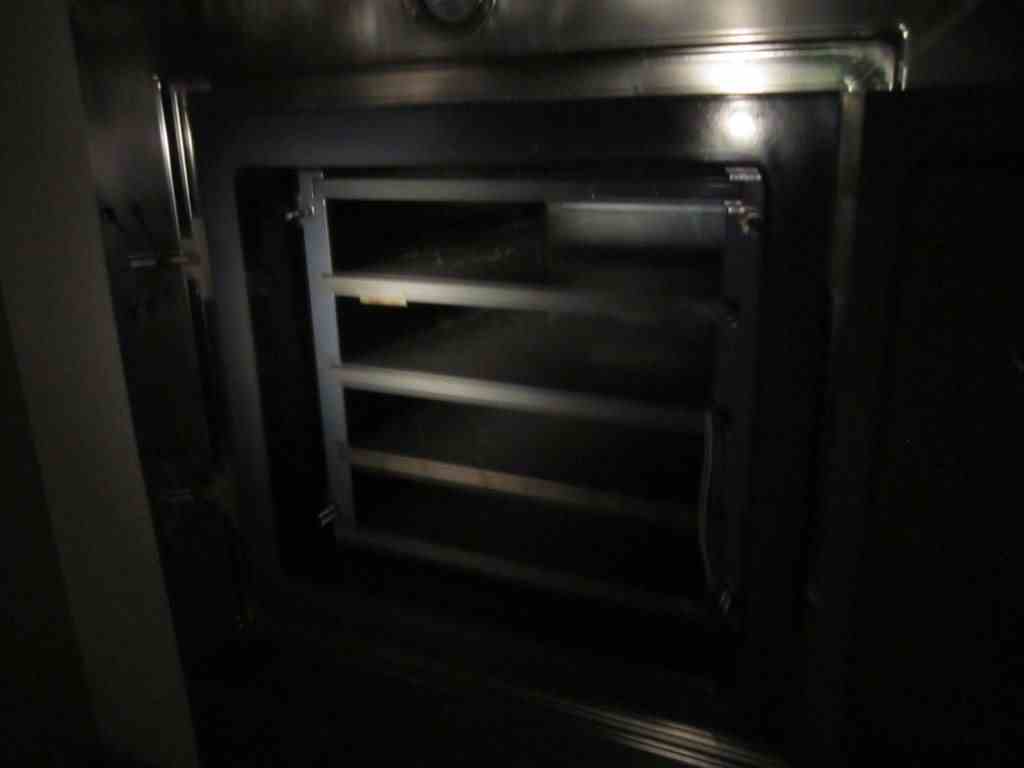

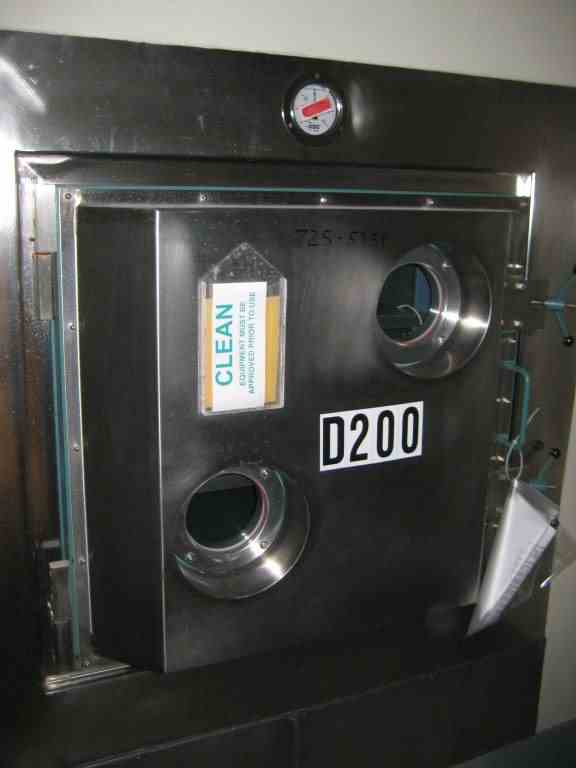

Used Stokes model 900-338-202 vacuum shelf dryer. Halar lined carbon steel. (4) shelves on 6” center. 19.7 cubic foot chamber, 24 square foot shelf area. Chamber vacuum only, 50 PSIG shelf with full vacuum in chamber. 300 Deg. F. Design temperature. Built 2000. S/N 73857, Item #D-200-01, PO #14923-015. Estimated weight 2050#.

Used Stokes model 900-338-202 Halar Lined Vacuum Shelf Dryer.(4) shelves on 6” center. 19.7 cubic foot chamber, 24 square foot shelf area. Chamber vacuum only, 50 PSIG shelf with full vacuum in chamber. 300 Deg. F. Design temperature. Built 2000. Item #D-201-01. Estimated Weight 2050#.

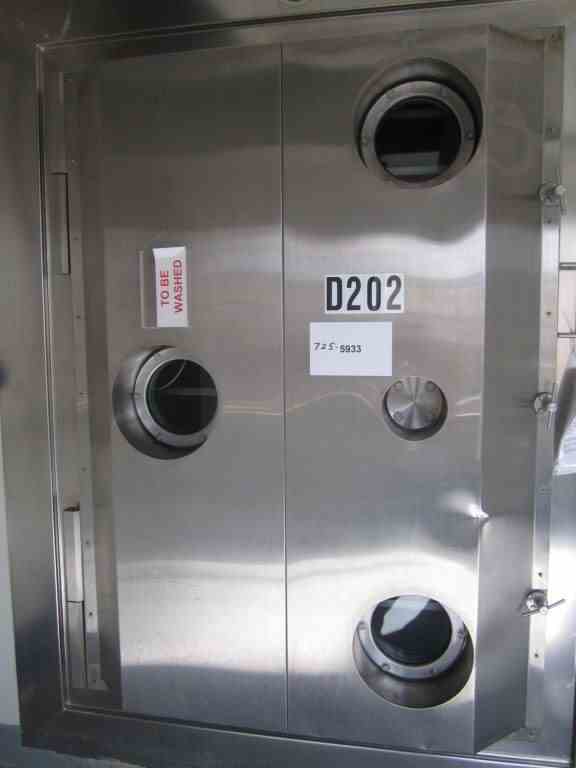

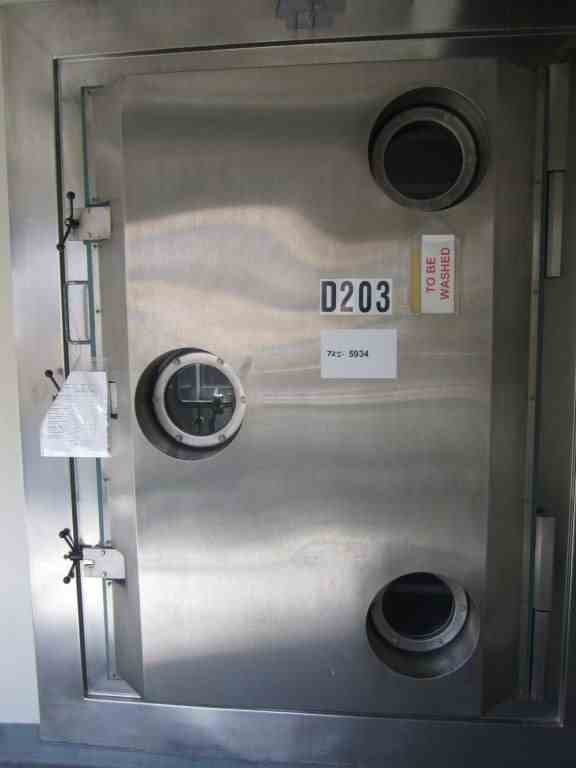

Used Stokes model 900-438-205 stainless steel vacuum shelf dryer. (11) shelves. 95.2 cubic foot chamber, 122 square foot shelf area. Chamber vacuum only, 50 PSIG shelf with full vacuum in chamber. 300 Deg. F. Design temperature. Built 2002 Each shelf NB Stamped 50 PSI/full vacuum @ 500 Deg. F. 300 Deg. F. design temperature, 2000. Item #D-202-01. Estimated weight 7800#.

Used Stokes model 900-338-205 vacuum shelf dryer. Halar lined carbon steel. (11) shelves 95.2 cubic foot chamber, 122 square foot shelf area. Chamber vacuum only, 50 PSIG shelf with full vacuum in chamber. 300 Deg. F. Design temperature. Built 2000. Item #D-203-01. Estimated Weight 7620#.

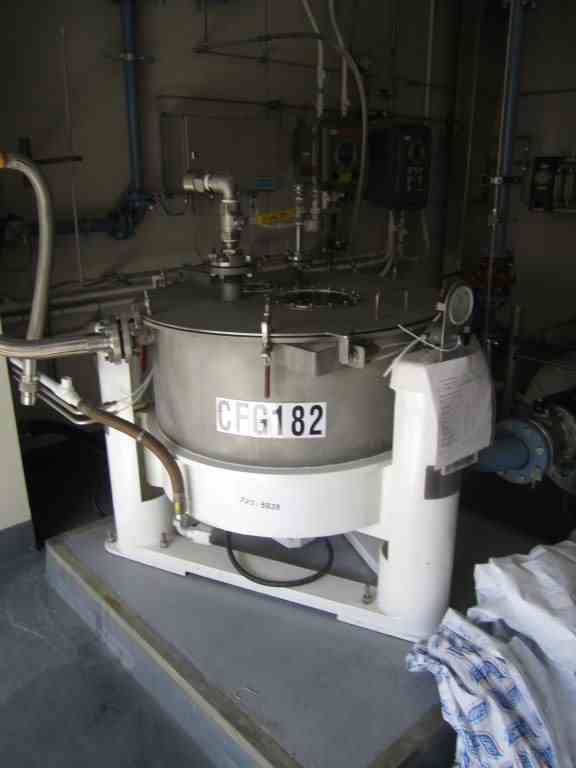

Used Tolhurst Mark III model flip-top 30” x 20” basket centrifuge. 30” Basket, 1360 RPM. 83#/cubic foot capacity. Top load/unload. Hydraulic Drive. S/N T3-5679.

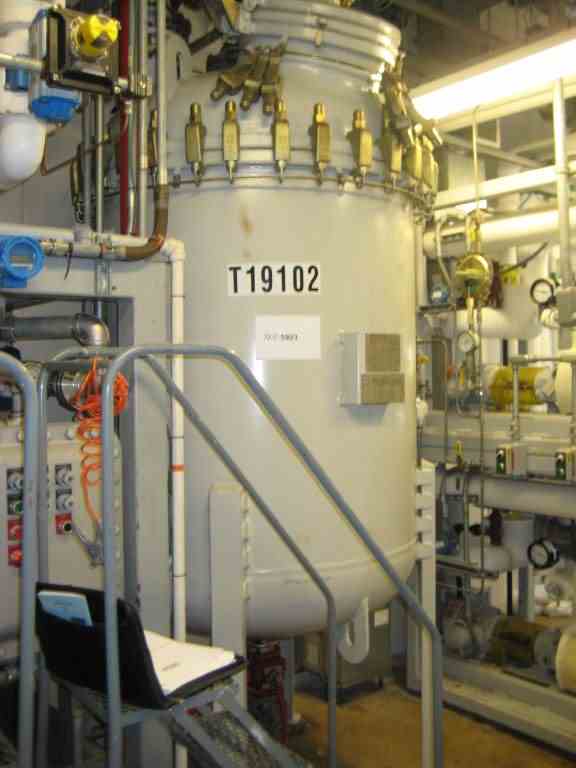

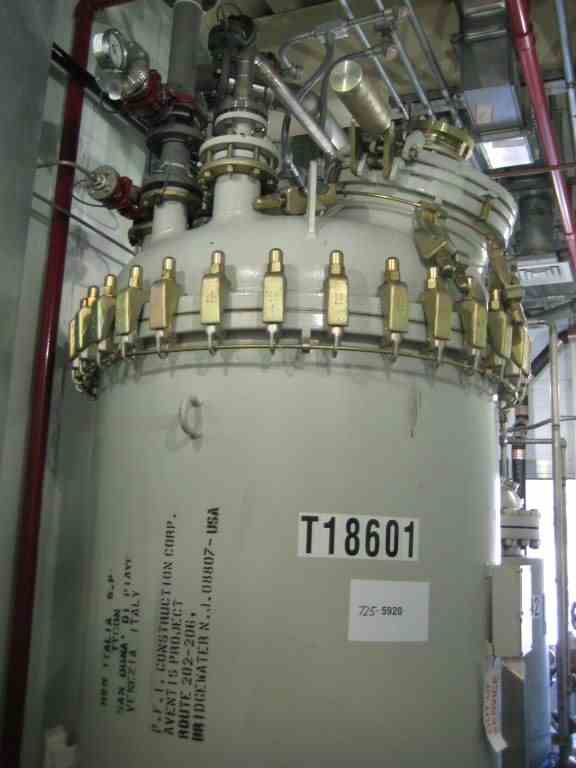

Used Tycon approximately 590 Gal. vertical glass lined tank. 808 blue glass. Rated 100 PSI/full vacuum internal @ 302 Deg. F. Full bolt-on top. Mounted on (4) legs. Built 2001. S/N 9025, NB 544. Estimated weight 1600 Kilo’s.

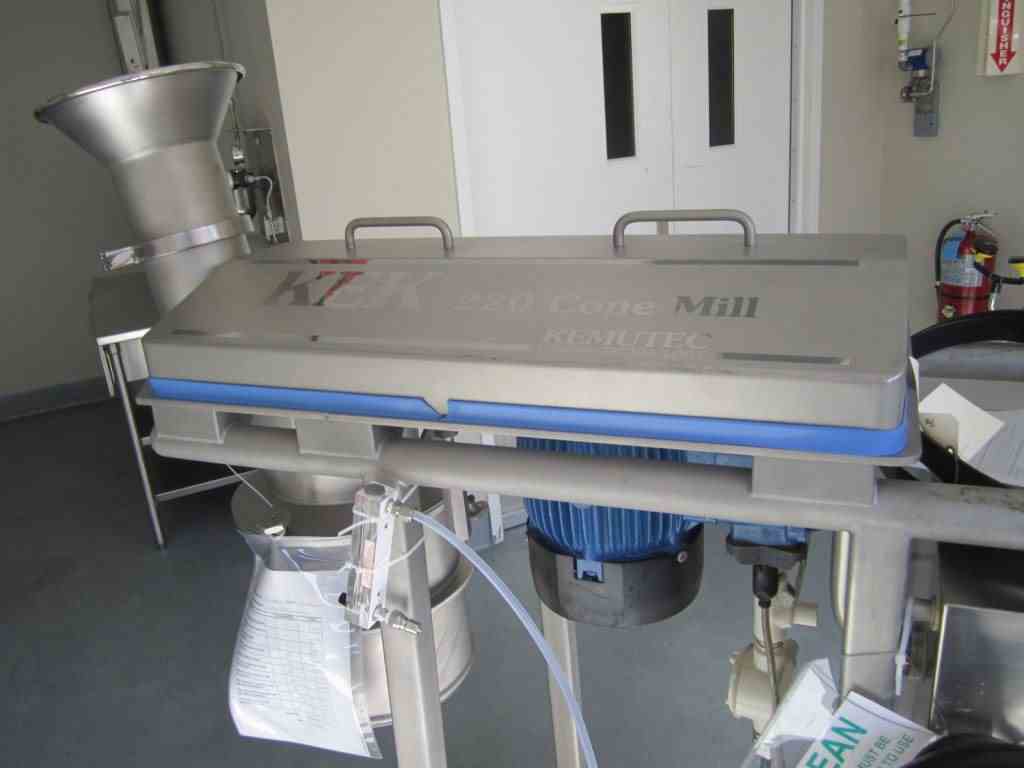

Used Kemutec KEK 220 cone mill. On portable base. 5 HP, 460 volt, 1700 RPM. Belt drive with (2) spare belts.

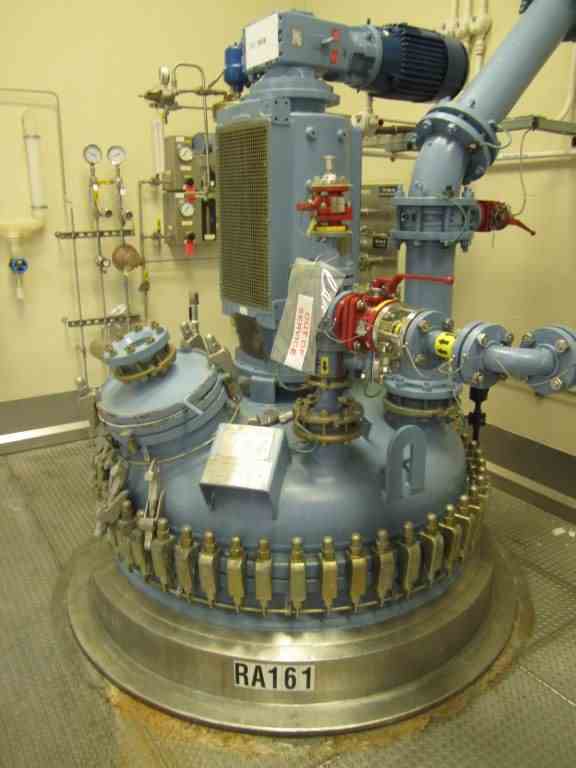

Used Tycon approximately 700 Gal. Glass Lined Reactor. Rated 150 PSI/full vacuum internal@450 Deg. F. Jacket rated 100 PSI @ 450 Deg. F. Built in 2000. Full clamp top. With air-operated plug valve. Type 808 glass. 3-blade retreat curve agitator. 7.5 HP,460 volt, 1755 RPM right angle XP drive. Lug mounted. S/N 8635, NB 14. Estimated weight 6500#.

Used 300 gallon Robert Mitchell Hastelloy C276 reactor. Rated 100 PSI/full vacuum internal @ 450 Deg. F. Jacket rated 150 PSI/full vacuum @ 450 Deg. F. Bolted top head. With air-operated valve. 5 HP Pro-quip Model 500VHHW14 agitator. 460 volts, 1750 RPM. Lug mounted. Built 2001. S/N 6653, NB 381. Estimated weight 8977#.

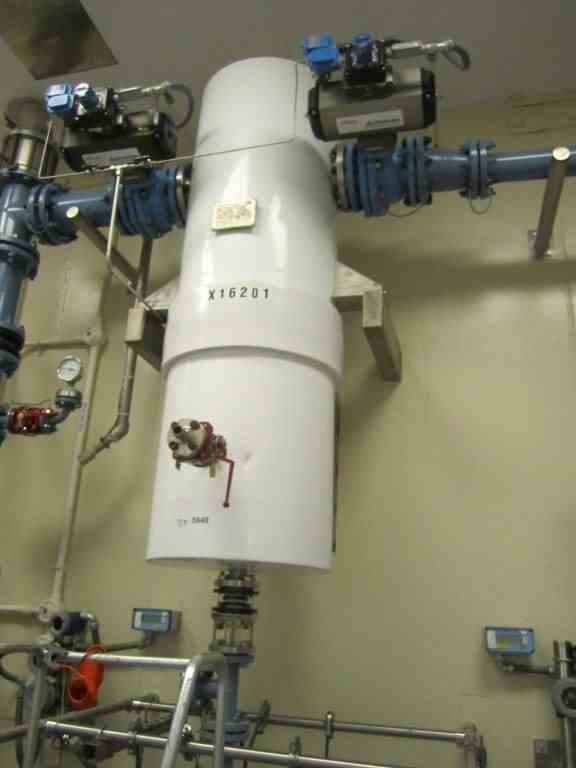

Used Doyle & Roth model VT1661-3VE 125 square foot vertical heat exchanger. Hastelloy C276 tubes rated 150 PSI/full vacuum @ 347 Deg. F. 316L stainless steel shell rated 150 PSI/full vacuum @ 347 Deg. F. Lug Mounted. Built 2000. S/N J9290-12, NB 19069.

Used Wintek Model K08-VC200-C40/R30 vacuum skid. 60 ACFM @ 5 TORR. with 7.5 HP Rietschle vacuum pump. New 2001. S/N 000910-4. Estimated weight 3100#.

Used Wintek Model K08-VC200-C40/R30 vacuum skid. 60 ACFM @ 5 TORR. with 7.5 HP Rietschle vacuum pump. New 2001. S/N 000910-2. Estimated weight 3100#.

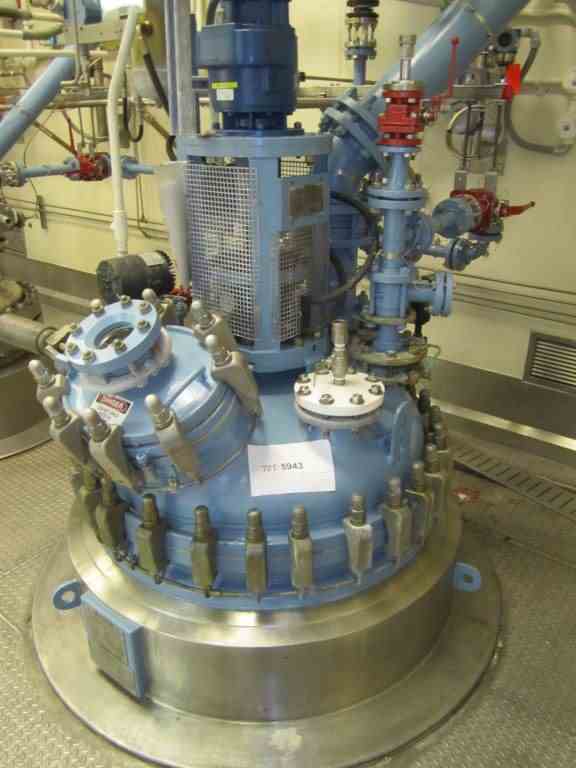

Used Tycon approximately 255 Gal. glass lined reactor. Rated 150 PSI/full vacuum internal @ 450 Deg. F. Jacket rated 150 PSI/full vacuum @ 450 Deg. F. Type 808 glass. Full clamp top. 3-Blade retreat curve agitator. 7.5 HP, 460 volt, XP. Lug Mounted. Built 2000. S/N 8634, NB 13.Estimated Weight 1650#.

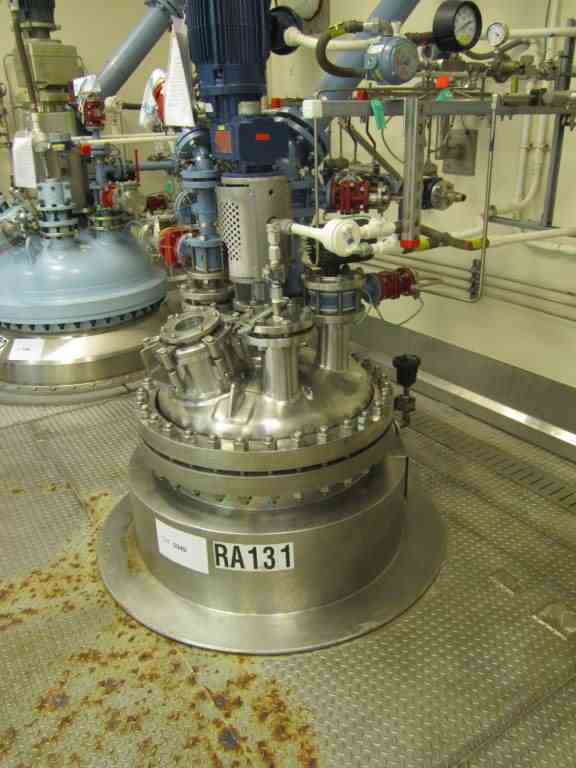

Used 100 gallon Robert Mitchell Hastelloy C276 reactor. Rated 100 PSI internal @ 450 Deg. F. 304L stainless steel jacket rated 150 PSI @ 450 Deg F. Bolted top. 3 HP Pro-Quip Model 300VHHW12, 460 volt, 1755RPM XP agitator. Lug Mounted. Built 2001. S/N 6650, NB 378. Estimated weight 3600#.

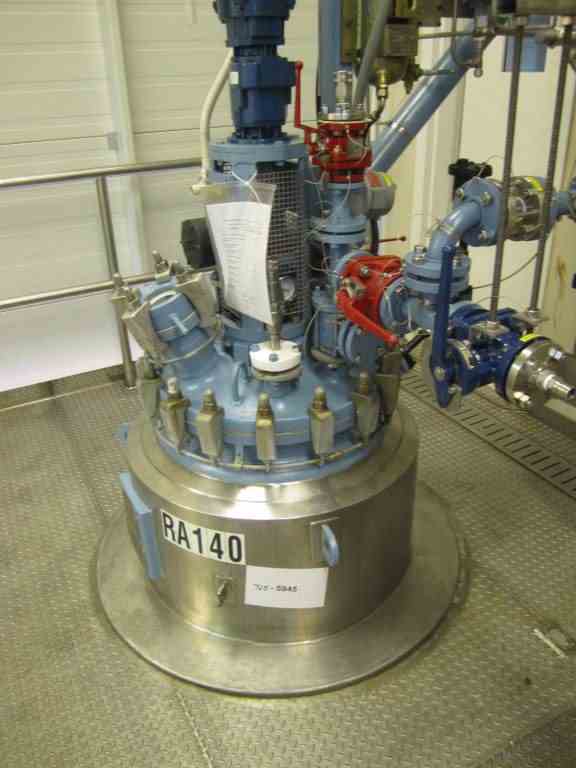

Used Tycon approximately 50 Gal. glass lined reactor. Rated 150 PSI/full vacuum internal @ 450 Deg. F. Jacket rated 110 PSI/full vacuum @ 450 Deg. F. Type 808 blue glass. Bolted top. 2 HP, 460 volt, 1725 RPM with 3 – blade retreat curve agitator. Lug Mounted. Built 2002. S/N 8630, NB 10. Estimated weight 2200#.

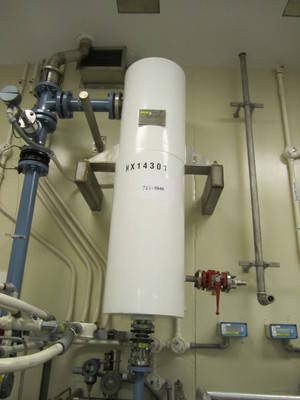

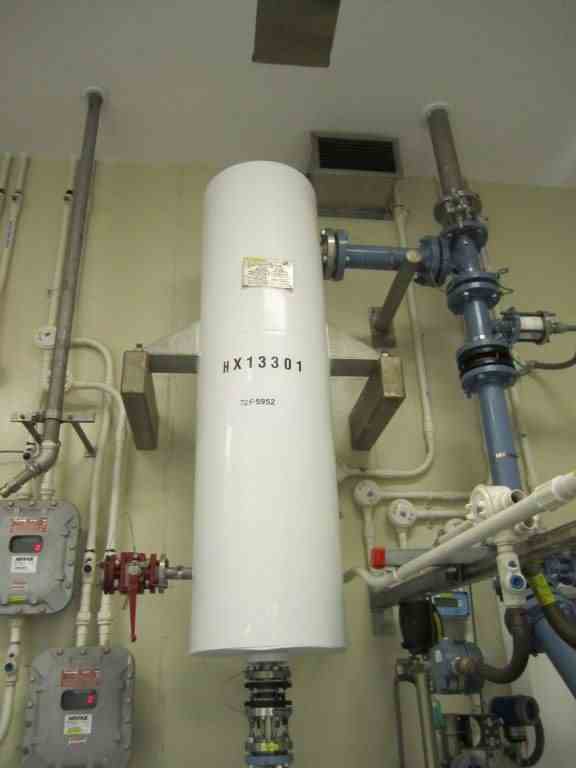

Used Doyle & Roth Model VT861-3VE 32 Square foot vertical heat exchanger Hastelloy C276 tubes rated full vacuum/150 PSI @ 347 Deg. F. 316L stainless steel shell rated 150 PSI/full vacuum @ 347 Deg. F. Lug Mounted. Built 2000. S/N J9290-6, NB 19063. Estimated weight 315#.

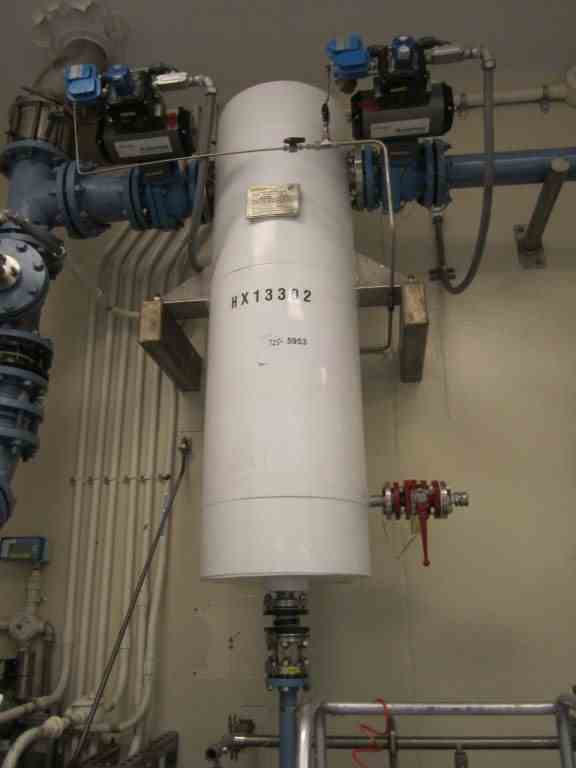

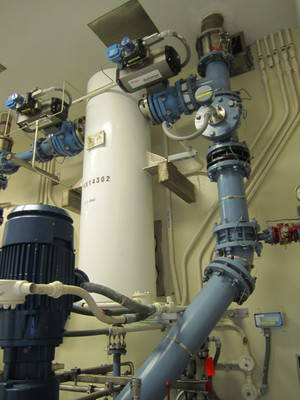

Used Doyle & Roth Model VT1261-3V 60 Square foot vertical heat exchanger Hastelloy C276 tubes rated full vacuum/150 PSI @ 347 Deg. F. 316L stainless steel shell rated 150 PSI/full vacuum @ 347 Deg. F. Lug Mounted. Built 2000. S/N J9290-10, NB 19067.

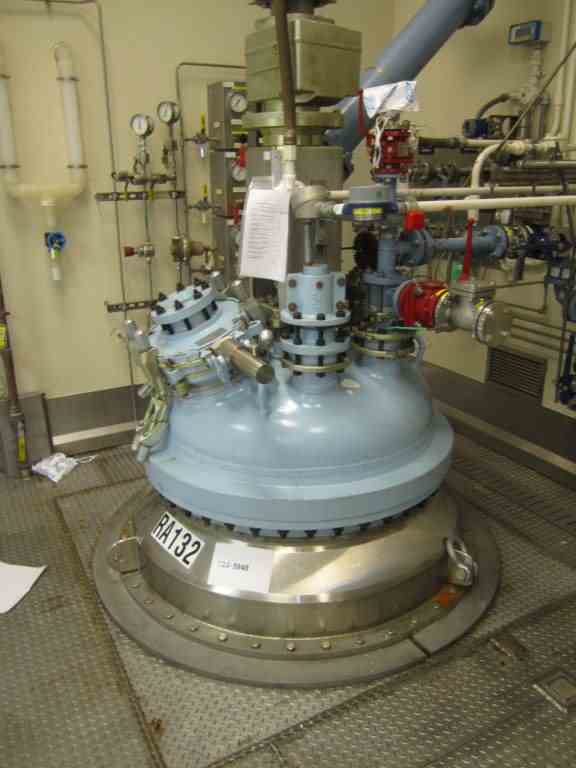

Used Pfaudler Model VMX250 approximately 200 Gal. glass lined reactor. Rated 150 PSI/full vacuum internal @ 450 Deg F. Jacket rated 100 PSI @ 450 Deg. F. Type 9119 glass. 3 HP vertical agitator drive. Lug Mounted. Built 2008. S/N J075446, NB 52085.

Used 100 gallon Robert Mitchell Hastelloy C276 reactor. Rated 100 PSI internal @ 450 Deg. F. 304L stainless steel jacket rated 150 PSI @ 450 Deg. F. Bolted top head. With valve. 3 HP Pro-Quip Agitator. Lug Mounted. Built 2001. S/N 6649, NB 377. Estimated weight 3600#.

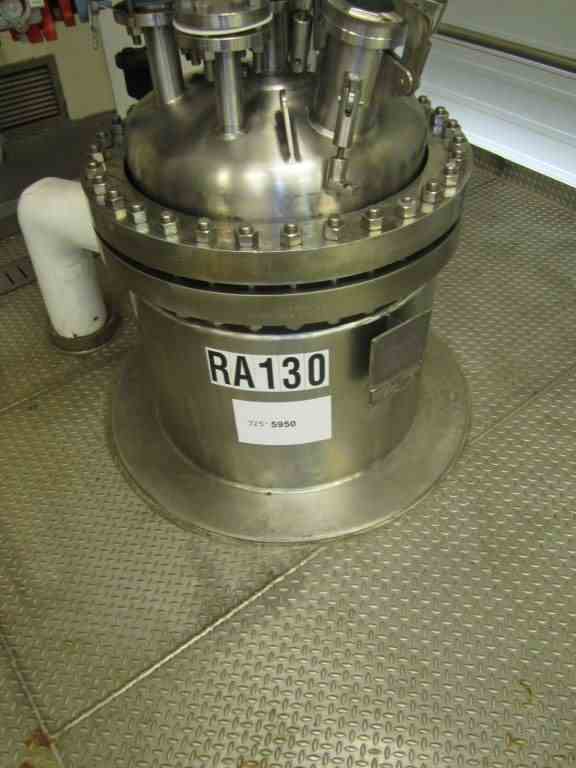

Used 50 gallon Robert Mitchell Hastelloy C276 reactor. Rated 100 PSI/full vacuum internal @ 450 Deg. F. Jacket rated 150 PSI/full vacuum @ 450 Deg. F. Coil rated 150 PSI/full vacuum @ 450 Deg. F. Bolted top. With valve. Coned bottom. 2 HP, 1725 RPM Pro-Quip agitator. Lug Mounted. Built 2001. S/N 6644, NB 384.Estimated weight 1915#

Used Doyle & Roth Model VT861-3VE 32 square foot vertical heat exchanger. Hastelloy C276 tubes rated full vacuum/150 PSI @ 347 Deg. F. 316L stainless steel shell rated 150 PSI/full vacuum @ 347 Deg. F. Lug Mounted. Built 2000. S/N J9290-6, NB 19048.
