590 Gal Tycon Glass Lined Tank
Other Views - click image for larger view
590 Gal Tycon Glass Lined Tank 590 Gal Tycon Glass Lined Tank 590 Gal Tycon Glass Lined Tank

590 gal tycon glass lined tank

Stock # 5920
Sold
Capacity 590 Gal

Overview

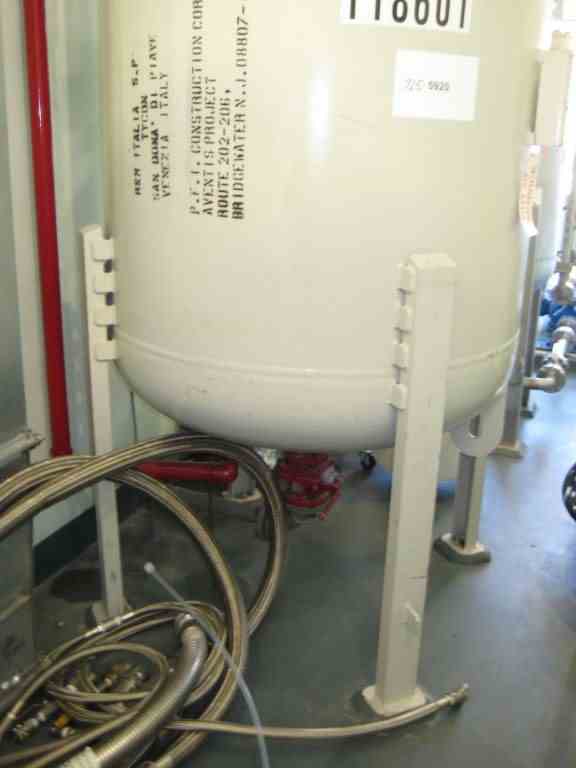

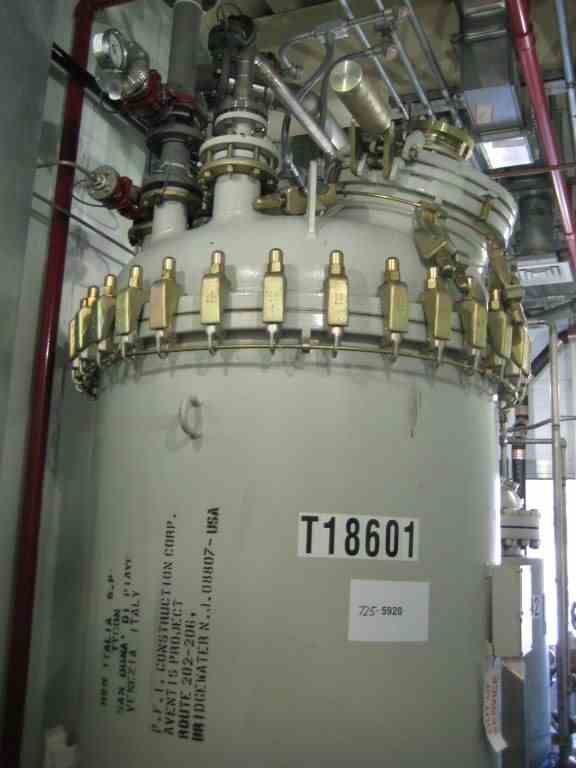

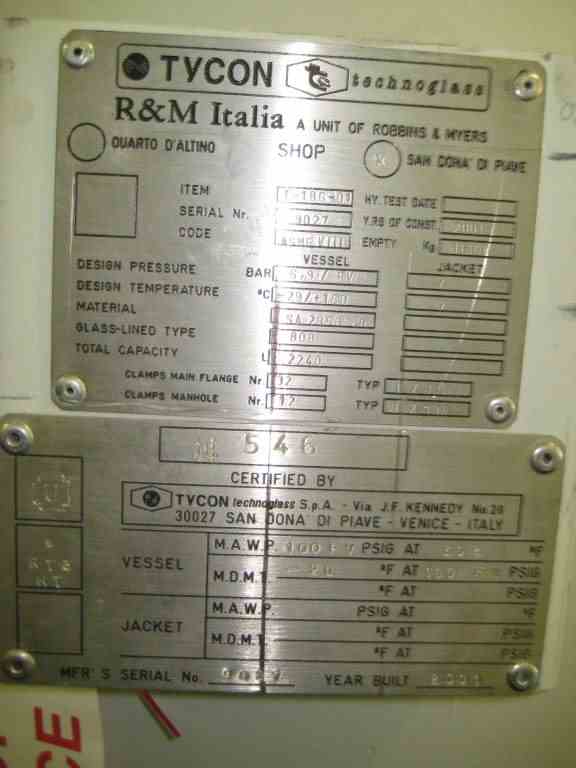

Used Tycon approximately 590 Gal. vertical glass lined receiver. 4’ Dia. x 4’6” straight side with dished top and bottom heads. 808 glass. Rated 100 PSI/full vacuum internal @ 302 Deg. F. full clamp top. 24” top manway and 2” center bottom outlet. On legs. Built 2001. S/N 9027, NB 546.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Tycon
Model
N/A
Material
Unknown
Capacity
590 Gal
Subcategory
