1000 Gal Cherry-Burrell Stainless Steel Tank
Other Views - click image for larger view
1000 Gal Cherry-Burrell Stainless Steel Tank 1000 Gal Cherry-Burrell Stainless Steel Tank 1000 Gal Cherry-Burrell Stainless Steel Tank

1000 gal cherry-burrell stainless steel tank

Stock # 21569
Capacity 1000 Gal

Overview

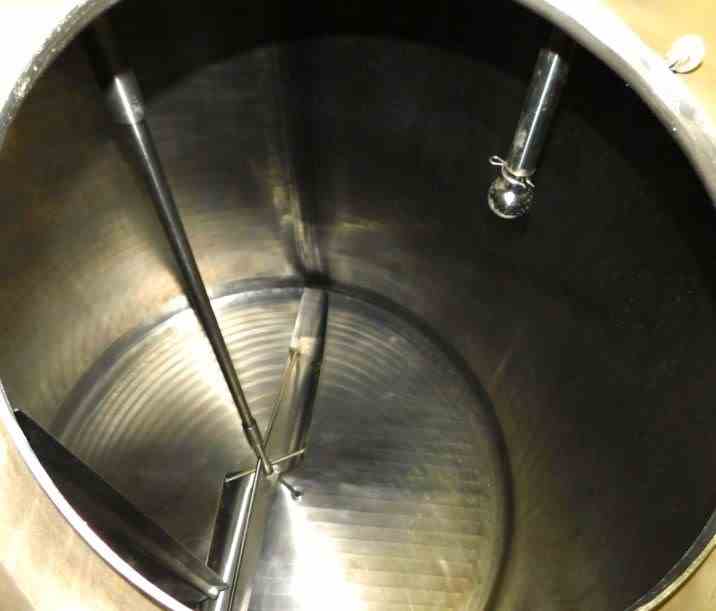

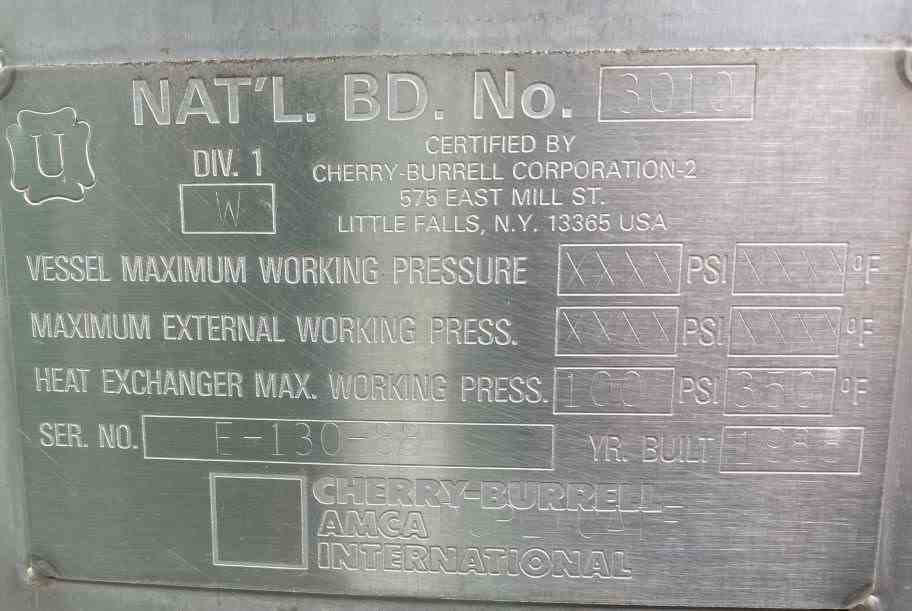

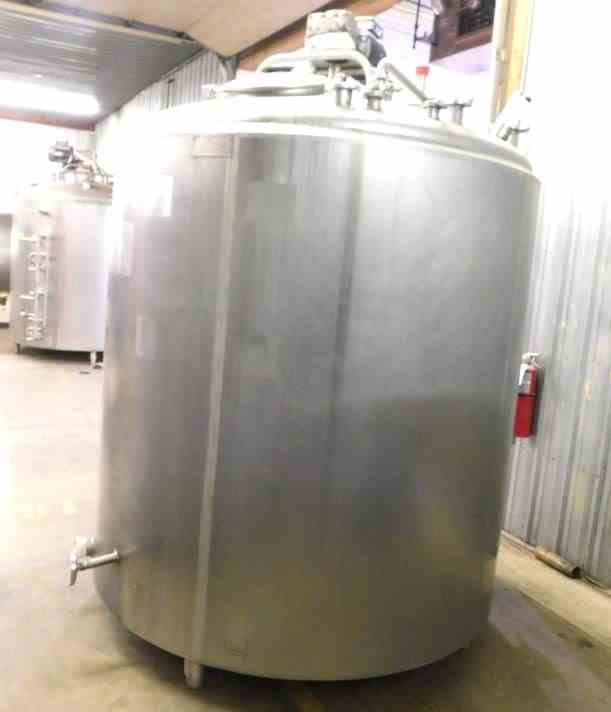

Used 1000 Gallon Jacketed Stainless Mix Tank. Manufactured by Cherry Burrell. Top mount agitator driven by a 1.6/3 HP, 860/1740 rpm 460 volt motor into gearbox with 42.93 ratio for 20/40 RPM output speed. Jacket Rated 100 PSI @ 300F. CIP Ball. National Board # 3010. Serial #E-130-88. Built 1988. 6' ID x 6' T/T. 3" Side bottom outlet. 9'6" OAH. Last used in sanitary food plant.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Cherry-Burrell
Model
na
Material
Stainless Steel
Capacity
1000 Gal
