41688 Sq Ft Smithco Eng. Fin Fan Heat Exchanger
Other Views - click image for larger view
41688 Sq Ft Smithco Eng. Fin Fan Heat Exchanger 41688 Sq Ft Smithco Eng. Fin Fan Heat Exchanger 41688 Sq Ft Smithco Eng. Fin Fan Heat Exchanger 41688 Sq Ft Smithco Eng. Fin Fan Heat Exchanger 41688 Sq Ft Smithco Eng. Fin Fan Heat Exchanger

41688 sq ft smithco eng. fin fan heat exchanger

Stock # 20898
Capacity 41688 Sq Ft

Overview

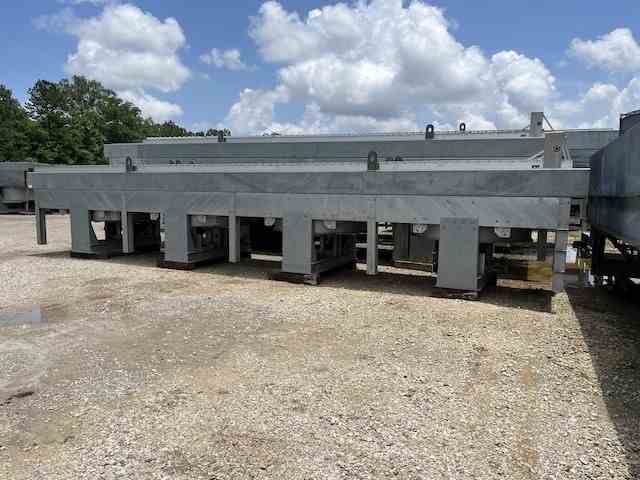

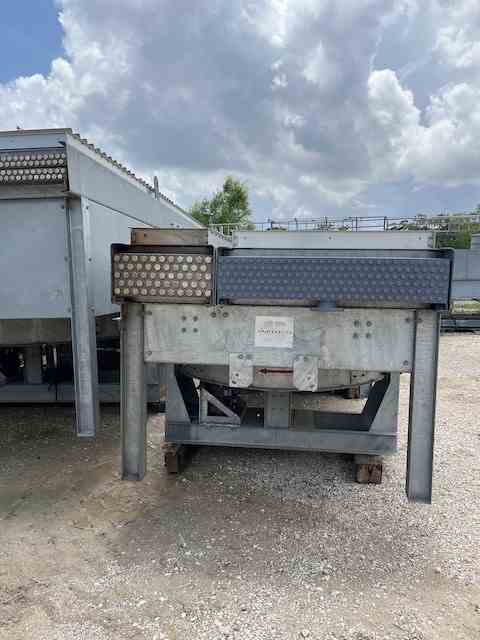

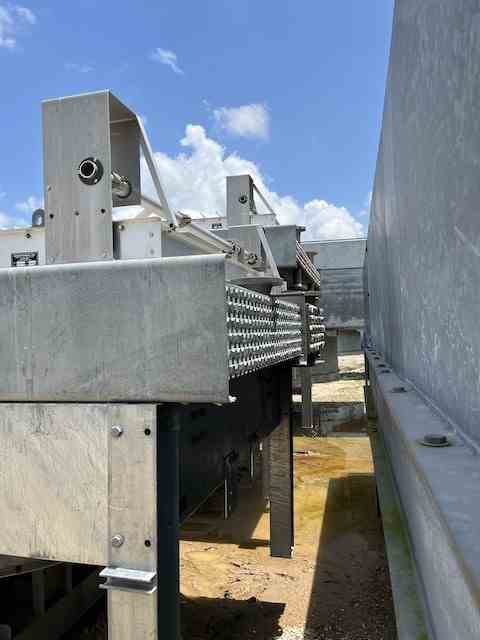

Used 41688 sq ft Forced Draft Air Fin Cooler. Manufactured by Smithco Engineering Inc. Model F39-75-4. (1) Fin Fan with (2) Bundles. Bundle (1) Amine Cooler. 676 sq ft (Bare), 14197 sq ft (Extended). 39'F/F. 316L Stainless Steel headers (50) 1.25" O.D. SS Tubes Rated 100 psi@ 240F Forced Draft Type. (4) Fans. Top Louvers. National Board #14748. Serial #2015B2222A. Bundle (2) Reflux Cooler. 1309 sq ft (Bare), 27491 sq ft (Extended). Carbon Steel Headers. (171) CS Tubes x 1" Tube O.D. 75 psi @ 255F. National Board #14749. Serial #2015B2222B.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Smithco Eng.
Model
F39-75-4
Material
Stainless Steel
Capacity
41688 Sq Ft
Subcategory
