Fin Fan Heat Exchangers

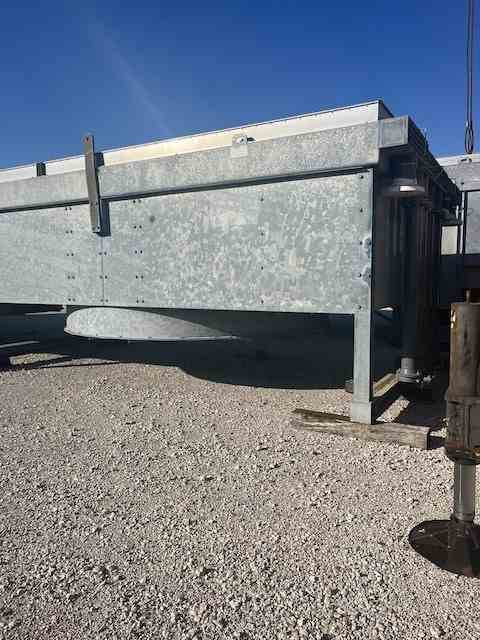

Used 72607 Sq Ft Air Fin Cooler. Manufactured by Harsco Air-X-Changer. Forced Draft. Model #168-2Z. 3869 sq ft (Bare). Carbon Steel tubes and headers. 46' tube length. (2) 50 hp fans. Top louvers. (1) fin fan with (5) bundles. Bundle #1: 611 bare sq. ft., 11,423 extended sq. ft. 4 rows/2 pass, 150 psig @ 300 deg. F. (34) 1.5" od x 16 bwg tubes, 6" inlet, 6" outlet. Bundle #2: 1030 bare sq. ft. 22,043 extended sq. ft., 4 rows/2 pass, 150 psig @ 300 deg. F. (86) 1" od x 16 bwg tubes. 6" inlet, 6" outlet. Bundle #3: 791 bare sq. ft., 16,917 extended sq. ft., 4 rows/1 pass, 645 psig @ 350 deg. F., (66) 1" od x 16 bwg tubes, 8" inlet, 8" outlet. Bundle #4: 629 bare sq. ft., 9,369 extended sq. ft., 4 rows/1 pass, 1287 psig @ 350 deg. F., (70) 3/4" od x 16 bwg tubes, 6" inlet, 6" outlet. Bundle #5: 808 bare sq. ft., 12,855 extended sq. ft., 5 rows/1 pass, 1700 psig @ 350 deg. F., (108) 5/8"OD x 16 bwg tubes, 6" inlet, 6" outlet. Built 2013.

Used 3,140 bare / 65,973 extended sq ft Fin Fan Heat Exchanger. Mfg GEA Rainey. (2) bundles #1 Bundle 1130 Sq ft (108) 1"OD x 40'L 316L Stainless Steel tubes rated 200PSI@300F Mfg Smithco built 2008. #2 Bundle 2010 Sq Ft (192) 1"OD x 40'L Carbon Steel tubes rated 2383PSI@350F. mfg GEA Rainey built 2005. 10'1"OAW x 41'4"OAL. Past use Compressor Lube Oil.

Used 49256 Sq Ft Chart Cooler Service Co. Inc Air Fin Cooler. Model 1-HF120-2-40. Tube bundle 11' wide X 40' long. (222) Carbon steel 1" tubes with L-tension wrapped aluminum fins. 4 rows, 3-passes. 2313 sq. ft.(Bare). 49256 Sq Ft (extended). 500 PSIG @450F. 8" 300 lb inlet and outlet and 1" vent and drain. (2) 25 HP 10'Dia Moore model 10000-30 EC VT fans. (5) blades each with 6.9 pitch with 28,200 ACFM/fan. Output 323.2 RPM. 25HP 3/60/460. Overall dimensions 42' long X 11' wide X 11'8" tall. Weight 27,000#. Previous use natural gas service. National Board # 15571. Serial #32312-1. Built 2012.

Used 41688 sq ft Forced Draft Air Fin Cooler. Manufactured by Smithco Engineering Inc. Model F39-75-4. (1) Fin Fan with (2) Bundles. Bundle (1) Amine Cooler. 676 sq ft (Bare), 14197 sq ft (Extended). 39'F/F. 316L Stainless Steel headers (50) 1.25" O.D. SS Tubes Rated 100 psi@ 240F Forced Draft Type. (4) Fans. Top Louvers. National Board #14748. Serial #2015B2222A. Bundle (2) Reflux Cooler. 1309 sq ft (Bare), 27491 sq ft (Extended). Carbon Steel Headers. (171) CS Tubes x 1" Tube O.D. 75 psi @ 255F. National Board #14749. Serial #2015B2222B.

Used 38881 Sq ft Forced Draft Air Fin Cooler. Manufactured by Smithco Engineering Inc. Water Air Cooler. 1851 sq ft (Bare), 38881 Sq ft (Extended). 11'9" Frame Width x 40'OAL. Stainless Steel Tubes and Headers. (260) 304L SS Tubes .75" O.D. rated 325 psi @ 400F. (2) 40 HP Fans. Top Louvers. National Board #14763. Serial #2015B221A. Built in 2016.

Unused approx 6600 Sq Ft CryoCore Multi-Stream BAHX Brazed Aluminum Heat Exchanger. Manufactured by CoreWorks. Flow rate: 20 MMSCFD. Core dimensions 98.43" x 23.62" x31.95". Max operating pressure 1440 PSIG @-320F/130F. Inlet operating pressure 1000 PSIG/700 PSIG. Exchanger duty 9296870 BTU/hr. Total UA 342168 BTU/HrF. Stream 1: Inlet Gas/Outlet Gas Pre-JT (8” 600#RF/6” 600#RF). Stream 2: Cold Sep Gas/Outlet Gas (6” 600#RF/6” 600#RF). Stream 3: Cold Sep NGL/NGL to Stabilizer (4” 600#RF/4” 600#RF). Stream 4: Stabilizer Overhead/Gas to Recycle (6” 600#RF/6” 600#RF). Stream 5: Chilled Glycol/Glycol Return (6” 150#RF/6” 150#RF).

Unused 4600 sq ft (bare), 99,290 sq ft (extended) Carbon Steel Fin Fan Heat Exchanger. Rated 150 PSIG @ 255F. (358) 1” SA-214 Carbon Steel Tubes x 50’L. 3 Passes, 1 section. (3) 25 HP Fans. 1.711 MBTU/HR. Mfg by SmithCo. Built 2004. OAW : 14'2", OAL: 51’5”.

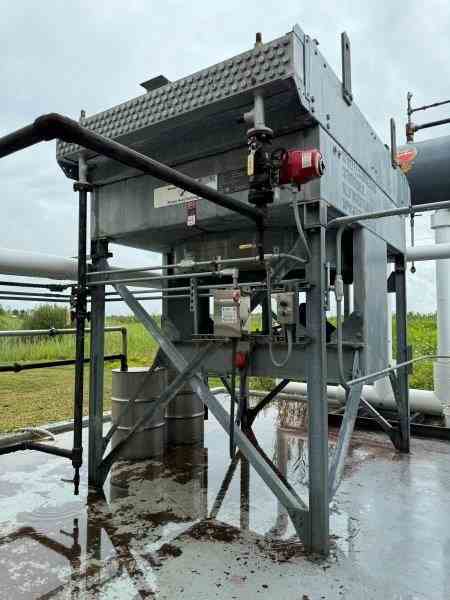

Used Kelvion Rainey air cooled heat exchanger. Manufactured by Kelvion. Serial #R-10720-1-A. Built 2017
