1500 Gal Andy J. Egan Stainless Steel Tank
Other Views - click image for larger view
1500 Gal Andy J. Egan Stainless Steel Tank 1500 Gal Andy J. Egan Stainless Steel Tank 1500 Gal Andy J. Egan Stainless Steel Tank 1500 Gal Andy J. Egan Stainless Steel Tank 1500 Gal Andy J. Egan Stainless Steel Tank

1500 gal andy j. egan stainless steel tank

Stock # 16421
Sold
Capacity 1500 Gal

Overview

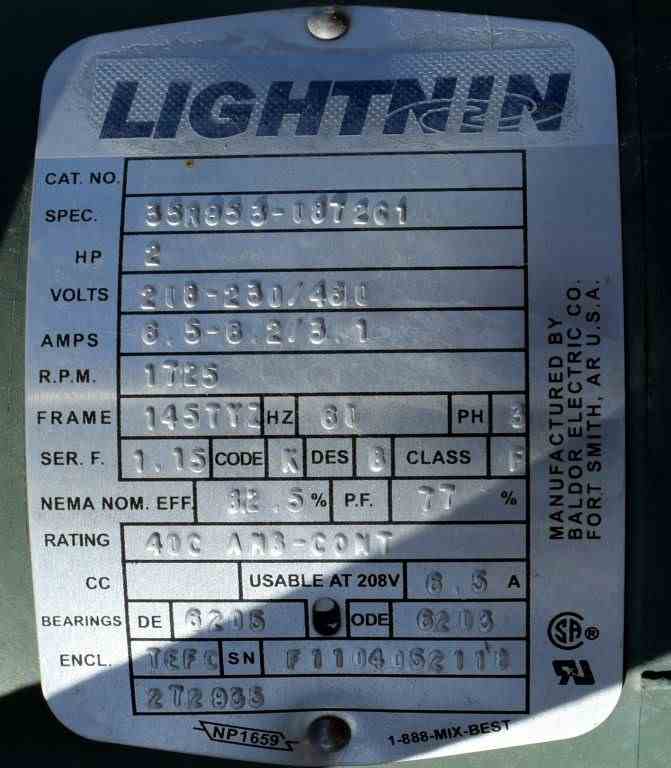

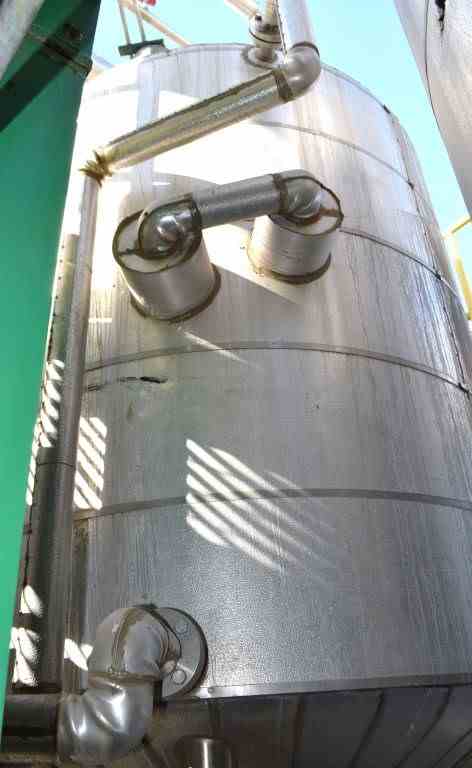

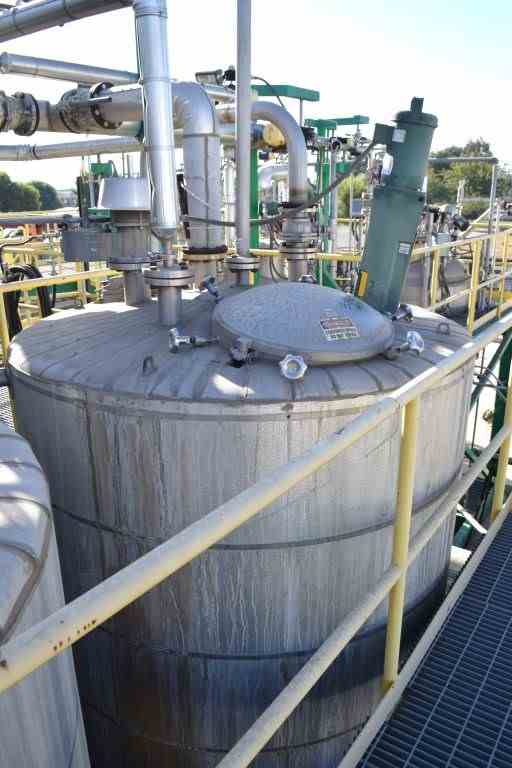

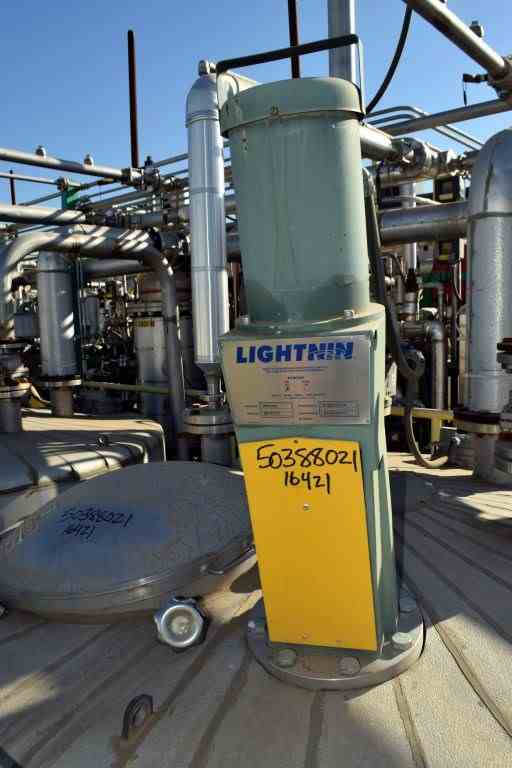

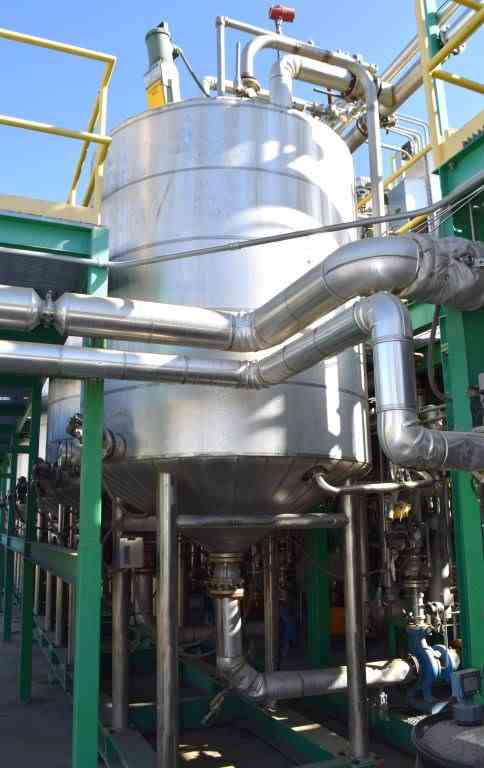

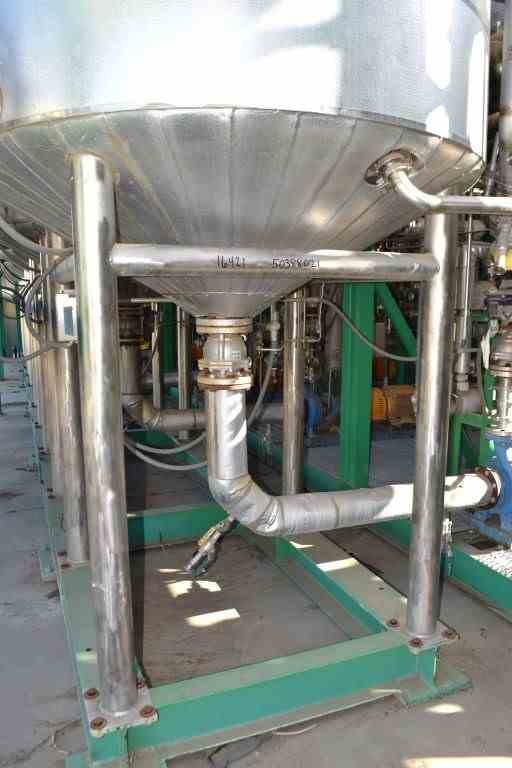

Used 1500 Gallon Andy J. Egan 316L Stainless Steel Jacketed Tank. Vertical. Approximate 72” diameter x 84” straight side, slight coned top, cone bottom. Jacketed, no rating. Off center top entering angled Lightnin agitator, model X6S200, serial# 2636787. Approximate 1-1/2” diameter shaft with (1) 3 blade turbine, (1) 3 blade prop, driven by a 2hp, 3/60/208-230/460 volt, 1725 rpm motor. (2) Spray balls. Openings top 2”, (2) 3”, (2) 4”, 6” drive, sight glass, 24" man way with cover, side (3) 3”, 4” center bottom outlet. Mounted on (4) 304 stainless steel legs. Built 2011.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Andy J. Egan
Model
X6S200
Material
316L
Capacity
1500 Gal
