500 Gal De Dietrich Glass Lined Reactor
Other Views - click image for larger view
500 Gal De Dietrich Glass Lined Reactor 500 Gal De Dietrich Glass Lined Reactor 500 Gal De Dietrich Glass Lined Reactor 500 Gal De Dietrich Glass Lined Reactor 500 Gal De Dietrich Glass Lined Reactor

500 gal de dietrich glass lined reactor

Stock # 16251
Capacity 500 Gal

Overview

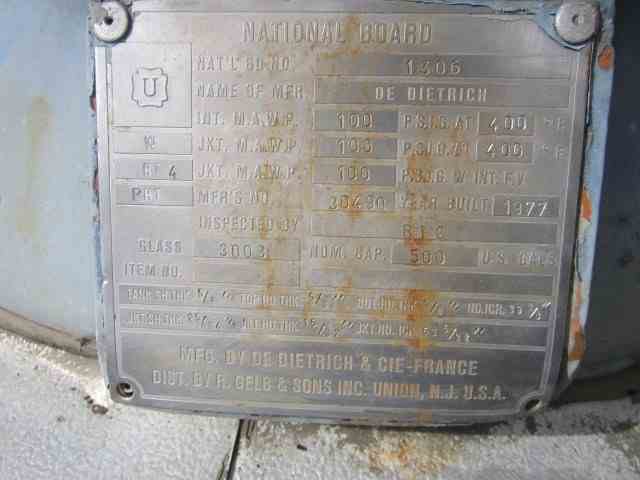

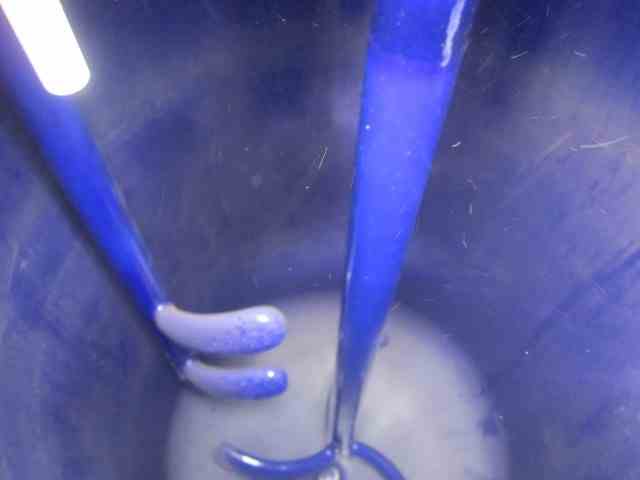

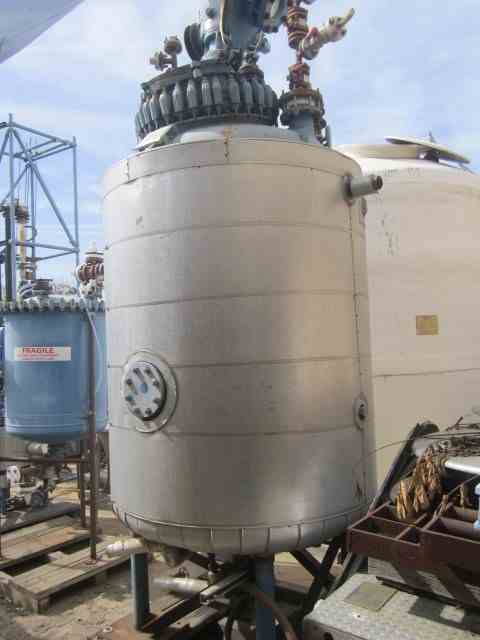

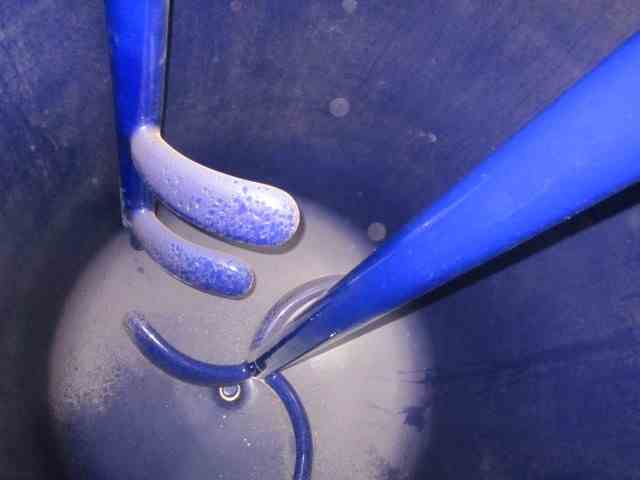

Used 500 Gal Glass Lined Reactor, manufactured by DeDietrich, rated for 100 PSI internal @ 400 deg. F, jacketed for 100 PSI @ 400 deg. F, type 3008 glass, complete with 3-blade retreating impeller type agitation and baffle. Agitation is driven by Pfaudler type HV-45957d-bmd drive. Includes large manway on top with numerous inlets. NB# #1306. Built 1977. 67”L x 67"W x 126"T; 6,000 lbs.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
De Dietrich
Model
NA
Material
Unknown
Capacity
500 Gal
