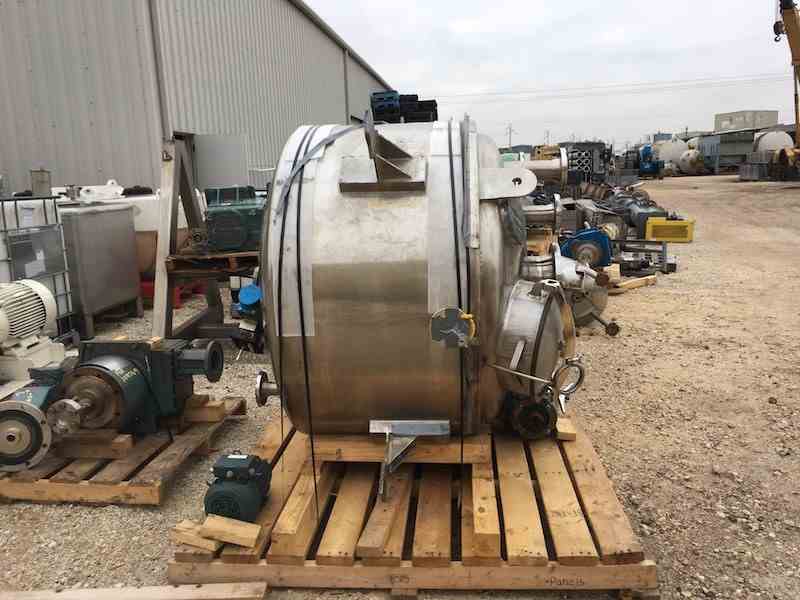

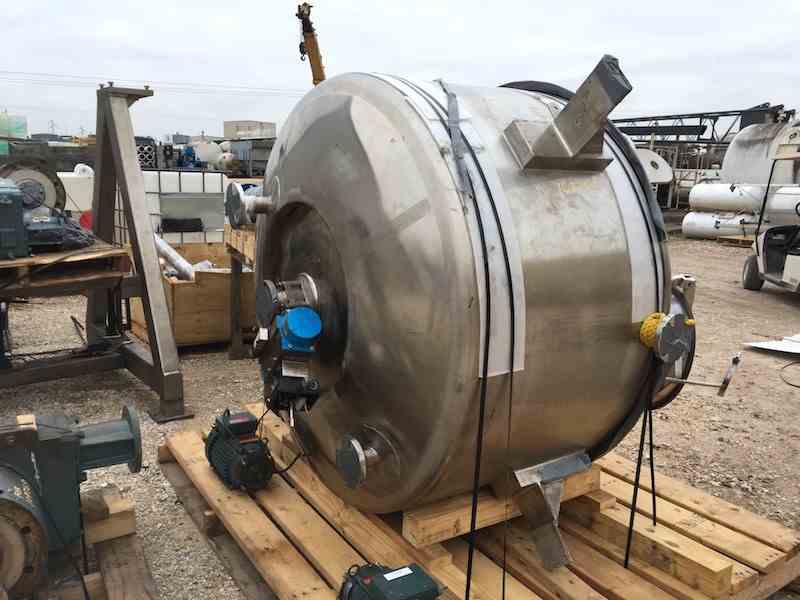

1000 Gal Fabricon Stainless Steel Tank
Other Views - click image for larger view
1000 Gal Fabricon Stainless Steel Tank 1000 Gal Fabricon Stainless Steel Tank 1000 Gal Fabricon Stainless Steel Tank

1000 gal fabricon stainless steel tank

Stock # 15634
Capacity 1000 Gal

Overview

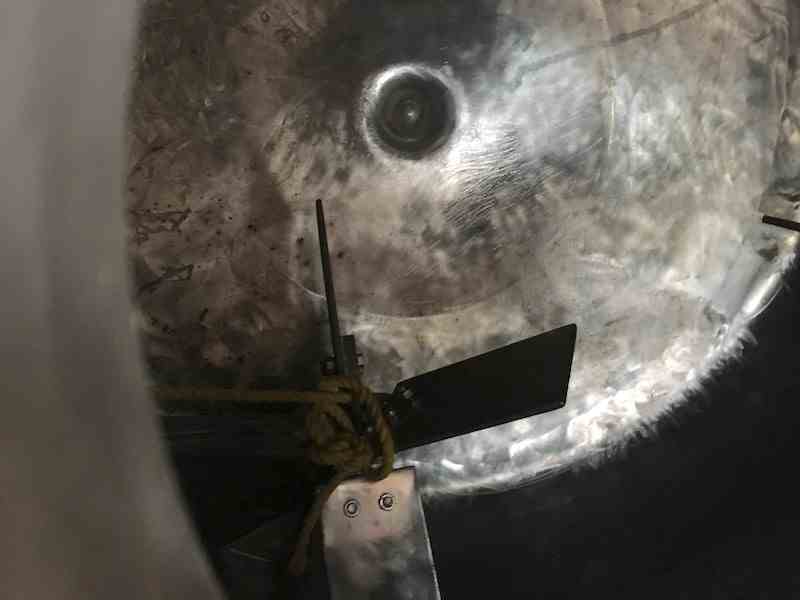

USED 1000 GAL 304L-SS JACKETED MIXING TANK, MFG. BY FABRICON IN 2003. DISHED TOP & BOTTOM. 4'8" DIA X 2'1" STRAIGHT SIDE. INTERNAL RATED ATM @ 300 DEG F. JACKET RATED 150 PSI @ 300 DEG F. (5) TURNS OF 304SS 2" HALF PIPE COIL JACKET ON SHELL TANGENT TO TANGENT AND DIMPLE TYPE JACKET ON BOTTOM HEAD. 316-SS PHILADELPHIA AGITATOR MODEL #PTM-4040. 7.5 HP, 17.1 GEAR RATIO; 100 RPM OUTPUT SPEE, 1800/100 RPM. NOZZLES: TOP (4)2", (4)3", 6", 8" AGITATOR, 18" MUELLER MANWAY; SIDES (3)2"; BOTTOM (2)2"; 2" WITH ACTUATED BALL VALVE. (2) TOP MOUNTED LIFTING LUGS. (4) LEG SUPPORTS. (4) INTERNAL SIDEWALL BAFFLES; EXTERNAL STAINLESS STEEL INSULATION SHEATHING ON SHELL O.D. AND BOTTOM HEAD

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Fabricon
Model
NA
Material
304L-SS
Capacity
1000 Gal
