3396 Gal Troy Mfg. Stainless Steel Tank
Other Views - click image for larger view
3396 Gal Troy Mfg. Stainless Steel Tank 3396 Gal Troy Mfg. Stainless Steel Tank 3396 Gal Troy Mfg. Stainless Steel Tank 3396 Gal Troy Mfg. Stainless Steel Tank 3396 Gal Troy Mfg. Stainless Steel Tank 3396 Gal Troy Mfg. Stainless Steel Tank

3396 gal troy mfg. stainless steel tank

Stock # 14104
Sold
Capacity 3396 Gal

Overview

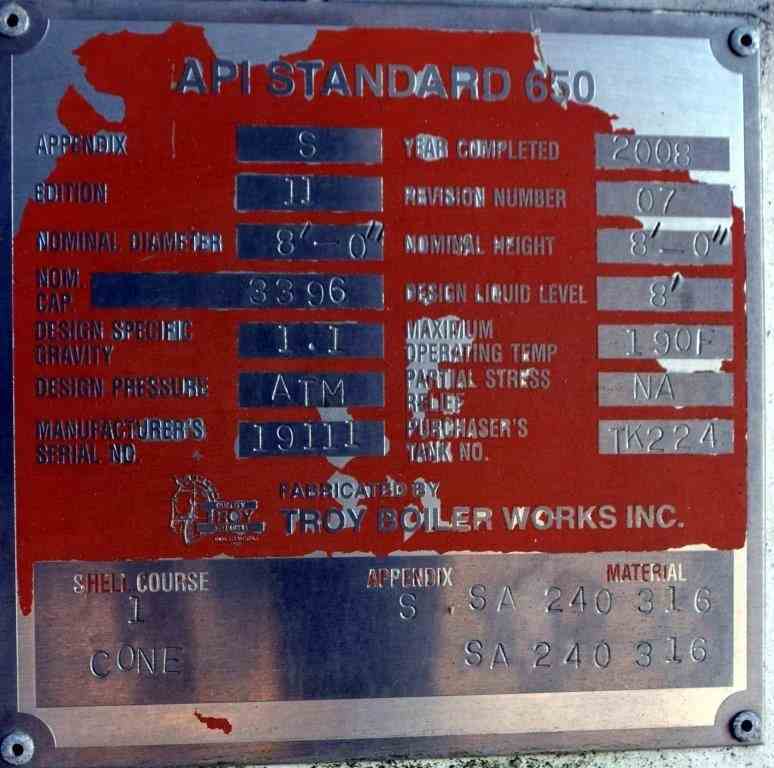

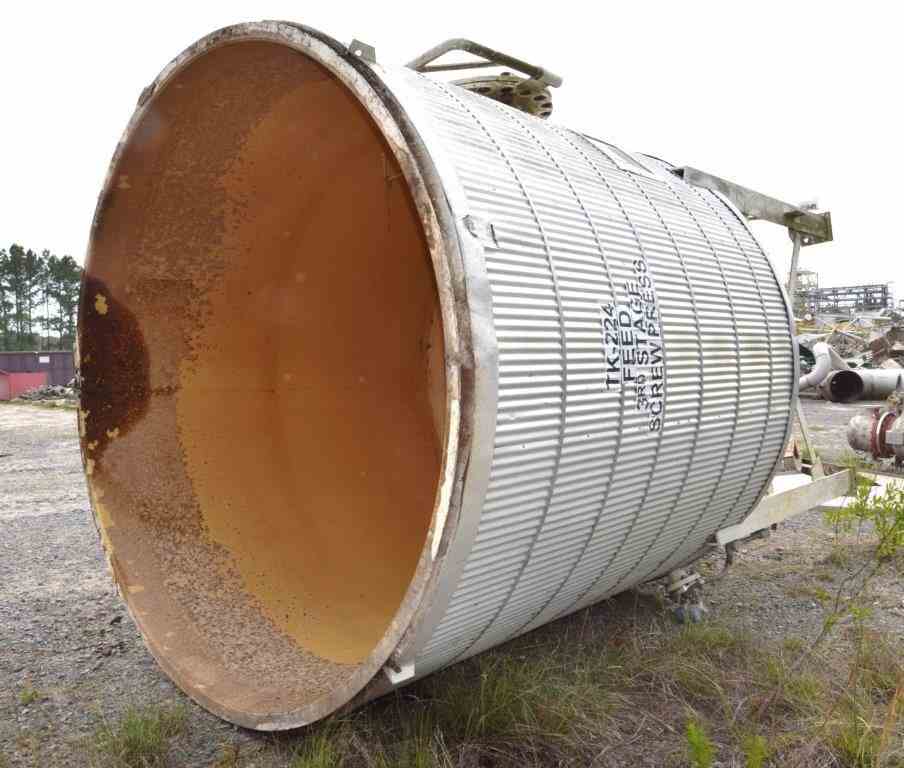

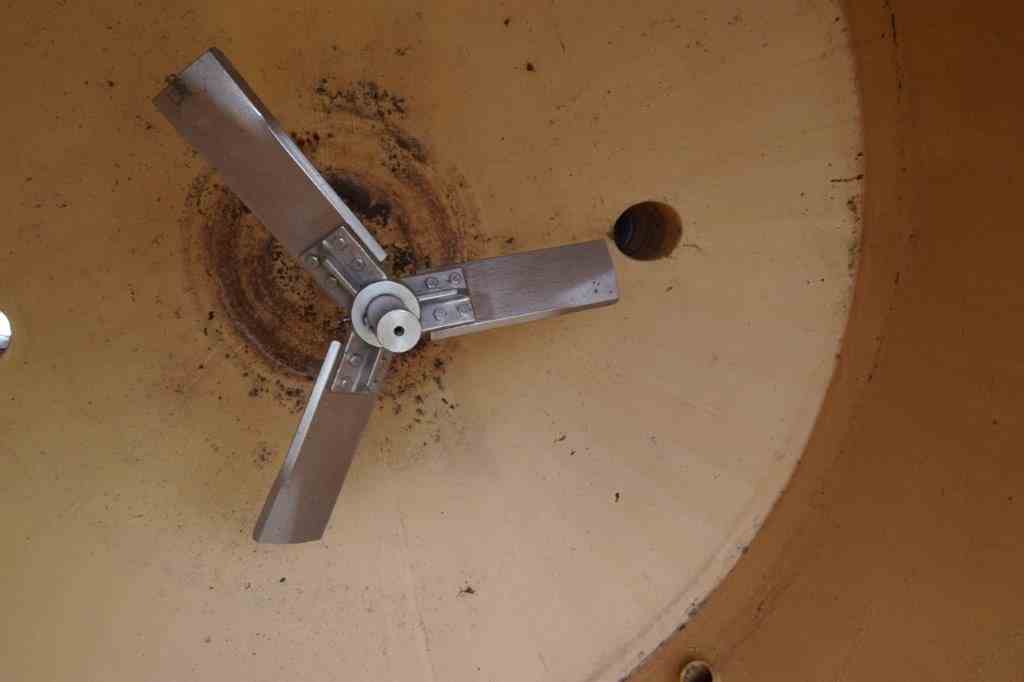

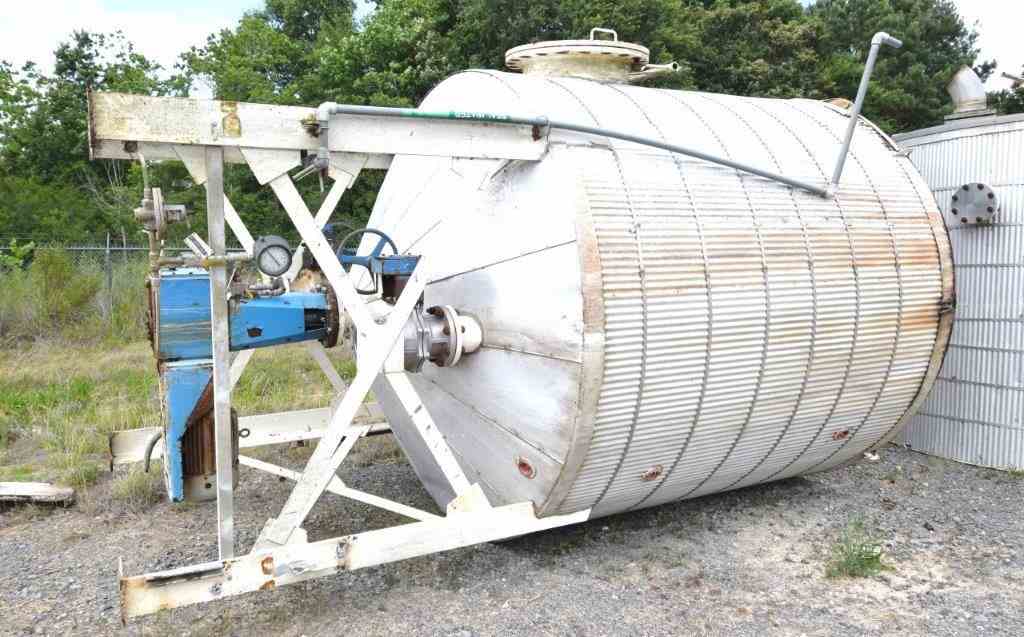

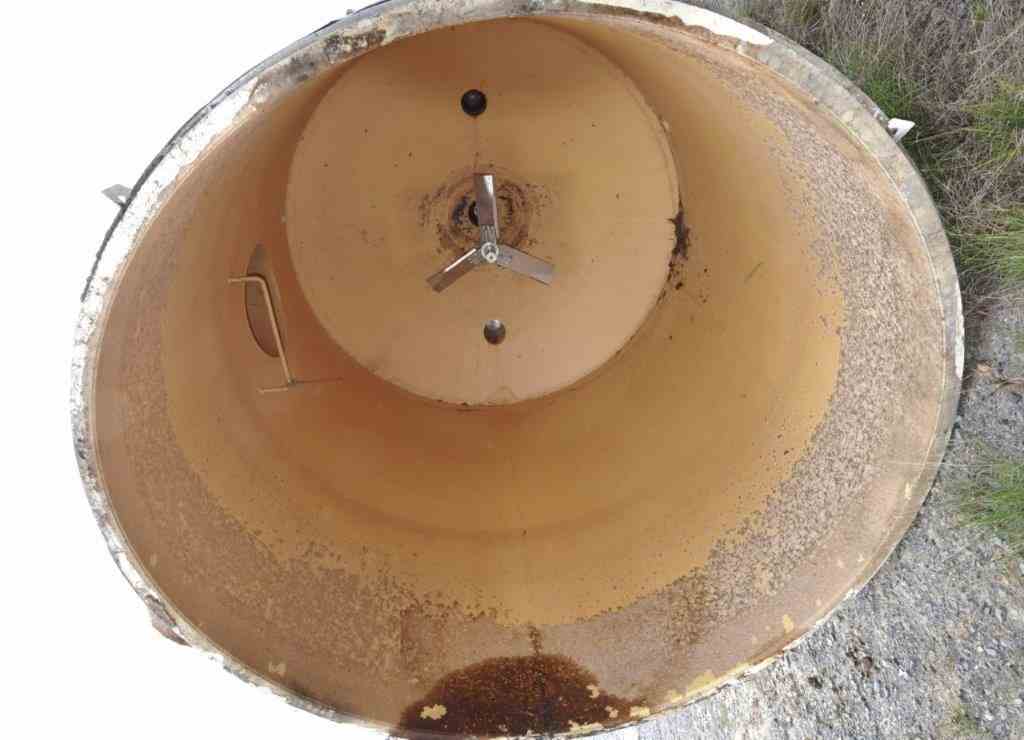

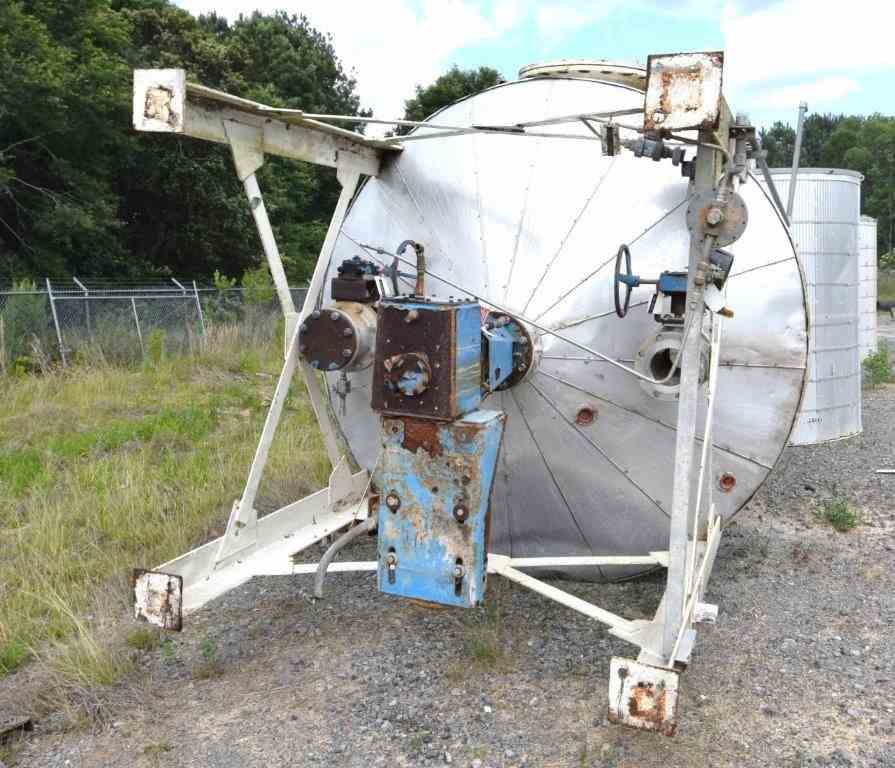

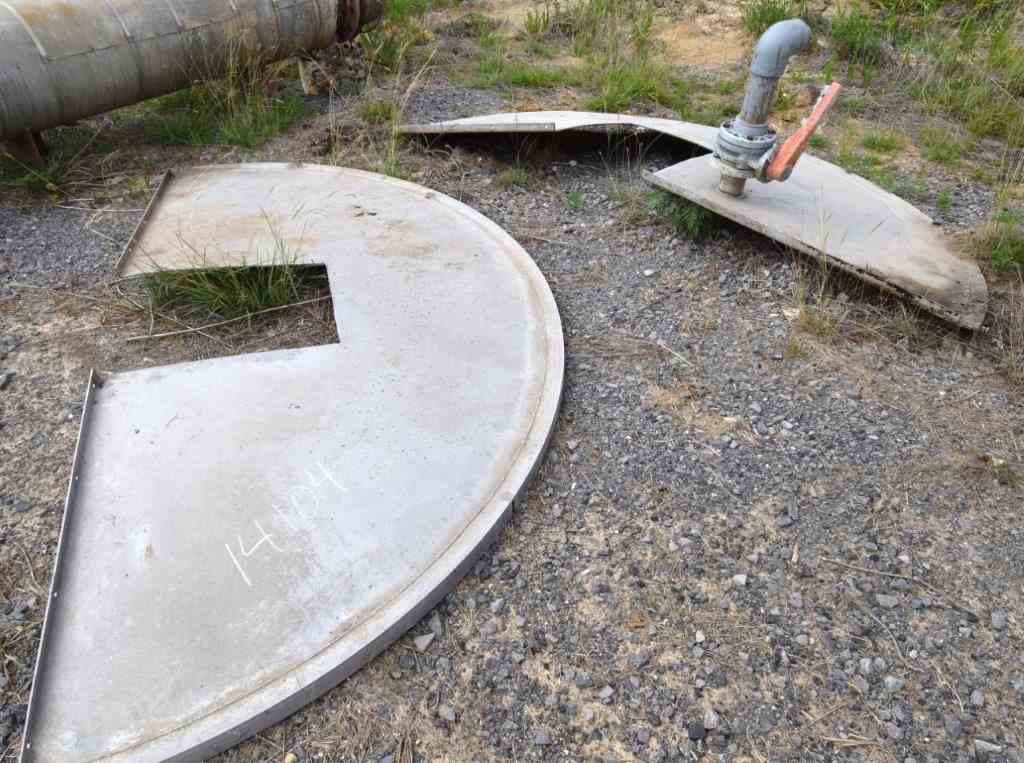

Used 3396 gallon Troy Boiler Works API Standard 650 Tank. 316 Stainless Steel, Vertical. Approximate 96" diameter x 96" straight side, open top with 2 piece cover, coned bottom. Internal rated maximum operating temperature to 190 degrees F. Bottom entering Chemineer agitator, model 2HBA-15, serial# 573194-1, output rpm 190, 3 blade turbine driven by a 15hp, 3/60/230/460 volt, 1765 rpm motor. Side bottom man way, off center bottom outlet. Mounted on 4 carbon steel legs. Serial# 19111. Built 2008.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Troy Mfg.
Model
2HBA-15
Material
SS
Capacity
3396 Gal
