264 Gal Waukesha Stainless Steel Tank
Other Views - click image for larger view
264 Gal Waukesha Stainless Steel Tank 264 Gal Waukesha Stainless Steel Tank 264 Gal Waukesha Stainless Steel Tank 264 Gal Waukesha Stainless Steel Tank 264 Gal Waukesha Stainless Steel Tank 264 Gal Waukesha Stainless Steel Tank 264 Gal Waukesha Stainless Steel Tank

264 gal waukesha stainless steel tank

Stock # 14056
Sold
Capacity 264 Gal

Overview

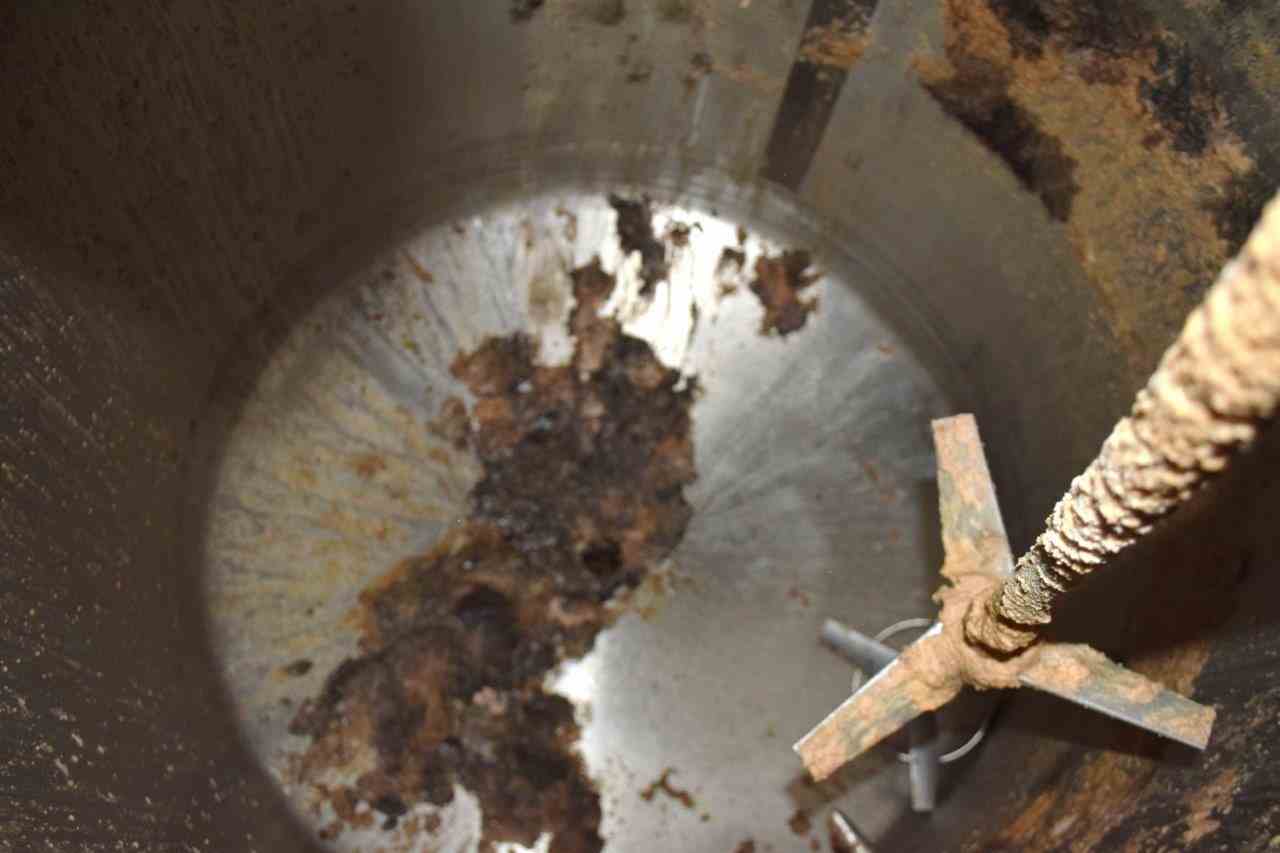

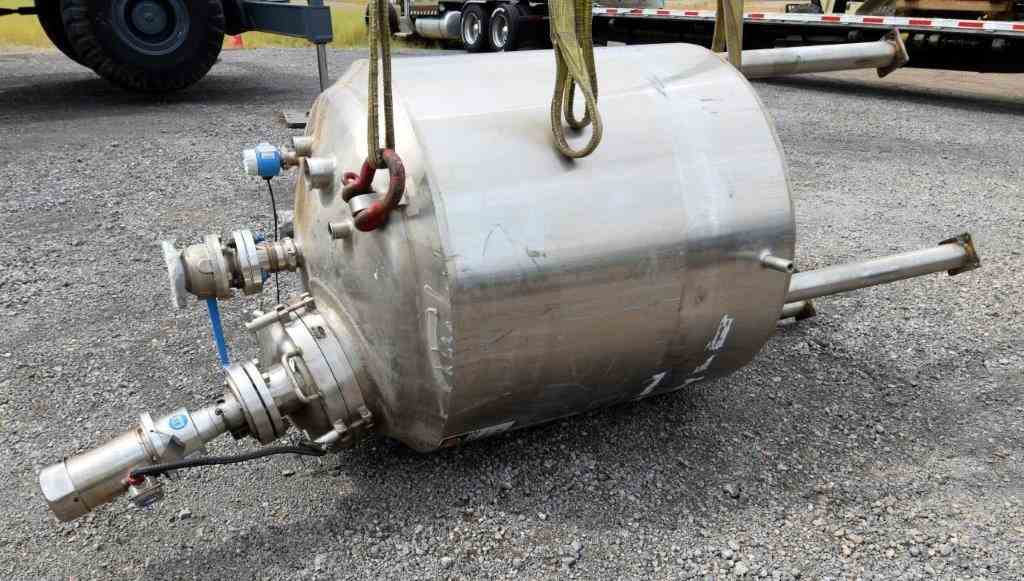

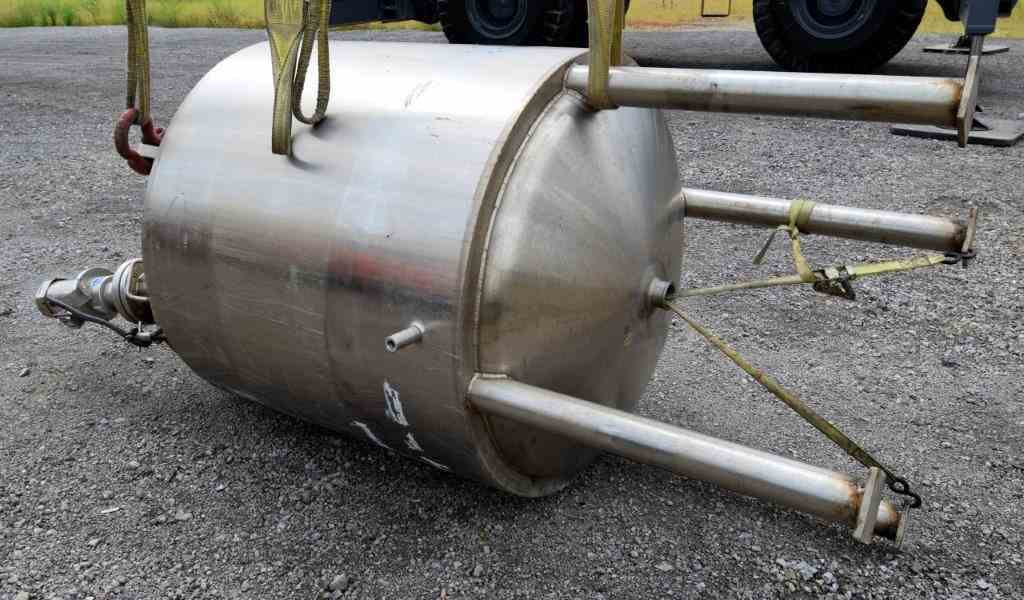

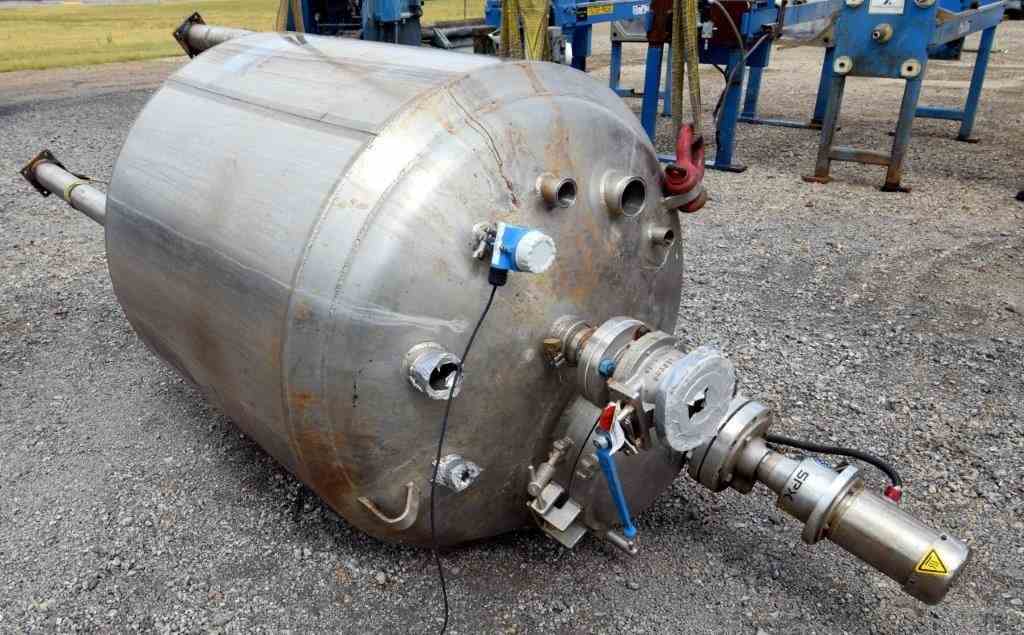

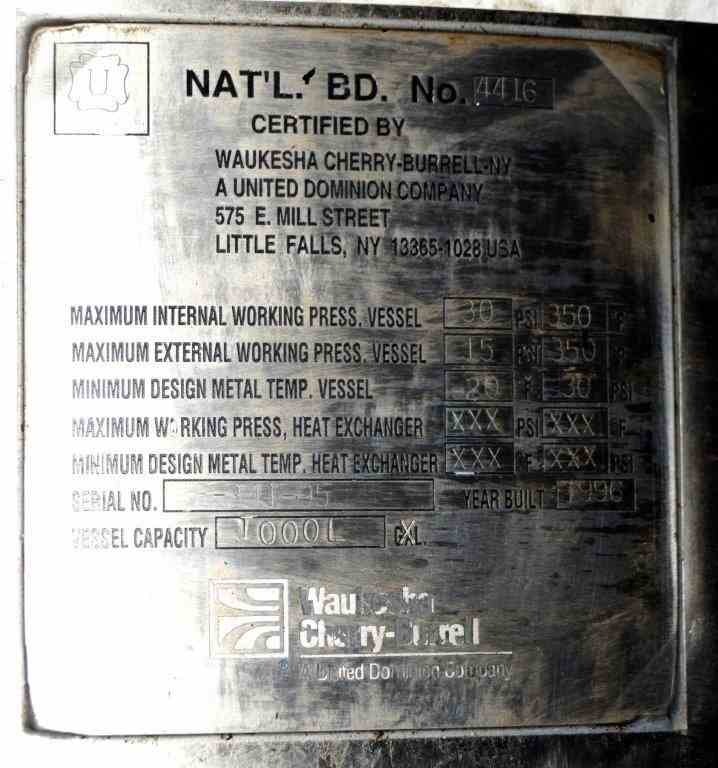

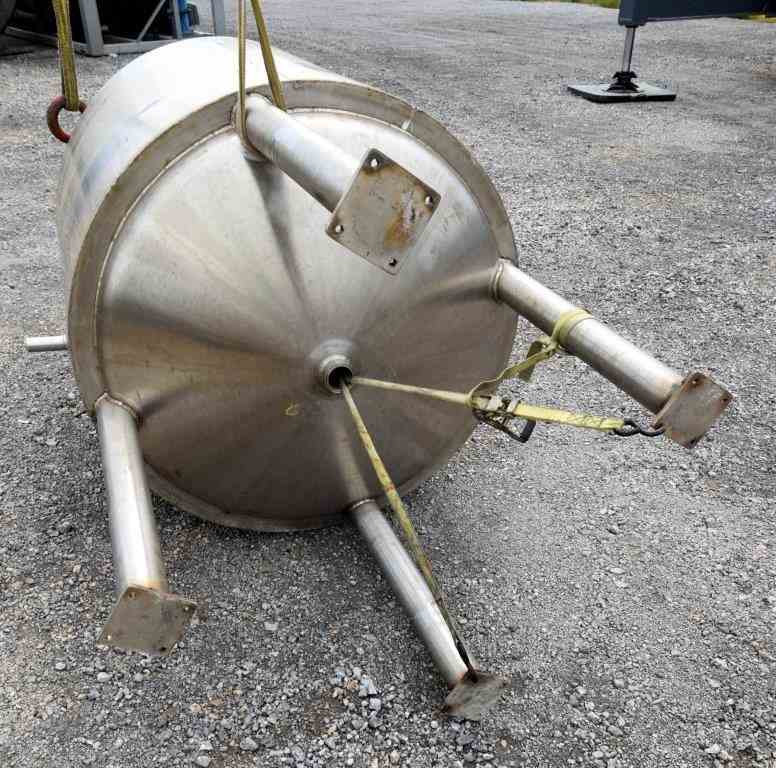

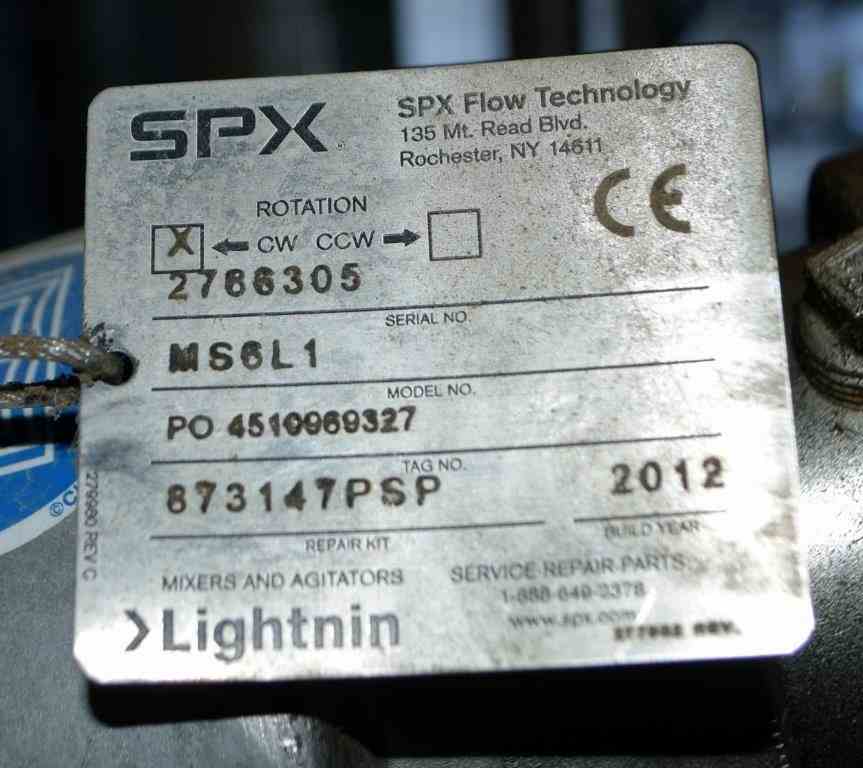

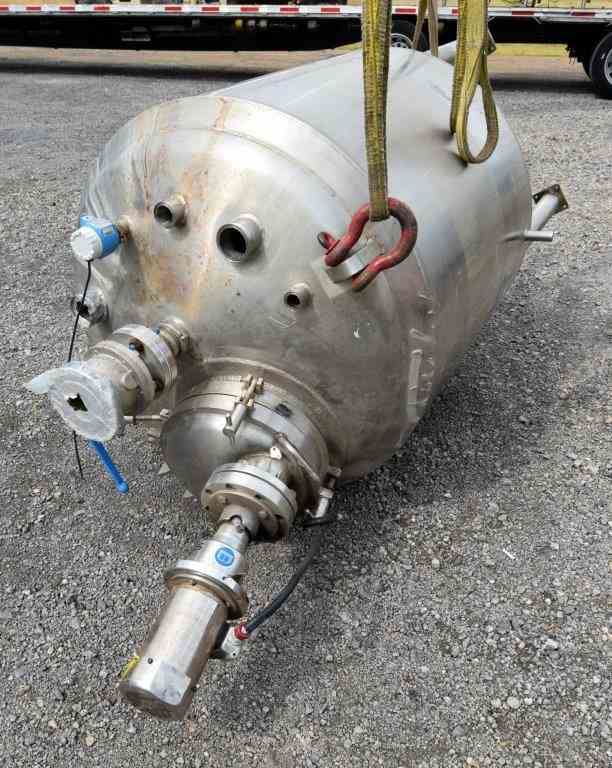

Used Waukesha Cherry-Burrell Pressure Tank, 264 Gallon, 316L Stainless Steel, Vertical. 42" Diameter x 42" straight side, dished top and bottom. Internal rated 30 psi at -20 to 350 degrees F. Off center top entering Lightnin agitator thru the manway cover model MS6L1, serial#2766305, approximate 1" diameter shaft with a 3 blade turbine, driven by a 1/2 HP, 3/60/230/460 volt, 1745 rpmm motor. Mounted on 4 stainless steel legs. National Board# 4416, serial# E-341-95, built 1996.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Waukesha
Model
N/A
Material
SS
Capacity
264 Gal
