Phoenix Equipment is a global buyer and seller of unused, used and reconditioned Stainless Steel Tanks.
Used 900 gallon stainless steel mix tank. 46"ID x 10' s/s (11'7" OAH). flat top and dish bottom with 3" CBO. MixMor Model T0-1.5 top-entering, bridge-mounted agitation with stainless steel shaft and three 4-blade stainless steel bolted pitched-turbine blades along common stainless steel shaft, driven by 1.5 HP, 230/460V, 1740 RPM, 3/60Hz motor. (4) Leg mounted.

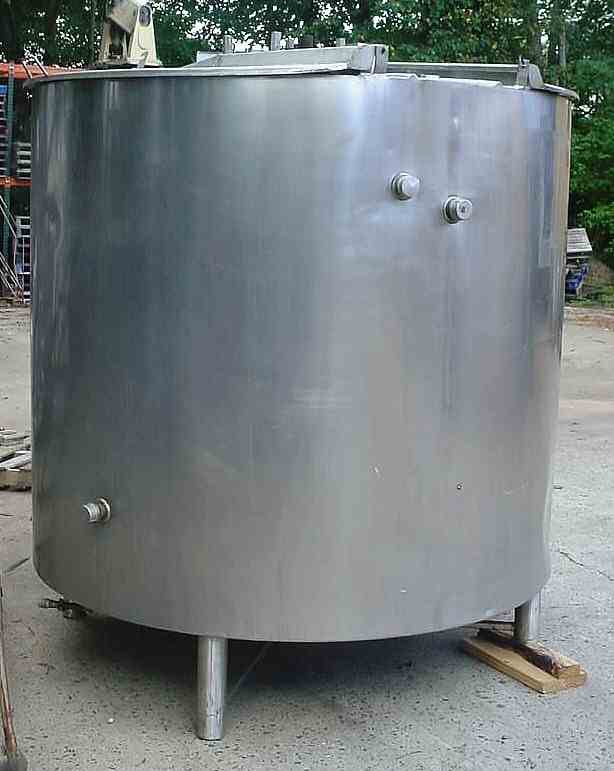

Used 850 gallon open top jacketed stainless steel sanitary mixing tank, dimple jacket body with independent jackets on wall and bottom, side wall is shrouded and insulated and had been in house pressure tested to 20 psi, bottom jacket is open and exposed from previous repair and testing shows multiple leaks which are repairable, 66" id x 58" deep with flat sloped bottom to 2" discharge with npt connection (can be changed to food service) with 12" floor clearance, central bridge with 1. 5 HP gear motor 208-220/440/3 phase voltage by master @ 18 rpm driving paddle agitator with retreating curves (as modified for former usage), dual hinged covers. Formerly used in food ingredients.
Used 820 gallon 304 SS jacketed mix tank. Manufactured by Alloy Fab. Internal ATM. Coils rated 85PSI. Dished ends. Leg mounted. 4'6"Dia x 6'T/T. 2610 lb. Serial #1-147A. Built 1991.

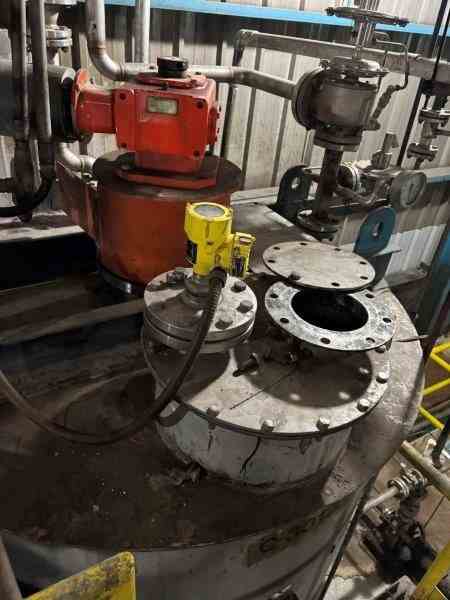

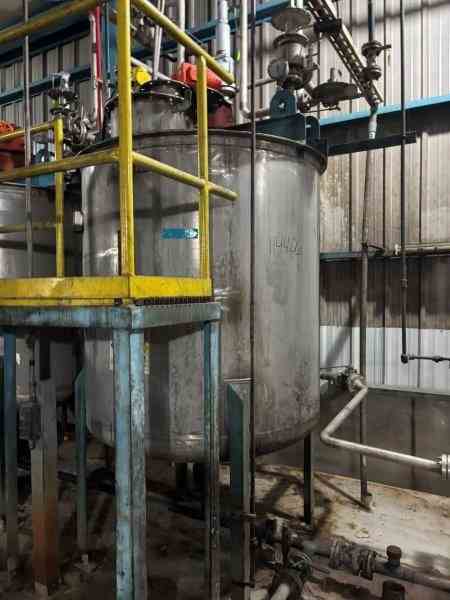

Used 770 gallon 304 Stainless Steel tank. Flat top, dish bottom. Lug mounted. Agitator. Past use Recovered Slurry tank

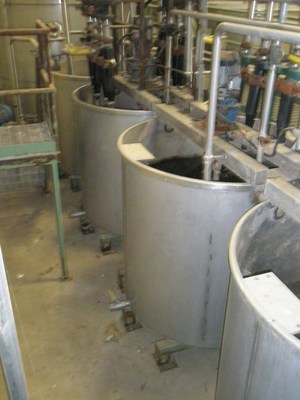

Used 750 Gallon SS Tank. Flat bottom, open top with center top entering agitator on bridge mount support. Driven by 3 HP motor thru gearbox. Includes internal baffles and (2) 2" diameter outlets. (#1) tank is a storage tank. (#2) tank is an agit. tank. (#3) tank is agit. with (8) Krebs hydrocylclones mounted above. (#4) tank is agit. with (2) Krebs hydrocyclones mounted above. Previously used as decanter tanks. Qty (4) available.
Used 700 gallon Stainless Steel Mix Tank. Manufactured by G2 Material Handling. Dome Top, slope bottom. 58" diameter x 64" straight side, 9" slope. 4 blade turbine on a 48" long x 1-1/2" diameter shaft. Driven by a 1-1/2hp 3/60/208-230/460v 1755rpm motor through a reducer. Openings Top: 18" manway, 6" for agitator, 3", (2) 2", 1-1/2", 13" x 8" wide vent, 2" side bottom outlet, 6" side bottom outlet with slide gate. Includes (2) spray balls, (3) baffles Serial# 333555
Used Stainless Steel 650 gallon dimple jacketed tank measuring 52" diameter x 70" straight side with dish top and bottom, has 19-1/2" top manway, (2) 2" and 1-1/2" tri-clamp top ports and 2" center bottom discharge. Unit is on (4) 3" legs.
Used 600 Gallon Stainless Steel Tank. Alloy Products model 7754. 5'6" Dia. x 4' T/T. Open top and Slant bottom. Jacket rated to 100 PSI (Jacket condition unknown). Anchor type agitator. Serial #6198-A.
A & D Aprox. 600 Gal. S/S Surge Tank, Internal Dims. of Cone: Aprox. 64" Dia. x 45" Tall, Upper Tank Dims.: Aprox. 24" Tall x 64" Dia., with Baldor 3 hp Motor, 1750 RPM, 208-230/460 Volts, 3 Phase, Mounted on S/S Legs & Load Cells (LOCATED IN CHAMPAIGN, IL)
Used 600 gallon stainless steel open-top tank. 52'D x 5' straight side (6'9"OAH). Slight cone bottom with 2.5" Center bottom outlet with manual valve. (4) Leg mounted.

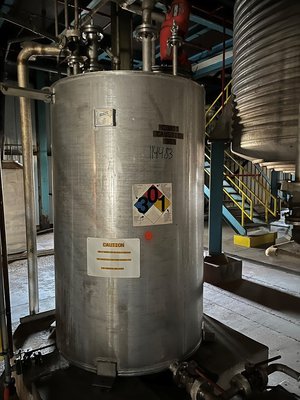

Used 600 gallon 304 Stainless Steel tank. Manufactured by Bendel. Agitator. Flat top, flat bottom. Serial #13809-1/1. Built 2009. Past use 36 NAOH Day tank

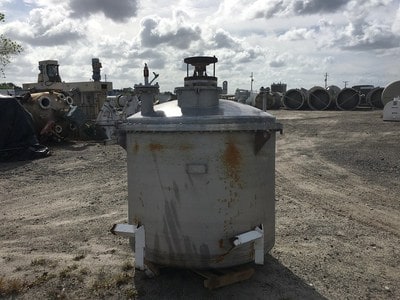

Used Piersol Pine MFG approximately 560 gallon vertical 304 stainless steel mix tank. S/N: 9144-A. 60” diameter X 46” high straight side. Internal rated 2 PSIG @ 212 degrees F. Unit has bolt on dished top, dished bottom. S/N: 9144-A. Top fittings: 14" X 10" manway (no cover), (2) 2.5", (1) 3", (1) 4", and (1) 1". 1.5" center bottom drain with flush valve. Equipped with heavy anchor style agitator driven by a Philadelphia 5MVG-2 drive, S/N: 515246, Ratio 14-1, powered by Reliance 10 HP, 3/60/230-460 volt motor. Mounted on legs (that were removed to aid in removal of tank).
Used 533 gallon open-top tank. Manufactured by Chem-Tek. Model 533 gallon. 53"D x 58"s/s (OAH 6'). slight cone bottom with 1.5" Center bottom discharge. (4) Leg mounted. Serial #23828.

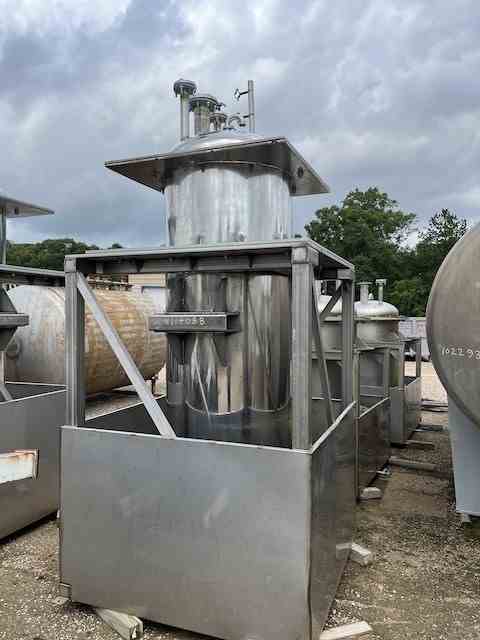

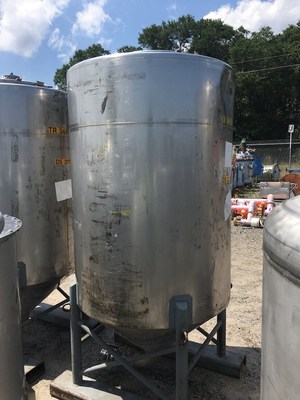

Used Walker 500 gallon 304 stainless steel vertical tank. 44" diameter X 62" high straight side. Rated ATM @ AMB temp. S/N 1849-11929. Flat top, cone bottom. Top has 24" manway with 4" center Kamlock fitting. 4" center bottom discharge that reduces to 2" with valve and kamlock fitting. Mounted on carbon steel frame with runners allowing unit to be moved by forklift. Built 1991.
Used Approx 500 gallons Stainless Steel Vertical Storage Tank. (4) Leg mounted.
Mueller Aprox. 500 Gal. Vertical S/S Single Wall Tank, Tank Internal Dims.: Aprox. 67" Tall x 47-1/2" Dia., with S/S Hinge Lid, Mounted on S/S Legs with Load Cells, with S/S Platform, Overall Dims. of Platform: Aprox. 60" L x 40" W x 89" H (LOCATED IN CHAMPAIGN, IL)

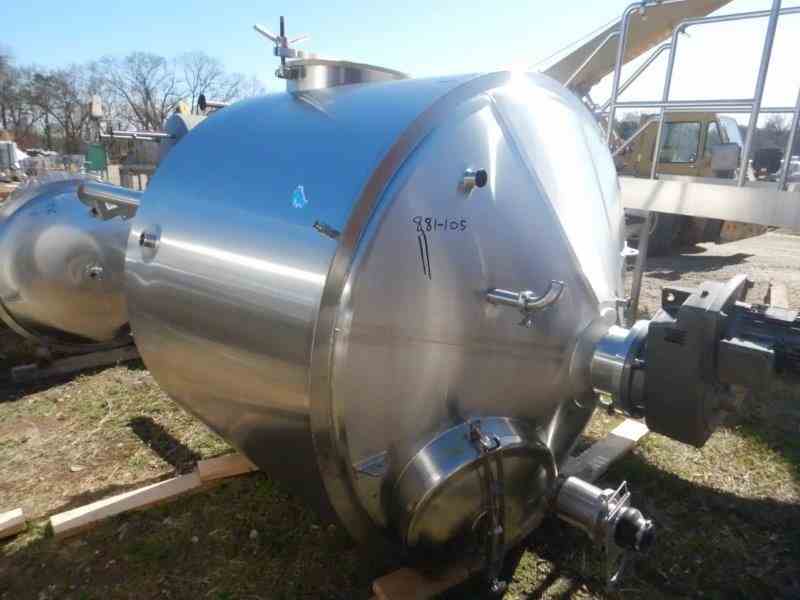

Used 15 BBL (465 gallon) Jacketed mix tank. Manufactured by JV Northwest (ICC) in 2014. Serial stamp only #22893. Dome top, cone bottom. Jacketed. Top entering agitation. 10'8"OAH x 5'10". CIP spray ball. Past Use: Pilot Lauder tank.
Unused 400 gallon Stainless Steel Tank. With 720 gallon - 5'3" wide x 5'3" long x 3'6" deep secondary containment.
Used 350 gallon stainless steel single shell portable tote. Manufactured by Custom Metalcraft. Top boltdown manway, multiple top flanges. 2” outlet. 48” X 42” X 54” H. Serial #10484-91.

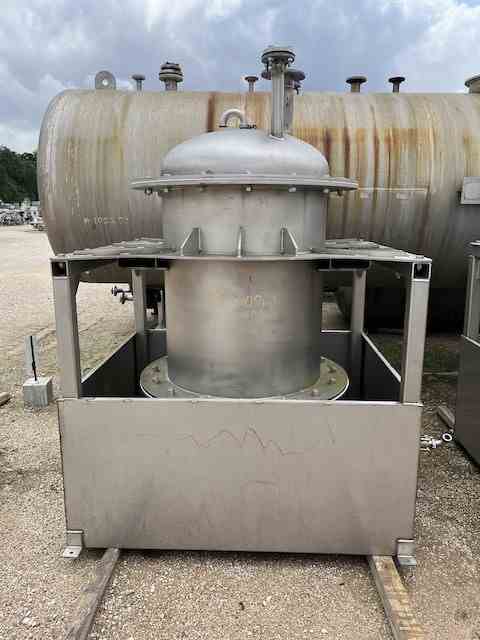

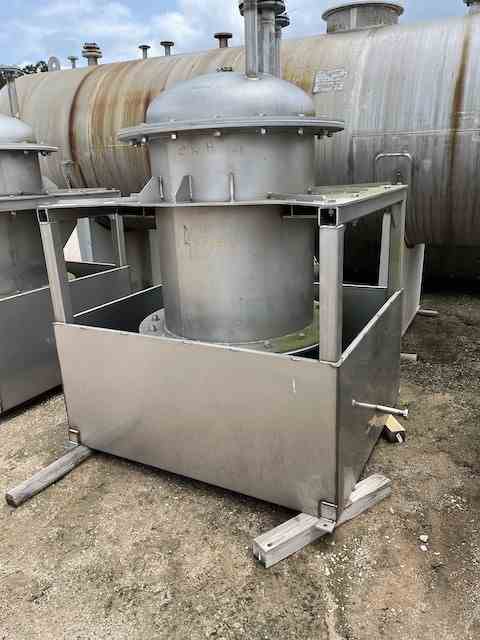

Unused 200 gallon Stainless Steel Tank. With 460 gallon - 4'6" wide x 5'6" long x 2'6" deep secondary containment.

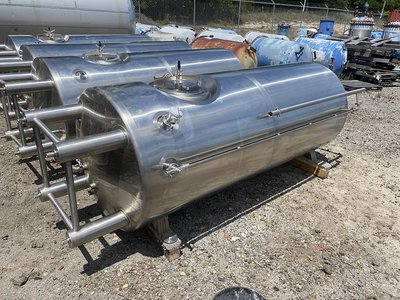

Used 10 bbl (300 gallon) stainless steel jacketed Brite tank. 34"D X 96"H straight side 128"OAH. Dished top and bottom. Top fittings: Center 3.75" sanitary with a spray ball fed by 1.25" sanitary pipe. (1) 1.75" sanitary with a sanitary pressure relief. Spray ball line with side top connection for side level indicator. (5) side bottom 1.25" sanitary outlets. Has (1) 13.5" X 17.5" side bottom manway. 1.25" center bottom drain. (2) zone side jacket and bottom jacket. Mounted on (4) legs with levelers. Previously used for craft beer. (4) Available.
Used 300 gallon 304 stainless steel cone bottom fermenter. Manufactured by Apex Brewing Supply. Built 2015. 16" x 13" Manway. Internal pressure 0.2MPa, jacket working pressure 0.3MPa. (3) leg mounted.
Used 200 Gal Stainless Steel Single Wall Vertical Balance Tank. 3 hp Centrifugal Pump with Baldor 3450 RPM Motor, 208-230/460 Volts, 3 Phase.
Unused 200 gallon Stainless Steel Tank. With 460 gallon 4'6" wide x 5'6" long x 2'6" deep secondary containment.

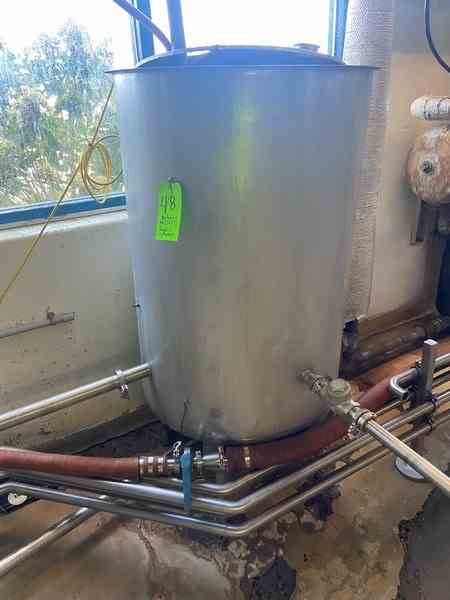

Used 200 gallon stainless steel tank. Manufactured by Valley Mechanical. Built 2012

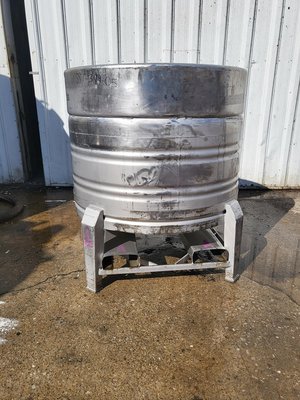

Used 200 gallon 304 Stainless Steel Pressure Rated Storage Tote. Manufactured by Ucon AG. Single shell rated 15 psi, top pressure manway. Dome top, cone bottom. 2.5" tri-clamp outlet with integrated butterfly valve. 45" dia x 50" tall, Serial #58092.

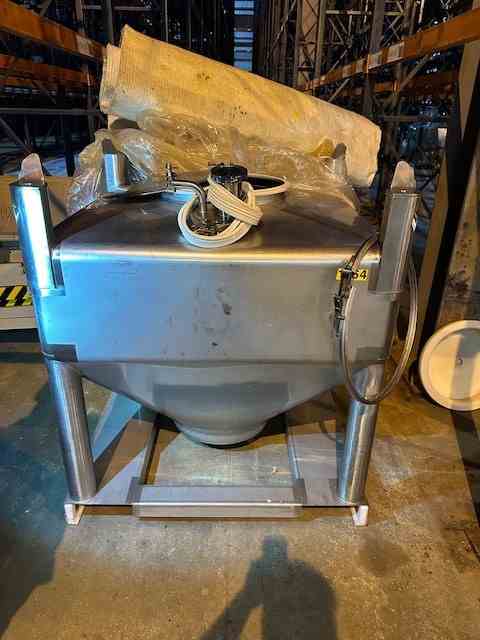

Unused 198 gallon (750 liters) Portable Tote. Manufactured by Matcon, stainless Steel. Built 2001. 33 units available.

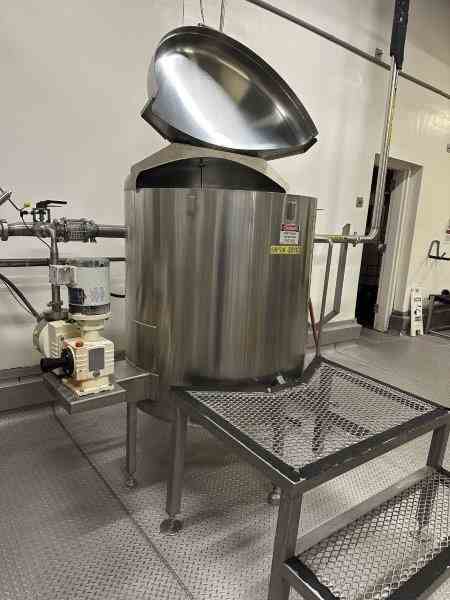

Used 100 gallon vessel. 316L stainless steel.

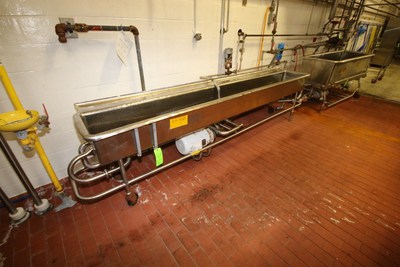

S/S COP Tank, with Ampco 10 hp Centrifugal Pump, 3500 RPM Motor, Internal Dims.: Aprox. 134-1/2" L x 16" W x 11" H, with Spray Jet, Mounted on S/S Portable Frame (CP COP #13) (LOCATED IN CHAMPAIGN, IL)

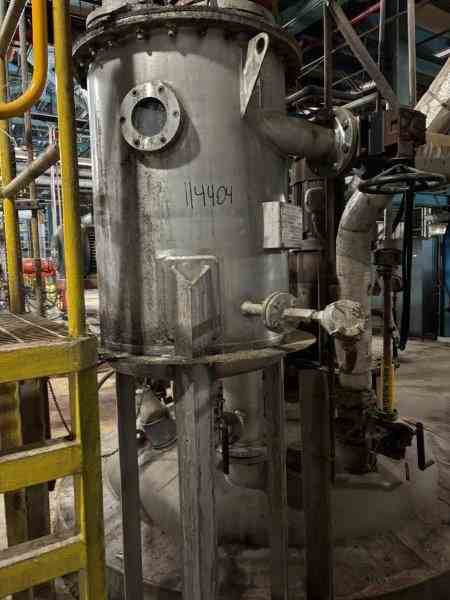

Used 87 gallon 304 Stainless Steel mix tank. Manufactured by Alloy Fab. Rated 15PSI@120F. Flat top, dished bottom. Leg mounted. Dims 2'2"Dia x 3'T/T. Serial #1-129A. Built 1991.
Used 75 gallon Stainless Steel tank. 24"Dia x 36"H. 7" Cone bottom. (4) Leg mounted.

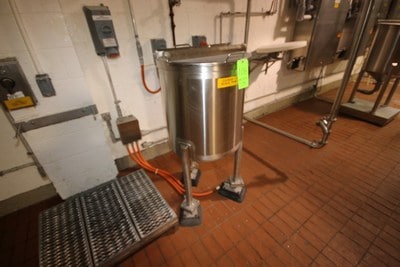

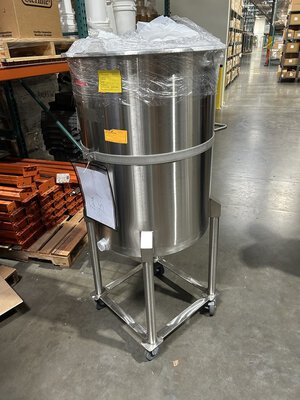

50 Gal. S/S Single Wall Tank, with Cone Bottom, Mounted on S/S Legs & Load Cells (LOCATED IN CHAMPAIGN, IL)
Used DCI 50 Gal. S/S Single Wall Tanks, Cone Bottoms, Mounted on S/S Frames & Load Cells. Built 2013.

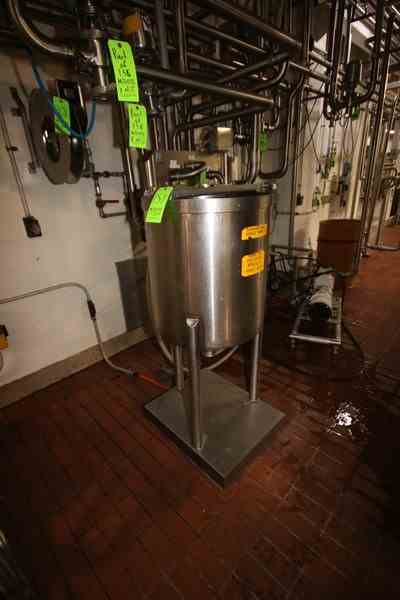

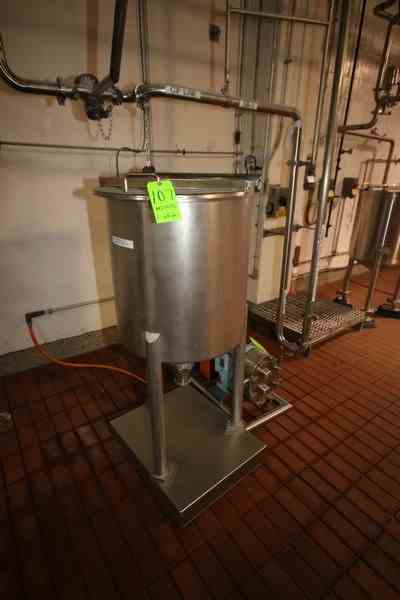

Used 50 Gal. S/S Single Wall Tank, with Cone Bottoms, Mounted on S/S Platforms on Load Cells, Internal Tank Dims.: Aprox. 26" Tall x 23-1/2" Dia., with S/S Hinge Lids (Scale Tank #1/Cookers 3-4 & Tank 1)
Aprox. 50 Gal. S/S Single Wall Tanks, with Cone Bottoms, Mounted on S/S Platforms on Load Cells, Internal Tank Dims.: Aprox. 27-1/2" Tall x 22-1/2" Dia., with S/S Hinge Lids (LOCATED IN CHAMPAIGN, IL)

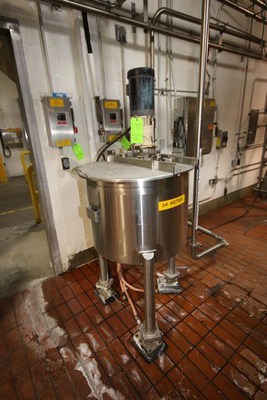

Walker 50 Gal. S/S Mix Tank, M/N HOLD, S/N 4774, MAT'L: 316 L SS, with Hinge Lids, with 1.5 hp Top Mounted Agitation Motor, with (2) CH S/S Safety Switches (LOCATED IN CHAMPAIGN, IL)
S/S COP Tank, Internal Dims.; Aprox. 41" L x 20" W x 14" Deep
Used 150 liter (approx 39 Gal) Lee Jacketed Tank. 3.2 HP Lightnin Mixer with 2 propellers, full vacuum internal, jacket rated 100 PSI @ 338 F, Explosion-proof, NB # 7099, sight glass and light, on wheels.
Aprox. 35 Gal. S/S Single Wall Vertical Tank, Internal Dims.: Aprox. 36" Tall x 17-1/2" Dia., Mounted on S/S Base (LOCATED IN CHAMPAIGN, IL)
Walker 8 Gal. S/S Single Wall Balance Tank, M/N SINGLE SHELL, S/N SPG-54745, with Reliance 1.5 hp S/S Clad Pump, with Flow Meter, with Digital Read Out, with S/S Control Panel (LOCATED IN CHAMPAIGN, IL)
Paul's Addback Tank, with Waukesha Cherry-Burrell Positive Displacement Pump, M/N 134, S/N 29890501, with Reliance 5 hp Motor, 208-230/460 Volts, 3 Phase, Mounted on Load Cells & S/S Frame (LOCATED IN CHAMPAIGN, IL)

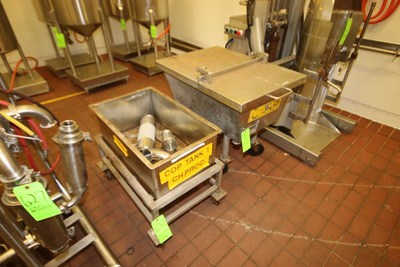

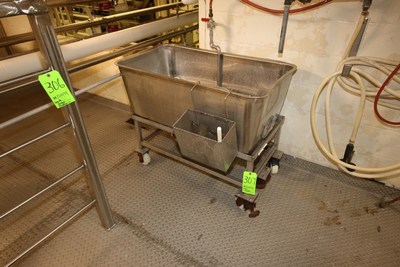

(2) Portable S/S Troughs, Mounted on Portable S/S Frame (LOCATED IN CHAMPAIGN, IL)
Used Stainless Steel Dimple Jacketed vertical tank. (4) leg mounted.

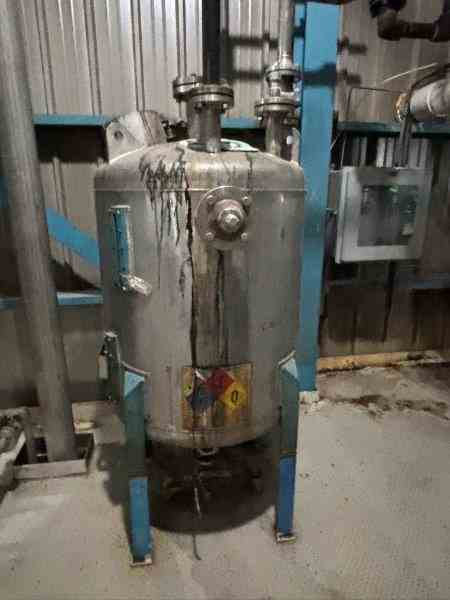

Used vertical stainless Steel tank. Dished top and bottom. Leg mounted.
Phoenix Equipment has an inventory of Stainless Steel Tanks from manufacturers including: Rubicon Industries, Evans & Sons, Precision Stainless, Inc, Feldmeier, and Production Buffer. Used in Chemical, Pharmaceutical, Petrochemical, Refining, Plastics and Food Process Industries. We are always looking to buy used stainless steel tanks and used process equipment. Call Phoenix Equipment today to discuss your used tanks and equipment. Phoenix Equipment pays top dollar for your used stainless steel tanks and other equipment.
