800 gal stainless steel tank

Stock # 14049
Sold
Capacity 800 Gal

Overview

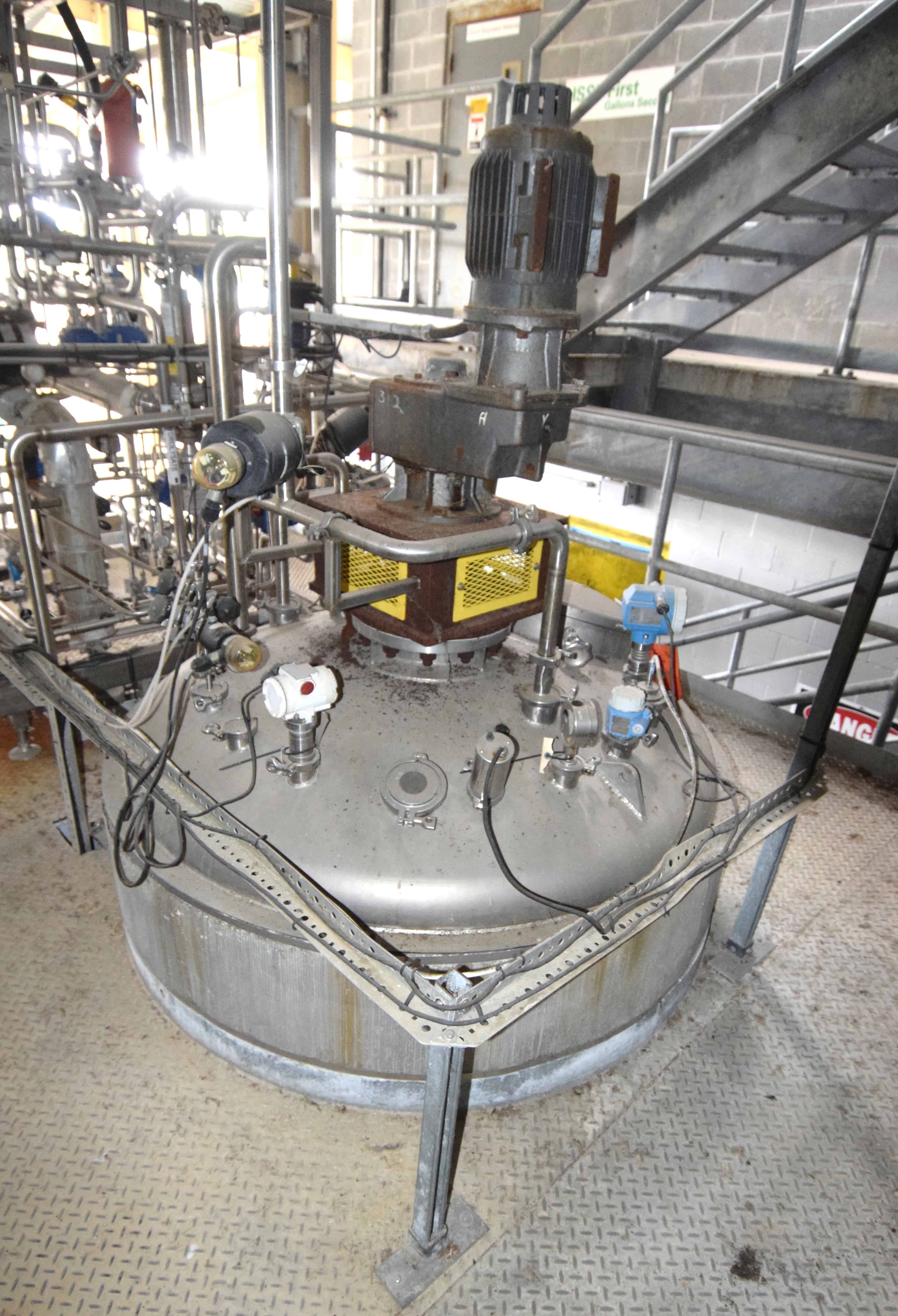

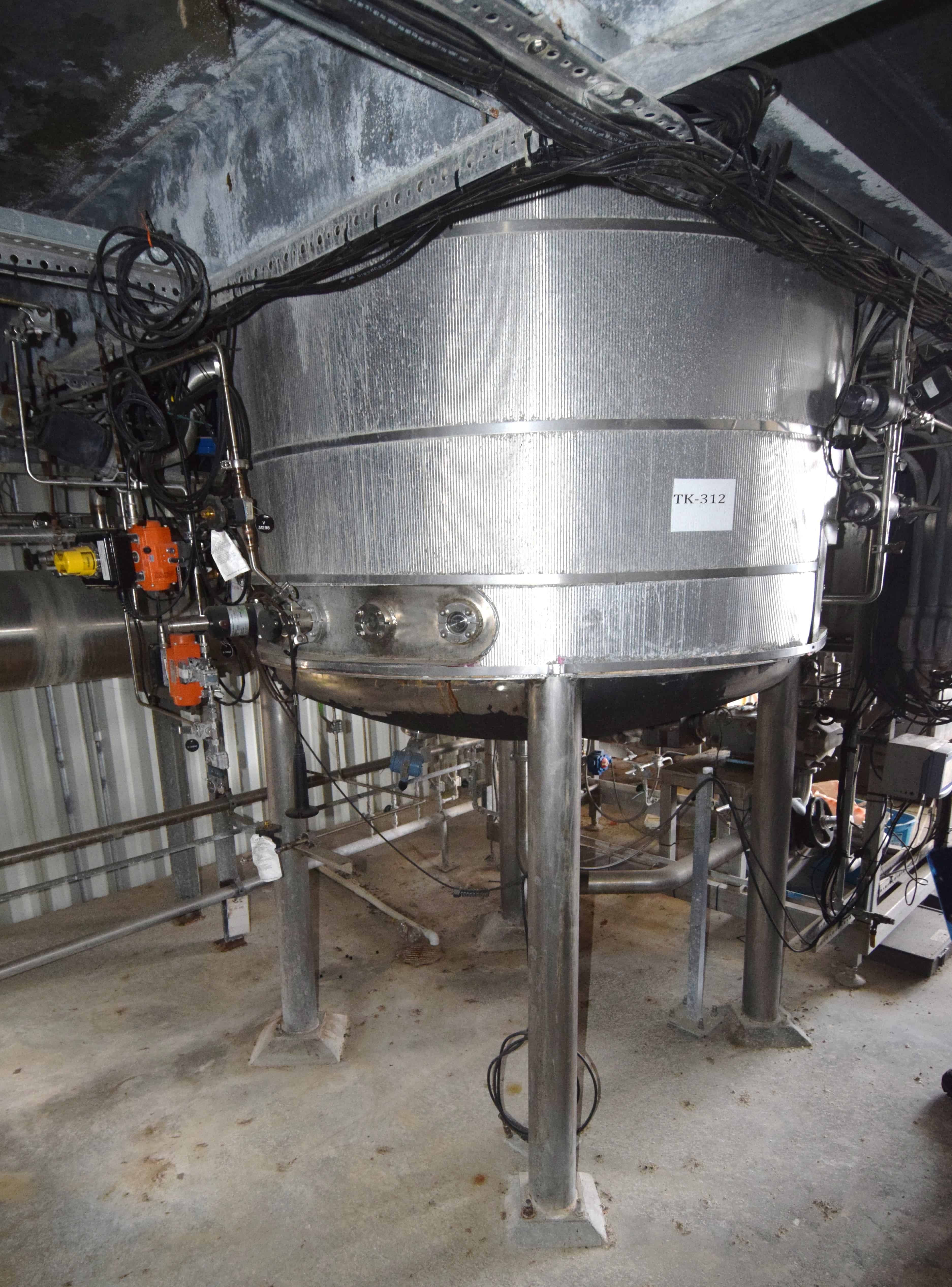

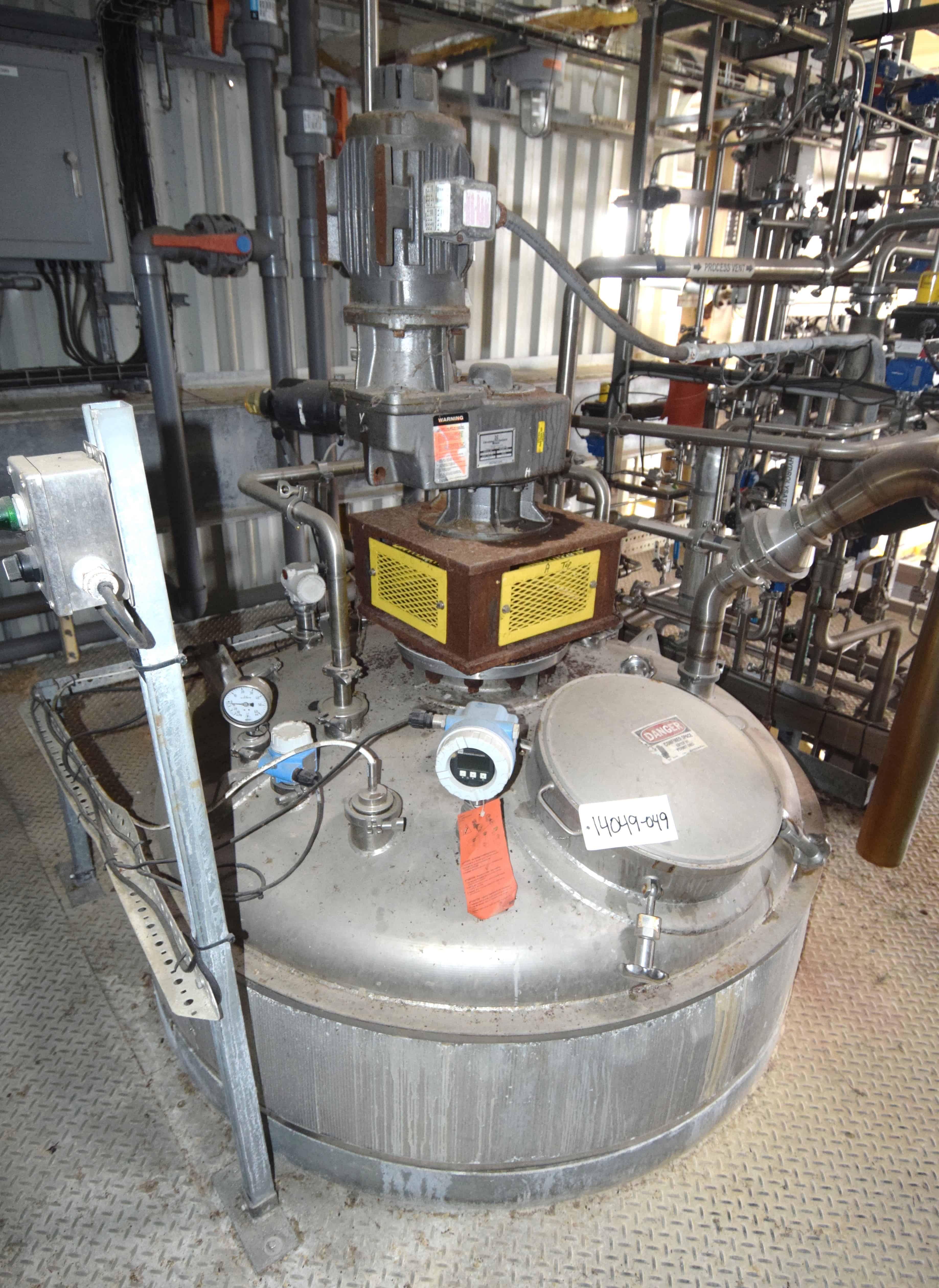

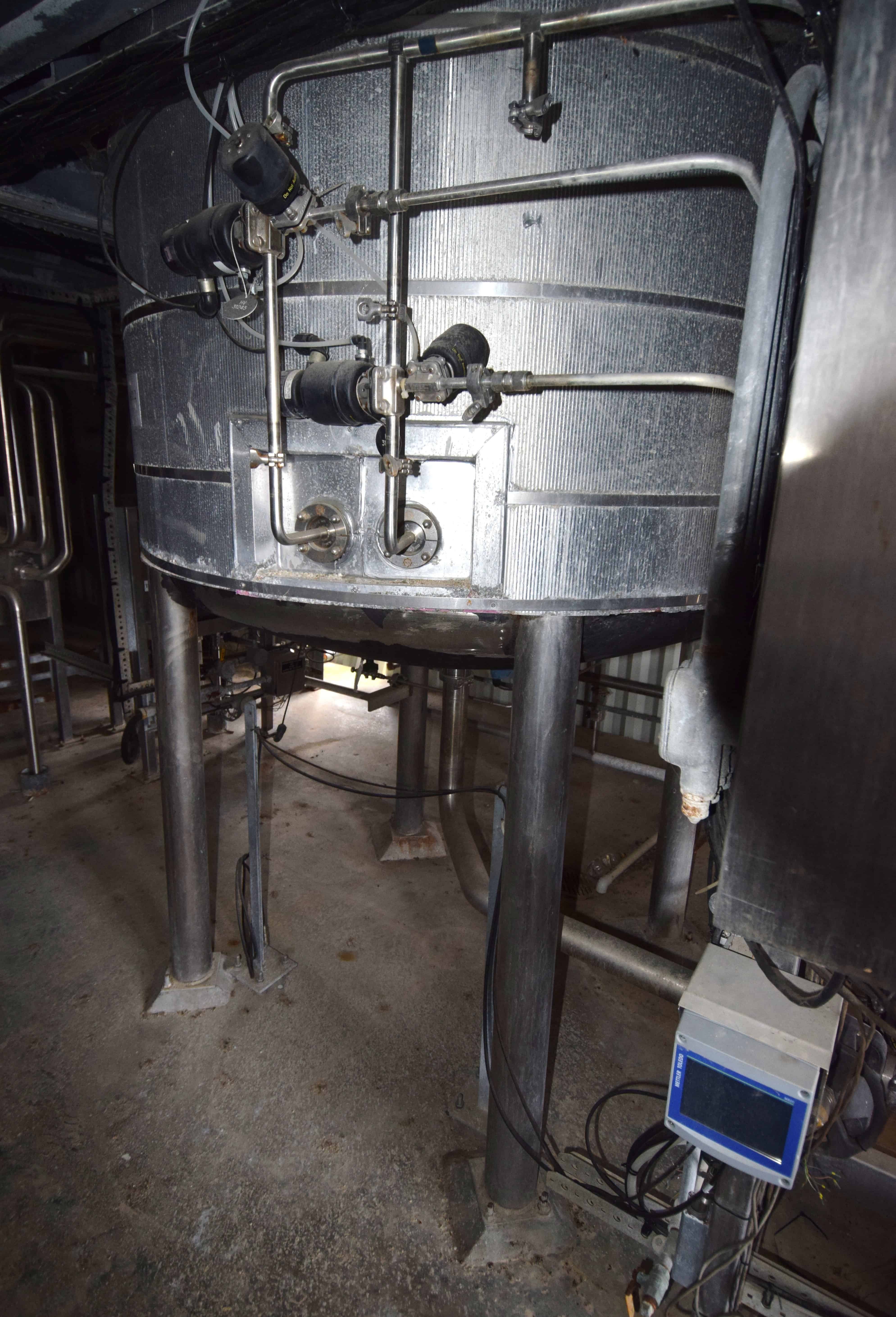

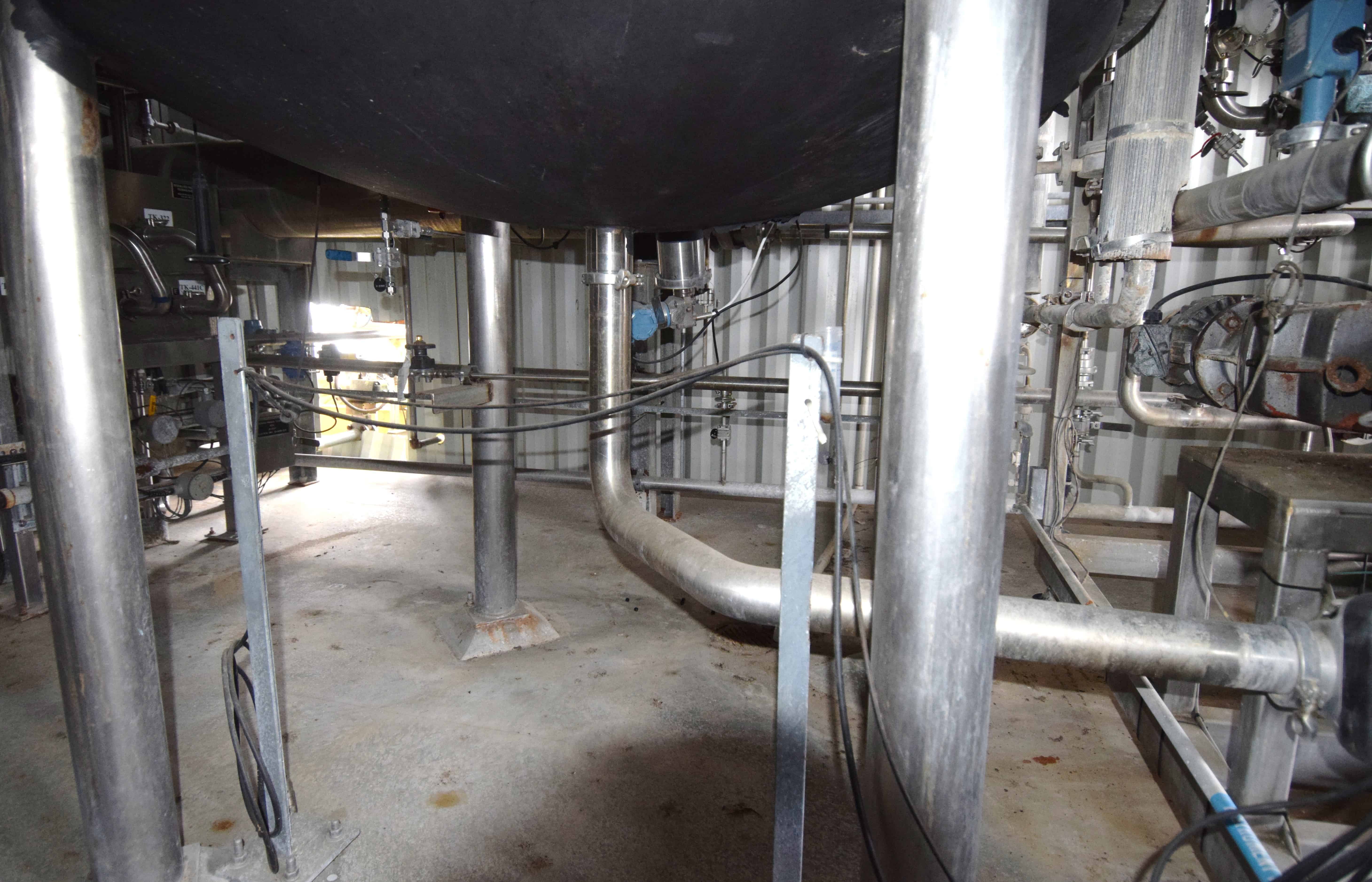

Used Tank, Approximate 800 Gallons, Stainless Steel, Vertical. Approximate 60” diameter x 60” straight side, dished top and bottom. Top entering Cleveland agitator, model APDM-4, serial# 12425, approximate 2” diameter shaft with multiple turbines and a mechanical seal, driven by a 3hp, 3/60/230/460 volt, 1750 rpm motor. Side wall baffles, top man way, center bottom outlet. Mounted on 4 stainless steel legs. No manufacturers tag.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Unknown
Model
APDM-4
Material
SS
Capacity
800 Gal
