2300 Gal Stainless Steel Tank
Other Views - click image for larger view
2300 Gal Stainless Steel Tank 2300 Gal Stainless Steel Tank 2300 Gal Stainless Steel Tank 2300 Gal Stainless Steel Tank

2300 gal stainless steel tank

Stock # 14045
Sold
Capacity 2300 Gal

Overview

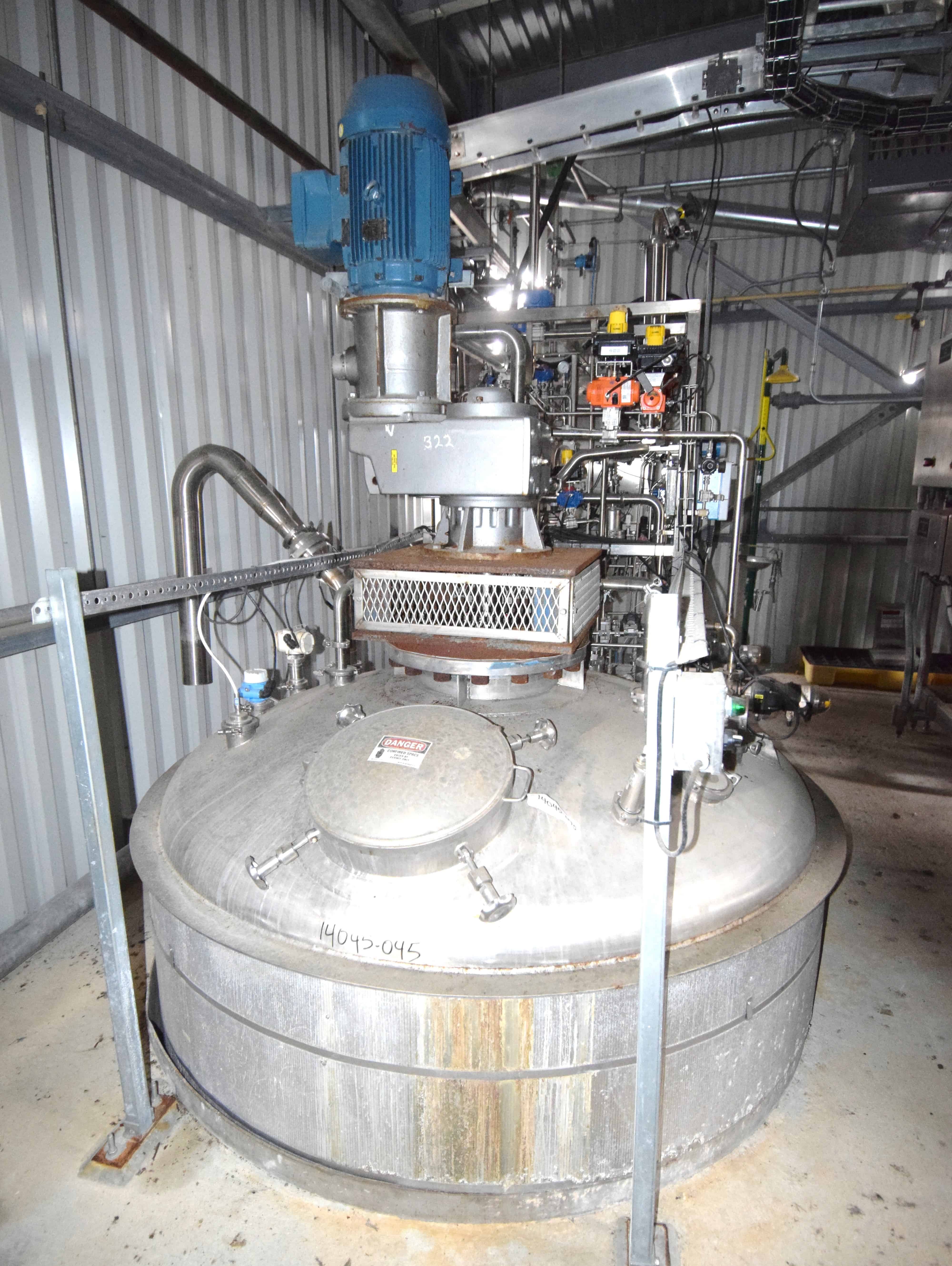

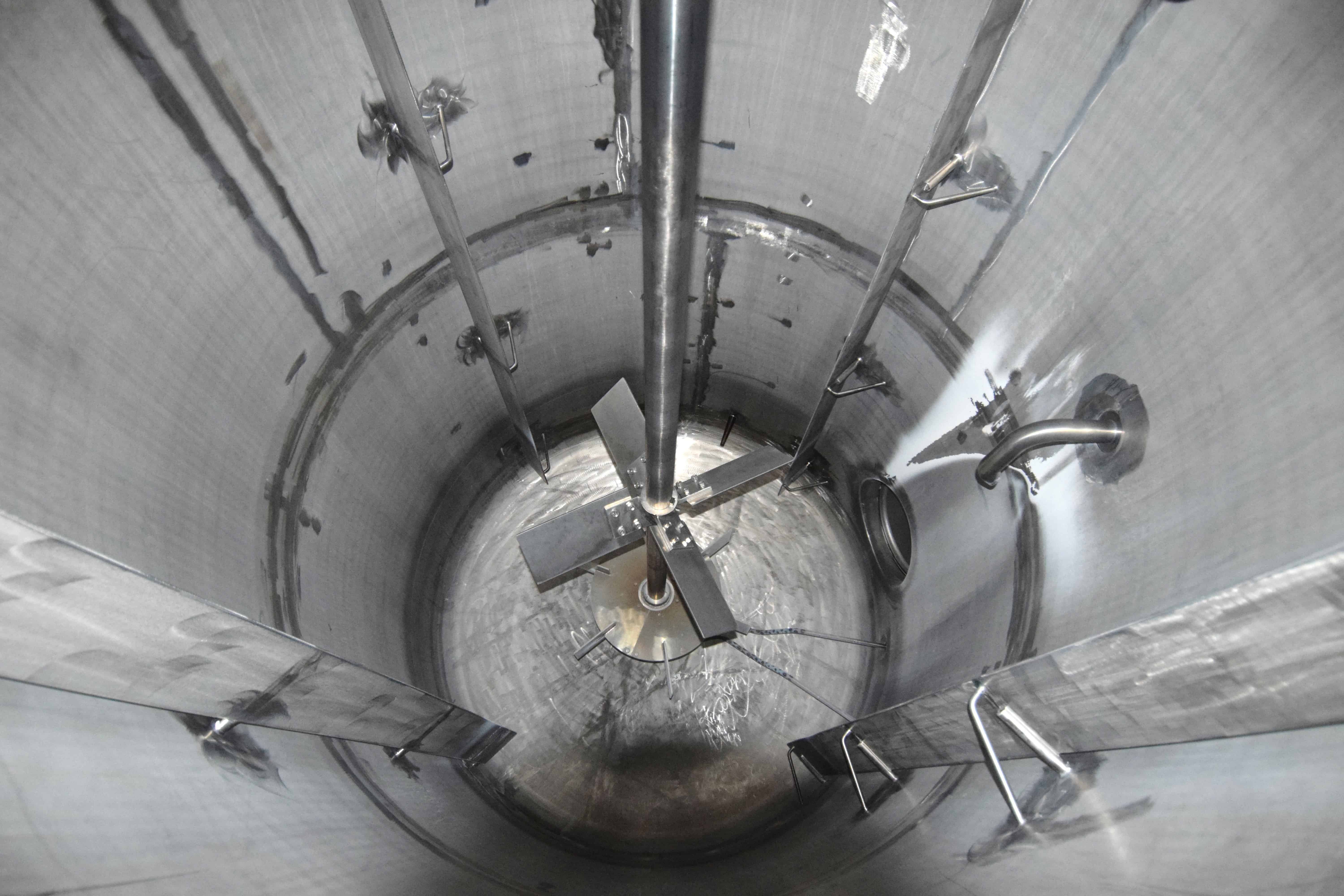

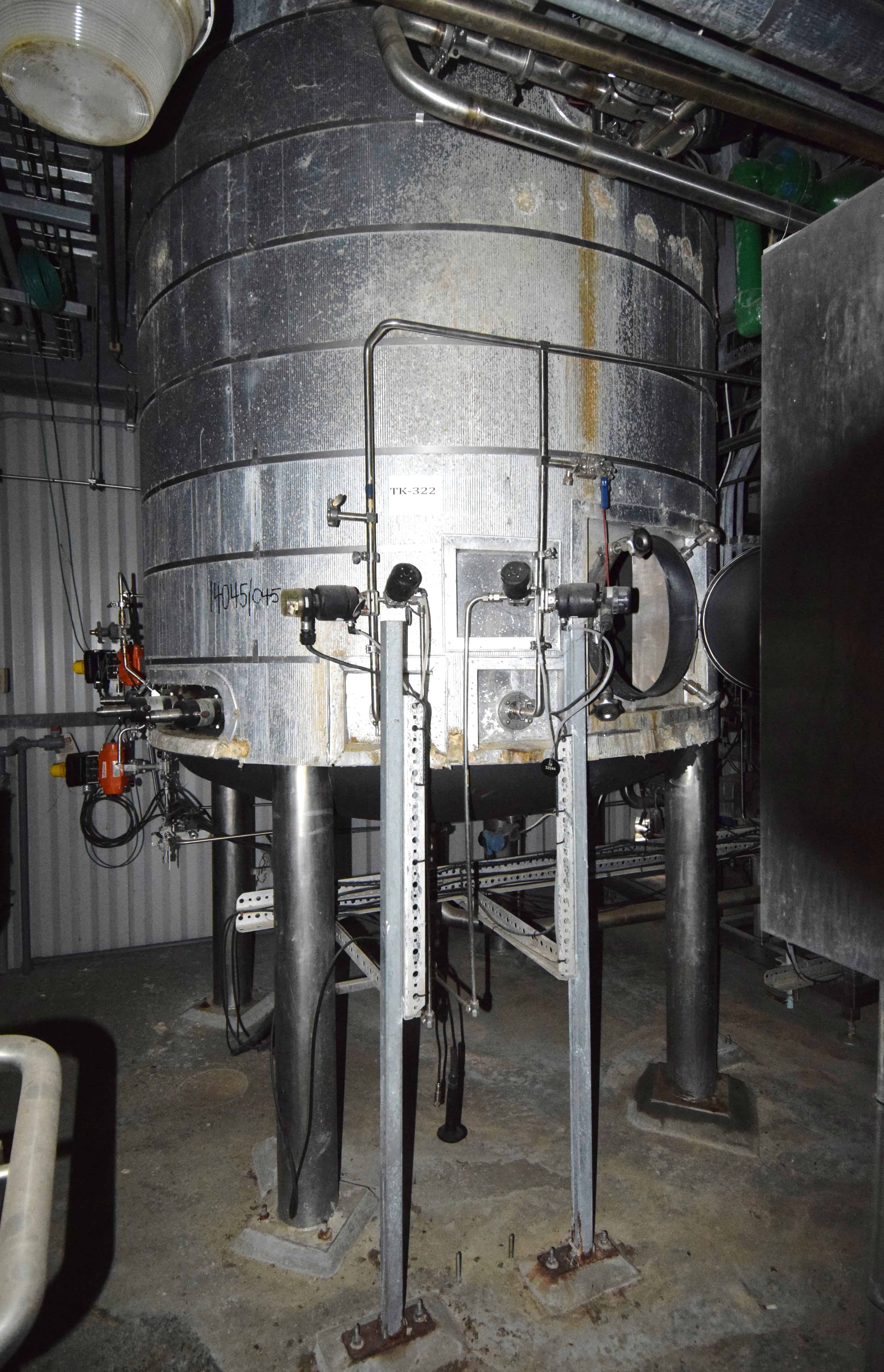

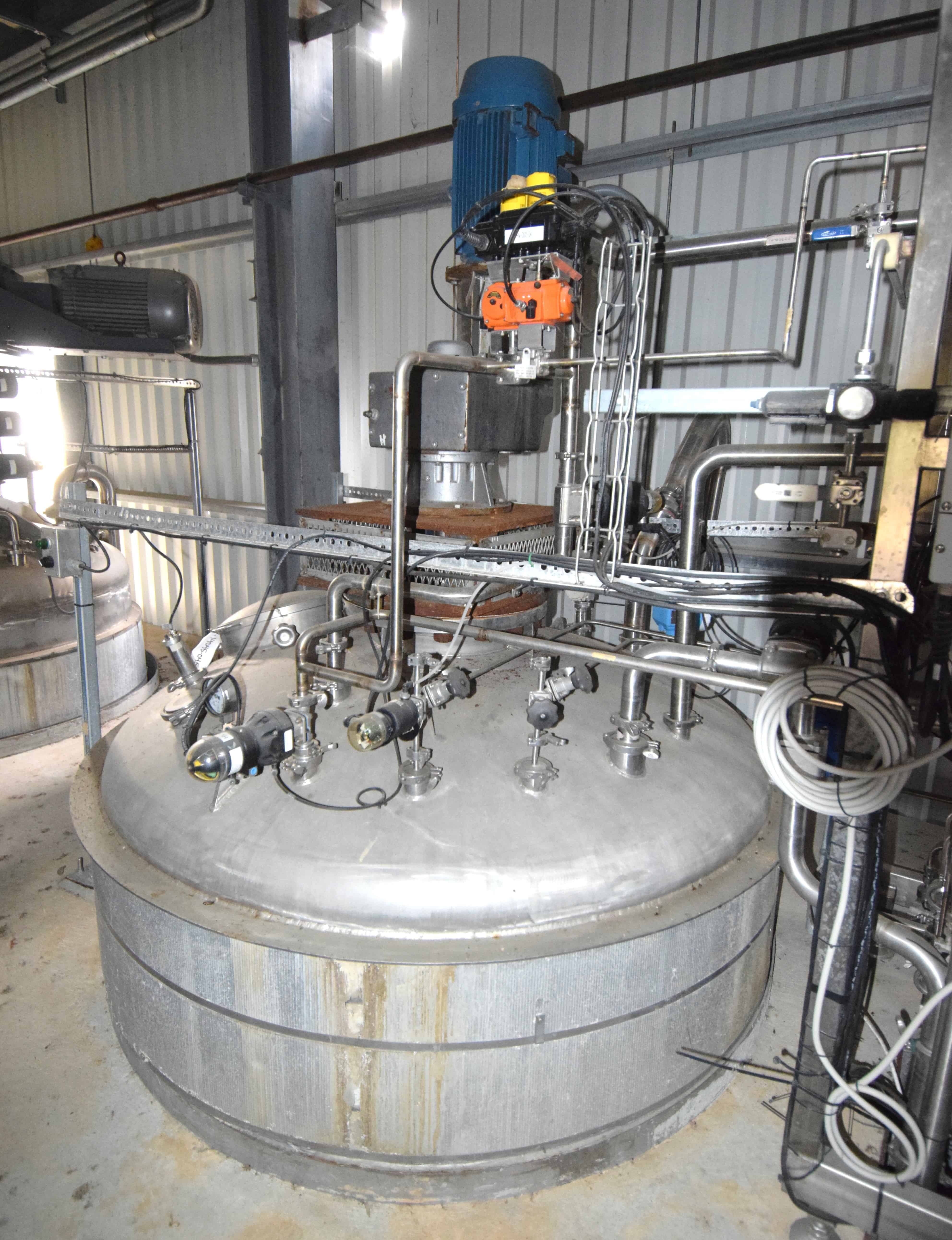

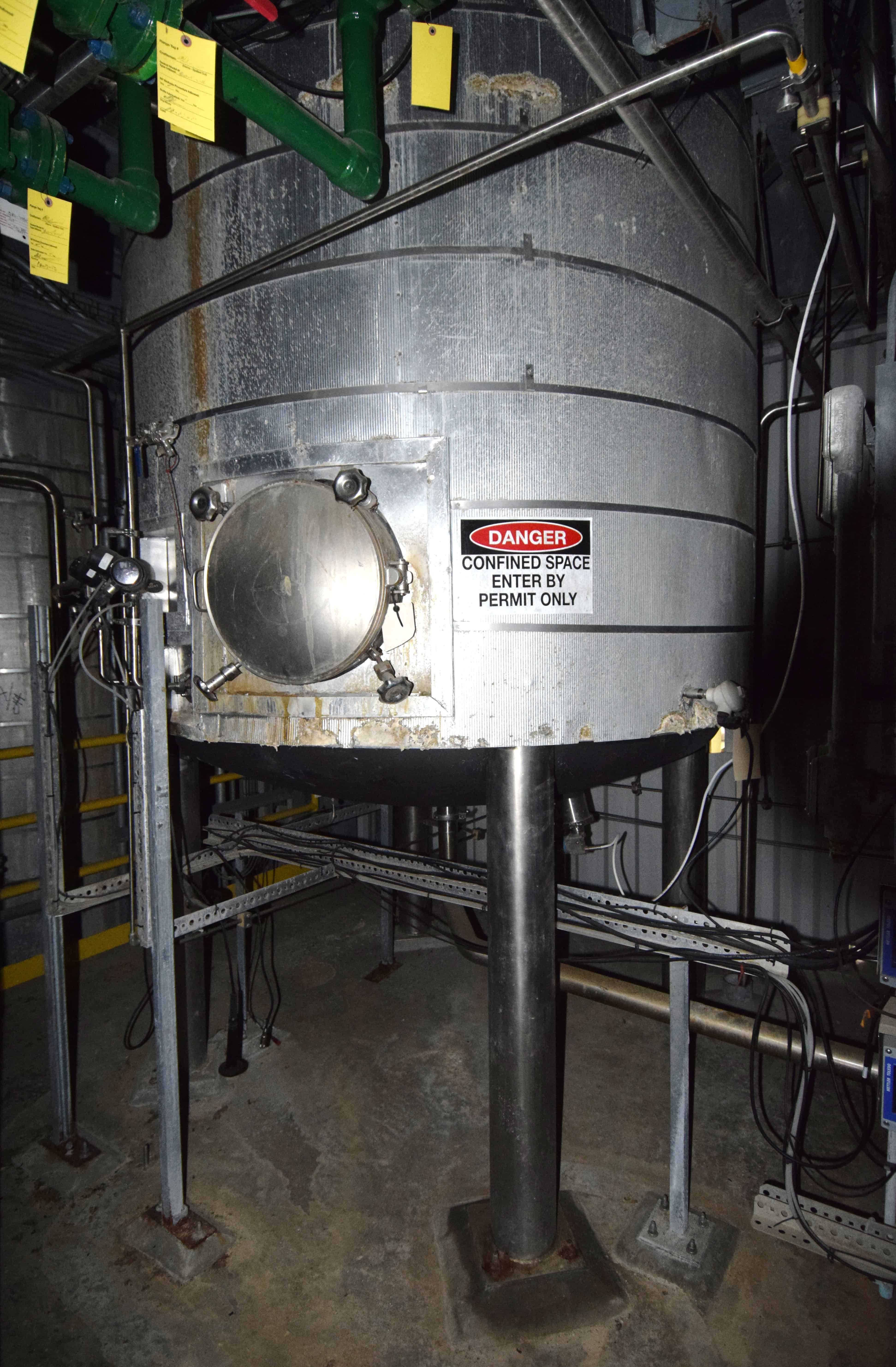

Used Tank, Approximate 2300 Gallons, Stainless Steel, Vertical. Approximate 78” diameter x 108” straight side, dished top and bottom. Top entering agitator, approximate 3” diameter shaft with multiple turbines and a mechanical seal, driven by a 20hp, 3/60/208-230/460 volt, 1770 rpm XP gear motor. Side wall baffles, top and side bottom man way, center bottom outlet. Mounted on 4 stainless steel legs. No manufacturers tag.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Unknown
Model
N/A
Material
SS
Capacity
2300 Gal
