6300 Gal Steel Pro Inc. Stainless Steel Fermenter
Other Views - click image for larger view
6300 Gal Steel Pro Inc. Stainless Steel Fermenter 6300 Gal Steel Pro Inc. Stainless Steel Fermenter 6300 Gal Steel Pro Inc. Stainless Steel Fermenter 6300 Gal Steel Pro Inc. Stainless Steel Fermenter 6300 Gal Steel Pro Inc. Stainless Steel Fermenter 6300 Gal Steel Pro Inc. Stainless Steel Fermenter 6300 Gal Steel Pro Inc. Stainless Steel Fermenter

6300 gal steel pro inc. stainless steel fermenter

Stock # 14042
Sold
Capacity 23848 Liters

Overview

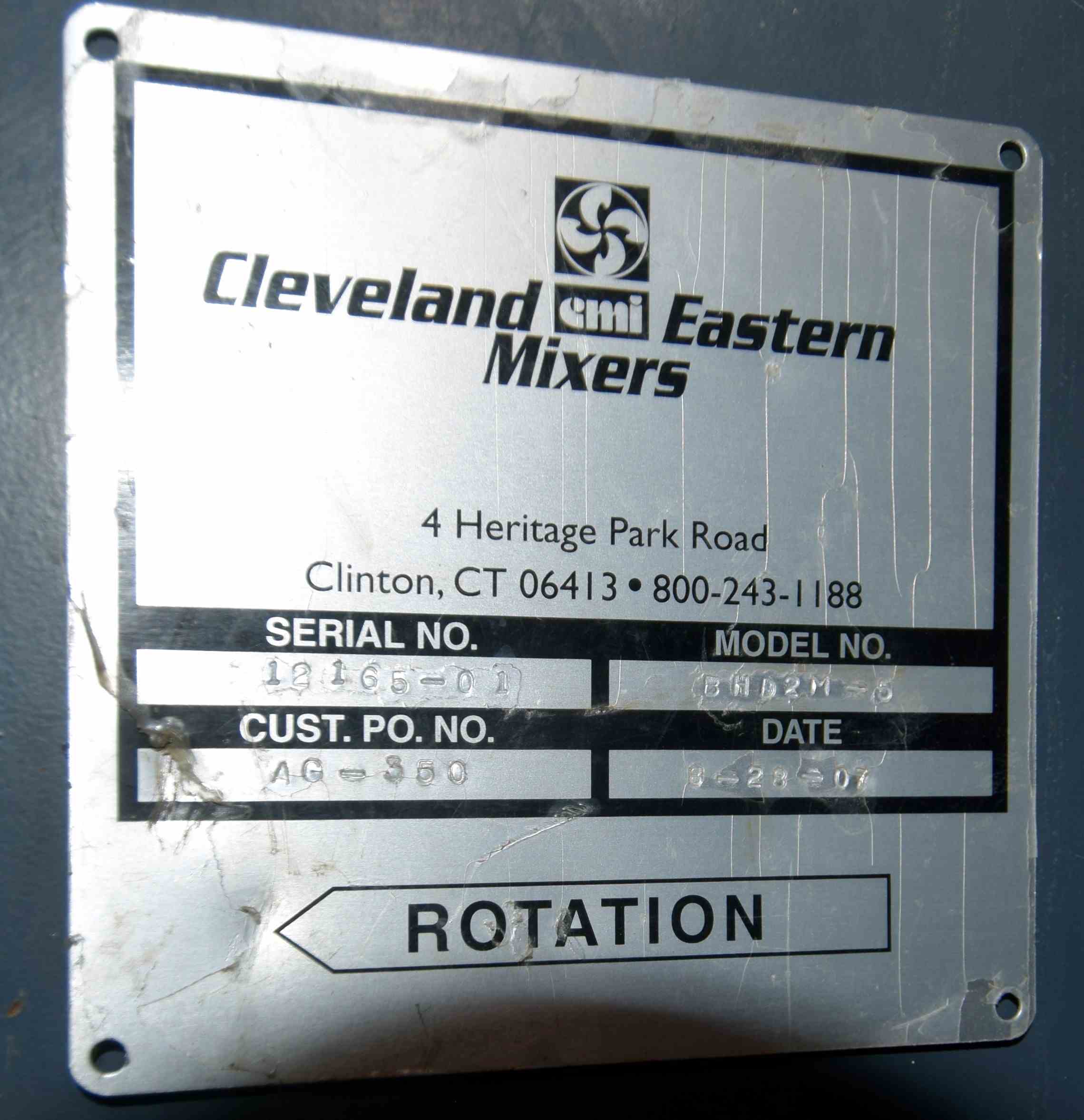

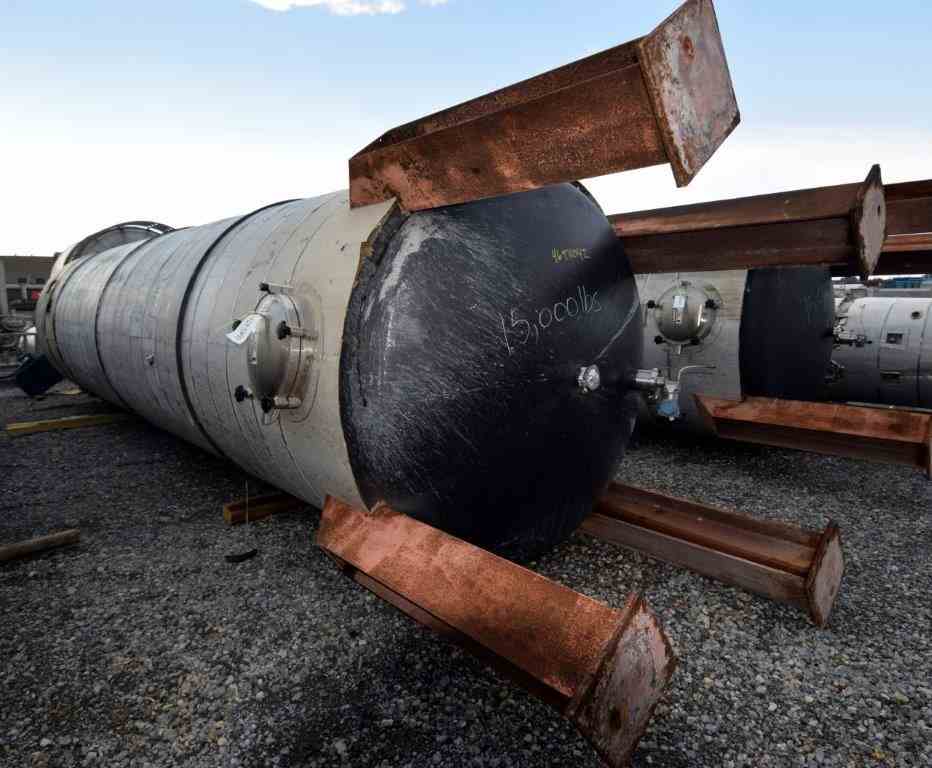

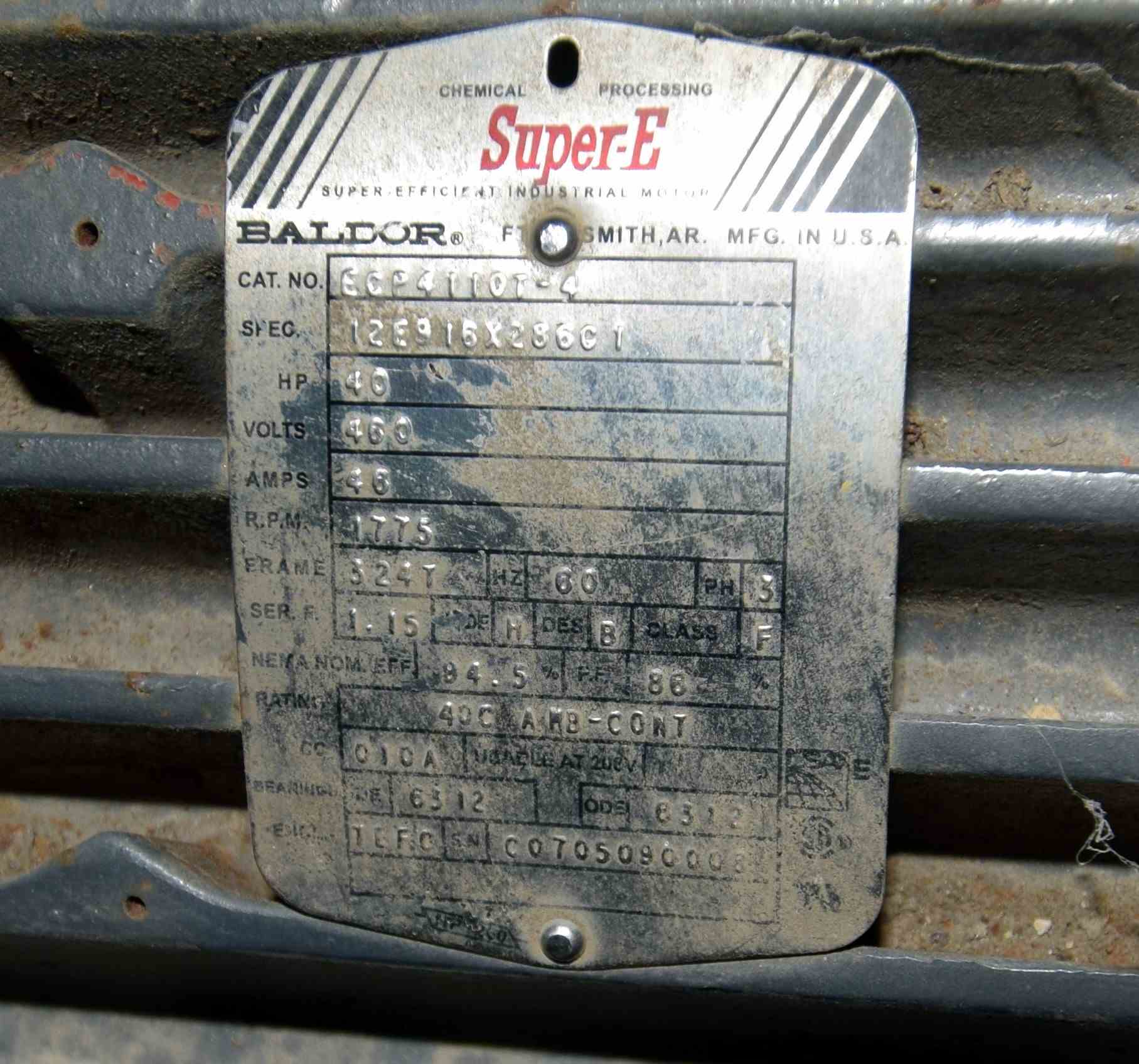

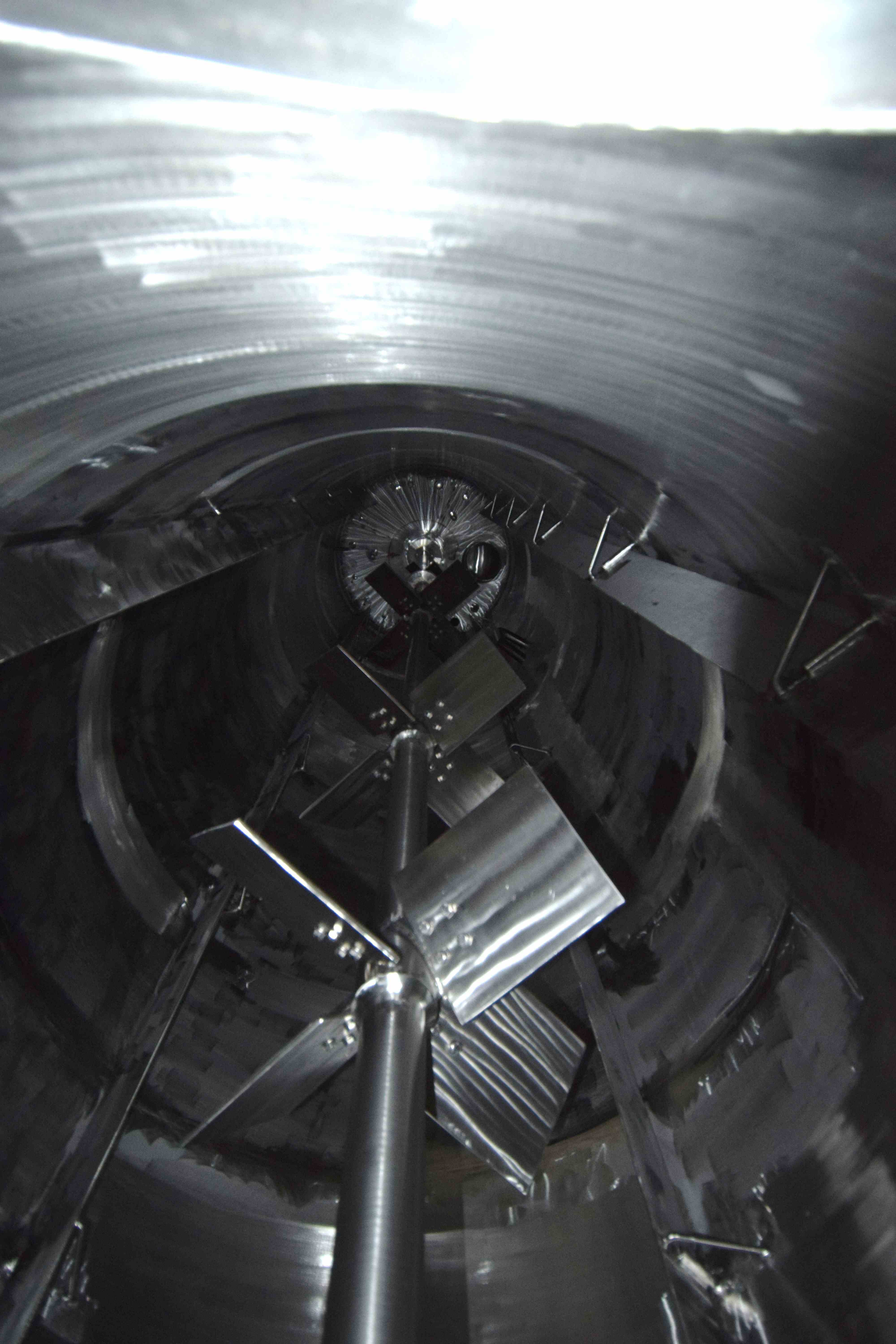

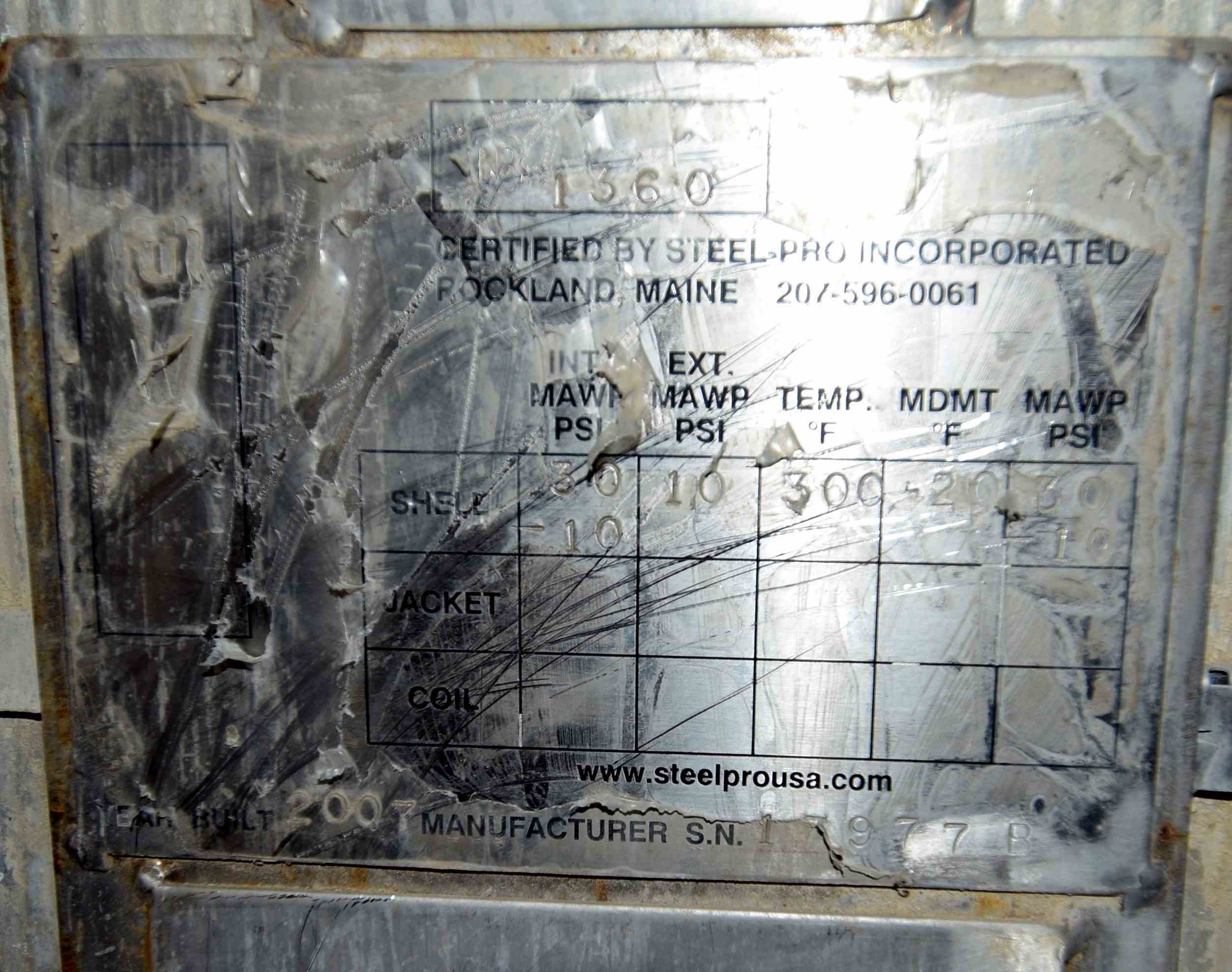

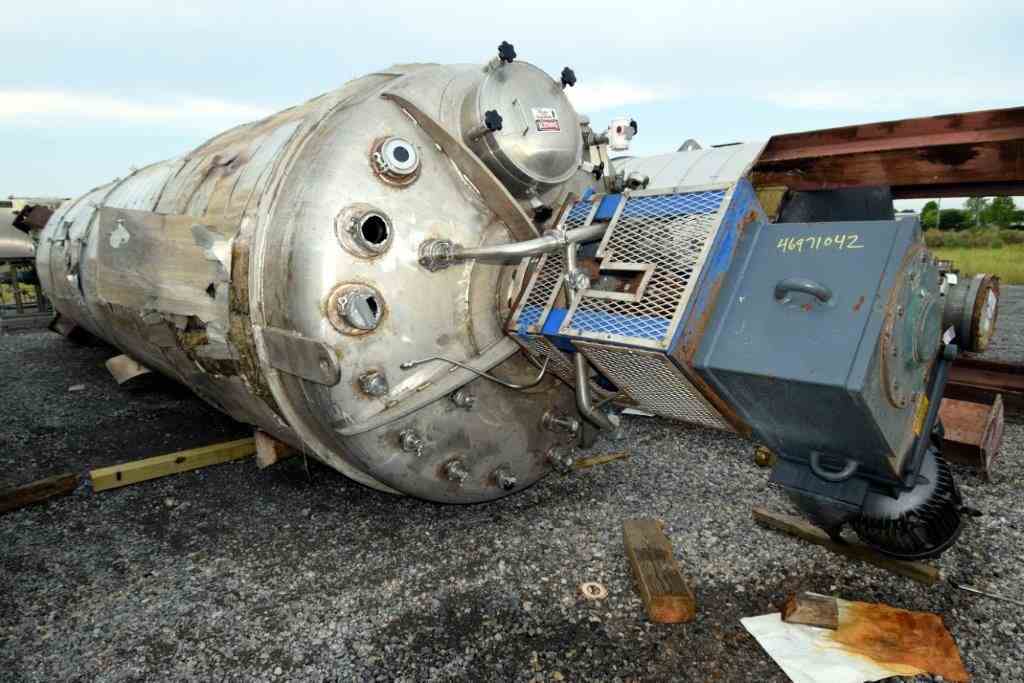

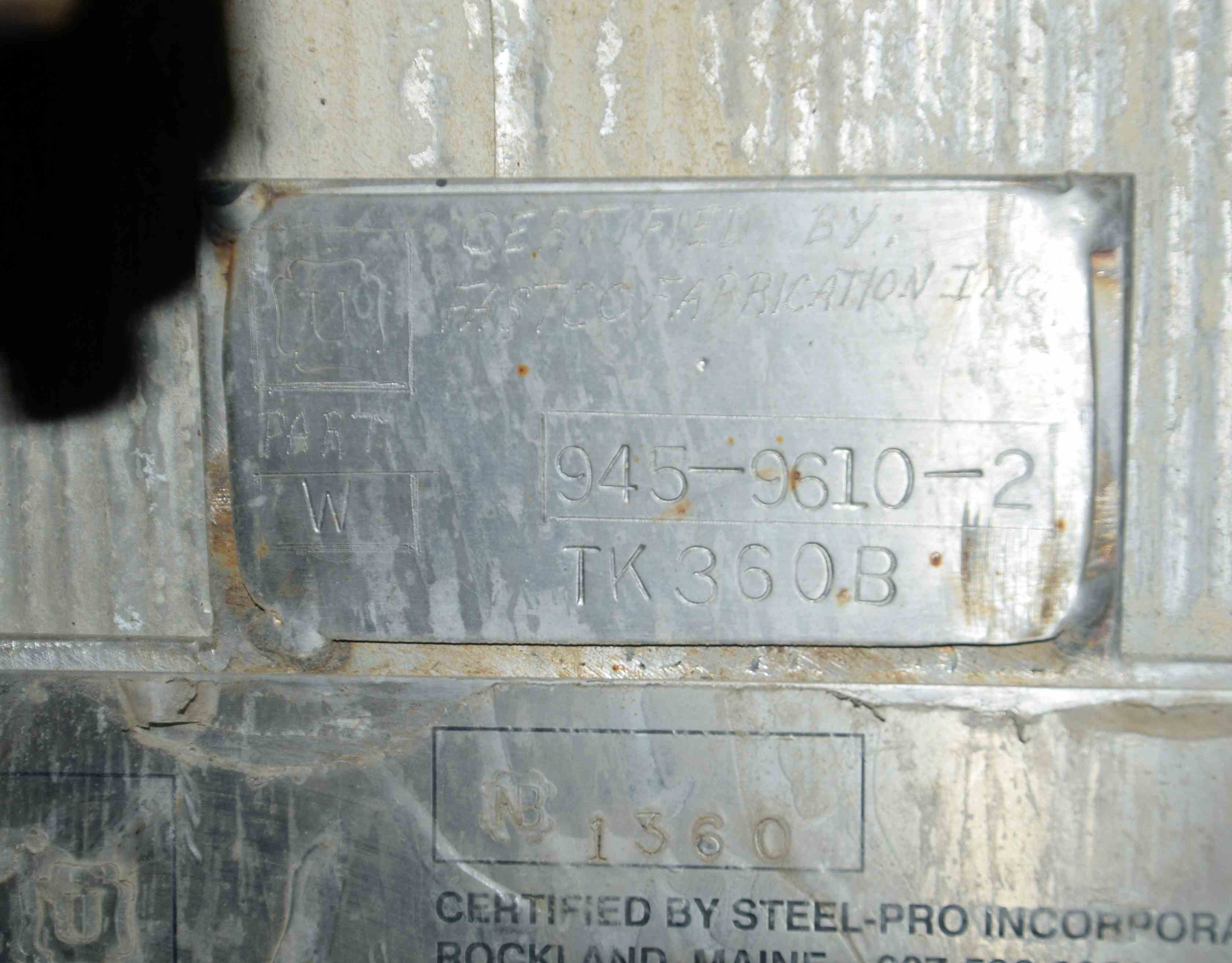

Used Steel-Pro Pressure Tank, Approximate 6300 Gallons, 304L Stainless Steel, Vertical. Approximate 74” diameter x 318” straight side, dished top and bottom. Internal rated 30/-10 psi at -20 to 300 degrees F. Top entering Cleveland agitator, model BHD2M-5, serial# 12165-01, approximate 4” diameter shaft with multiple turbines and a mechanical seal, driven by a 40hp, 3/60/460 volt, 1775 rpm motor. Side wall baffles, top and side bottom man way, center bottom outlet. Mounted on 4 carbon steel legs. National Board# 1360, serial# 17977B, built 2007.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Steel Pro Inc.
Model
BHD2M-5
Material
SS
Capacity
23848 Liters
