1000 Gal PEMCO Stainless Steel Tank
Other Views - click image for larger view
1000 Gal PEMCO Stainless Steel Tank 1000 Gal PEMCO Stainless Steel Tank 1000 Gal PEMCO Stainless Steel Tank 1000 Gal PEMCO Stainless Steel Tank 1000 Gal PEMCO Stainless Steel Tank 1000 Gal PEMCO Stainless Steel Tank

1000 gal pemco stainless steel tank

Stock # 14027
Sold
Capacity 1000 Gal

Overview

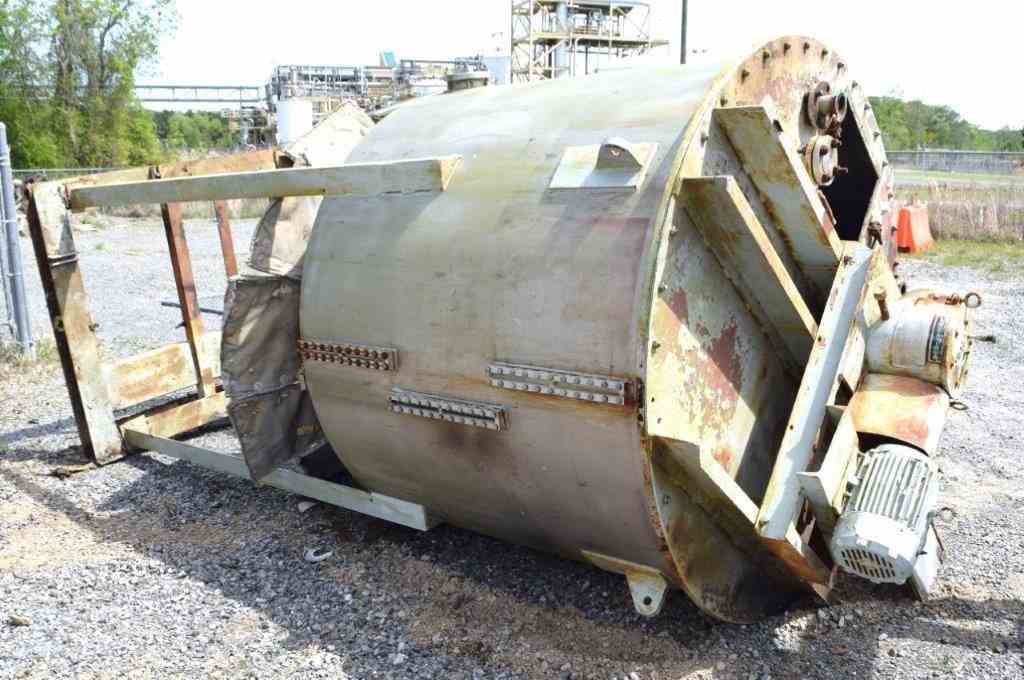

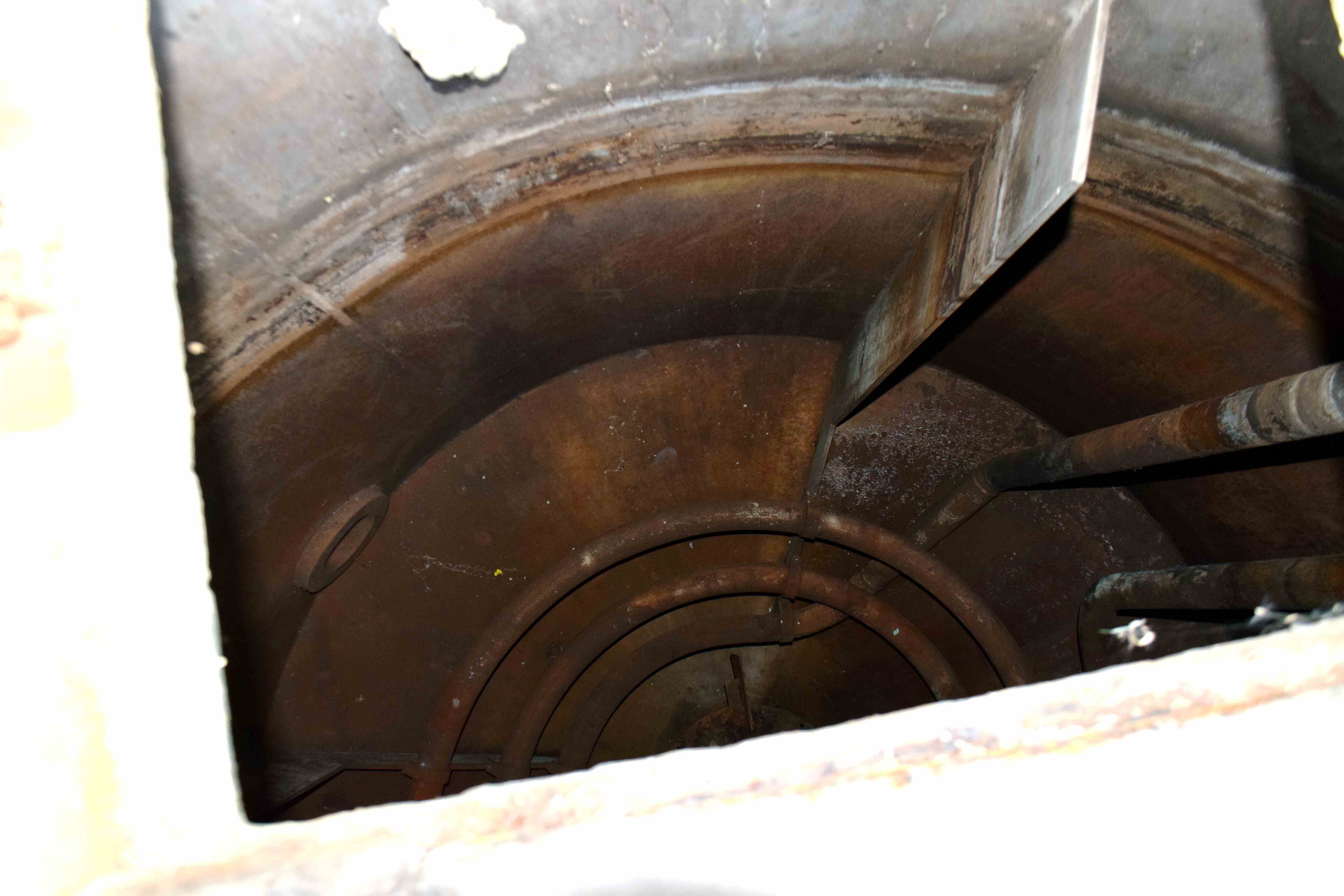

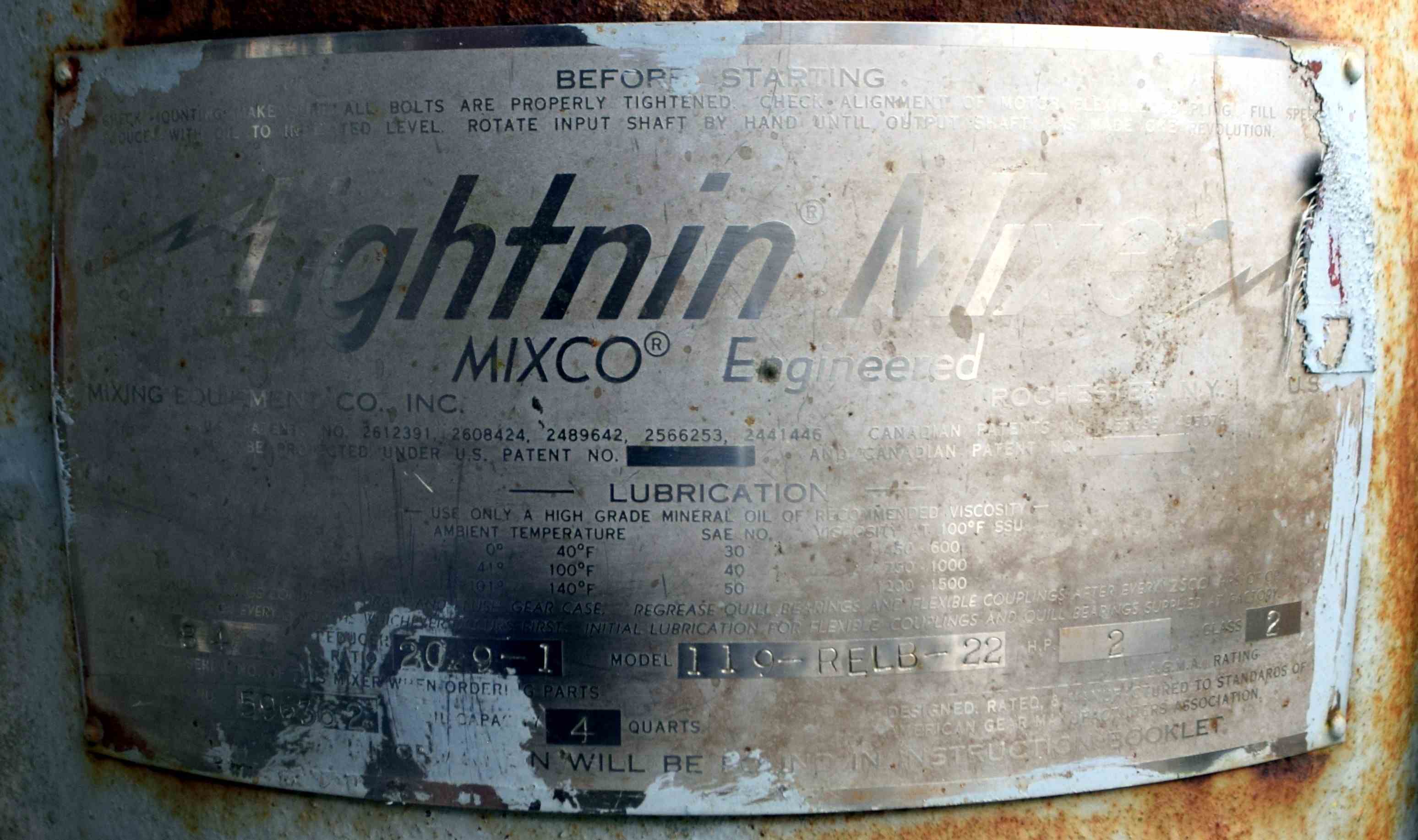

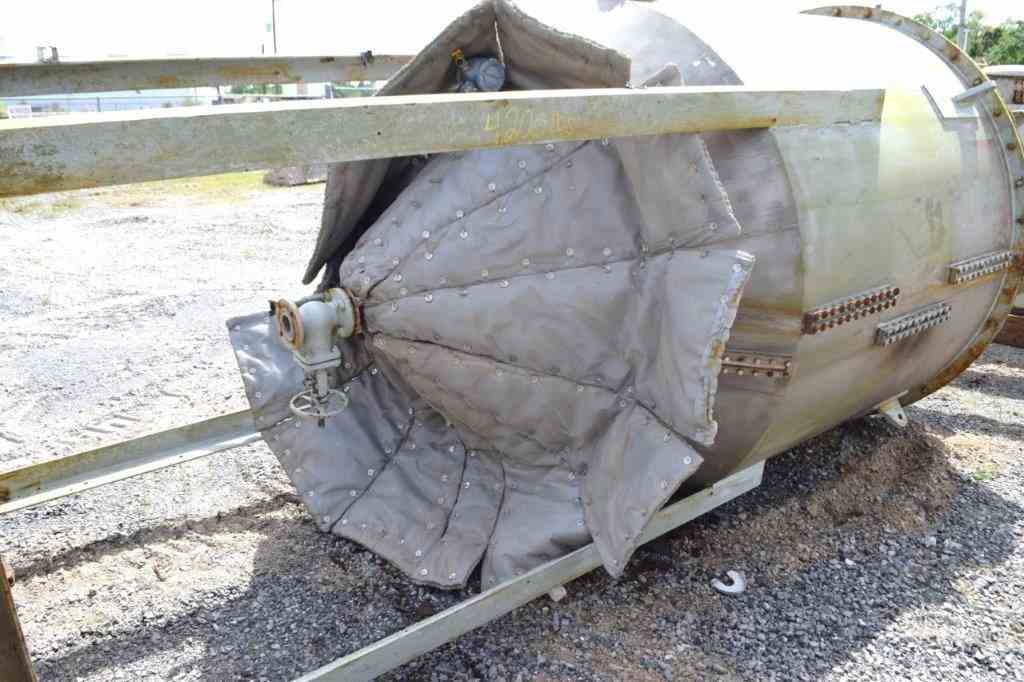

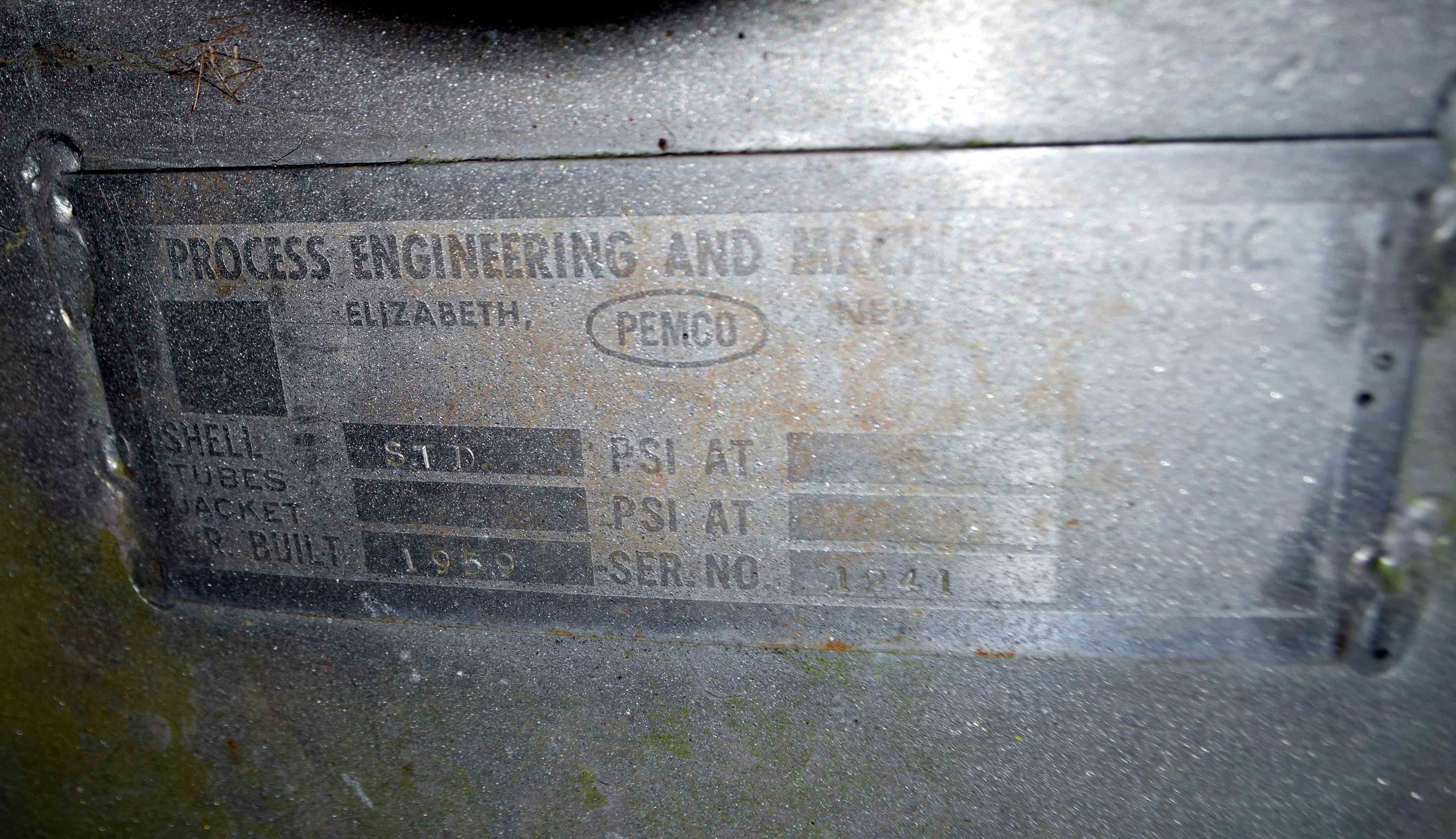

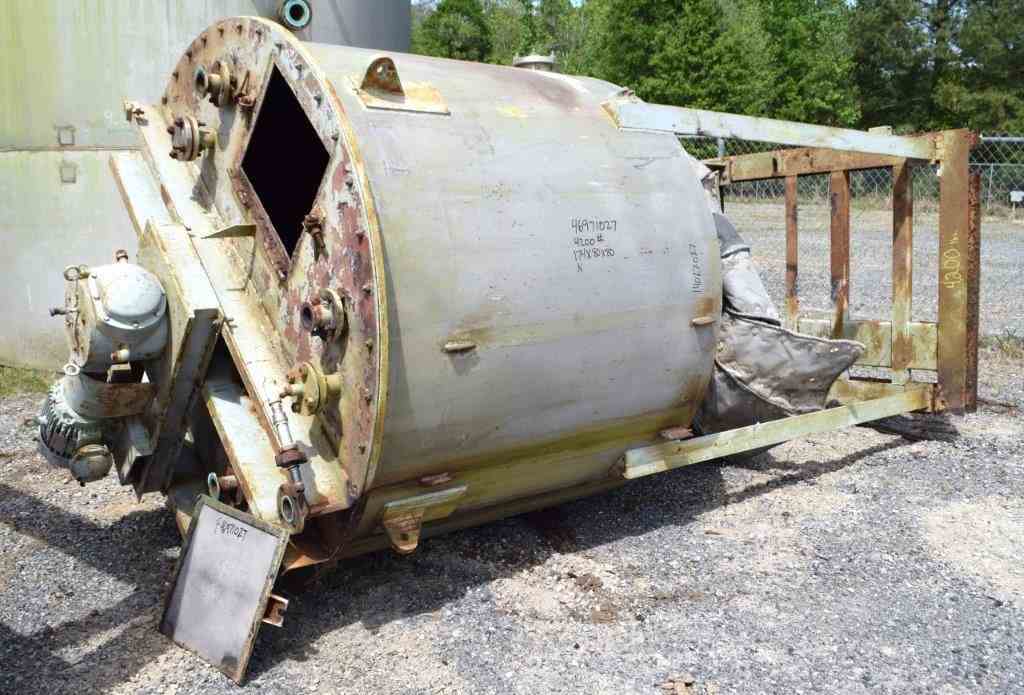

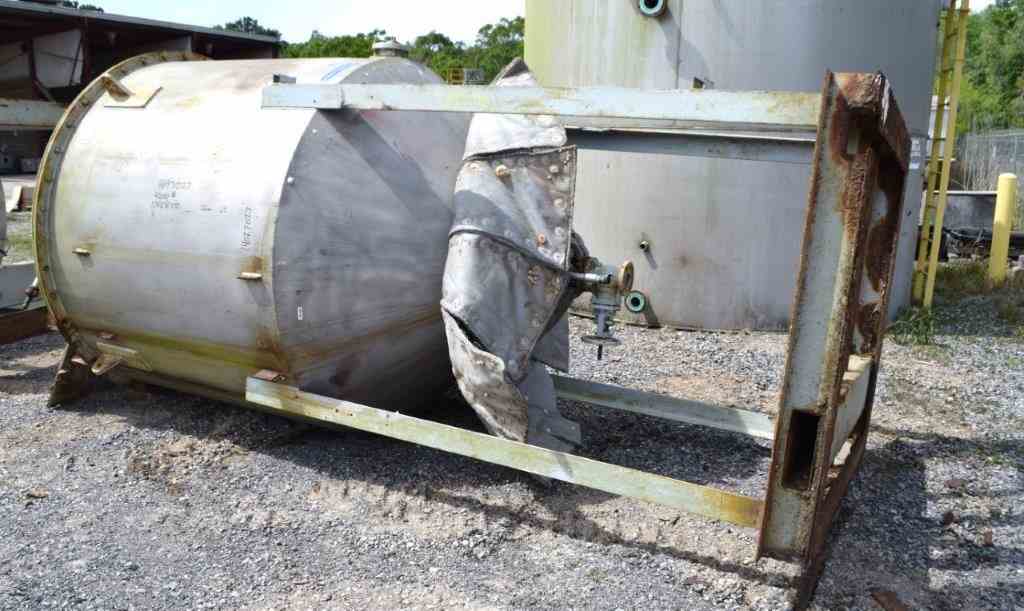

Used PEMCO Process Engineering & Machine Tank, Approximate 1000 Gallon, Stainless Steel, Vertical. Approximate 72" Diameter x 60" straight side flat bolt on top, coned bottom. Top entering Lightnin agitator, model 119-RELB-22, serial# 596362, ratio 20.9 to 1, output rpm 84, approximate 2” diameter shaft with a 4 blade disc turbine, driven by a 2hp, 3/60/230/460 volt, 1160 rpm XP motor. Bottom internal coil (no rating), sidewall baffles, top man way, center bottom outlet. Mounted on 4 carbon steel legs. Serial# 1241, built 1959.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
PEMCO
Model
119-RELB-22
Material
SS
Capacity
1000 Gal
