120 Sq Ft Schenk ZHF-R15/10 KLK 316L-SS Pressure Leaf Filter
Other Views - click image for larger view
120 Sq Ft Schenk ZHF-R15/10 KLK 316L-SS Pressure Leaf Filter 120 Sq Ft Schenk ZHF-R15/10 KLK 316L-SS Pressure Leaf Filter 120 Sq Ft Schenk ZHF-R15/10 KLK 316L-SS Pressure Leaf Filter 120 Sq Ft Schenk ZHF-R15/10 KLK 316L-SS Pressure Leaf Filter 120 Sq Ft Schenk ZHF-R15/10 KLK 316L-SS Pressure Leaf Filter 120 Sq Ft Schenk ZHF-R15/10 KLK 316L-SS Pressure Leaf Filter

120 sq ft schenk zhf-r15/10 klk 316l-ss pressure leaf filter

Stock # 12438
Capacity 120 Sq Ft

Overview

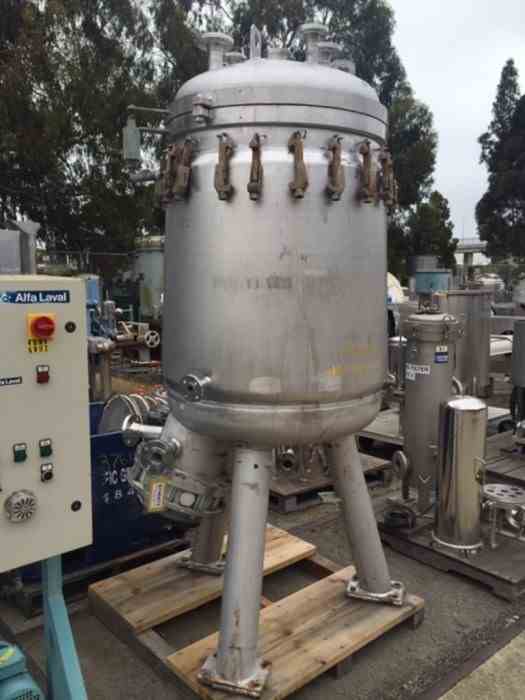

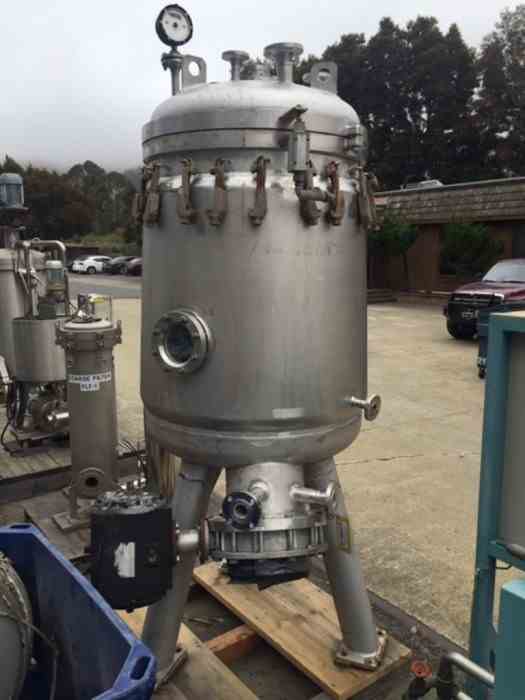

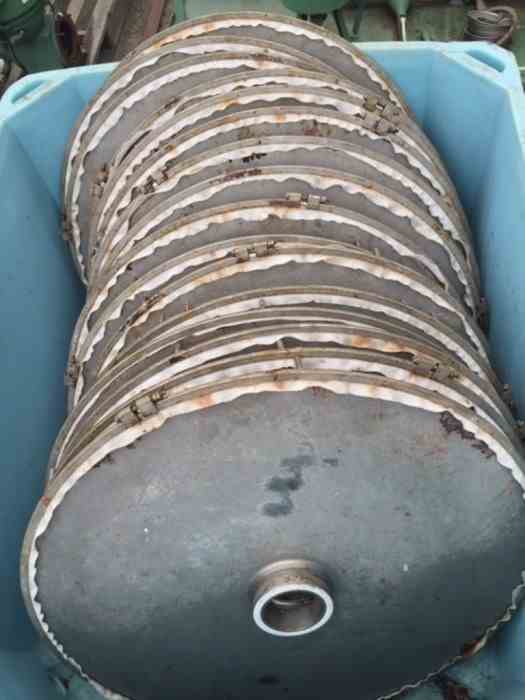

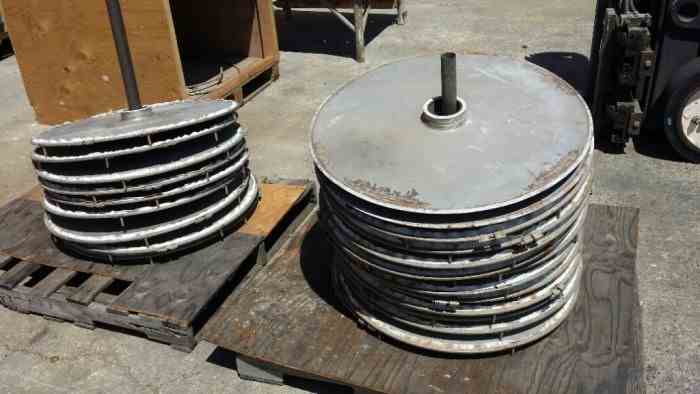

Used Centrifugal Pressure Leaf Filter, manufactured by Schenk, type ZHF-R15/10 KLK. Unit has twenty-three (23) plates measuring 32" diameter for a total cake capacity of approximately 120 square feet. Includes 265 gallon 316L stainless steel vessel rated for full vacuum and 100 PSI @ -4 deg. F. to 300 deg. F. Vessel is jacketed for 100 PSI @ - 4 deg. F. to 300 deg. F. Includes 12" diameter solids drain and 7-1/2" center-bottom liquids drain. Includes 6" diameter sight glass. Vessel number 3624, serial number 2121.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Schenk
Model
ZHF-R15/10 KLK
Material
316L-SS
Capacity
120 Sq Ft
Category
