1000 Gal DCI Stainless Steel Tank
Other Views - click image for larger view
1000 Gal DCI Stainless Steel Tank 1000 Gal DCI Stainless Steel Tank 1000 Gal DCI Stainless Steel Tank 1000 Gal DCI Stainless Steel Tank 1000 Gal DCI Stainless Steel Tank 1000 Gal DCI Stainless Steel Tank

1000 gal dci stainless steel tank

Stock # 12245
Capacity 1000 Gal

Overview

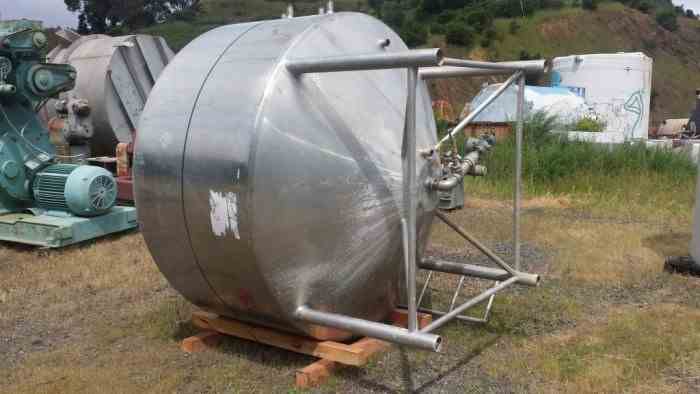

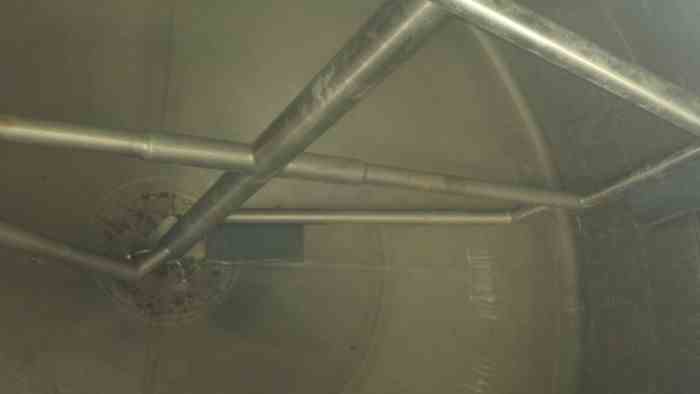

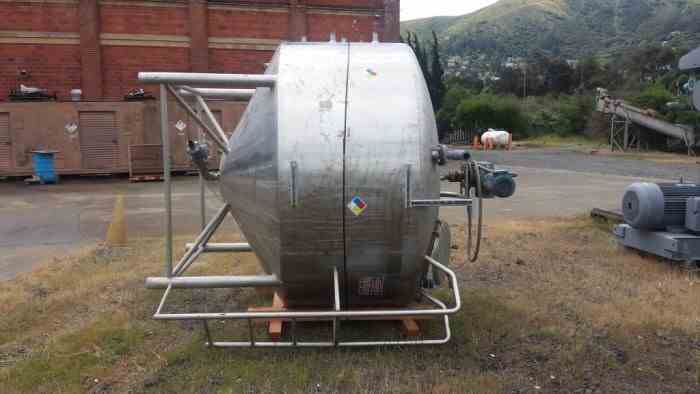

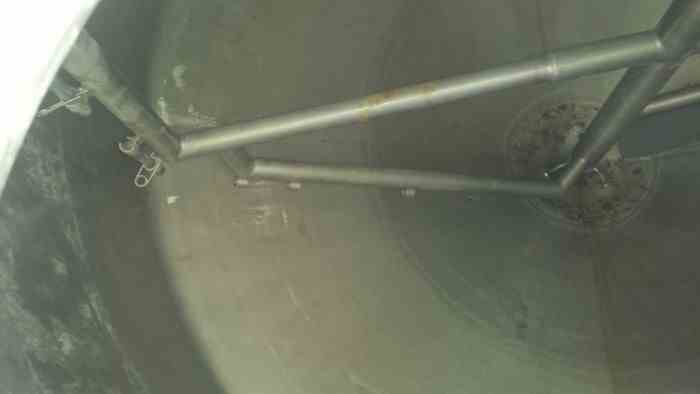

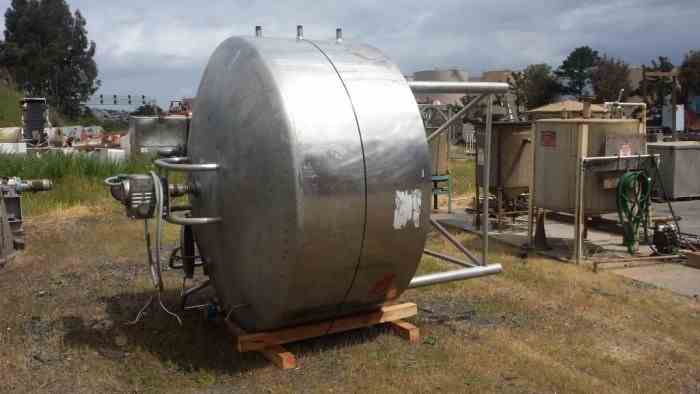

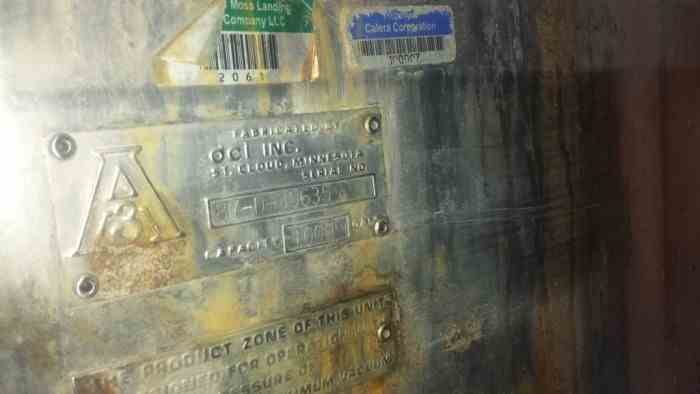

Used Stainless steel jacketed tank, 1,000 gallon capacity, manufactured by DCI, serial number 87-D-35635. Three zone dimple jacket covered by insulation. Tank measures 90" diameter X 40" straight side with cone bottom. Includes 20" top manway. Complete with heavy-duty scrape agitator driven by 2 HP, 230/460 V, 1750 rpm Baldor motor through SEW Eurodrive. 2" center bottom outlet with tri-clamp fitting. Mounted on four (4) stainless steel pipe legs. Includes side-mounted ladder. Previously used in an Research & Development facility. (NOTE: Jacket leaks)

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
DCI
Model
NA
Material
SS
Capacity
1000 Gal
