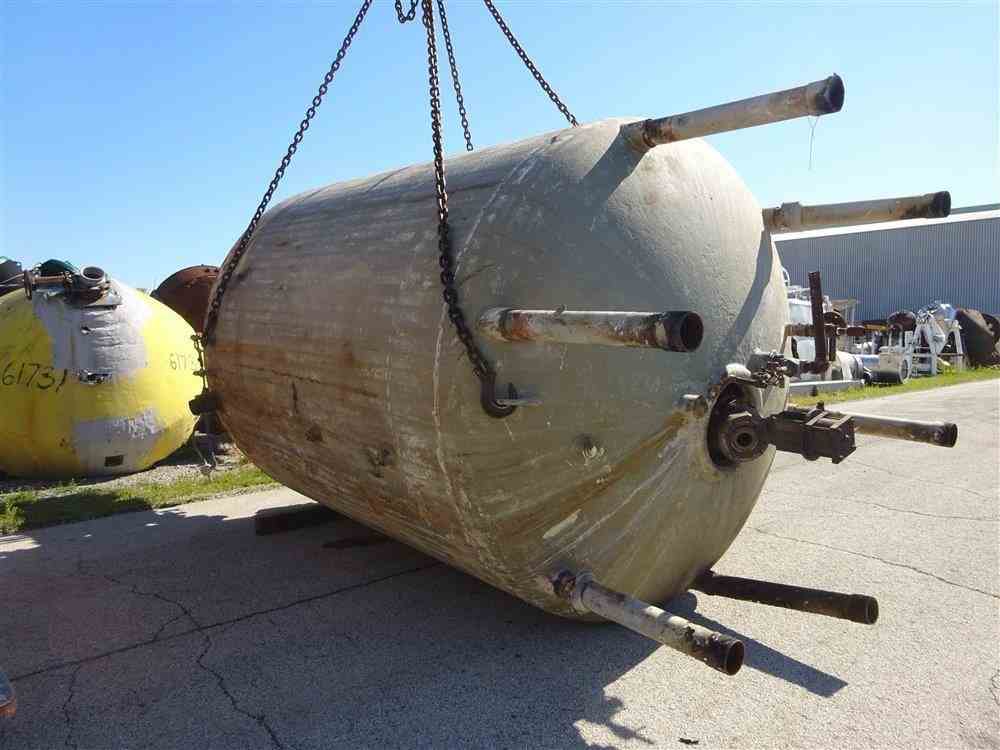

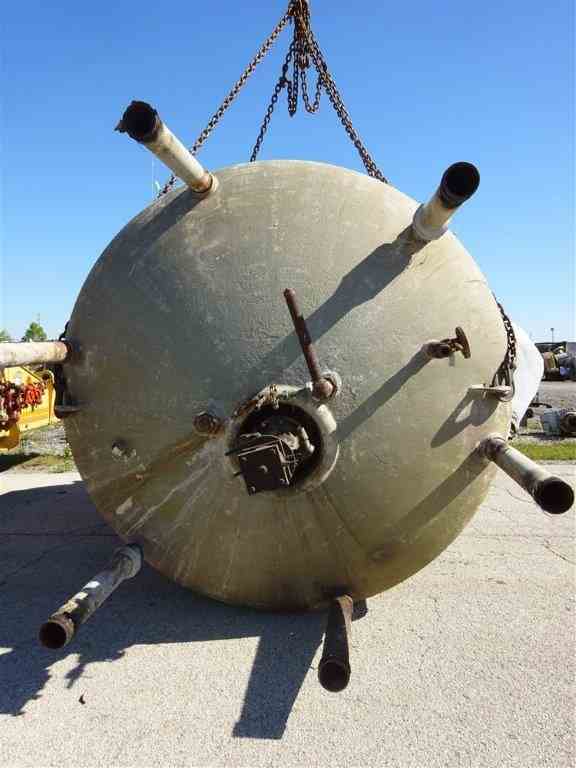

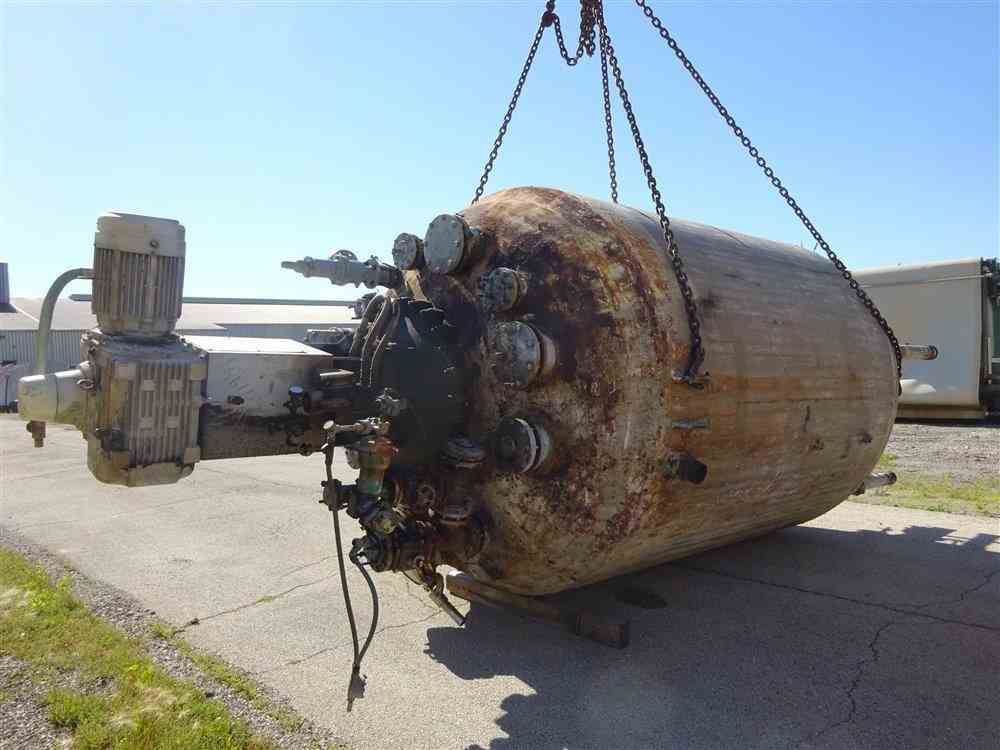

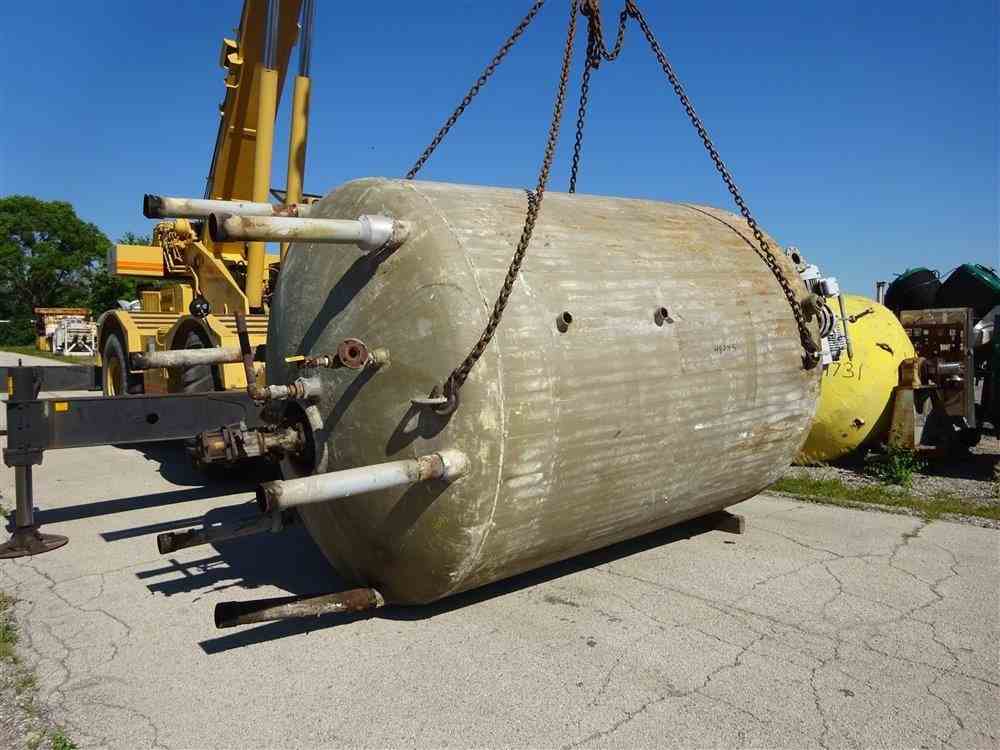

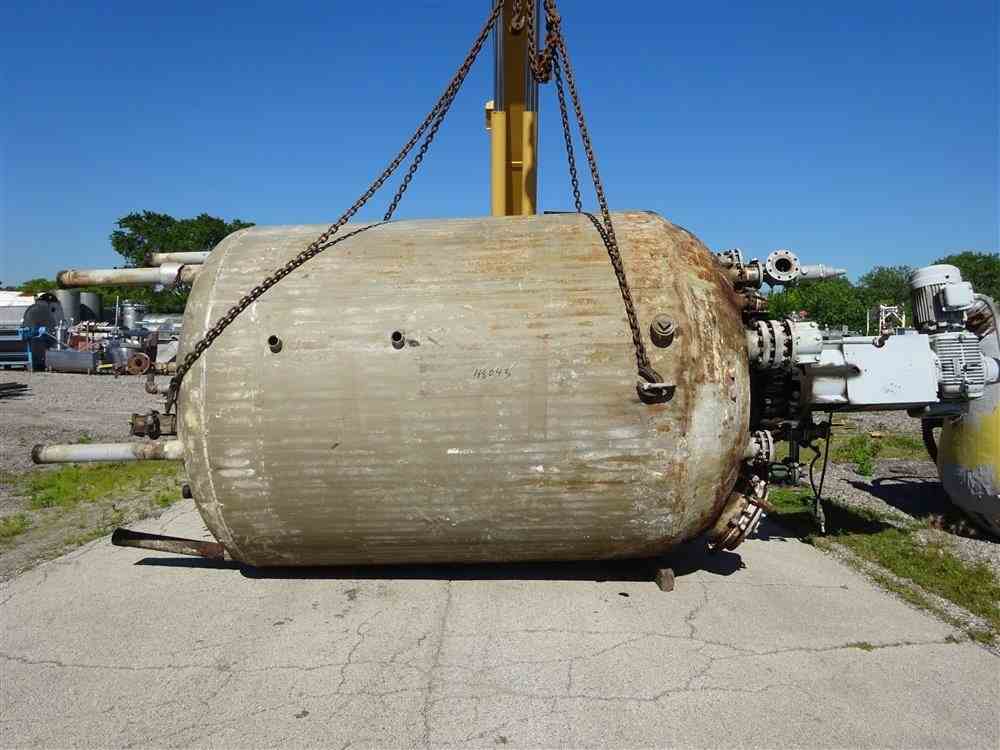

Used Pfaudler Glass Lined Reactor, 4,000 Gallon, Vertical. Approximate 96" diameter x 109" straight side, dish top and bottom. Rated 95 psi/Full Vacuum at 350 degrees F, jacket rated 90 psi at 450 degrees F. Top entering Pfaudler agitator model FMDWV-52700-4B, serial number 7-00280P, driven by a 25 hp, 3/60/230-460 volt motor with 15:1 gearbox ratio. Top
openings: 36", 18", (2) 8", (2) 6", (4) 4", (2) 3". 6"" center bottom outlet. National Board# 41003, Serial# P180-0118, built 1981.
