2200mm Hosokawa 1500/3 AFG Jet Mill
Other Views - click image for larger view
2200mm Hosokawa 1500/3 AFG Jet Mill 2200mm Hosokawa 1500/3 AFG Jet Mill

2200mm hosokawa 1500/3 afg jet mill

Stock # 12014
Capacity 86 " Dia

Overview

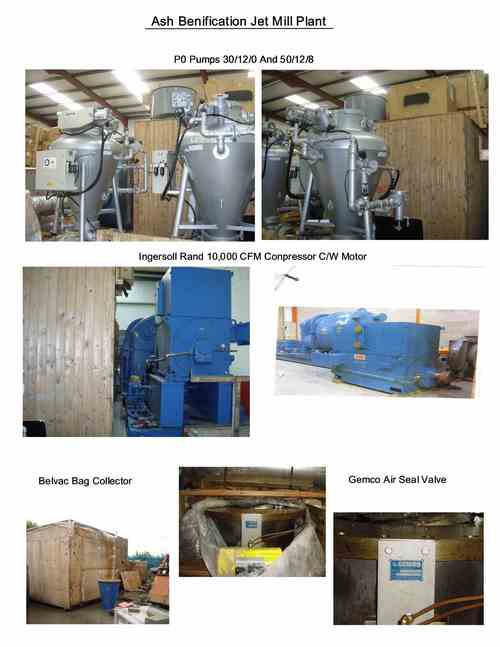

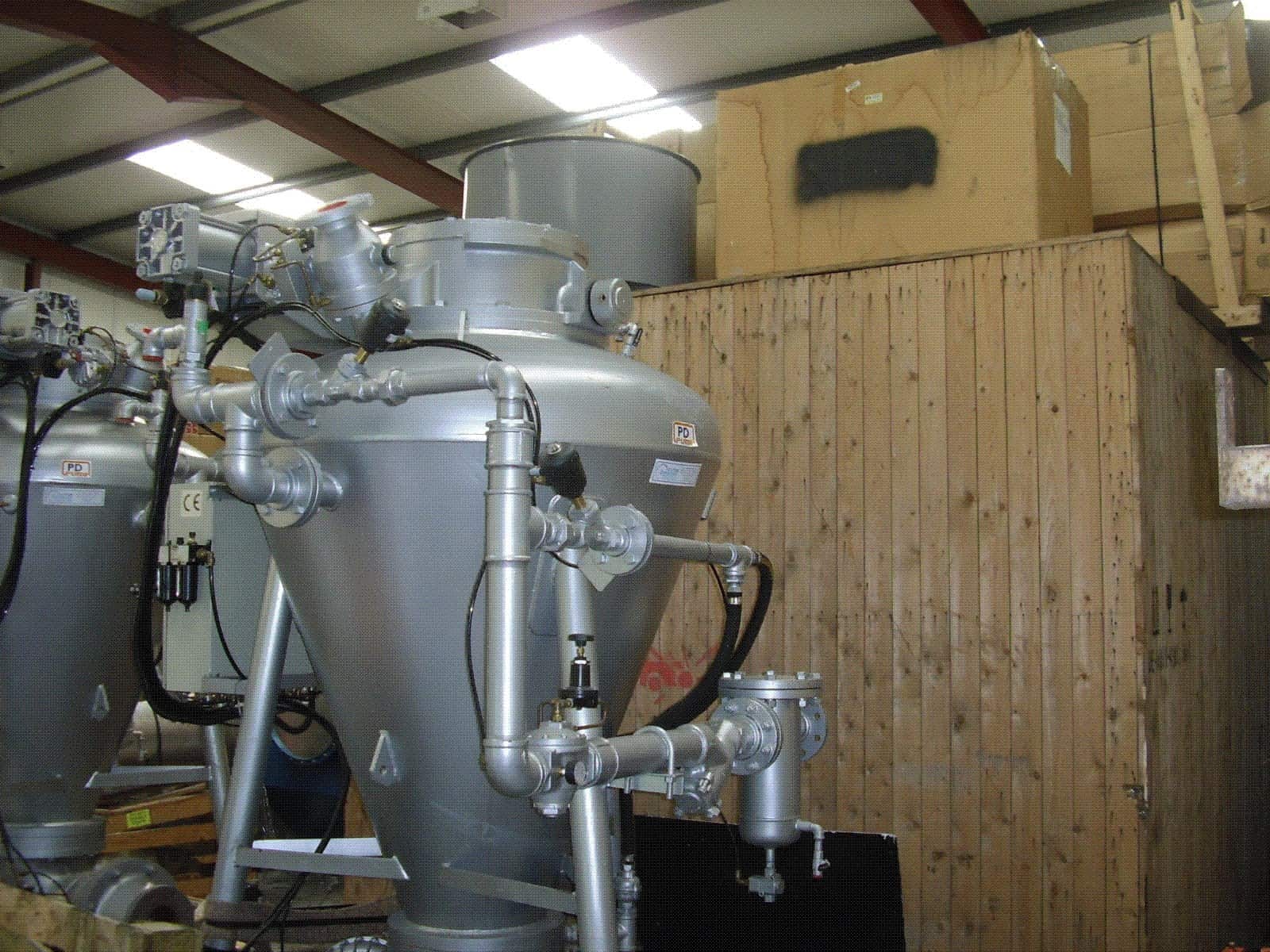

Unused Hosokawa 1500/3 AFG Fluidized Bed Opposed Jet Mill with 10,000CFM Ingersoll Rand Compressor. Includes Spherical Disk Valve, Feed Hopper (60 CU.FT. Working Volume), Baghouse Model JA-289-M12T, Fan For 1500-3 AFG System, 730 L-17, CW, ARR.8 Discharge Fan Assy, Inlet Filter/ Silencer, GEMCO Feed Valve, GEMCO 20"T VLV.CS, FAB.ANSI DR, ROVALVE 20" Knife Gate, 18" Actuated Butterfly Valve, 10"Double Flap Valve Assembly, Butterfly Valves 10" Double Flap Valve Assembly, A-B 1336 PLUS 11 Variable Frequency Drive, Operator Terminal, A-B PLC 500 System, Tank Weigh Module - Load Cell, Weighing Indicator, Air Manifold Assembly, 6"Pressure Control Valve, Pressure Indicating Transmitter, 6" Butterfly Valve, Rosemount Temperature Indicator with RTD, Rosemount Differential Pressure Transmitter, Endress + Hauser Level Element, ABB Drive Motor Rating 6.6v - 1800kw, Delvac Bag Collector, PO Pump 30/12/6, PO Pump 50/12/8, 1.7 Cub Metre Sq Surge Hopper, 6.0 Cub Metre Sq Surge Bin C/Bugemann. Built 2002. Designed for an Ash Benefication Plant.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Hosokawa
Model
1500/3 AFG
Material
Unknown
Capacity
86 " Dia
Category
