4623 Gal Argon Isotank Horizontal Carbon Steel Pressure Vessel

4623 gal argon isotank horizontal carbon steel pressure vessel

Stock # 11609
Sold
Capacity 4623 Gal

Overview

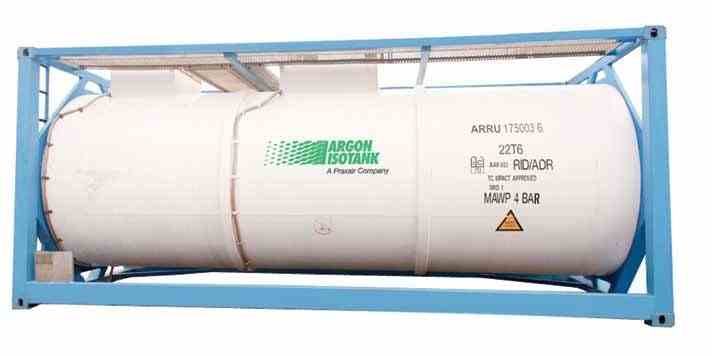

Used 4623 Gallon T14 20ft ISO Acid Tanks. Model 20ft ISO Acid Tank. Lined Carbon Steel. Built by Argon Isotank for hazardous chemicals and acids. Intermodal design. Approx 8'6"H x 8"W x 20'L. Tare 3300 kg. Rated 4 BAR working pressure. 3" PCD Outlet, 1.5" Airline connection, PRV set to 4.4 Barg, Rupture disc set to 4.84 Barg, Pressure guage . 20" Manway. Lifting slings, Forklift pockets. DNV 2.7-1 / BS EN 12079 Certified. (4) tanks available.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Argon Isotank
Model
20 Ft ISO Acid
Material
Carbon Steel
Capacity
4623 Gal
