10 Cu Ft Lodige FKM600D Plow Mixer
Other Views - click image for larger view
10 Cu Ft Lodige FKM600D Plow Mixer 10 Cu Ft Lodige FKM600D Plow Mixer

10 cu ft lodige fkm600d plow mixer

Stock # 12039
Capacity 10 Cu Ft

Overview

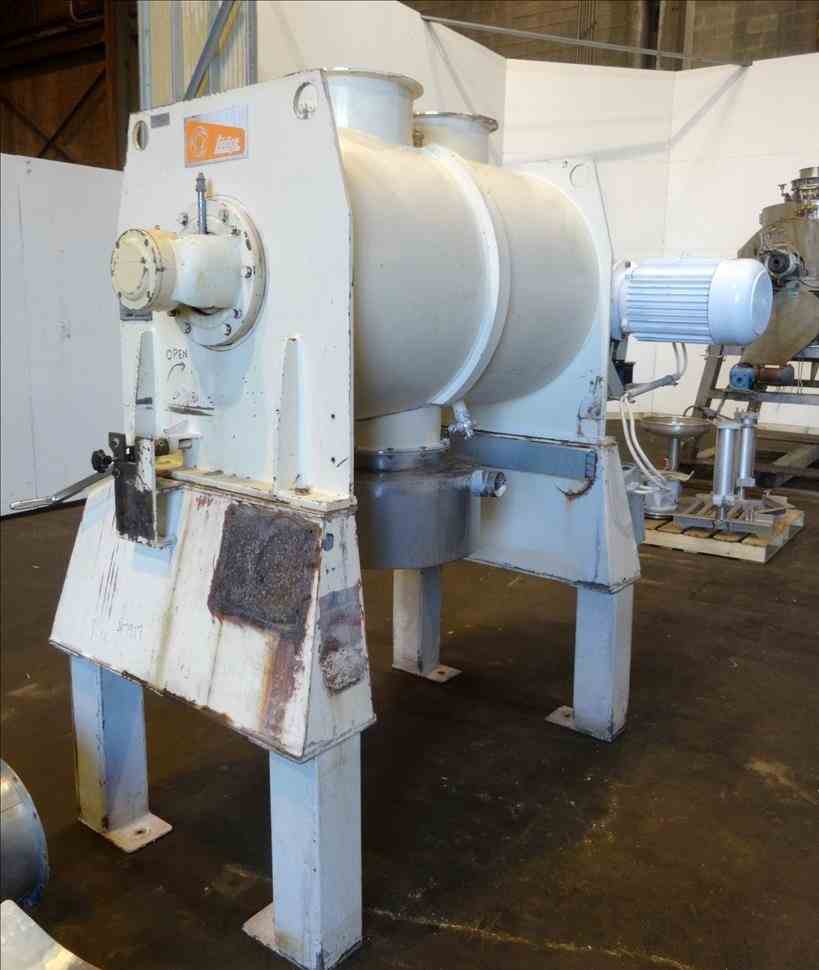

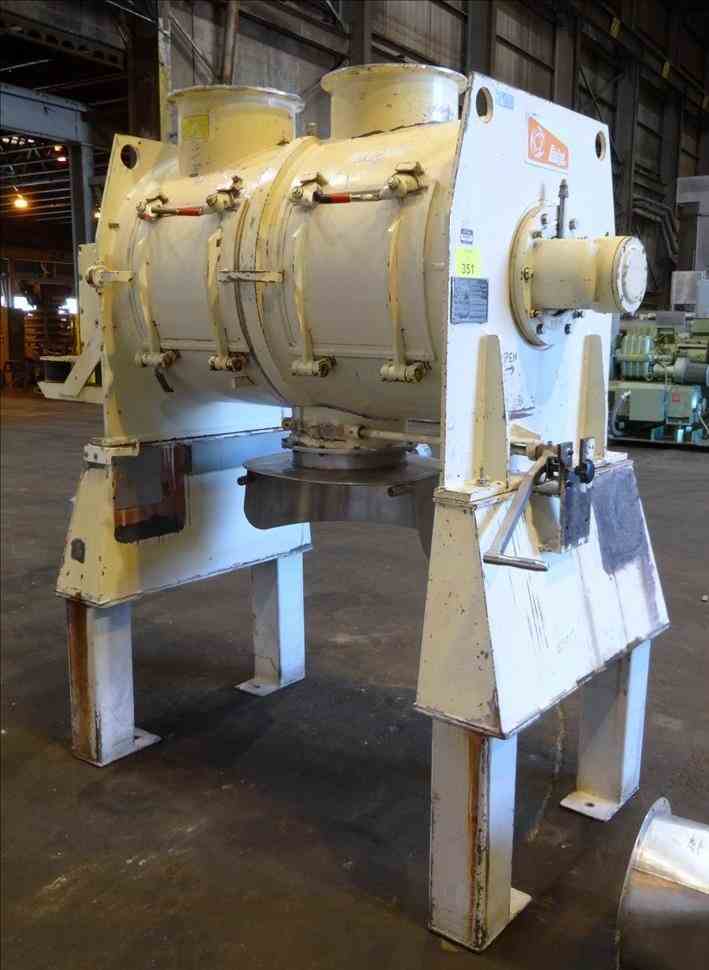

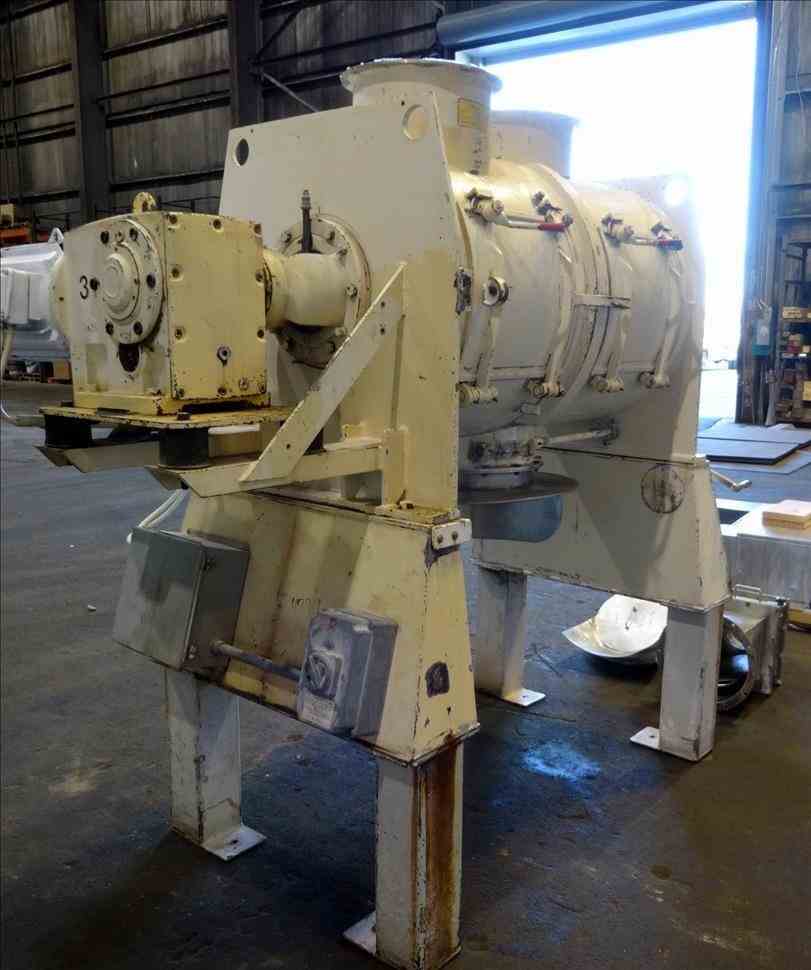

Used Lodige Batch Type Plow Mixer, Model FKM600D, 6 Cubic Feet Working Capacity (10 Total), 304 Stainless Steel. Non-jacketed mixing chamber approximate 32" diameter x 50" long. 4" Diameter shaft with (3) bolt on plows and (2) bolt on end scrappers. (2) Approximate 18" x 15-1/2" side access doors. Top openings (2) 12". 9" x 7" Bottom outlet with a manual operated door, air purge seals. Driven by an approximate 10 hp motor thru Falk reducer. Includes a control panel with an Allen-Bradley PanelView 600 and a SLC 5/04 CPU. Mounted on a carbon steel stand. Serial# 9046. Built 1979.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Lodige
Model
FKM600D
Material
SS
Capacity
10 Cu Ft
Category
