Plow Mixers and Plow Blenders

Used 371 cu ft Carbon Steel Plow Mixer. Manufactured by Lodige-Littleford. Model FKM-15000D. 530 cu. ft. total capacity, 371 cu. ft. working capacity. Internal rated FV. Provisions for (6) choppers. Jacket rated 75 PSI@320F Cooling plows. (3) 16" x 24" access doors, 30", (2) 12", (2) 8", 2" top nozzles, 10" center bottom outlet with pneumatic butterfly valve. 150 HP 460 volt XP motor thru Falk Gearbox on base. Machine serial# 40837-3436. Jacket serial# 11480. National Board# 1284. Built 1984.

Used 370 Cu ft (10500 Liter) WAM Group SpA Continuous Horizontal Single Shaft plow mixer. Model WAH 10500. 200HP motor. 6090mm x 2110mm x 2465mm. 18100lbs. Serial #17WA150000158. Built 2015.

Used 370 Cu Ft (10500 Liter) WAM Group SpA Continuous Horizontal Single Shaft plow mixer. Model WAH 10500. 200HP motor. 6090mm x 2110mm x 2465mm. 18100lbs. Serial #17WA150000159. Built 2015.

Used 200 Cu ft Stainless Steel Plow mixer. Manaufactured by Processall. Model 5700HL. 5700 liter capacity. 200 cu ft total capacity/140 cu ft working capacity. (2) 10 hp high speed choppers. Air purge seals. 75HP main motor drive. (3)12" top ports, 8" bottom outlet with valve. Serial# 220. Built 2003.

Used 148 Cubic Foot Total Capacity, 75 Cubic Foot Working Capacity, Littleford Model KM4200 304 SS Jacketed Continuous Plow Mixer. Carbon steel jacket rated 75 psi @ 320 F. Driven through gear reducer by 75 HP motor. Outboard bearings and air purged shaft seals. Serial #10638, NB #1023. Built 1975.

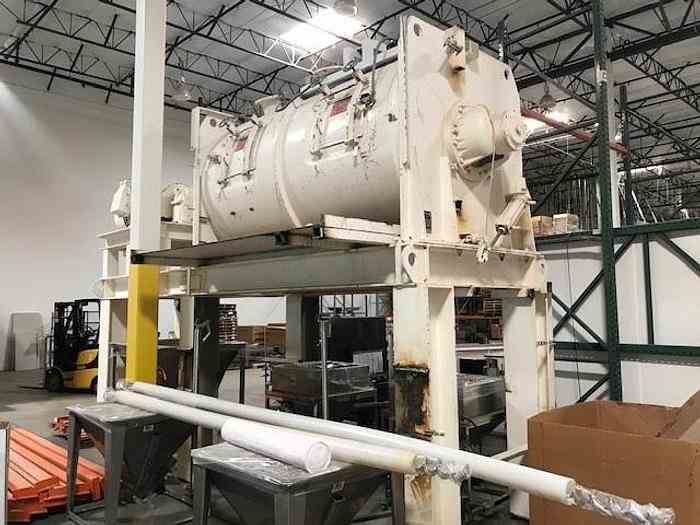

Used 127 Cu Ft Stainless Steel Jacketed Plow Mixer. Manufactured by Lodige (Littleford). Model FKM-6000-D. Working: 6000 L. Jacket rated 1015 PSI #176F. 120HP main drive. (4) Choppers with 7.5HP motors. Serial #3304. Built 1991. Past use nutraceuticals.

Used 105 Cu Ft Lodige Batch Type Stainless Steel Plow Mixer. Model FKM-3000D-2MZ-2ZF. Inside 312 (1.4541) stainless steel, polished to corn 120 on product contact parts. Total capacity 105.9 cubic feet (3000 liter), working capacity 70.6 cubic feet (3000 liter). Approximately 48.8" (1250 mm) diameter x 115" (2900 mm) long jacketed mixing chamber. Rated for 75 psi (5 bar) at 316.4-degree F (158 degree C). Test pressure jacket 97.5 PSI (6.5 bar). Approximately 4" (100 mm) diameter shaft with plows. (2) 21.06" x 15.6" (540 mm x 400) inspection doors, (2) 13.7" (350 mm) diameter product inlet, (2) 9.75" (250 mm) diameter openings for dust collector, (1) 9.4" (240 mm) diameter product center outlet. Driven via a gearbox by an 82.5HP/55Kw-380volt/50cycle/3Ph motor. Prepared for (4) Choppers driven by 8.25HP/5.5Kw-380volt/50cycle/3Ph motors. Incl. control panel. Previously used in the pharmaceutical industry. Serial # 943. Built 1980.

Used 85 Cu ft 304 Stainless Steel Plow Mixer. Manufactured by Mix S.r.l. Model MXC2400. Total capacity 2,400 liters (634 gallon). Working capacity 260-1750 liters (462 gal - 68.68 gal). Mixing chamber 50" diameter x 80" long. 304 Stainless steel jacket rated 2 bar @38C (29 psi @100.4 F). 4" diameter shaft with (4) bolt-on plows, and (2) bolt-on side scrapers. Plows driven by 22.2kW (29.7hp), 3/60/480 volt motor. Openings: 10", (4) 2", (2) 6", (2) 1". (2) 24" x 19" doors. 10-3/4" center bottom outlet with air operated discharge valve, (4) 2" side bottom outlets. Stainless Steel contact. Serial# C655.

Used Littleford FKM-4200-D Mixer Carbon Steel, Approx. 75 Cu Ft Working Capacity, Jacket Rated 75 PSI, equipped with (4) 15 HP High Speed Choppers and 100 HP Main Motor. Built 1987, S/N: 11707, NB# 135.

Used Walter Equipment Ltd. 65 Cu.Ft. working capacity, 304-SS, Jacketed Plow / Plough Mixer Model AG 78. Jacket rated to 15 PSI. Mixing chamber is 115.5" L x 44.5 ID. Main Drive is 60 HP, 460 volt, 1775 RPM into gear box with 155 RPM out (Mixing shaft speed is approx. 100 RPM). Equipped with (4) 10 HP, 208-230/460 volt, 3505 RPM CHOPPERS. Built 1983. Previous use: Grain processing for animal feed.

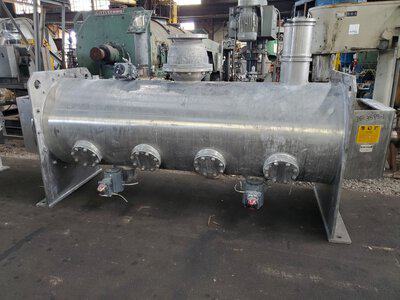

Used 42 CU Ft ProcessAll plow blender. Model 1200HL. 304 stainless steel construction. 1200 liter capacity, 29.4 cu ft working capacity. 36" diameter x 96" long chamber. Bolt on plows, provision for (4) choppers less choppers and mounts. 8" top inlet with pneumatically operated valve. (2)2" top ports, top vent stack, dual 3" bottom outlets with pneumatic ball valves. Driven by 60 hp, 460V motor drive thru Falk gearbox. Mounted on stainless steel stands with 61" discharge height. Serial# 198. Built 1999.

Used 42 Cu Ft 304 Stainless Steel Plow Blender. Manufactured by Processall. Model 1200HL. 1200 liter total capacity, 830 L working capacity. 29.4 Cu Ft. 36" diameter x 96" long chamber. Bolt on plows, provisions for (4) choppers less choppers and mounts. 8" top inlet with pneumatically operated valve. (2)2" top ports. Top vent stack, dual 3" bottom outlets with pneumatic ball valves. 75 hp, 460 volt motor drive thru Falk gearbox, mounted on stainless steel stands with 61" discharge height. Serial# 180. Built 1998.

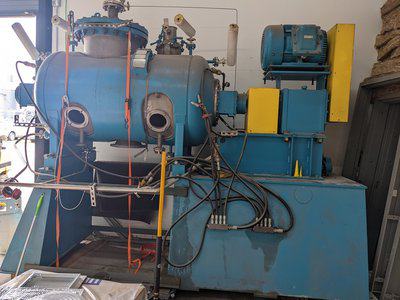

Used 21 Cu ft Stainless Steel Plow Mixer With (2) Choppers. Manufactured by Littleford Bros. Model DVT 600. Internal rated 100 psi/FV@325°F. Jacket rated 35 psi@ 550°F. National Board #1314. Serial #11573. Built 1995. R-Stamps.

Used Drais Plow Mixer/Dryer. Type TK 400-Turbu Kneter. Material of construction is 321 (1.4541) stainless steel on product contact parts. Stainless steel mixing body. Total capacity is 14.12 cubic feet (400 liter), Maximum working capacity 10.6 cubic feet. (300 liter). Minimum working capacity 4.23 cubic feet (120 liter). Stainless steel double jacketed for heating/cooling rated at 90 psi (6 bar). Heating/cooling surface approximately 17 square feet (1.7 m2). Inside rated for 0 psi at 122 degree F (50 degree C). FM I Becker plows driven via a Stimrad-Aufsteckgetribe gearbox, Type H 2HH 5A by an 82.5HP/55Kw-400 volt AC/50cycle/3PH Non EX motor, Type K 11 R 250 M 4 KT-200H. Mixing speed 175 RPM. Twin screw feeder, driven by 0.55KW/0.83HP-400volt AC /50cucle/3Ph motor, 3.9" (100 mm) bottom outlet valve. Inspection door with counter weights. Over all dimensions: 12' long x 34" width x 54" high (3700 mm long x 1050 mm width x 1650 mm high) Weight 5192 pounds (2360 kgs) empty. New 1999. Serial # 55918.

Used Lodige Batch Type Plow Mixer, Model FKM600D, 6 Cubic Feet Working Capacity (10 Total), 304 Stainless Steel. Non-jacketed mixing chamber approximate 32" diameter x 50" long. 4" Diameter shaft with (3) bolt on plows and (2) bolt on end scrappers. (2) Approximate 18" x 15-1/2" side access doors. Top openings (2) 12". 9" x 7" Bottom outlet with a manual operated door, air purge seals. Driven by an approximate 10 hp motor thru Falk reducer. Includes a control panel with an Allen-Bradley PanelView 600 and a SLC 5/04 CPU. Mounted on a carbon steel stand. Serial# 9046. Built 1979.

Used Lodige Mixer, Model FM200D, carbon steel construction. 7.1 cu. ft. total capacity, 4.2 cu. ft.working capacity Standard plow blades. Standard access door and feed, manually operated discharge with flush valve, 5 H.P. main drive, 5 H.P. chopper drive, on stand with 55" discharge height. Serial No. 35884-1299.

Used Winkworth Model RT80 Stainless Steel Plow Mixer, 80 Liter (5 cubic feet) Working Capacity, "Plough Share Mixer," Chamber measures 19.5" diameter X 28" long. Top inlet 7-3/4", center bottom discharge 4-7/8" X 7-3/4". Driven by 15 Hp (11kw) drive 400/380/415 volts, 50hz, 3-phase, 1460 rpm, ratio 12-to 1 final output 121 rpm. Serial number 16242. New in 1998. Last used in food operation. Good condition.

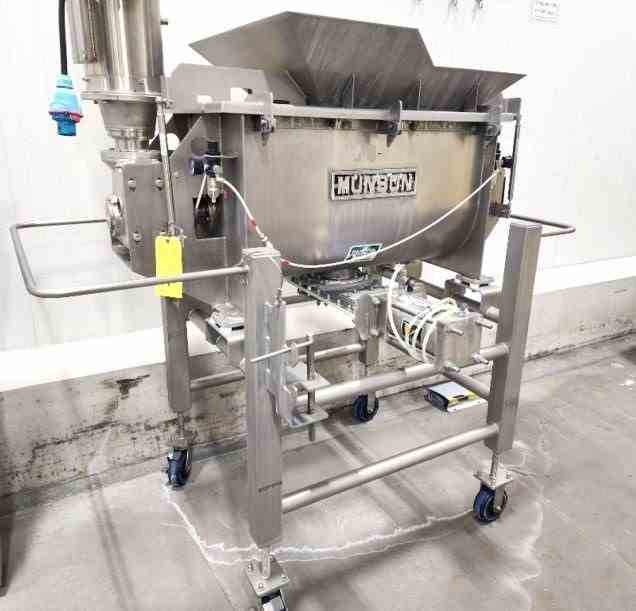

Used 5 Cu Ft Munson Plow/Paddle/Ribbon Stainless Steel Mixer Model HD-1 1/2-3-SS with spare shaft and drive. 4" pneumatic slide gate bottom outlet. 3HP, 230/460V/3PH/60HZ motor into gear reducer. Hinged lid with lift off safety grate. New spare drive and interrupted Ribbon/Paddle shaft. Portable on wheels. Serial #200414. Last used in sanitary plant.

USED DRAIS TYPE TS100 TURBULENT MIXER. 100 LITER CAPACITY. SELF-CONTAINED. 3 BAR PRESSURE. 15 HP, 50 HZ, 380 VOLT.

Lodige mixer, Model FM 50/1Z, Serial # 8776. Features all stainless steel sanitary mixer, 50 liter/13 gallon/1. 8 cubic foot total capacity, 400mm diameter x 400mm deep mixing chamber with four plows and single four blade chopper, 2. 2 kw chopper motor @ 3450 rpm, 3 horsepower plow motor belt driving 25 to 1 gear reducer by Flender from 1.4 to one pulley speed increase to approx final plow speed of 100 rpm, all shafts are packing gland sealed with air purging, single internal atomizing spray station with SS pressure feed supply tank, factory controls with disconnect, stop/start for chopper and mixer plows, analog amp meter on each motor, 4. 250" x 3. 5" bottom discharge with manually operated flush seating swing valve and 27" floor clearance, discharged material funnels through 8" id discharge tube, system is wired for 220/3 phase service, painted steel factory cabinet style base with 3 removeable service doors, mounted on casters, OAD: 56" long x 42" wide x 72" high. Formerly used in cosmetic manufacturing for face powders.

Used Laboratory high intensity stainless steel sanitary plow mixer by Purnell International (Houston TX), Model HM-20, Serial # 90hm2031. 6 gallon total cap ,10. 25" diameter x 16. 25" long jacketed mixing chamber with four plow and two end scraper plow agitator, 4. 5" x 16" loading port with dump grate and removable cover with swing mounted hand wheel closures, air purged main mixer shaft seal, variable speed mixer to 341 rpm via ac frequency controller, cabinet mounted with all XPcontrol panel 2 horsepower reliance motor, XP Class I, Class II, Groups F&G. (4 pos)

Used 20 Liter Processall Model 20-HV Tilt-A-Mixer, Removable Plow Type Mixing Blades, Stainless Steel construction, 20 Liter total capacity, 14 Liter Working Capacity, Vacuum capable internal, 75 PSI Stainless Steel Jacket, Tilt style chamber with air operated Hydraulic Power tilt assist, sanitary fittings, Driven by 5 HP, 3/60/230-460 volt, 1140 RPM TEFC Motor, mounted on Stainless Steel portable base with casters. Serial #53.

Used 4 Processall Tilt-A-Mix Laboratory Processor / Plow Mixer. Model 4HV. Total capacity 4 liter (1 gallon), 0.14 Cubic Feet, working capacity 2 liter, 0.07 cubic feet. 2 HP with Chopper. Serial# 193. (Mixing Plow Blade & Cover Missing).

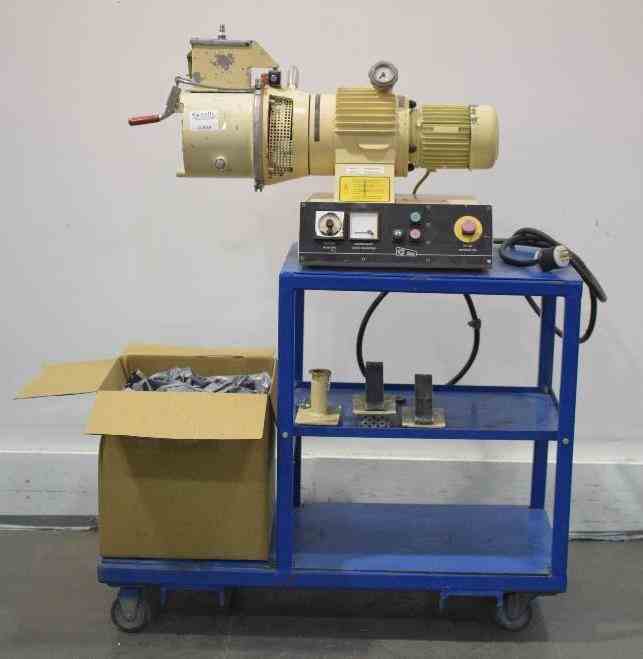

Used 0.03 Cu ft (5 liter) Littleford Laboratory Mixer. Model M-5-G. Power: 120/230 V, 50/60 HZ, Phase 3; Permissible Operating Temperature 158 degree C. Permissible Operating Temperature Over Pressure: 5 bar. Includes: Change Parts, Blue Cart, Pallet Cover. Serial #40647-3238.
