Used Elliott Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Elliot. Phoenix Equipment offers a wide selection of categories from Elliot. If you can't find the exact Elliot equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
4500-kw-elliott-steam-turbine-generator

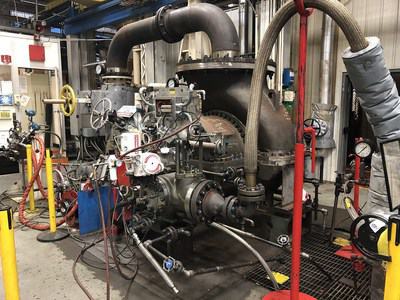

4500 KW Elliott Steam Turbine Generator
Stock# 17329 Capacity 4500 KW

Unused 4.5 MW Elliot Dual Turbine Steam Generator. Inlet Steam Conditions: 575 PSIG, 745 degrees F, 51,500 lb/hr. Generator made by T D Power Systems Limited. Generator Specs: 4.5MW, 4.16kV, 0.85pf, 60Hz, 1800rpm. Includes dry cooler. Built in 2018. Crated and stored in a warehouse ready to ship.

2800-hp-elliott-15mb3-centrifugal-compressor

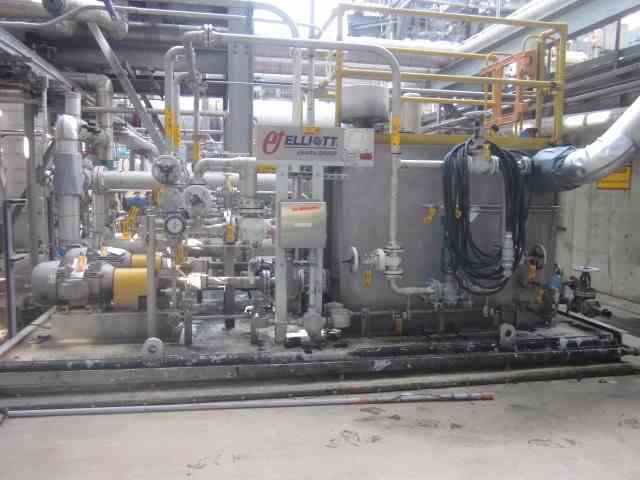

2800 HP Elliott 15MB3 Centrifugal Compressor
Stock# 19840 Capacity 2800 HP

Used 2944 CFM Recycle Gas Centrifugal Compressor. Manufactured by Elliott. Model 15MB3. Inlet 455 PSIA @ 77F. Discharge 702 PSIA @ 156F. Rated 12053RPM. Lufkin Increaser Gearbox. 2800 HP Teco Westinghouse motor 4000V. 5614 Frame. Skid mounted with Lube oil console. 13250 lbs. Serial #F108252. Built 2011.

1733-cfm-elliott-15mb3-centrifugal-compressors

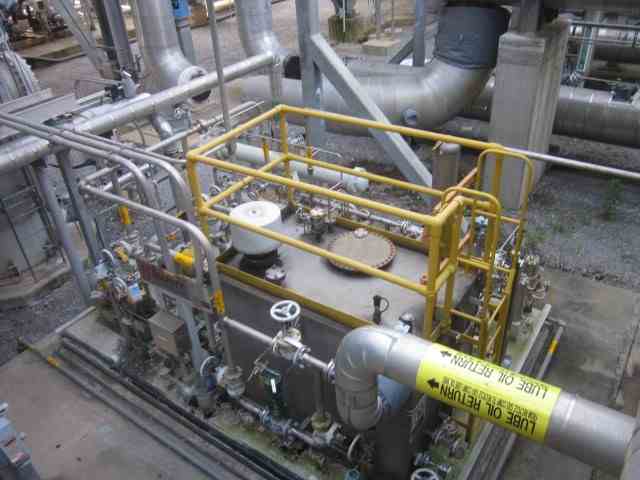

1733 CFM Elliott 15MB3 Centrifugal Compressors
Stock# 20829 Capacity 1733 CFM

Used 1733 CFM Recycle Gas Centrifugal Compressor. Manufactured by Elliott. Frame 15MB3. 2944 m3/hr. Inlet 455PSIA@77F. Discharge 702PSIA@156F. 12053RPM. Lufkin gear increaser. Model NF2007D> rated 2800 HP. Motor: 2800 HP Teco Westinghouse. 7730 RPM. 4000V From 5614. Includes Lube Oil Console. Skid mounted. Overall 264"L x 152"W x 110"H. Weight 13250 lb. (2) available.

19400-cfm-elliott-compressor-with-steam-turbine-skid

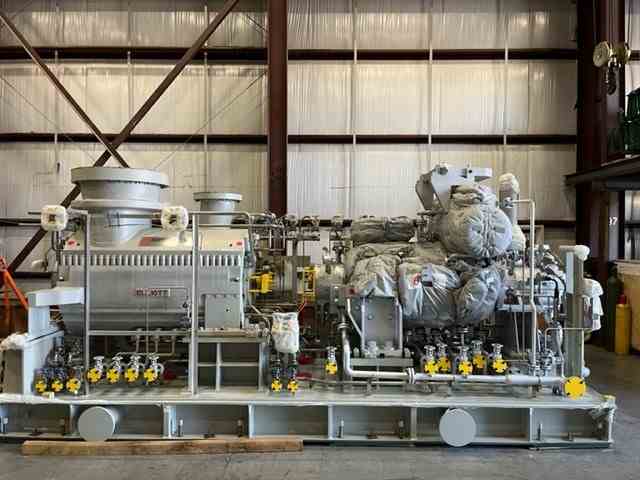

19400 CFM Elliott Compressor with Steam Turbine skid
Stock# 20971 Capacity 19400 CFM

Unused 19400 CFM Elliott Compressor with Steam Turbine skid. Consisting of Elliot Centrifugal compressor: Model 32M4. Design Inlet Pressure: 15 psia. Design Inlet Temp: 35F. Design Discharge Pressure: 77-90 psia. 17862 CFM - 19400 CFM. Design Speed: 6516 to 7178 RPM. POS-E-Coat 523 on rotor and diaphragms. Kingsbury LEG bearings with instrumentation (Thrust). Elliott TPJ. John Crane T28 gas seals. Inlet Flange size: 12" 600#. Discharge Flange: 30" 600#. Unused 3399HP Elliott Steam Turbine. Model SRV4. Inlet Condition: 150 PSIG @ 420F. Exhaust: 15 PSIG @ 250F. 3399 HP. 7176 RPM. Skid Serial #20E511ATC1J. Built 2022. Overall Skid DImensions 234.44" x 111.86"W x 110.72"H. 71850 lb.
