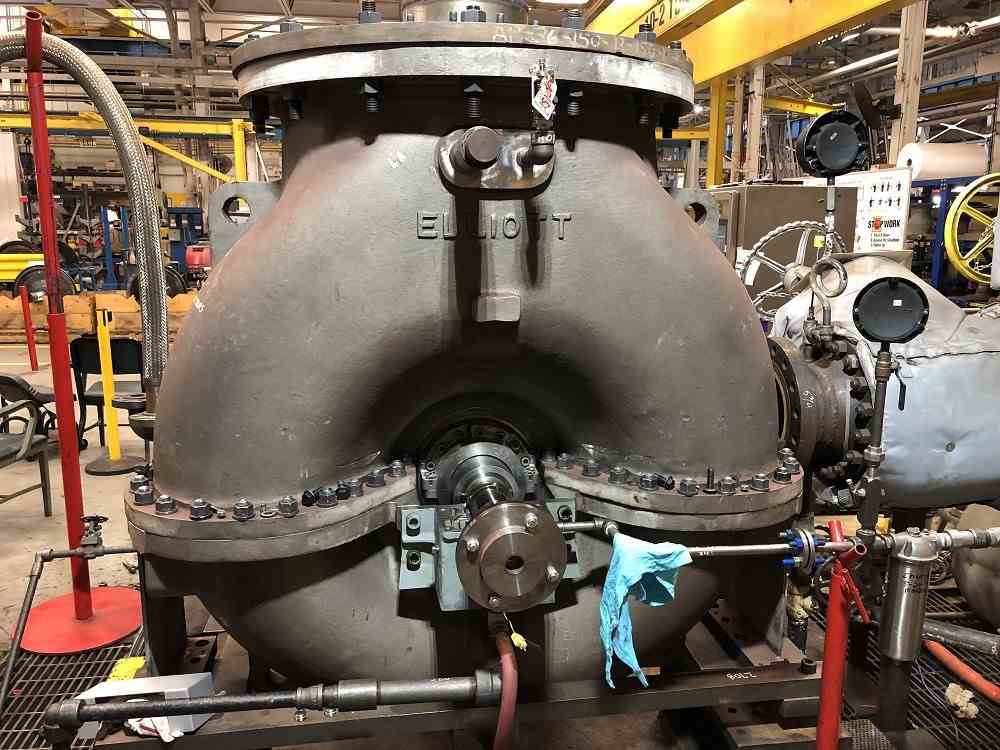

4500 KW Elliott Steam Turbine Generator
Other Views - click image for larger view
4500 KW Elliott Steam Turbine Generator

4500 kw elliott steam turbine generator

Stock # 17329
Capacity 4500 KW

Overview

Unused 4.5 MW Elliot Dual Turbine Steam Generator. Inlet Steam Conditions: 575 PSIG, 745 degrees F, 51,500 lb/hr. Generator made by T D Power Systems Limited. Generator Specs: 4.5MW, 4.16kV, 0.85pf, 60Hz, 1800rpm. Includes dry cooler. Built in 2018. Crated and stored in a warehouse ready to ship.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Elliott
Model
N/A
Material
Unknown
Capacity
4500 KW
