19400 CFM Elliott Compressor with Steam Turbine skid
Other Views - click image for larger view
19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid 19400 CFM Elliott Compressor with Steam Turbine skid

19400 cfm elliott compressor with steam turbine skid

Stock # 20971
Capacity 19400 CFM

Overview

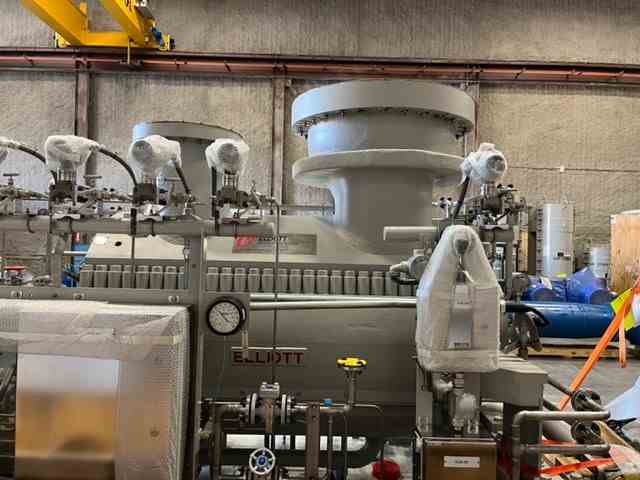

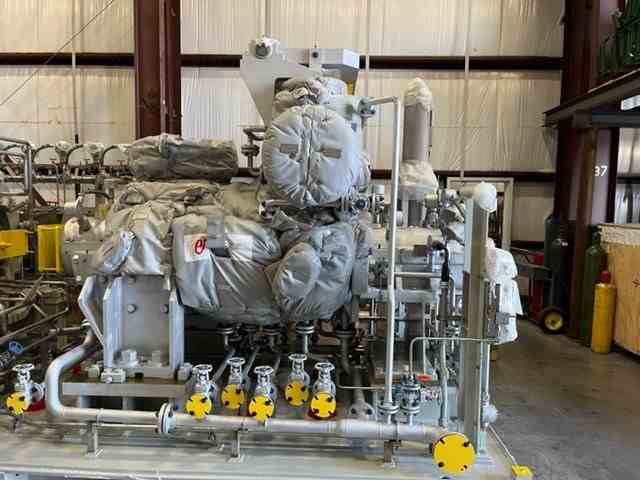

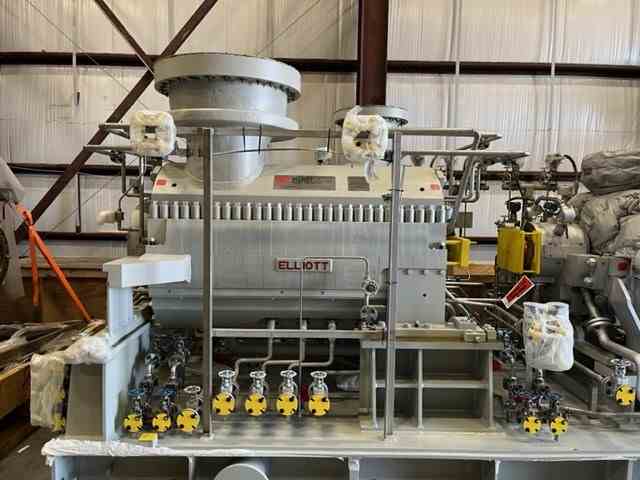

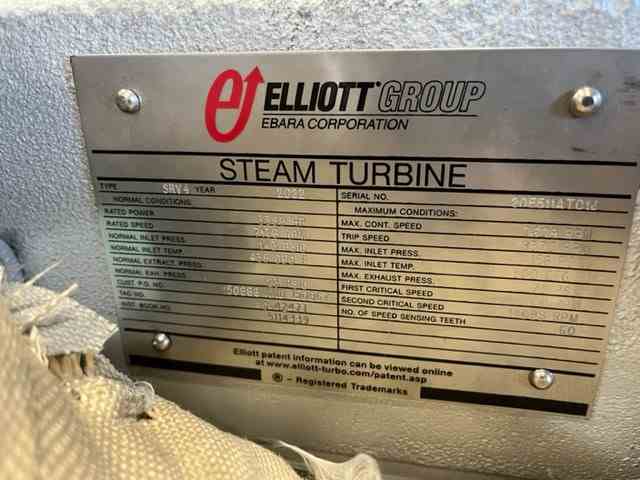

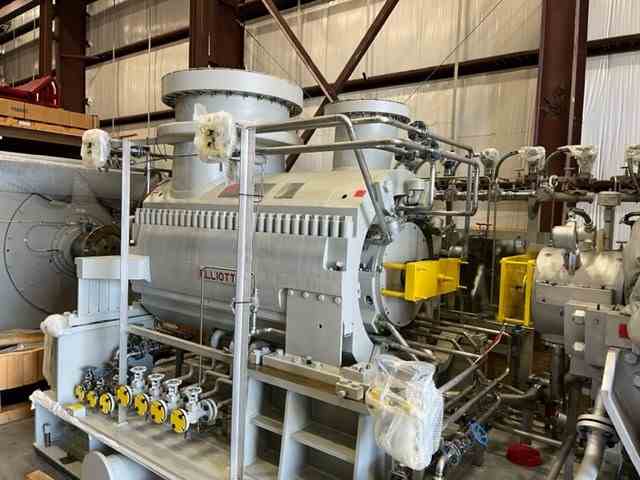

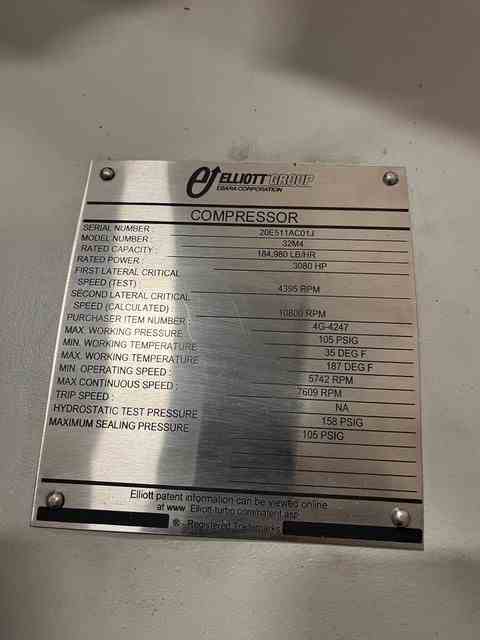

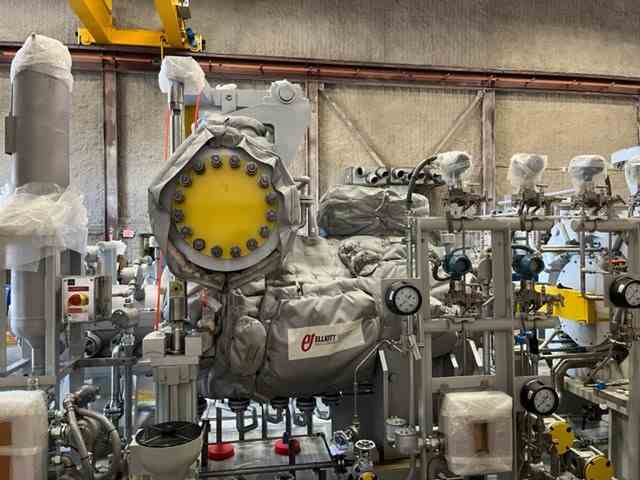

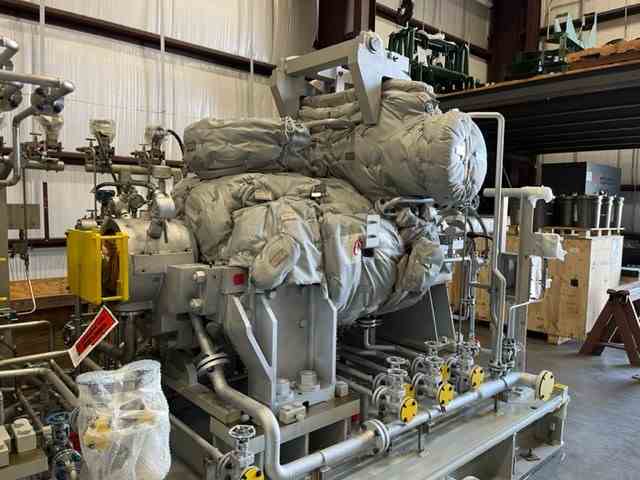

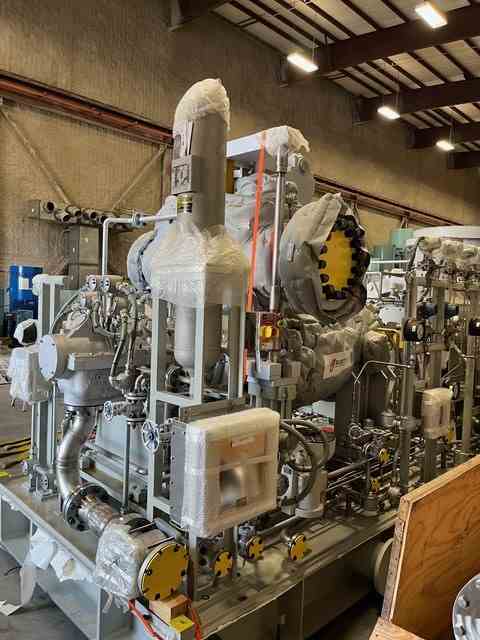

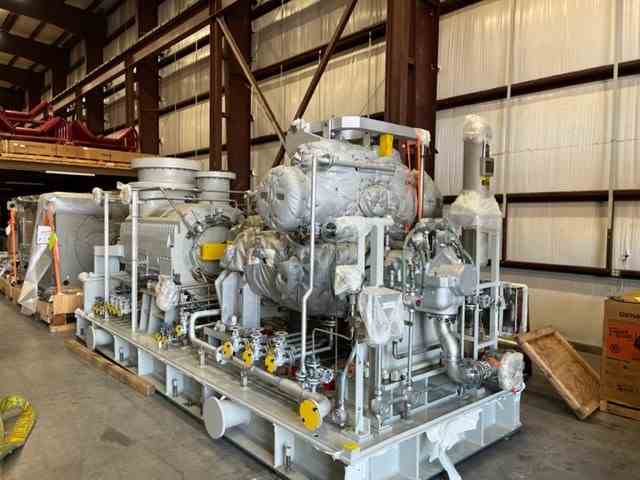

Unused 19400 CFM Elliott Compressor with Steam Turbine skid. Consisting of Elliot Centrifugal compressor: Model 32M4. Design Inlet Pressure: 15 psia. Design Inlet Temp: 35F. Design Discharge Pressure: 77-90 psia. 17862 CFM - 19400 CFM. Design Speed: 6516 to 7178 RPM. POS-E-Coat 523 on rotor and diaphragms. Kingsbury LEG bearings with instrumentation (Thrust). Elliott TPJ. John Crane T28 gas seals. Inlet Flange size: 12" 600#. Discharge Flange: 30" 600#. Unused 3399HP Elliott Steam Turbine. Model SRV4. Inlet Condition: 150 PSIG @ 420F. Exhaust: 15 PSIG @ 250F. 3399 HP. 7176 RPM. Skid Serial #20E511ATC1J. Built 2022. Overall Skid DImensions 234.44" x 111.86"W x 110.72"H. 71850 lb.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Elliott
Model
32M4
Material
Unknown
Capacity
19400 CFM
Category
Similar Equipment
