Used 4682 Sq.Ft. 316 Stainless Steel Alfa Laval plate and frame heat exchanger. 592 Stainless Steel plates. 6 inlet/outlet. Rated 150 psi @ 302 F. Model # A15-BFG. Built 1992. National Board # 6210 and 6211 (Qty - 2 Available)

Used 4446.57 sq ft stainless steel plate heat exchanger. Manufactured by Alfa Laval. Type A15-BFG. 9’6” Length X 2’5” Width X 7' Height. Rated 150 PSI @200 F.Process side AAWisk/Service side water. 6” service and process nozzles. National Board# 4122. Serial# 30100-69348. Built 1989.

USED PLATE HEAT EXCHANGER. CARBON STELL FRAME, 316 STAINLESS STEEL PLATES. SHELL & PLATES RATED FOR 100 PSIG/FV AT 212 F. VERTICAL WITH (2) 14" FRAME NOZZLES & (2) 14" TUBE NOZZLES. SECOOL COOLER. MODEL #M30-FM. 24" X 108" X 114". MFG. BY ALFA LAVAL IN 1995.

Used 2460 sq ft Alfa Laval plate heat exchanger, model M20-MFG, (271) .5 mm thick x 1220 mm wide stainless steel plates. Rated 150 psi @ 150F. Serial# 30103-91340. National Board #14194. Built 1999.

Used 2460 sq ft Alfa Laval plate heat exchanger. Model M20-MFG. (271) .5 mm thick x 1220 mm wide stainless steel plates. Rated 150 psi at 150F. Serial #30103-91339. National Board #14193. Built 1999.

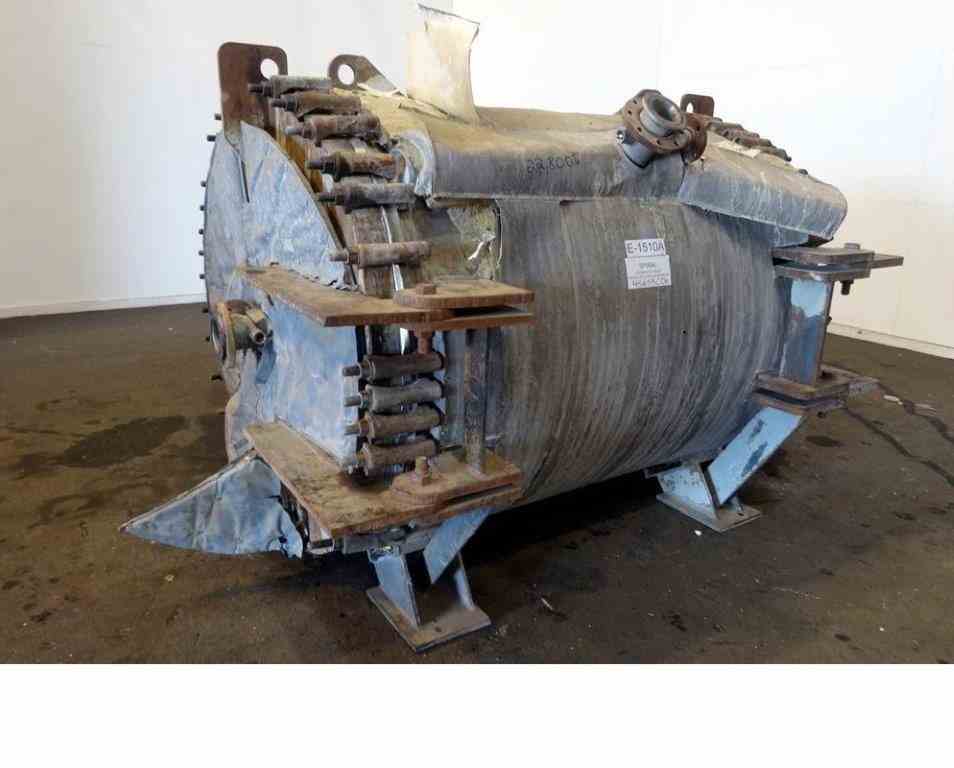

Used Alfa Laval Thermal Horizontal Spiral Heat Exchanger, 2400 Square Feet, Model 1-H. 316 Stainless steel product contact areas. Hot and cold side rated 125 psi at 250 degrees F. Carbon steel removable heads with 316 stainless steel clad. Openings (4) 4". Mounted on carbon steel saddles. National Board#13862, serial#18229, Built 1987.

Used 1,712 Sq. Ft. (159.1 Sq. M) 316L Stainless Steel Alfa Laval (Neveres, France) spiral heat exchanger. Rated 130.56 psi (9 Bar) at 32/392 F (0/200 C) on chamber A; rated 87 psi (6 Bar) at 32/392 F (0/200 C) on chamber B. Serial # 18456, Built 1991. Weight – 11,243 lbs (5100 Kg).

Used Alfa Laval 1326.8 square feet 316 stainless steel plate heat exchanger. 84” Length X 28” Width X 77” Height. Rated 150 PSI @ 300 degrees F. Type M15-BFG. National Board# 6306, S/N 30101-97350. 81.80 US gallon. Gasket material EPDM. Hot side arrangement 1X100H. Cold side arrangement 1X99H.

Used approximately 891.30 sqft surface area stainless steel plate exchanger. Alfa Laval model MK15-BWFD. Rated 150/300 PSI @ 200 degrees F. MDWT -20 deg F @ 150/300 PSI. A. Dim 569 mm w 91 0.60 MM CASS. Order Number. 18000885. NB# 31826. Built 2012. SN 30-13-93236.

Used Alfa Laval Stainless Steel Plate-Type Heat Exchanger, Model WIDEGAP200S-FG, serial number 30110-67933. Unit includes (105) plates measuring 68" long X 24" wide for a total surface area of 807.80 square feet. MAWP of 150 PSI at 250 degrees Fahrenheit, MDMT of minus 20 degrees Fahrenheit at 150 PSI. Previously used in juice processing facility.

Used Alfa Laval 681.12 square feet 316 stainless steel plate heat exchanger. 70” Length X 19” Width X 39” Height. Rated 150 PSI @ 350 degrees F. Type M10-BFG. S/N 30101-67930. 42.24 US gallon. Gasket material EPDM. 4” service and process nozzles. Hot side arrangement 1X132H. Cold side arrangement 1X131H.

Used 667 Sq Ft 316-SS Spiral Heat Exchanger. 316-SS Shell: 74 PSI @ 228 deg F; 316-SS Tube: 74 PSI @ 228 deg F. Heads: 316L-SS Clad. 3' 3" Shell diameter. 5' Tube length (OAL - 6' 4"). Shell nozzles: (2) 6"; Tube nozzles: (2) 6". (MFG. BY ALFA LAVAL-FRANCE; BUILT IN 1985; MODEL I-H; 61.96 SQ. METER; CHANNEL "A" & "B" 5 BAR @ 109 DEG. C.; CHANNEL "A" SPACING .551"; CHANNEL "B" SPACING .629"; CYLINDER HEIGHT 1500 MM; CYLINDER DIAMETER 1000 MM; CHANNEL "A" VOLUME 520 LITERS; CHANNEL "B" VOLUME 610 LITERS.)

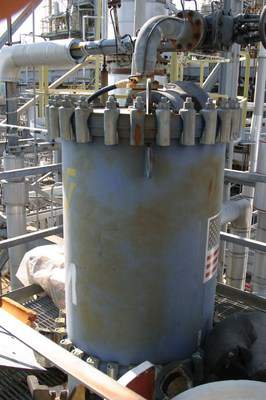

Used Vertical 380 Sq Ft CS Spiral Heat Exchanger rated 150 PSI @ 212 deg F. 3' dia x 4'tube length 6'8" OAL. Nozzles: 4" In, 2" Out,; (2) 3" In/Out, Built by Alfa Laval, 2001, S/N: 14521. NB# 17082.

Unused 316L Stainless Steel 353 sq. ft. vertical Compabloc heat exchanger. Manufactured by Mfg. by Alfa Laval Vicarb 2.3 Design duty (MMBTU/Hr). Model CPX40. Rated 87FV psi @ 248°F. Designed as Oil/Water heat exchanger. Under Nitrogen Purge. Serial #CP40-2823; NB CODED. Built in 2021.

Unused 316L Stainless Steel 353 sq. ft. vertical Compabloc heat exchanger. Manufactured by Mfg. by Alfa Laval Vicarb 2.3 Design duty (MMBTU/Hr). Model CPX40. Rated 87FV psi @ 248°F. Designed as Oil/Water heat exchanger. Under Nitrogen Purge.Serial #CP40-2824; NB CODED. Built in 2021.

Used 105.78 Sq. Ft. (Cap 6.56 US gallons ) 316 Stainless Steel (Plates) Alfa Laval Plate and Frame Heat Exchanger, Type M10-BFG. 100 PSI at 300 F. Built 1992. Serial # 67814

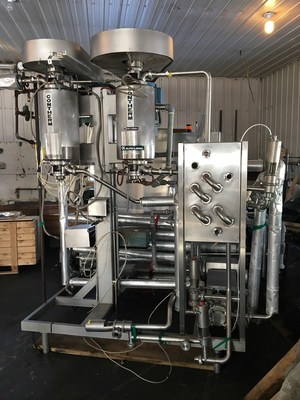

Used 6 Sq Ft Alfa Laval Viscolab Scraped Surface Heat Exchanger System. Nickel & Stainless Steel. Dual process tower integrated system consisting of: (1) Alfa Laval Contherm scraped surface heat exchanger, model 6 x 3, 3 square feet heating surface. Internal rated 450 psi at 315 degrees F., jacket rated 225 psi at 315 degrees F., serial# HC3058NCC, built 1985, driven by a 7.5hp, 3/60/380 volt, 865 rpm motor. (1) Alfa Laval Contherm scraped surface heat exchanger, model 6 x 3, 3 square feet heating surface. Internal rated 300 psi at -30 to 300 degrees F., jacket rated 250 psi at -30 to 300 degrees F. serial# HC9002NCC, National Board# 261, built 2007, driven by a 5.5hp, 3/60/380 volt, 1130 rpm motor. Mounted within a support structure with a 1/2hp hydraulic raise and lower for rotors. Includes (1) spare 6 x 3 Contherm chamber, serial# HC9591NCC, National Board# 511, built 2009, control panel with SAMI frequency converter and Altivar drives, Alfa Laval plate heat exchanger with tank, (4) pumps, miscellaneous piping and valves.
