1622 Sq Ft Alfa Laval  Stainless Steel Plate Heat Exchanger
Other Views - click image for larger view
1622 Sq Ft Alfa Laval  Stainless Steel Plate Heat Exchanger 1622 Sq Ft Alfa Laval  Stainless Steel Plate Heat Exchanger 1622 Sq Ft Alfa Laval  Stainless Steel Plate Heat Exchanger

1622 sq ft alfa laval stainless steel plate heat exchanger

Stock # 23290
Capacity 1622 Sq Ft

Overview

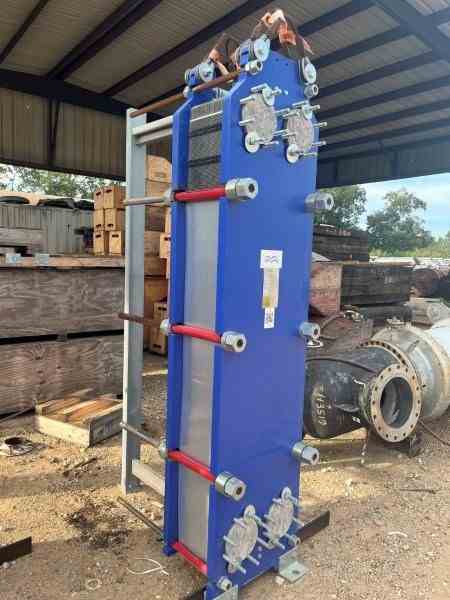

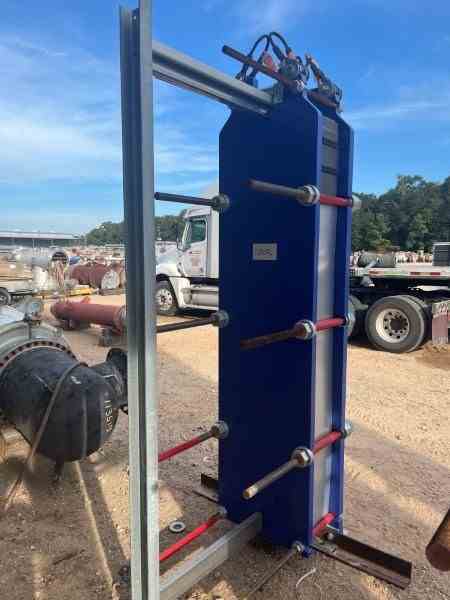

Unused 1622 sq. ft. 304 stainless steel plate heat exchanger. Manufactured by Alfa Laval. Model TL15-BFG. 149.4 psi design pressure (MAWP). 150.1°F design temperature max. 32.0°F design temperature, min (MDMT). Alloy 304 stainless steel plate material. 0.0157" plate thickness. NBRP clip-ads (hot & cold side) gasket material/attachment. 59.96"L x 25.08"W x 105.98"H. Built 2021.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Alfa Laval
Model
TL15-BFG
Material
304 Stainless Steel
Capacity
1622 Sq Ft

For additional information, visit the Resource Center
