New and Used Double Cone Mixers for Sale

Used 427 Cubic Foot Stainless Steel Double Cone Blender. 9'-6" dia. cone. 220 Cu Ft Working Volume. Half cone height is approx 53". 39" straight side. 45° cone. Current height = 13'-9". 90" high pedestals. Pedestal footprint is approx 14' wide x 16' deep. 10" dia flanged outlet. Housing is constructed of 304 stainless steel. Gear drive with guard.

Used 300 Cubic Feet Carbon steel Double Cone Blender GEMCO/General Machine Co. 10' 6" x 30" w/ 50" and 54" cones, 14" top inlet and 18" bottom outlet. 25 HP,230-460V, 3Ph, 1765 RPM motor W/James reducer, size 14ES-3, Ratio 38.44/1. Belt to reducer, gear to cone. Includes stand.

Used 112 Cubic Feet Stainless Steel Paul Abbe Rota-Cone Blender, Model 84, 84" diameter, rated 80 lbs. / 112 cubic feet maximum material density, stay bolt jacketed shell rated 30 PSI at 275 degrees F, with liquid injection, 16" feed, 12" discharge with butterfly valve, 20 HP 575 volt XP motor drive with brake on stands, Serial No. A19530, National Board No. 224.

Used Gemco 100 cubic feet working capacity (approximately 140 CF total capacity), 304 stainless steel double cone blender mounted on carbon steel frame. Unit has 18" diameter intake door and 8" port. Double cone blender has a total height of 96", unit has 12" diameter manual butterfly discharge valve, 7.5 HP 230/460 volt 1,770 rpm gearhead motor, includes pneumatic brakes.

Used 70 Cubic Feet 304 Stainless Steel ABBE Double Cone Mixer. 108 Cubic Feet Total Capacity. 7.5 HP DRIVE.

Used 70 Cubic Feet 304 Stainless Steel ABBE Double Cone Mixer. 108 Cubic Feet Total Capacity. 7.5 HP Drive on Stands. Model A43136.

Used 70 Cubic Feet Stainless Steel Pfaudler Double Cone Blender. 80" diameter X 42" top cone X 42" bottom cone X 22" straight side. 24" top feed, 10" bottom discharge. Driven thru 15HP induction motor via a falk type gear box. Pneumatic butterfly discharge valve. (Note: Manway cover is Carbon Steel)

Used 60 cu ft stainless steel slant cone blender. Manufactured by Gemco. With Gemcomatic Drum Lift. 65 lbs/Cf maximum density. 90 psi required air pressure. 3Ph/460V/60Hz electric. Serial #GGM23043. Built 2003.

Used 55 Cu Ft Paul O. Abbe Rota-Cone SS Double Cone Blender. Model RCB-66. 304 Stainless Steel. Non-jacketed shell 66" diameter x 25" straight side x 45 degree cones. 16" Diameter inlet, 10" diameter outlet. Shell driven by an approximate 10 HP, 3/60/480 volt gear motor, ratio 14.46 to 1. Mounted on a carbon steel frame. Serial # A45562. Built 1995.

Used 50 Cu Ft Stainless Steel Slant Cone Mixer. Manufactured by GEMCO. Model Gemcomatic Blender. Model Slant Cone Solids. Max Density 70 Lb/CF. Gemcomatic drum loader. Serial #GGM-24035. Built 2004.

New 25-75 Cu ft Stainless Steel Double Cone Mixer. Includes motor, drive, controls. Other sizes, materials and options available. Built to suit.

Used 45 cu. ft. SANITARY STAINLESS STEEL DOUBLE CONE BLENDER. 45 cu. ft. full capacity, 29 cu. ft. working capacity. 54 inch inside diameter x 16 inch with 24 inch cones. 14 inch inside diameter top inlet with lid. 8 inch bottom outlet with valve. 5 HP gear motor with 155 rpm output, 230/460 volt, 3 ph. Has Stearns brake on motor. To be reassembled on stand. Built by Paul O Abbe, compares to model RCB-29. Last used in a sanitary application, polished finish inside

Used 40 cu. ft. Double-Cone Mixer, stainless steel contact parts, manufactured by GEMCO, type 400, mixer driven by 7.5 HP motor, bar driven by 5 HP motor. Includes 24" diameter hinged top opening and 10" diameter outlet with valve. Mixer is unitized on heavy-duty frame, in working condition.

Used 30 Cubic Feet Stainless Steel Gemco Double Cone. Used 30 Cubic Feet Stainless Steel Gemco Double Cone Blender. Rated 125 lbs/cu.ft. 4" rotary airlock valve discharge. 5 HP, 1730 RPM, 230/460 V, 2 HP, 1730 RPM into gear 10:1 ratio, 1750 RPM, 2.62 HP into another gear. With control panel.

Used 30 Cu Ft Stainless Steel Slant cone blender. Mfg GEMCO. 12.5HP motor. Liquids bar. GEMCOmatic loader/unloader. Stands and controls.

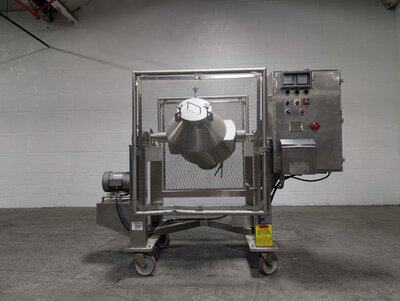

Used 5 Cu Ft Stainless Steel Double Cone Blender. Mfr GEMCO. Model CONV PORT BLNDR. Type Double Cone. Max density 70 Lb/Cu. Ft. Motor Hrs 98. Controls. Mounted casters. Serial #B92638. Built 1992.

USED 5 CUBIC FOOT WORKING CAPACITY STAINLESS STEEL DOUBLE CONE BLENDER BY PATTERSON KELLY COMPANY INC. (EAST STROUDSBURG PA.) SERIAL # 279744. FEATURES POLISHED STAINLESS STEEL SHELL FOR FOOD GRADE SERVICE, RATED FOR 200 LB. PER CUBIC FOOT PRODUCT DENSITY, 30" DIAMETER x 32" SHELL, 14" CHARGING PORT WITH REMOVABLE GASKETED COVERS, 6" DISCHARGE WITH PNEUMATICALLY OPERATED BUTTERFLY VALVE, 16" DIAMETER DUST LID WITH PNEUMATICALLY OPERATED ENGAGMENT, MOUNTED IN PAINTED FACTORY STAND WITH 29" HIGH EXTENSIONS YIELDING 44" DISCHARGE HEIGHT, GE 1.5 HORSEPOWER DRIVE DC DRIVE (SHUNT WOUND) 180 VOLT WITH GEAR REDUCER AND MAGNETIC BRAKE CHAIN DRIVING SHELL.

Used 2.5 Cu Ft Paul O. Abbe Rota-Cone Blender. Plastic Drum. 2.5 Cubic feet working capacity (3.9 total). 24" Diameter body with cones, 11" Diameter top charge & discharge port with cover. Driven by a 1/2hp, 3/60/230/460 volt, 1725 rpm motor. Mounted on carbon steel stands. Serial# A22078.

UNUSED 2.4 Cu Ft Paul O Abbe Hastelloy Rota Cone Blender. Model RCB-24. Hastelloy C-276. Bulk density 75 pounds a cubic foot, 150 grit internal finish, 22" diameter x 8" straight side x 11-1/2" cone x 12-1/2" cone. Internal rated FV. 8" diameter inlet with cover, 6" diameter outlet with manual butterfly valve. Vessel rotational speed 25 RPM. Internal spray nozzle. Blender driven by a 1/2 HP, 3/60/208-230/460 Volt, 1725 RPM. Includes a Nema 4X control panel. Mounted on a carbon steel base. Serial #A46535.

Used 1 cu ft stainless steel Thoro Blender System. Manufacturered by Patterson Industries. 1'6" diameter. 125 psig @275F stainless steel shell pressure. 125 psig @275F jacket pressure. Jacket Delta Therm Systems model KD331S, oil bath 3ph, 60Hz, 460V, 18 A, 12,000 W Cage and exhaust hood. Bauer model DP2.5 13.5 cfm, 200 psig air compressor. 5 HP, 3ph, 230-460 volts, 480 rpm. Serial #4412130-CA11, Built in 2012.

Used 16 qt 304 Stainless Steel Laboratory Double Cone Blender. Manufactured by Crossely Economy. Model 12". Approximate 0.5 cubic foot total volume. Maximum operating capacity 0.35 cubic foot. 4" Product charging door. 12" Diameter. Approximate 9" swing radius. Driven by 1/4 HP motor thru speed reducer, 40 to 1 ratio. Baldor speed controller. Serial # 96-3303.
