Colloid Mills

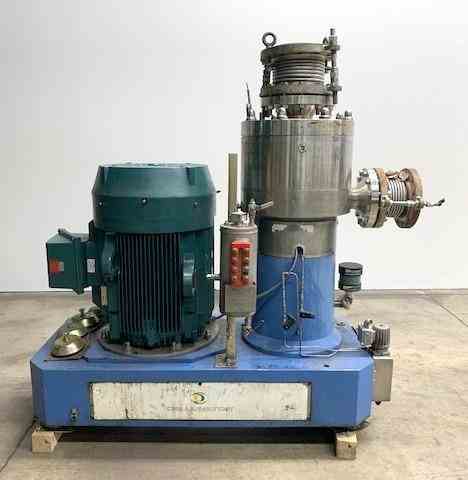

Unused 150HP IKA Works Colloid Mill Model MK 2000/50. Stainless Steel. Rotor speed 1265 RPM. Max throughput 80000L/hr. 150HP 460V/60Hz TEFC Motor. 8" Inlet, 6" outlet. Flowserve 6L mechanical seal reservoir. CS Base Mounted. Serial #2758-16. Dimensions 1641mm H x 1725mm L x 800mm W. 3500 kg. (Also see 16515 and 16516).

Unused 150HP IKA Works Colloid Mill Model MK 2000/50. Stainless Steel. Rotor speed 1265 RPM. Max throughput 80000L/hr. 150HP 460V/60Hz TEFC Motor. 8" Inlet, 6" outlet. Flowserve 6L mechanical seal reservoir. CS Base Mounted. Serial #2757-16. Dimensions 1641mm H x 1725mm L x 800mm W. 3500 kg. (Also see 16513 and 16515).

Unused 150HP IKA Works Colloid Mill Model MK 2000/50. Stainless Steel. Rotor speed 1265 RPM. Max throughput 80000L/hr. 150HP 460V/60Hz TEFC Motor. 8" Inlet, 6" outlet. Flowserve 6L mechanical seal reservoir. CS Base Mounted. Serial #2756-16. Dimensions 1641mm H x 1725mm L x 800mm W. 3500 kg. (Also see 16513 and 16516).

Used IKA Stainless Steel Colloid Mill Model MK 2000/50.

Unused 20 HP IKA Works Dispax Reactor / 3 Stage High Shear Inline Dispersing Mill. Type DR-2000/10. Model P010082. Maximum flow rate 35 gpm (8,000 liter). Tip speed approximately 23 m/s (4500 fpm). Maximum process pressure 16 bar, maximum process temperature 160 degrees C. 2" Inlet/outlet. Stainless steel. With pumps, interconnecting piping. Control panel with HMI and Allen Bradley PLC. On unitized base. Serial #1610.

USED GIFFORD WOOD VERTICAL COLLOID MILL MODEL W 500 V, SERIAL # 75.10341.0490-A. FEATURES DIRECT COUPLED 15 HORSEPOWER DRIVE BY RELIANCE, UL TAGGED FOR HAZARDOUS LOCATIONS, CLASS I, GROUP D, CLASS II, GROUPS F & G (TAG IS REMOVED BUT MOTOR MATCHES SISTER DRIVE, MFG CAN PROVIDE REPLACEMENT TAG), RATED FOR 20 TO 65 GPM BY MFG DEPENDING ON GAP SETTING, MANUALLY ADJUSTABLE GAP SETTING WITH POSITION INDICATOR, 2" FEED INLET WITH TRI CLAMP CONNECTION FOR DIRECT FEED TO MILL, MOUNTED ON 24 x 24 BASE PLATE WITH CASTERS. FORMERLY USED IN PHARMACEUTICAL SERVICE.

Used Premier colloid mill, 10 HP 575 volt, explosion proof motor.

Used IKA Dispax Reactor mixer emulsifier. Model DR2000/4. Stainless steel. DR/DRS multi stage high shear mixing unit. Mechanical seal with seal pot, on base, with 3.5 hp, 230/460 volt xp motor.

USED VERTICAL STAINLESS STEEL SANITARY COLLOID MILL BY GREERCO, MODEL W250 VB 96, SERIAL # 0339-3904MO. FEATURES SANITARY PHARMACEUTICAL GRADE CONSTRUCTION, JACKETED MILL HOUSING, 1" INLET WITH STAINLESS STEEL HOPPER MOUNTED FROM TRI CLAMP CONNECTION, MANUALLY ADJUSTABLE ROTOR-STATOR GAP WITH 1/1000" GRADUATIONS WITH MECHANICAL POSITION INDICATOR IN WINDOW, ROTOR-STATOR IN VERY GOOD CONDITION WITH NO SCARING, THREE WAY VALVE ALLOWS DISCHARGE OR RECIRCULATION BACK TO FEED HOPPER FOR CONTINIOUS PROCESSING, MILL IS BELT DRIVEN BY 2 HP MOTOR BY BALDOR, RATED BY UNDERWRITTERS LABS FOR USE IN HAZARDOUS LOCATIONS UNDER CLASS 1/GROUP D, CLASS II/GROUPS F & G, 230/460/3 PHASE VOLTAGE, 60/50 HZ @ 3450 RPM, VARI SPEED VIA WOODS AC FREQUENCY DRIVE (NEMA 4X INDOOR USE ONLY RATED) MOUNTED ON FACTORY BASE AND WIRED FOR 230/1 PHASE SERVICE. FORMERLY USED IN BRANDED COSMETIC LAB SERVICE.

Used 2 HP Charlotte Colloid Mill. Manufactured by Chemicolloid Labs, Inc. Model SD2. Serial #2631R.
