Used 2200 Ton York Water Chiller Model OM-238A7. Driven by steam turbine. Chiller Load 2000 Tons. Cools 4000 GPM of Water from 49F to 37F and 8000 GPM from 85F to 94.7F. Compressor shaft 1902HP. Approx. evaporator temp 32.5F. Approx. condenser temp 99.8F. Cooler Liquid Press. Drop 34.6ft Water.Condenser Water Pressure Drop 15.0ft. Design Tube Side Fouling Factor Cooler 0.0005. Design Tube Side Fouling Factor Condenser 0.00075. Control Power Requirements: Electric 120V/160Hz/1ph and Pneumatic 4.S CFM at 60 to 100 PSIG. Aux Oil Pump Power Requirements: Compr. 3.0HP 460V/60Hz/3ph. Aux Water Requirements Oil Cooler: Compressor IS.O GPM 11.7ft P.D. Entering Water Temp – BS.0F. Tube Side Foul Factor 0.001. Murray backpressure steam turbine model 141UV3. Serial # 5327. 1325 HP 260 PSIG throttle/ 5 PSIG exhaust. Steam pressure at throttle: 260psi at 500F. Back pressure at throttle: 6.5psi. Turbine operating speed: 5000 RPM. Rotation direction: Counterclockwise. Handvalves: 2. Good working condition. Installed in 1995. It has been preserved (refrigerant laid up in nitrogen and water side still wetted to prevent corrosion) and should start up without any issues. Documentation and drawings available.
Used 800 Ton McQuay package chiller. Model PEH126BCBB. Water cooled. Serial# 58L0075B with evaporator rated 1920 USGPM. Condenser rated 2400 USGPM. 1690 lbs of R-134a refrigerant. 3/60/575 volt Microtech 200 controls. 39348 hours. Serial# 58L9102600. Built 1997.
Used 330 Ton chiller skid. Manufactured by York. Model YCAS0330. 7.5HP motor. R-22 refrigerant. Skid mounted. Overall 48'L x 9'H x 9'W. 40000 lbs. Serial #RNSM021403. Built 2008.

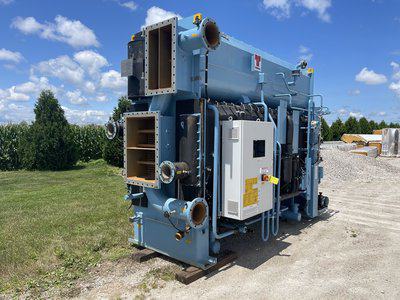

Used 276 Ton Vapor Absorption Chiller. Manufactured by Thermax. Model TAC L5 E1. Capacity 276 Ton/970 kW. 575V/60Hz/3ph. 200 total hours (commissioning). LiBr Absorption media. Max H2O inlet 116PSIG@ 914F. Includes pump, VFDs, HMI and sensors. Serial #291. Built 2019.
USED TRANE MODEL RTAA 110 TON AIR-COOLED CHILLER. R-22 REFRIGERANT. 460 VOLT, 60 HZ, 3 PHASE. Built 2002, S/N: U02J06805.
USED TEMPEST 60 TON CHILLER. 400 PSI CS SHELL, 150 PSIG COPPER TUBES. MODEL LTWC-60F. R507A REFRIGERANT. (2) 125 HP COMPRESSORS. ALLEN BRADLEY CONTROLS. SERIAL #2177-1204. BUILT 2013.
Used 50 Ton Multi Stack Chiller. Manufactured by MultiStack. Modeal MSS050XCHGEAA. 460/60/3. 25HP compressor. (4) 50 Ton @ 40F. R-410A. Serial #AI 09-113.

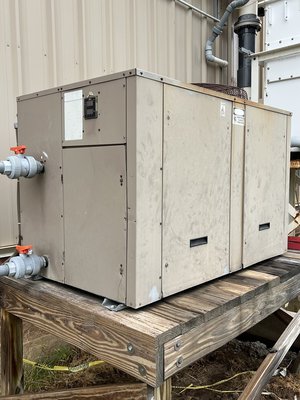

Used Air cooled chiller. Manufactured by Drake. Model VPACT6S6-T4-Z. Serial #D13H1157. Built 2014.
