New and Used Stainless Steel Kettles and Processors for Sale from 501 gallons and up

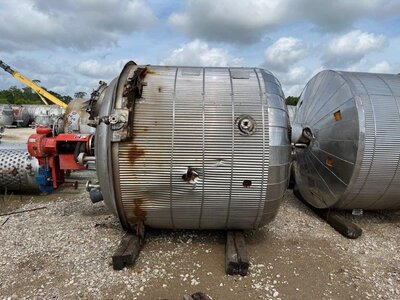

Used 8000 gallon 316L Stainless Steel processor. Manufactured by Alloy Fabricators. Shell rated 15PSI@210F. 304L SS 2" half pipe jacket rated 85PSI@210F. 7.5HP agitator. (3) Sidewall baffles. Dished Heads. Leg mounted. Dims 10'6"Dia x 10'8"T/T. Weight 12970lb. Serial #1-132A. Built 1991.

Used 6400 gallon jacketed processor. Manufactured by Alloy Fabricators. Internal rated 15PSI@210F. Coil rated 85PSI@335F. Dished heads. Leg mounted. 3 hp agitator. 9'Dia x 12'T/T. 10750lb. (4) Sidewall bafflers. Serial #1-172A. Built 1991.

Used 3000 gallon Stainless Steel pressure wall processor. Manufactured by Feldmeier. Jacket MAWP 150PSI@175F. Dome Top, flat bottom. Top entering agitiation. Adjustable baffle. (2) Spray balls. Ladder. Mounted on (6) Adjustable legs. National Board #142. Serial #I-1137-07. Built 2008.

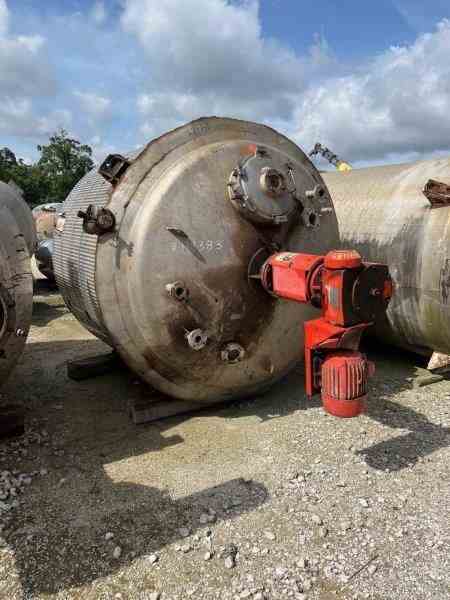

Used 2200 gallon 316L Stainless Steel agitated processor. Manufactured by Alloy Fabricators. Shell rated 15PSI@120F. 304 SS 2" half-pipe jacket rated 85PSI@-5F. 15HP agitator. (4) Sidewall baffles. Dished Heads. (4) Lug mounted. Dims 7'6"Dia x 5' T/T. weight 6250 lb. Serial #1-128A. Built 1991. Past use Charging Vessel

Used 2200 gallon 316L Stainless Steel processor. Manufactured by Allot Fabricators. Shell rated 15PSI@120F. 304 SS 2" half-pipe jacket rated 85PSI@120F. 10HP agitator. (4) Sidewall baffles. Dished Heads. (4) Lug mounted. Dims 7'Dia x 6' T/T. weight 5040 lb. Serial #1-131A. Built 1991. Past use Condensation Vessel

Used 2200 gallon 316L SS processor. Manufacturer Alloy Fabricators. Shell rated 15PSI@120F. 304 SS 2" half-pipe jacket rated 85PSI@120F. 10HP agitator. (4) Sidewall baffles. Dished Heads. (4) Lug mounted. Dims 7'Dia x 6' T/T. weight 5040 lb. Serial #1-130A. Built 1991. Past use Condensation Vessel

Used 2200 gallon 316L Stainless Steel processor. Built by Alloy Fab. Shell rated 15PSI@120F. 304 SS jacket rated 85PSI@120F. 10HP agitator. (4) Sidewall baffles. Dished Heads. (4) Lug mounted. Dims 7'Dia x 6' T/T. weight 5040 lb. Serial #1-172A. Built 2000. Past use Condensation Vessel

Used 1500 gallon Stainless Steel jacketed kettles. Manufactured by Mojonier. Side and bottom steam jacketed. Top mounted 7.5HP motor with sweep agitation. Dome top, slope bottom. Spray ball. Top Manway. Side bottom outlet. Leg mounted. (2) Available.

Unused 1000 Gallon Sanitary Jacketed Kettle. Manufactured by Lee Ind. Model 1000 U7S. Internal rated 60 PSI/FV @ 250F. Jacketed rated 100 PSI @ 338F. Driven by 7.5 HP with sweep/scrape mixer. (3) spray balls for CIP and flush mount outlet valve. 6" Flange to accommodate higher speed mixer (not included). Serial #126868-1. National Board #14986. Built 2022.

Used 3000 gallon Stainless Steel Liquefier mix tank. Manufactured by Mueller. Dish top and bottom. 7.5HP off-set top-mounted 4-blade agitator. Bottom mounted Scott Turbon mixer. Model BMS7-100 mixer. C-type mixer element belt driven with 100HP motor. 18" Top entering manway. Nozzles top: 8", 6", (3)3". 3" Center bottom outlet. Mounted on (4) adjustable SS legs. Dims 190"OAH x 84"D x 126"Straight side. Scott serial #7189.

Used Lee 1000 gallon stainless steel kettle. Serial # B7485A. National Board # 5431 The top of kettle is single walled and the bottom of the kettle is jacketed. Entire unit has a stainless steel outer covering. The jacket is rated for 90 psi @ 332 f. Kettle has a hemispherical bottom with anchor style sweep agitator and baffles for increased agitation. The agitator is driven by a hydraulic motor. The kettle is 72" in diameter with a 48" straight side and a 31" dish depth. The overall height with agitator is 136". The top has a 1/3 hinged top. The jacket has 2" threaded fittings. The interior kettle has a two 4" center sanitary discharge and 4" sanitary fitting in wall of hemispherical bottom.

Used 1000 gallon stainless steel jacketed kettle. Jacketed mix tank. Sweep type mixer/agitator (shaft needs repair). Approx. 58" dia x 8' straight side, 12'6" overall height. 2" Center bottom outlet. Previously used in sanitary application (Suntan Lotion).

Used 800 gallon 304 Stainless Steel Jacketed kettle. Manufactured by Dairy Craft. Model 75J-2074. 48" straight side x 76"D. Top mounted bridge for agitator. Dome top, cone bottom. CIP spray ball. Baffle. Top ports: 4", 2", 1.5". Bottom ports: 1.75", 2", 1". No motor, drive, agitator present.

Used 750 gallon stainless steel triple motion jacketed kettle. Manufactured by Lee. Model 750D10S. (3) Variable speed drives power High speed Tree mixer and High shear Homogenizer/Disperser/Emulsifier and a sweep mixer with scraper blades. Jacket rated 90PSI. National Board #4320. last use sanitary personal care facility.

One used 750 gallon Lee Kettle w/ 1.5 HP propeller. Jacket rated 90 psi @ 300 deg. F., Vessel rated 5 psi @ 250 deg. F., Model 750D, Serial A-4739-D, built 1977, Nat. Board # 2077.

USED 600 GALLON DISHED BOTTOM JACKETED KETTLE. MFR A&B PROCESS. PRODUCT CONTACT SURFACES 316L STAINLESS STEEL. CENTER BRIDGE WITH SINGLE LIFT TOP COVER, OPPOSITE SIDE OPEN WITH SAFETY GUARDING. HEAVY DUTY DUAL MOTION 10 HP, 22 RPM WIDE AND SIDE SWEEP AGITATION WITH 7.5 HP, 37 RPM COUNTER ROTATING PROPELLERS. 4" FLANGE OUTLET WITH TWO AIR OPERATED BALL VALVES. 150 PSI ASME JACKET. DUPLEX 2205 STAINLESS STEEL HEAT TRANSFER SURFACE. INTERNAL STEAM SPARGER RING. (3) MOUNTING LUGS. SERIAL #1411190301A. NATIONAL BOARD #2284. BUILT 2014.

Unused 2000L (528 gallon) Stainless Steel cook kettle with agitator. Manufactured by DC Norris. Steam Jacket MAWP 100PSI@338F. 96"OAH x 54.5"ID. Side entering orbital agitation. Top feeder. 2-piece hinged lid with safety grate. Temperature probe. Controls with HMI. (3) Leg mounted. Serial #N3958. National Board #53. Built 2020. Designed for soup application.
