Sulfur Recovery Units (SRU’s) for Sale

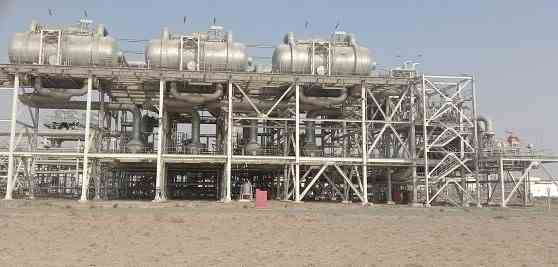

350 TPD SRU designed to take acid gas from amine units as feedstock. The unit uses the Claus process to covert 95% of inlet H2S to element sulfur product of 99.9% purity (dry basis). In the three-bed (3 reactors) SRU process, part of the acid gas is burnt in the main combustion chamber to produce SO2. The gas stream from the combustion chamber is then passed through a series of condensers and reactors to produce liquid sulphur, which is then collected in the sulphur pit and degassed to remove H2S before sending to pastillation unit. The sulphur pastilles from the pastillation unit are stored in silos before sending for export by trucking. The unit was built for a service life of 25 years. After pre-commissioning, it has never been operated. No hydrocarbons or chemicals entered into the unit. Currently the unit is being maintained in preservation mode in a dormant state and ready to start.

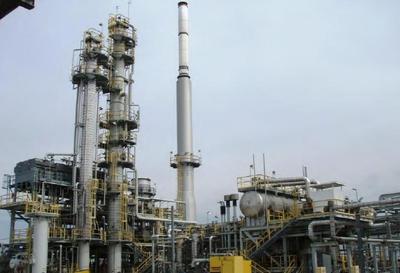

Used 48 TPD Sulfur Recovery Unit (SRU) built in 2005. The SRU is designed to convert primarily H2S acid gases from the Amine Regeneration Unit, Poly Unit, and sour water stripper of a petroleum refinery to elemental sulfur. This is based on controlled combustion with air in which H2S is oxidized to form sulfur dioxide (SO2), elemental sulfur, water vapor, and heat. A catalyst is used to facilitate the continued conversion of SO2 to elemental sulfur in this process. The Tailgas Treating Unit essentially scrubs the combustion gases from the Claus process of SO2 before being emitted to the atmosphere.
