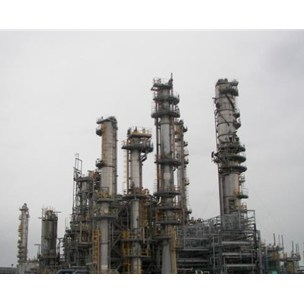

Vinyl Acetate Monomer (VAM) Plant - 300,000 TPY
Stock # 353
Capacity 300,000 TPY
Products Vinyl Acetate Monomer (VAM)
Sold

Overview

Using advanced acetoxylation process, this Vinyl Acetate Monomer (VAM) Plant reacts together ethylene, acetic acid and oxygen in a fluidised bed reactor (silica catalyst with precious metal actives) to produce VAM, the major by-product is carbon dioxide. Gaseous VAM is scrubbed from the reactor loop using acetic acid. The VAM is then separated from the acetic acid and other minor impurities in a multi-column distillation train. Carbon dioxide is removed from the process.

Major Equipment

This 300,000 TPY Vinyl Acetate Monomer (VAM) Plant for Sale at Phoenix Equipment comes complete with the following equipment:

Reaction vessel
Reactor cyclone system
Catalyst transfer vessel
Distillation column
Centrifugal compressor
Decanter
Thermosyphon re-boiler
Packed column
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1999
Year Shut
2013
Capacity
300,000 TPY

For additional information, visit the Resource Center
