Sodium Chlorate Plant - 20,000 TPY

Stock # 209

Capacity 20,000 TPY

Products Sodium Chlorate, NaClO3

Sold

View Similar Items Sell Similar Equipment

Overview

Used 20,000 TPY Sodium Chlorate plant built in 1991. This plant produced sodium chlorate of purity >99%. The plant used electrolysis process and sodium chloride as raw material. The plant is well maintained and operated till 2008. Maximum operating current of 57 KA, with approximate current density of 2.1 kA/m2.

Major Equipment

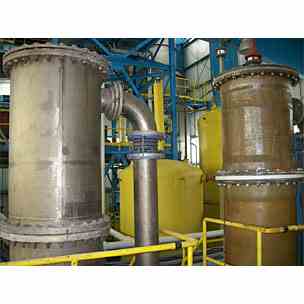

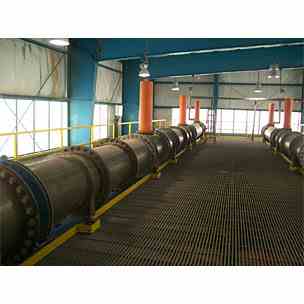

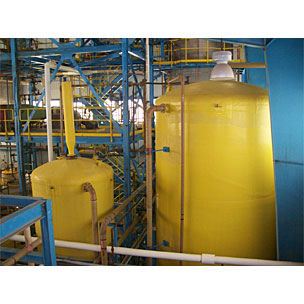

Operating electrolyzers (6) Cells per electrolyzer, 57 anodes per cell, with anode area of 25 m2/cell (12) Reactors (2) Liquor storage tank (1) Mother liquor tank (1) Crystallizer (1) Crystal Separation, Drying, Conveying, Storage Hydrogen Scrubbing Brine System Boilers Air Compressors Demineralization system Cooling ststem Sulfate removing system
