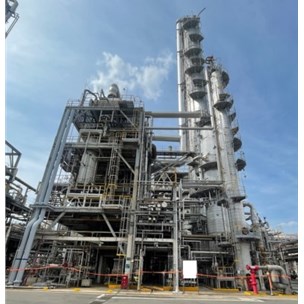

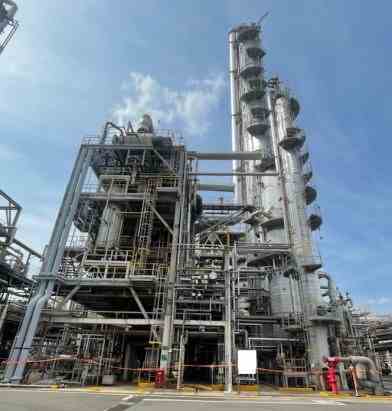

Styrene Monomer Plant - 500,000 TPY

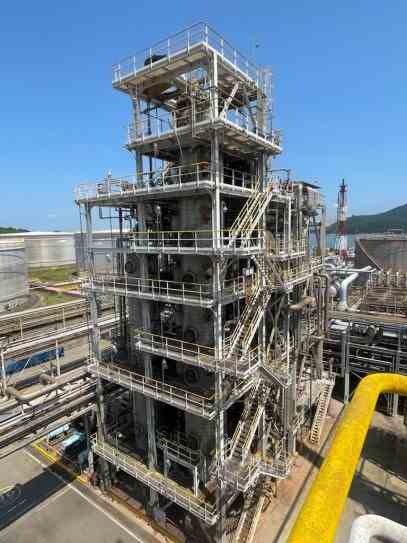

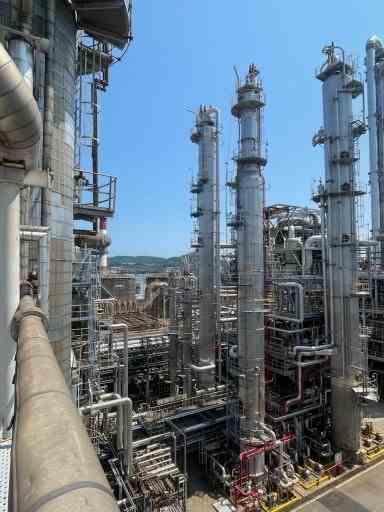

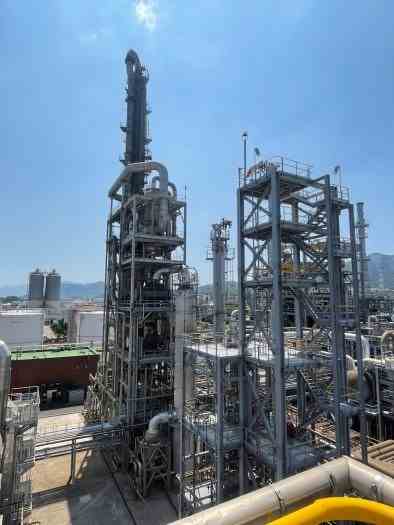

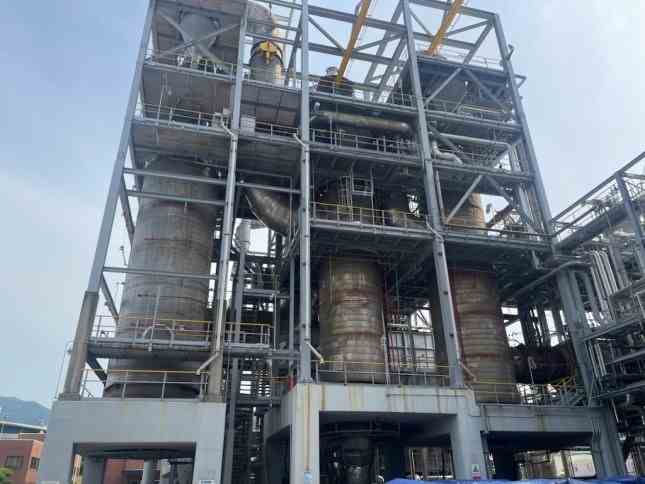

Other Views - click image for larger view
Styrene Monomer Plant - 500,000 TPY Styrene Monomer Plant - 500,000 TPY Styrene Monomer Plant - 500,000 TPY Styrene Monomer Plant - 500,000 TPY

Styrene Monomer Plant - 500,000 TPY

Stock # 617
Capacity 500,000 TPY
Products Styrene Monomer

Overview

The plant includes one (1) ethylbenzene (EB) production unit and two (2) styrene monomer (SM) production units. Each unit has reaction and distillation sections. SM Unit 1 has operation capacity of 200,000 TPY; SM Unit 2 operation capacity 300,000 TPY. In the EB reaction, vapor ethylene and liquid benzene are fed into alkylation reactor filled with zeolite catalyst. In the SM reaction, EB and high temperature steam are fed into dehydrogenator with iron(III) oxide catalyst. Unused catalyst is available at additional cost.

Major Equipment

- Alkylator
- Transalkylator
- Fresh benzene treater
- Dehydro benzene treater
- Benzene distillation column
- Lights removal column
- Ethylbenzene distillation column
- Steam superheater
- Dehydrogenator
- Styrene monomer reactor
- Air cooler
- Off-gas compressor
- EB/SM splitter
- Styrene monomer distillation column
- Ethylbenzene recovery column
- Benzene-Toluene splitter
Share
SPECIFICATIONS RESOURCES
Year Built 1989
Year Shut
Capacity 500,000 TPY
Plant Design/Technology Lummus Technologies
Raw Material Benzene and Ethylene
Products Styrene Monomer
Subcategory Styrene Monomer (SM) Plants
