Hydrogen PSA Unit - 1,534 Nm3/hr (1.3 MMSCFD)

Stock # 576
Capacity 1.3 MMSCFD
Products Hydrogen

Overview

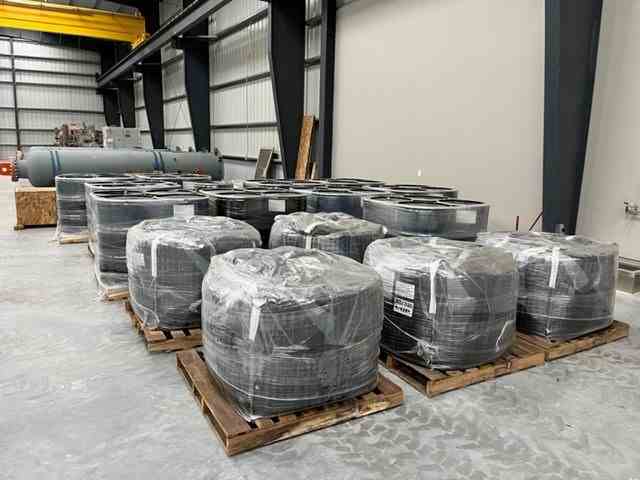

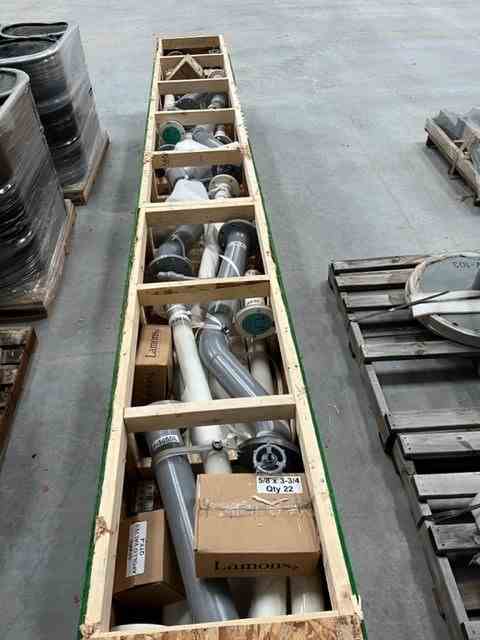

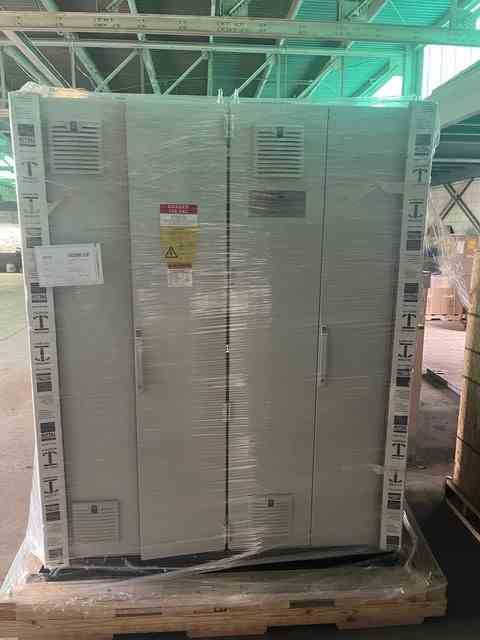

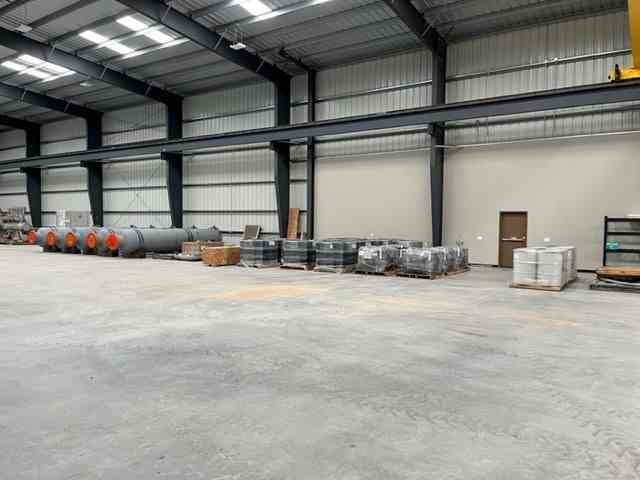

New, never installed 1,534 Nm3/hr (1.3 MMSCFD) Hydrogen PSA Unit using Honeywell UOP Polybed process to generate 99.99% hydrogen from feed gas (2.05 MMSCFD, 209.3 psig at 100 °F, containing 75% of hydrogen) through 5-bed pressure swing adsorption vessels. Hydrogen recovery rate from feed gas 84.5%. Plant footprint 50 ft X 17 ft. Allen Bradley 1756 PLC control system. Full technical documents available. Two (2) years of operation spare parts available. Unused adsorbent available. All the equipment is in stock and ready for quick shipment.

Major Equipment

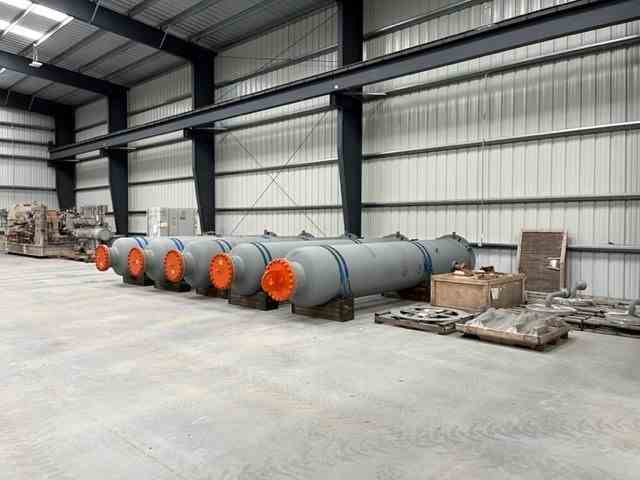

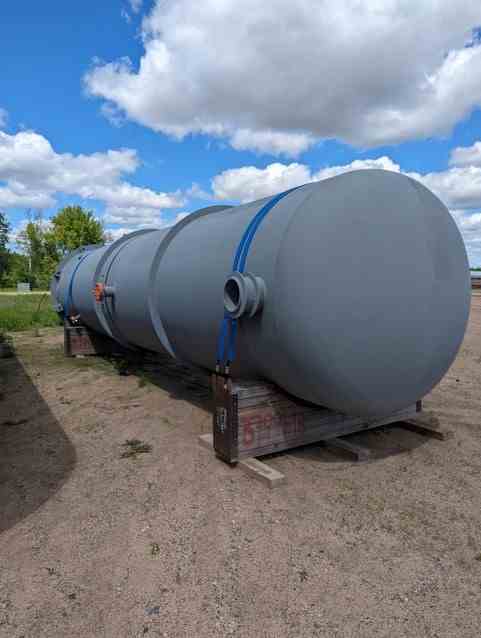

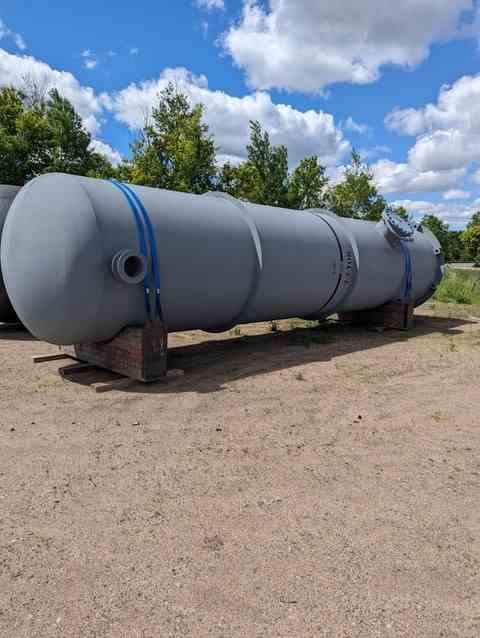

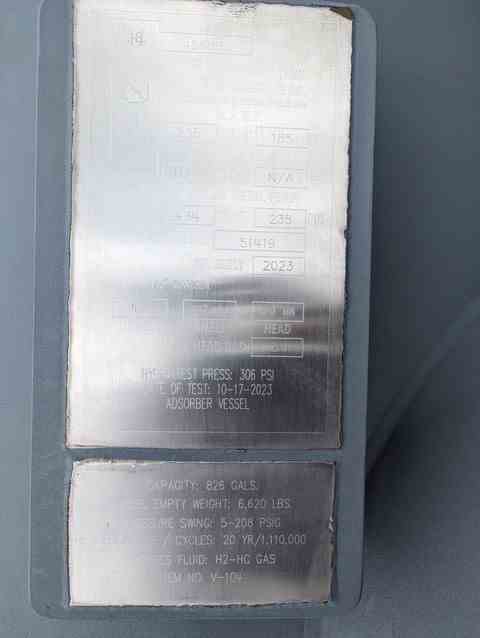

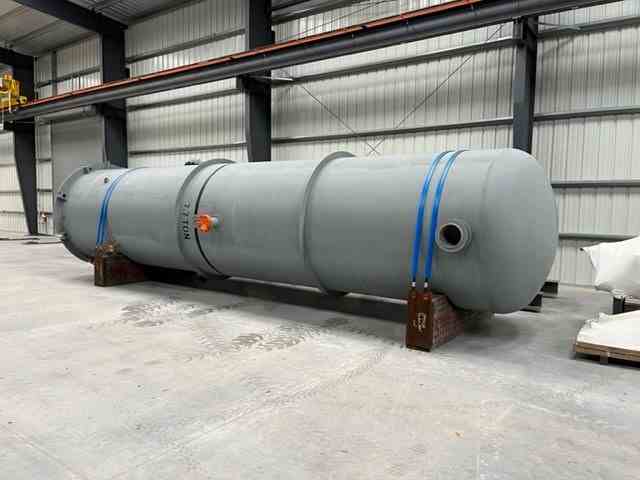

PSA Adsorber Vessels (235 psig @ 34°F / 186 °F)
Tail Gas Drum (70 psig @ 34°F / 186 °F)

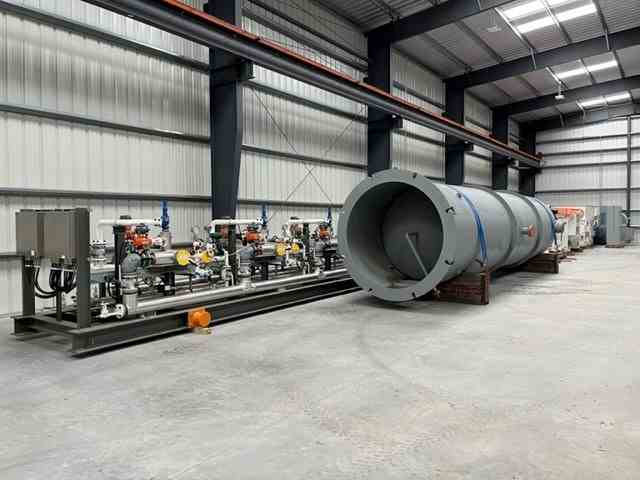

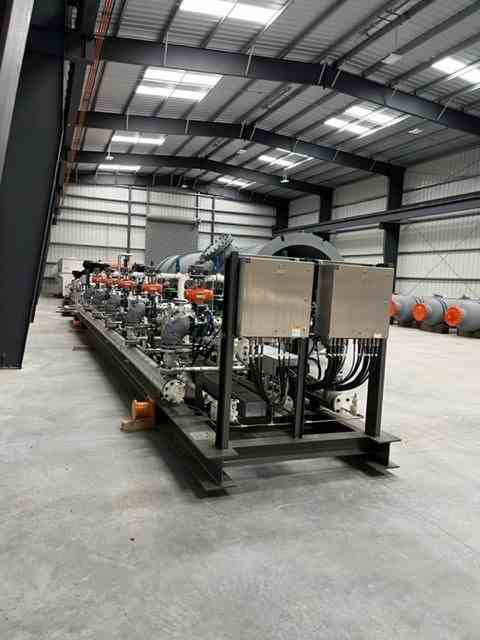

PSA Skids (235 / 70 psig for tail gas, 29 psig for flare header @ 186 °F)
Share
SPECIFICATIONS RESOURCES
Year Built
2023
Year Shut
Capacity
1.3 MMSCFD
