FDY Nylon 6,6 Spinning Plant - 5,000 TPY
Other Views - click image for larger view
FDY Nylon 6,6 Spinning Plant - 5,000 TPY
Stock # 262
Capacity 5,000 TPY
Products Nylon 6,6, Polyester
Sold

Overview

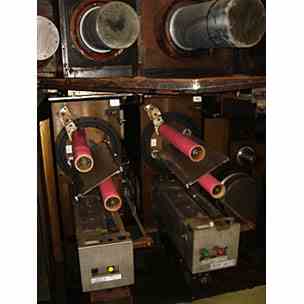

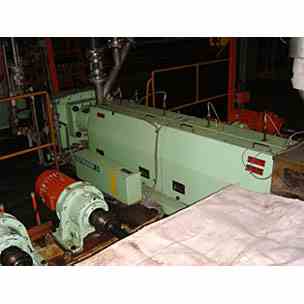

The FDY (Fully Drawn Yarn) Nylon 66 & Polyester spining lines produce 5000 tons per year at 960-1400 Dtex. The processes have CTD (Continuous Tower Dryer) or SSP (Solid State Polymeriser) with Spinning/DSD (Direct Spin Draw) area. Extrusion & Quenching has 1. 3x Nylon Lines, 3 Extruders each Extruder with 2 Pack Boxes (4 Packs/Spinnerettes each), IE 8 Thread Lines per Extruder total 24 Thread Lines. Extruder has 5 Heating Zones and is Non Vented. 2. 1x Nylon Line Converted to Polyester, 1 Extruder with 2 Pack Boxes (4 Packs/Spinnerettes), IE 8 Thread Lines in Total. Extruder has 5 Heating Zones and is Non Vented. 3. Quench Chambers all have Monomer Extraction. Spinning/Wind Up has 1. Spin Finish Applicator 2. Pre-Draw Area, 2 Sets of Godets 3. Hot Draw Area, 3 Sets of Godets 4. Relax Zone, 1 Set Godet 5. Intermingling 6. Winders with Bottom Feed, Auto Change Over, 2 Positions each with 2 for Change Over, Approx Speed for 3000m/min (Depending on Product)

Major Equipment

The 5,000 tpy nylon 66 & polyester spinning lines come equipped with the following equipment:

Hoppers
Bag Filters
Tanks
Crystallizers
Silos
Dryers
Demisters
Heat Exchangers
Coolers
Blowers
Extruders
Pack Boxes
and Much More
Share
SPECIFICATIONS RESOURCES
Year Built
1995
Year Shut
2009
Capacity
5,000 TPY
