Recycled Oil Refinery – 2,300 BPD

Stock # 574
Capacity 2300 BPD
Products Base oil, white oil, asphalt flux, ultra-low sulfur diesel

Overview

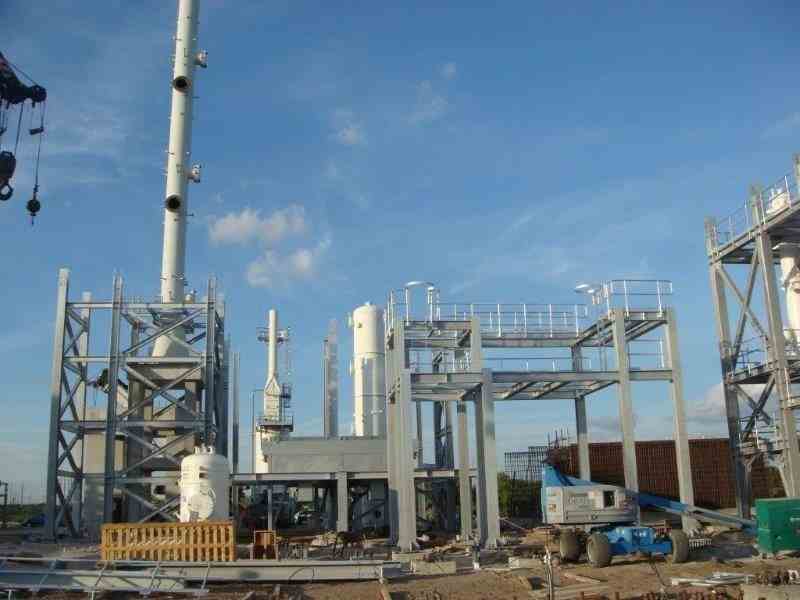

Unused mini refinery designed to process recycled oil to produce base oil, white oil and other products such as asphalt flux and ultra-low sulfur diesel. The base oil and white oil products are the raw materials to produce lubricants. The refinery includes three process units: (1) Preflash atmosphere distillation, (2) vacuum distillation unit, (3) hydrofinishing unit. Thermal oxidizer for emission control is available. The plant is partially installed. Most equipment is still in storage. All the equipment is never used.

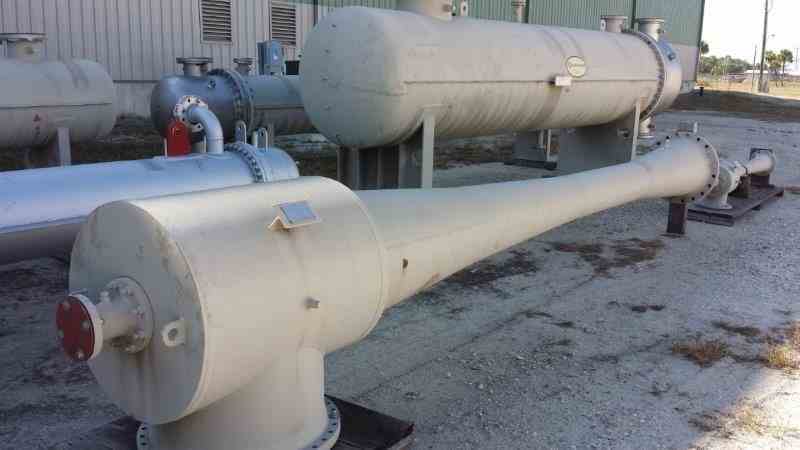

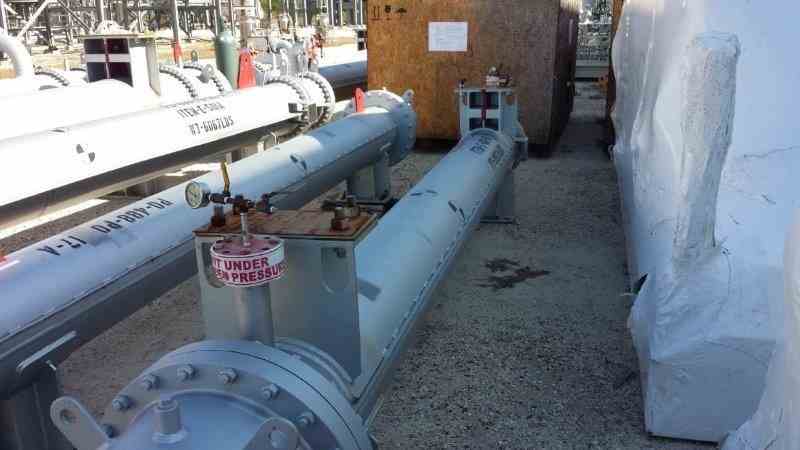

Major Equipment

• Preflash column (50 psig @500°F, SA516, 470” L x 84” ID)

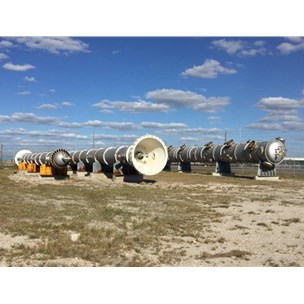

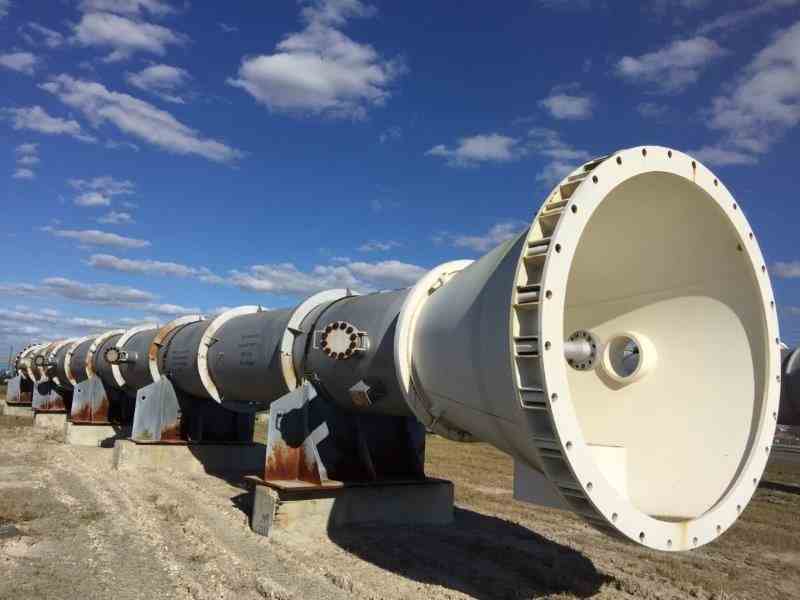

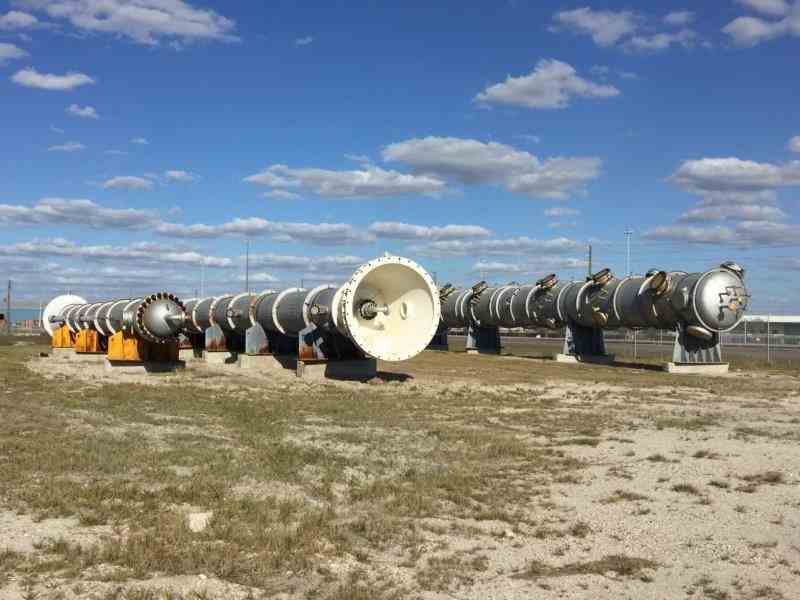

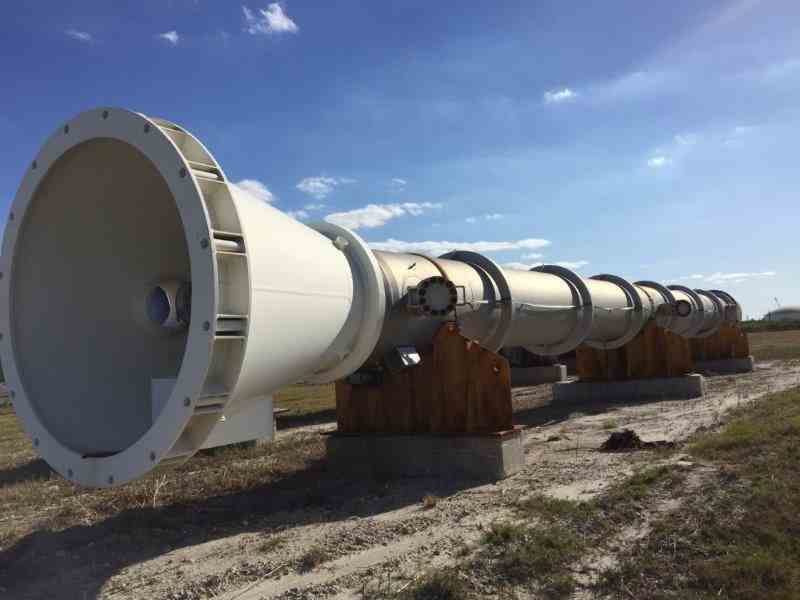

• Vacuum deasfalting column (50 psig @764°F, SA516, 1629” L x 186” Dia)
• HLF stripper columns (50 psig @692°F, SA516, 937” L x 43.5” ID)
• Hydrofinishing reactor #1 (2370 psig @750°F, SA387, 950” L x 42” ID)
• Hydrofinishing reactor #2 (2285 psig, @780°F)
• Stripper (90 psig @720°F, SA516, 514” L x 60” ID)
• Amine absorber (2235 psig @400°F, SA516 , 474” L x 58” Dia)
• Amine regenerator (50 psig @337°F, SA240, 487” L x 19” ID)
• Dryer (50 psig @700°F, material SA516, 289” L x 30” ID)
• Hydrogen recycle and make-up compressor
• Furnace (Feed Heater) 11.47 MMBTU/hr

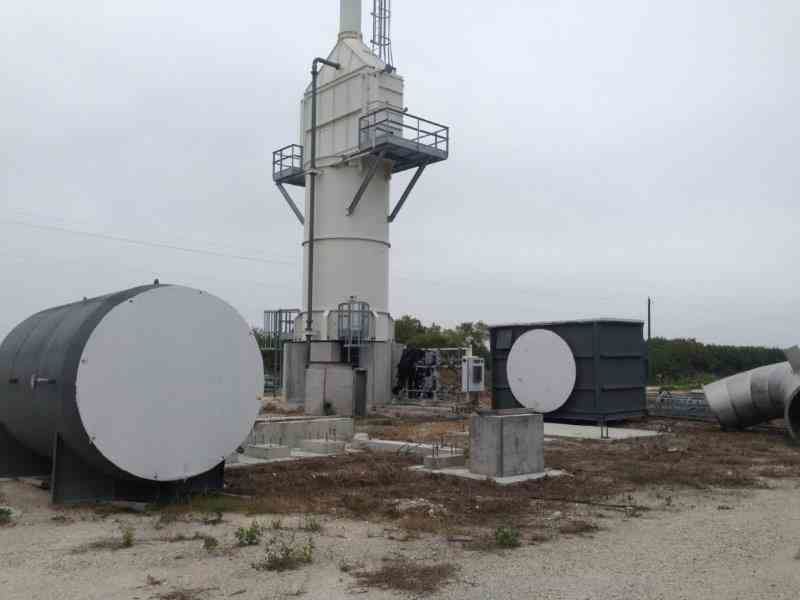

• Unused thermal oxidizer + HRSG system (for additional cost)
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2012
Year Shut
Capacity
2300 BPD
